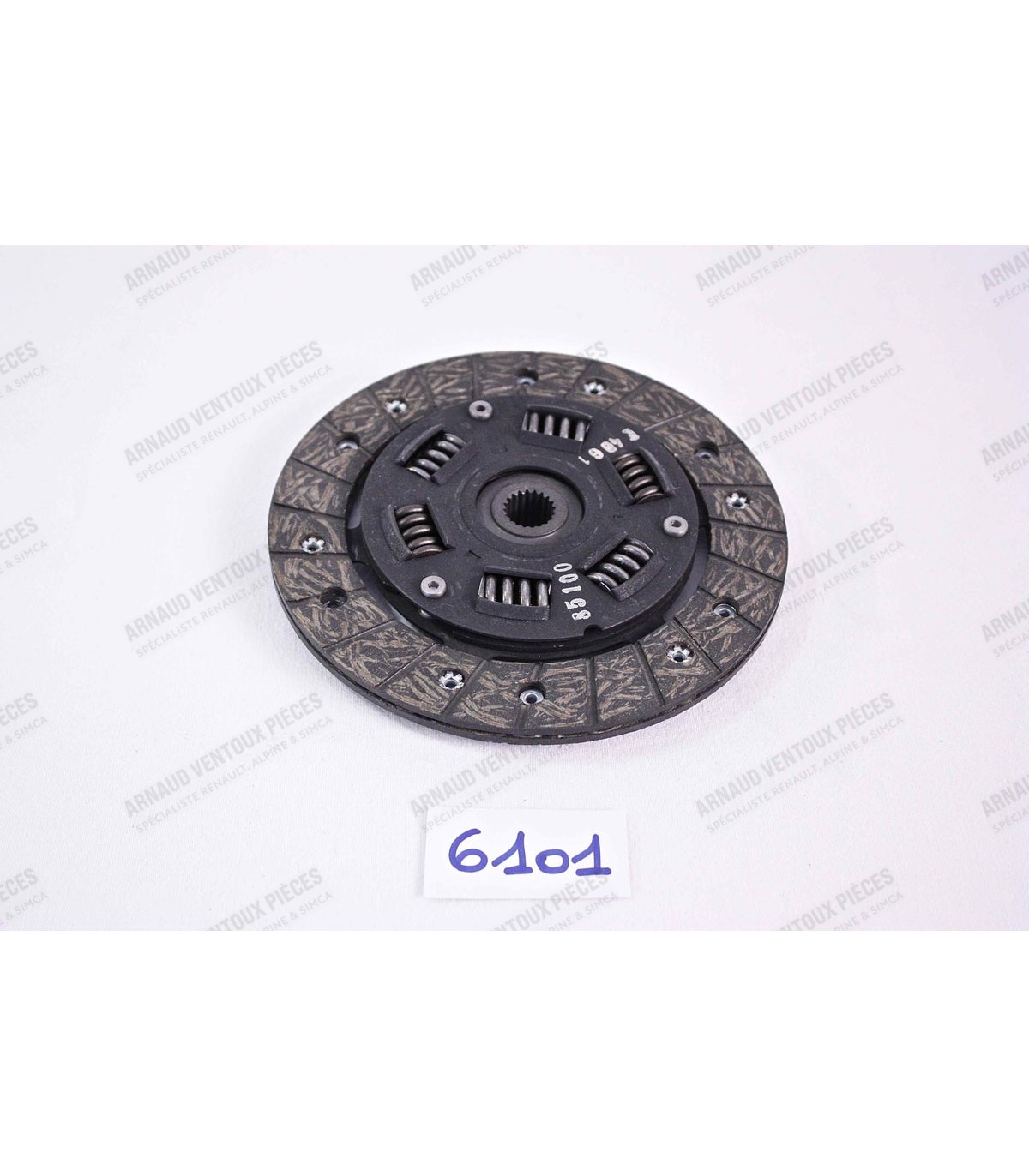

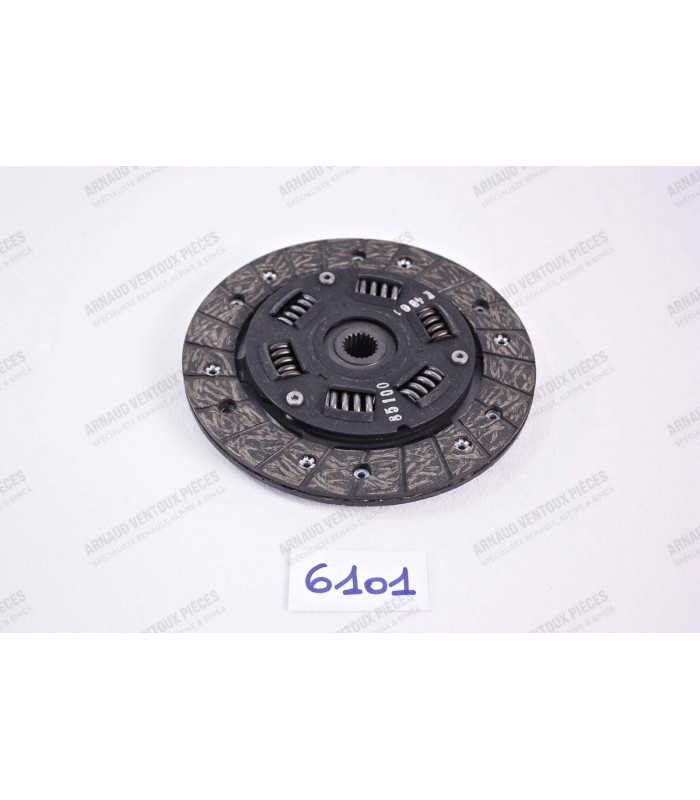

Clutch disc - Ø170mm (20 splines) - R12.TS / A110.V85

Need 2 pieces

The sets are supplied with the following components:

• Liners (x4)
• Pistons (x4)
• Rings (x12)
• Pin (x4)

Dimensions of the different parts:

• • Liner bore diameter: Ø 73mm
  • Liner flange or top diameter (D): Ø 87.78mm
  • Liner base diameter (A): Ø 78.41mm
  • Overall height including skirts of cylinder liners (C):134mm
  • Height from top of cylinder liner to base seal area (E):94.87mm
  • Shaft dimensions:Ø 20x62mm (Cirlip-free mounting)
  • Ring thickness:1.75mm / 2mm / 4mm (Fireproof/Sealing/Scraper)
  • Base seal type:Paper gasket

Piston mounting direction: an arrow drawn perpendicular to the axis The piston ring gap is located on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).

It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120° intervals.

Suitable for the following gearboxes:

• 5-speed gearbox A110 / A310.4: Gearbox 365-00 / 365-02 / 365-05 / 365-10 / 365-20 / 365-33
• Gearbox R12 / R12G / R15 / R17 / R17G: Gearbox 352 / 365 / 395
• 5-speed gearbox R5 Alpine: Gearbox 385
• Original Renault Part Number: 7703087068 / 7700539769 / 7703087011

The differential output shaft seals Ø 36x54x11mm (located in the differential nut ref. 5114) are interchangeable, whether they have a metal cage or not, and with or without felt; this does not require any modification to the differential nuts.

Suitable for:

• Box 336
• Box 352
• Box 364-05 / 364-06
• Box 365-00 / 365-02 / 365-05
• Box 365-10 / 365-14 / 365-20 / 365-24 / 365-28 / 365-29
• Box 395
• Box 385 / NG5

Suitable for:

• R8 (688 and 689 Engine) / Caravelle / Floride S
• R4 / R5 / Estafette (Cleon Engine and Billancourt Engine)
• R12 / Estafette (1289cc Engine) / Matradjet
• A110.V85 / GT4

Bearing Dimensions:

• Dimension: Stock dimension (Standard)
• Journal Diameter (A): Ø 46.00mm
• Housing Diameter (B): Ø 49.89mm
• Bearing Width (C): 24.50mm (x4)
• Bearing Width (C): 19.50mm (x6)
• Bearing Thickness (D): 1.92mm
• Smooth, lug-type bearings with grease holes (x5) and grooves (x5)
• Bearing material: Bi-metal
