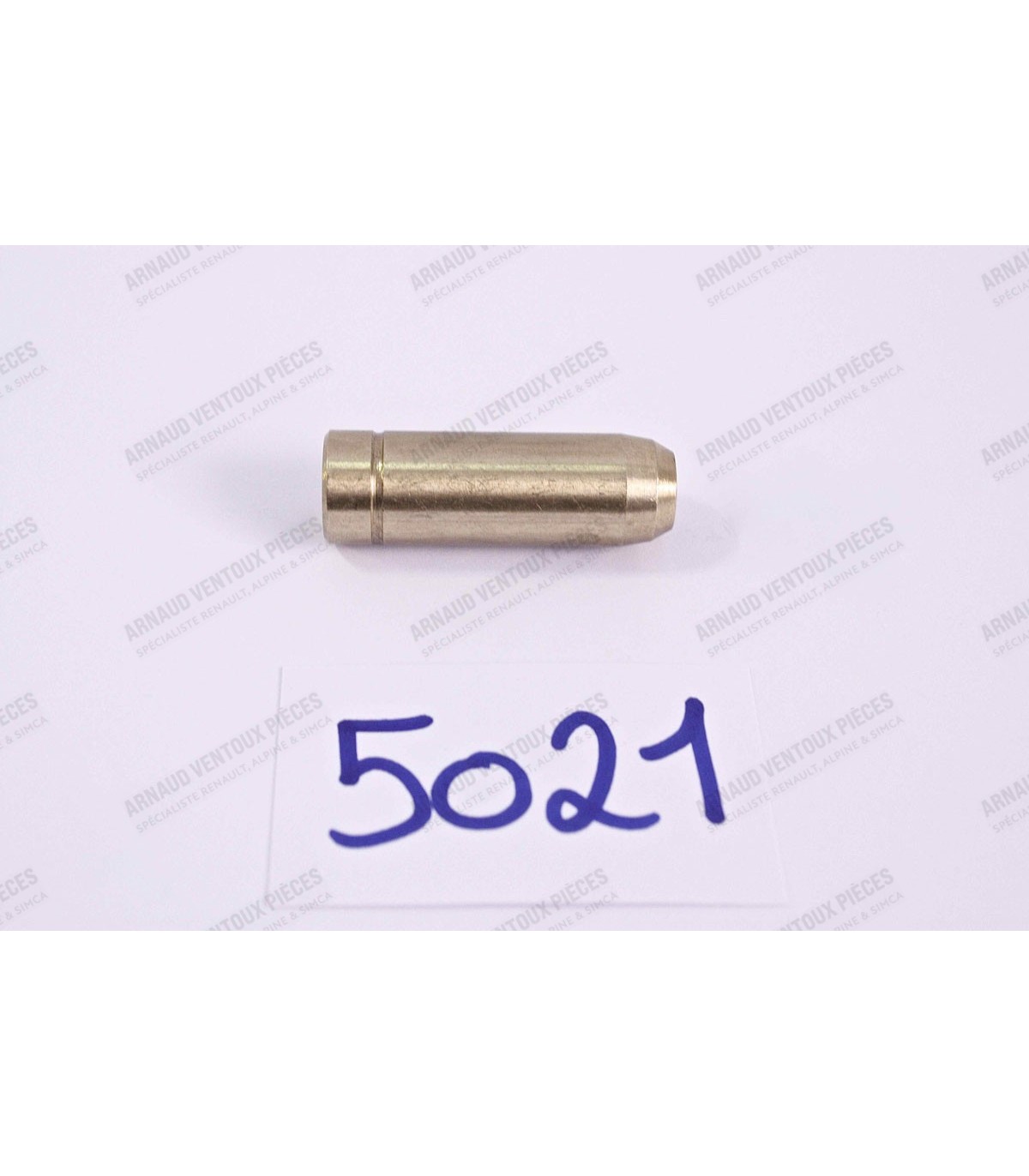

Bronze intake valve guide - Ø 8x13.20x40mm (Repair size)

• Delivery in France only
• Thinner for use with paint reference: C021 - C022 - C023 - C015 - C016

• Valve stem bore diameter: Ø 7.70 mm
• Seal inner diameter (grips the guide): Ø 10.90 mm
• Seal outer diameter: Ø 13.20 mm
• Seal metal part height: Ø 6.50 mm
• Overall height: 10 mm
• Sold in kits of 12 pieces
• Renault / Alpine OE part numbers: 7812103200 / 7701349529 / 7700733464 / 7700737124

4L: Box / 354 / HAO-146 / HAO-163 / HAO-191

R5: Box 385 / NG5

Synchro Characteristics:

• • Outer cone with angle (A):6°40'
  • The outer friction faces or sectors (x15) are different: x3 small and x2 large
  • Synchro with a lug on the face opposite the main lugs of the synchro (See diagram)
  • Renault OE Ref: 7700557051

Suitable for 2nd gear synchros for the following gearboxes:

• • • 330 Gearbox: 330- ...
    • Box 336: 336- ...
    • Box 352: 352-30 / 352-31 / 352-33 / ...
    • Box 353: 353- ...
    • Box 364: 364- ...
    • Box 365: 365-05 / 365-10 / 365-14 / 365-20 / 365-24 / 365-33 / ...
    • Box 385: 385-10 ...
    • Box 395: 395-02 / 395-03 ...

We recommend carefully disassembling and identifying the synchros (9° or 6°40' angle, friction sector, etc.) in each gearbox, as we have observed some mix-ups.

The gearbox numbers on the identification plate are not the most reliable indicators for identification.
