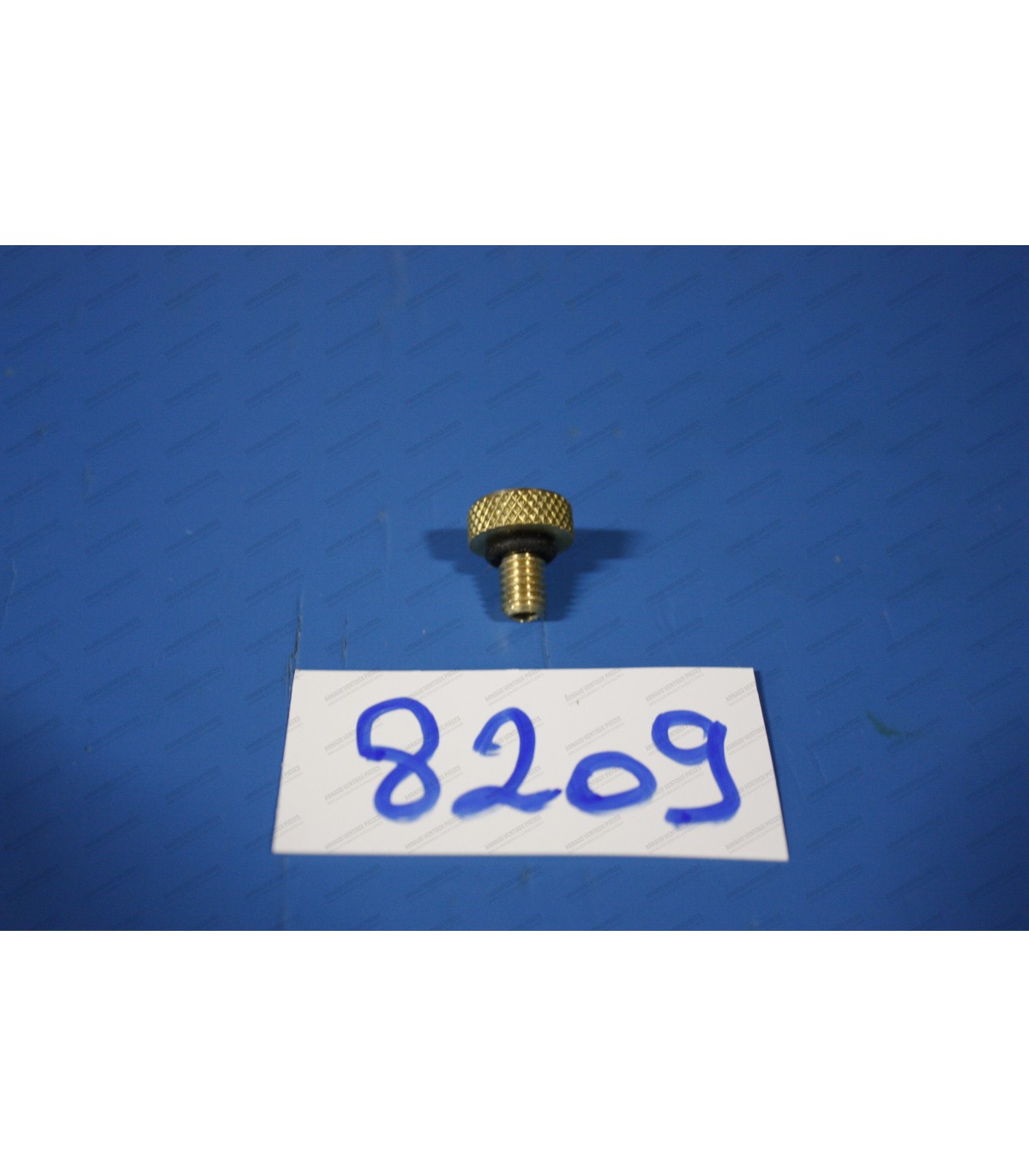

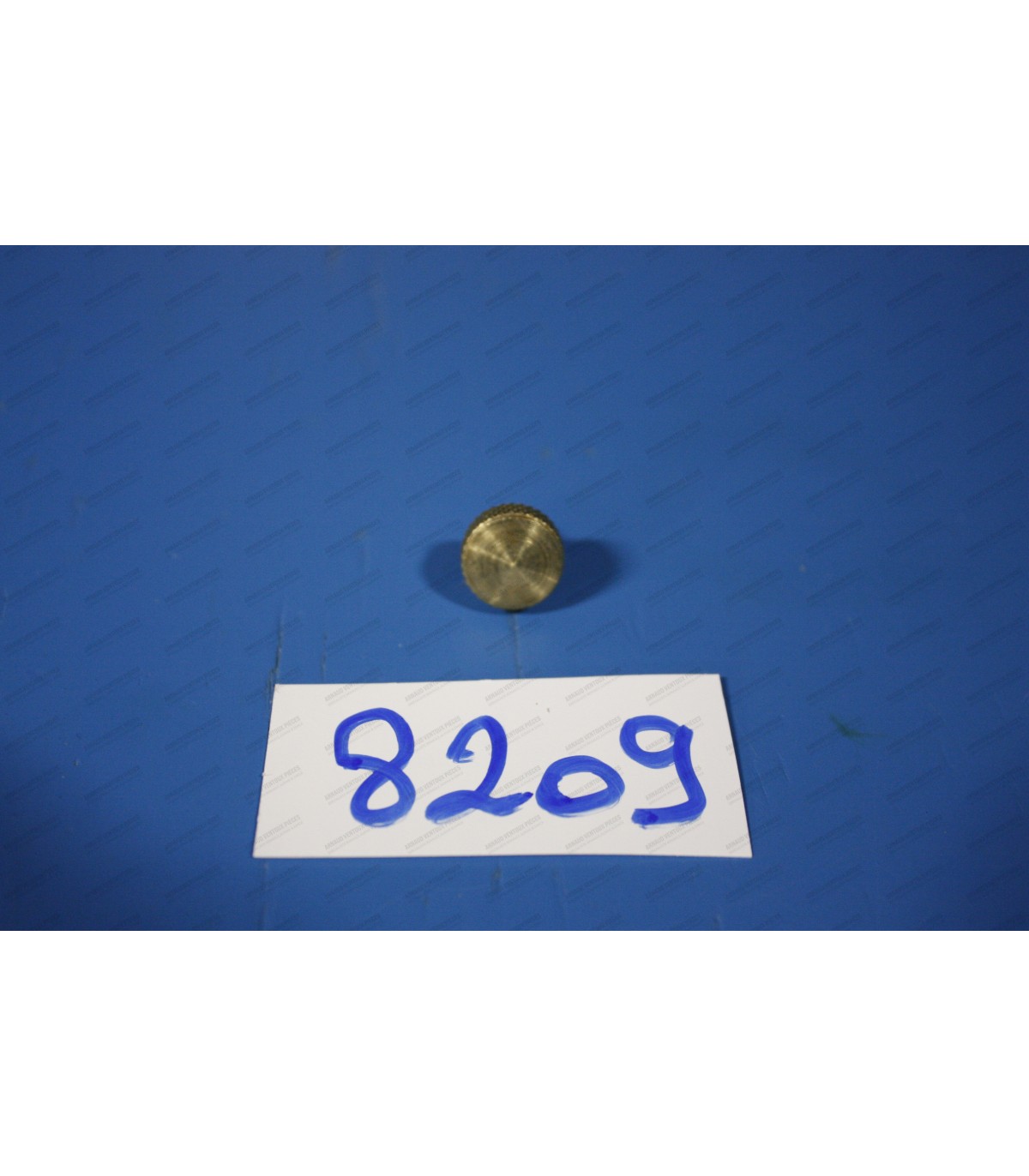

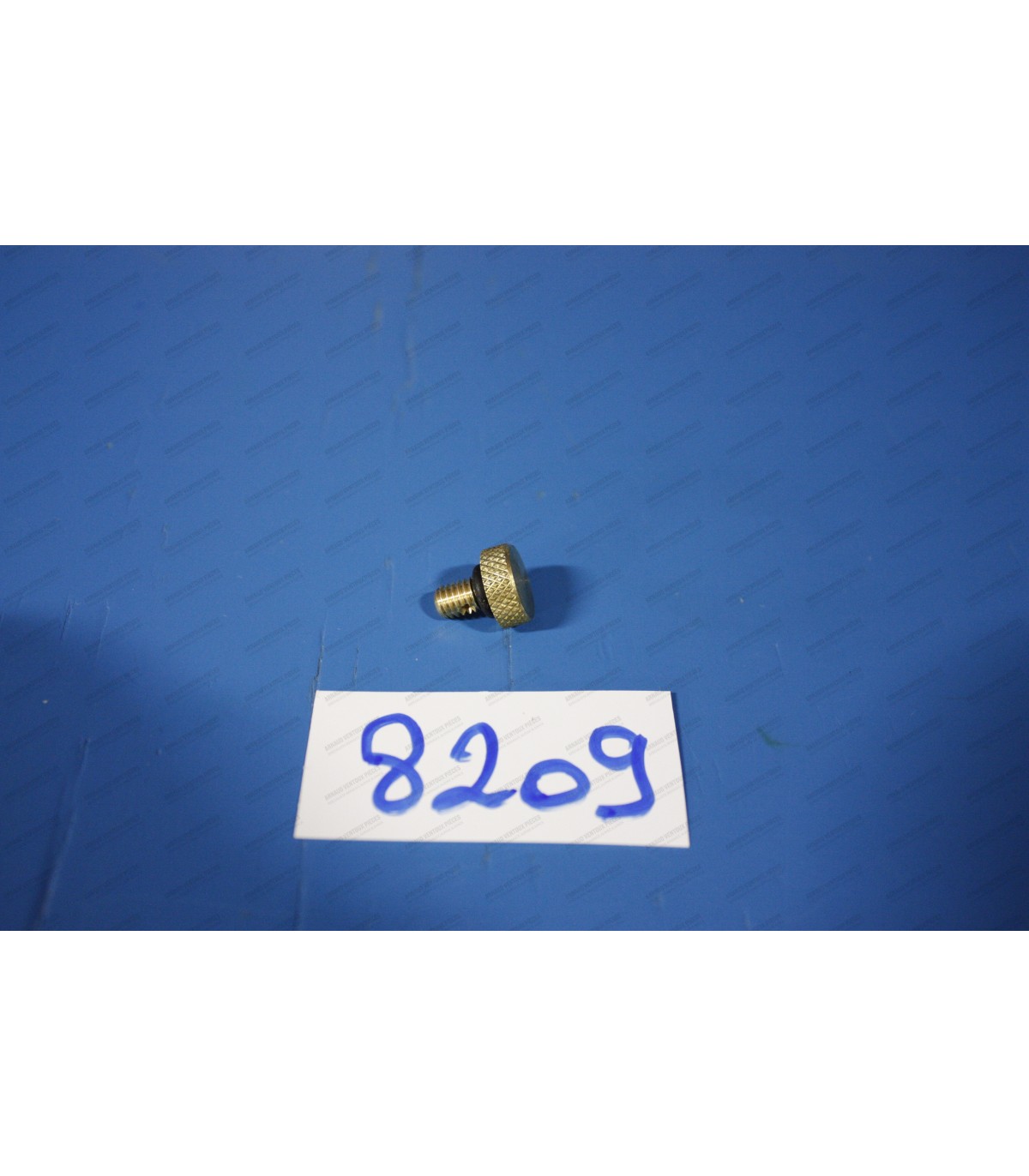

Brass bleed screw Ø5x100

Suitable for:

• R4 /4L : Front Brake
• R5 : Front Brake
• R5 Alpine Atmo (1223) and Alpine Turbo (122B): Front Brake
• R8: Big Brake Installation Front Brake
• R12 (All models) : Front Brake
• R15 / R16 / R17 (All models): Front Brake
• A110 : Big Brake Installation Front Brake
• A310.4 / A310 V6 (Pre-1980) : Front Brake

Brake pads with a retaining stop (B in the diagram) must be installed with this stop positioned towards front (direction of wheel rotation)

• Air intake trumpet/trumpet filters for WEBER 45DCOE carburetor
• Mesh filters made of two layers of stainless steel mesh, with an intermediate filter layer ensuring optimal engine protection
• Easily washable and removable
• Suitable for trumpets with an outer flange diameter between Ø 60mm and 70mm
• Filter inner diameter: Ø 58mm
• Filter outer diameter: Ø 80mm
• The filter length when installed on a 63mm trumpet is 82mm (overall)
• Can be mounted on the entire assembly cones from the AVP catalog

The entire kit is made up of 3/8" -24UNF fittings

This kit is made up of the following copper pipes:

- from the brake master cylinder to the Front Right wheel

- from the brake master cylinder to the Front Left wheel

- from the brake master cylinder to the distributor or rear three-way connection

- from the three-way connection or rear distributor to the right rear wheel

- from the three-way connection or rear distributor to the left rear wheel

Indoor/outdoor alu-cardboard sheath

• Kit to be used with a coil of primary resistance between 2.5 and 3.5 ohms
• Compatible with coils AVP4708 and AVP4715
• Compatible for Ducellier igniter with an internal body diameter of Ø 58.8mm
• Not suitable for an igniter with externally adjusted breakers (different plate fixing points)
• 12V electronic ignition kit, with magnetic trigger which allows the elimination of the breakers and the capacitor
• Notice included
• Supplied with 3 screws for fixing the plate
• Instructions included
