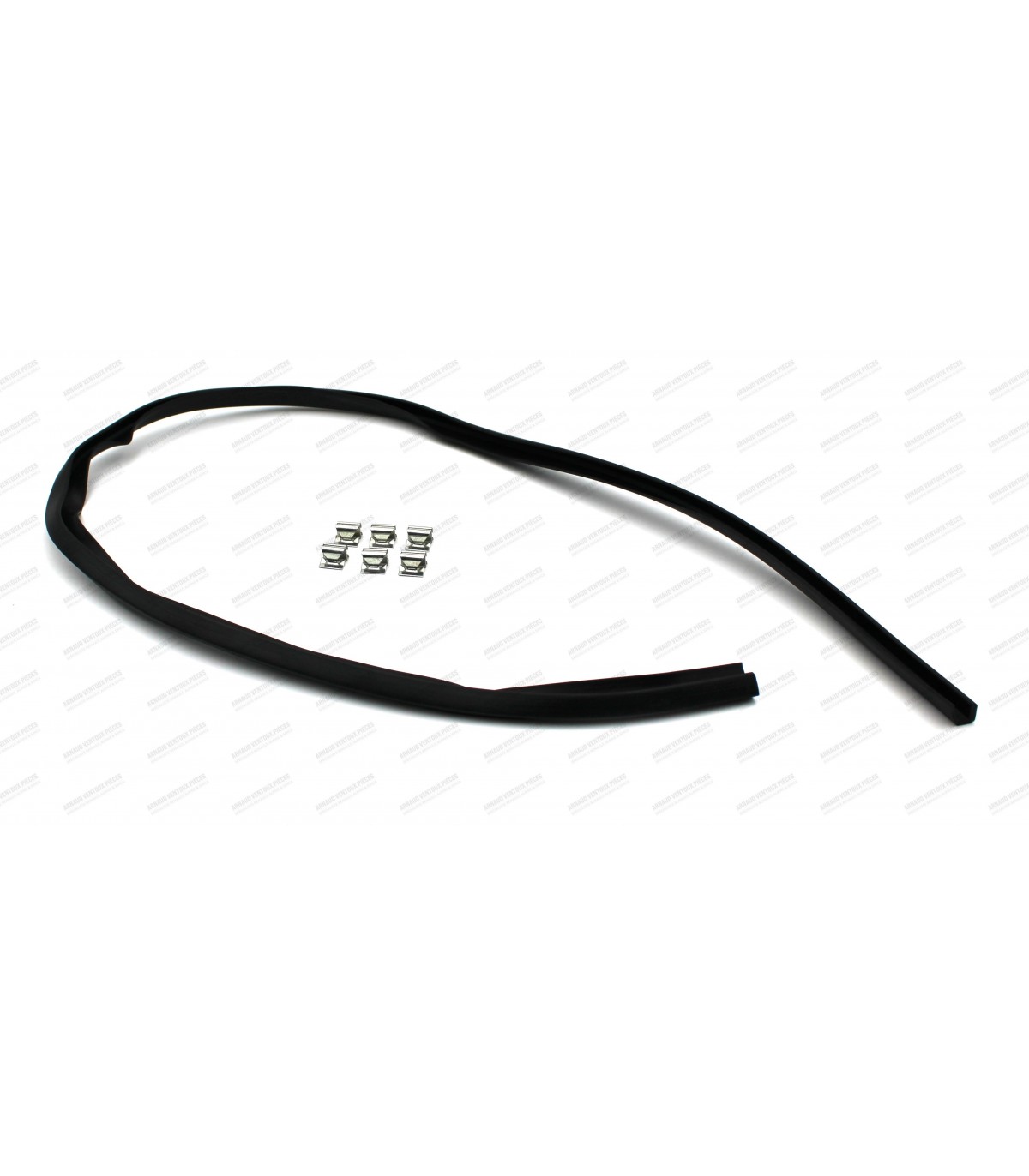

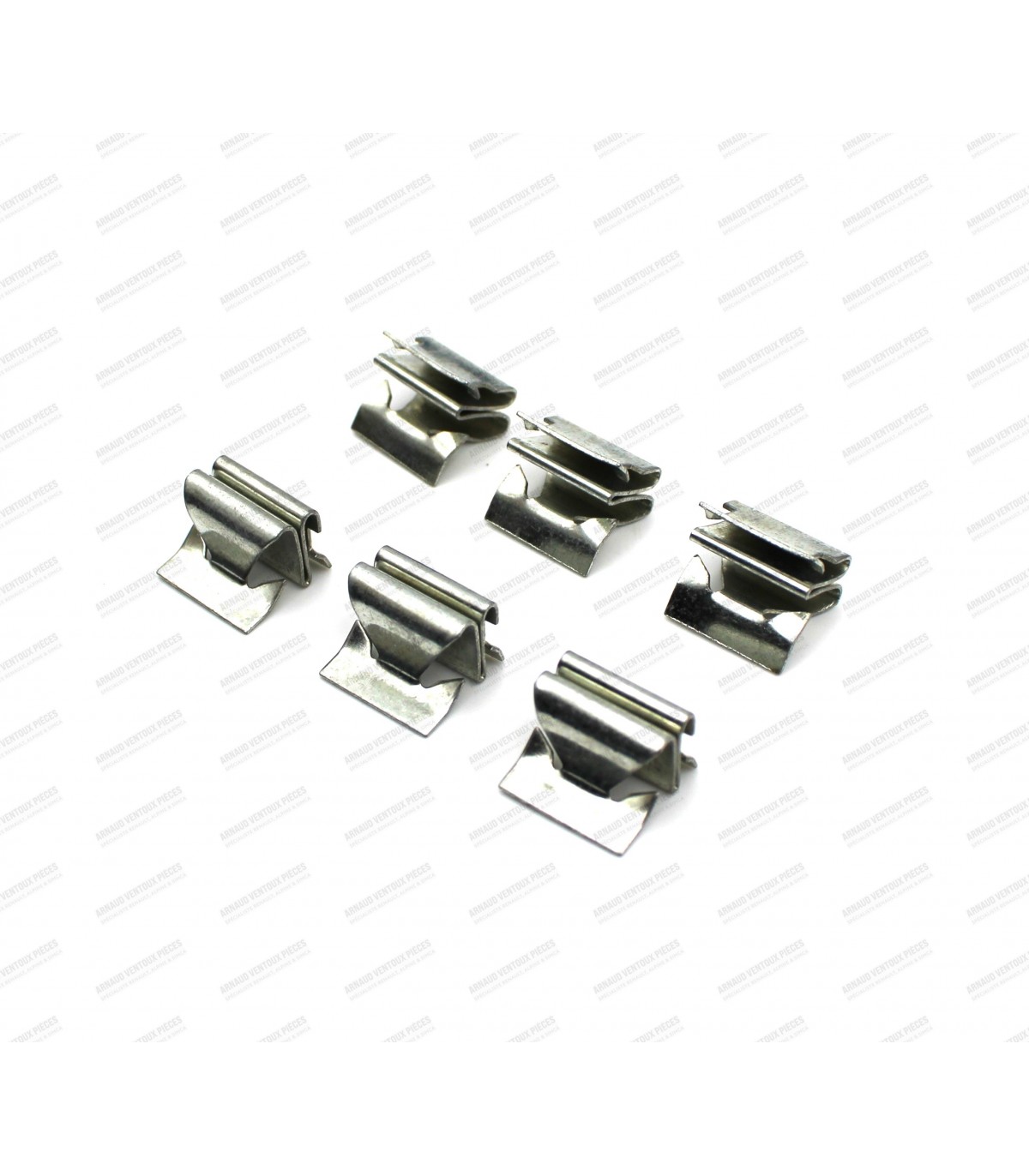

Front bonnet seal (Sold with X6 clips) - ref 5545946

• The hose outlet is oblique: Ø 3/8" - 24UNF(Ø 9.52mm)

Suitable for:

• 4CV: Front Left Brake (From early 1956 to late 1956)
• Dauphine / Floride : Front Right Brake
• R8 (Drum Brake): Rear Right Brake

Delivered without fuses

Dimensions: Lg 92mm x W 47mm x H 27mm - Fixing distance: 60mm

• This ignition harness consists of4 spark plug wires and 1 coil wire.
• We would like to point out that our spark plug wires are made with Ø 7 mm silicone wires, black in color, with a standard copper core (wire material), which indicates that they do not have interference protection.
• If the vehicle is equipped with sensitive electronic accessories, such as Radios, tripmasters, monitors, or certain electronic ignition kits may cause interference or disruption.

The sets are supplied with the following components:

• Liners (x4)
• Domed Pistons (x4)
• Rings (x12)
• Pin (x4)
• Circle clips (x8)

Dimensions of the different parts:

• • Liner bore diameter: Ø 77mm
  • Liner flange or top diameter (D): Ø 96mm
  • Liner base diameter (A): Ø 82.50mm
  • Overall height including skirts of the cylinder liners (C):143.50mm
  • Height from the top of the liner to the base seal area (E): 92.50mm
  • Shaft dimensions: Ø 21x65mm (Cirlip-free mounting)
  • Ring thickness:1.75mm / 2mm / 4mm (Fireproof/Sealing/Scraper)
  • Base seal type: Paper gasket

Piston mounting direction: an arrow drawn perpendicular to The piston pin is located on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).

It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120° intervals.
