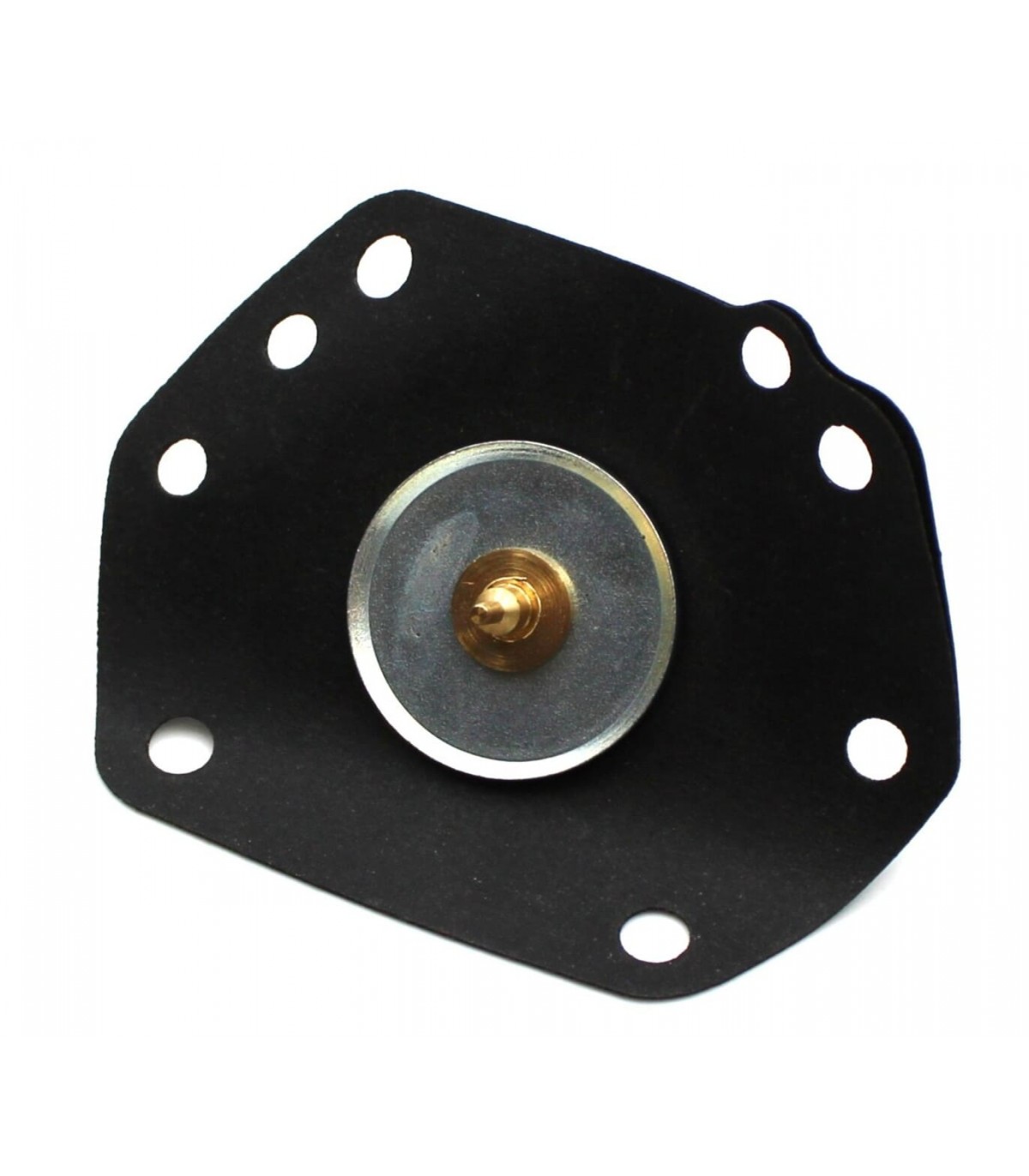

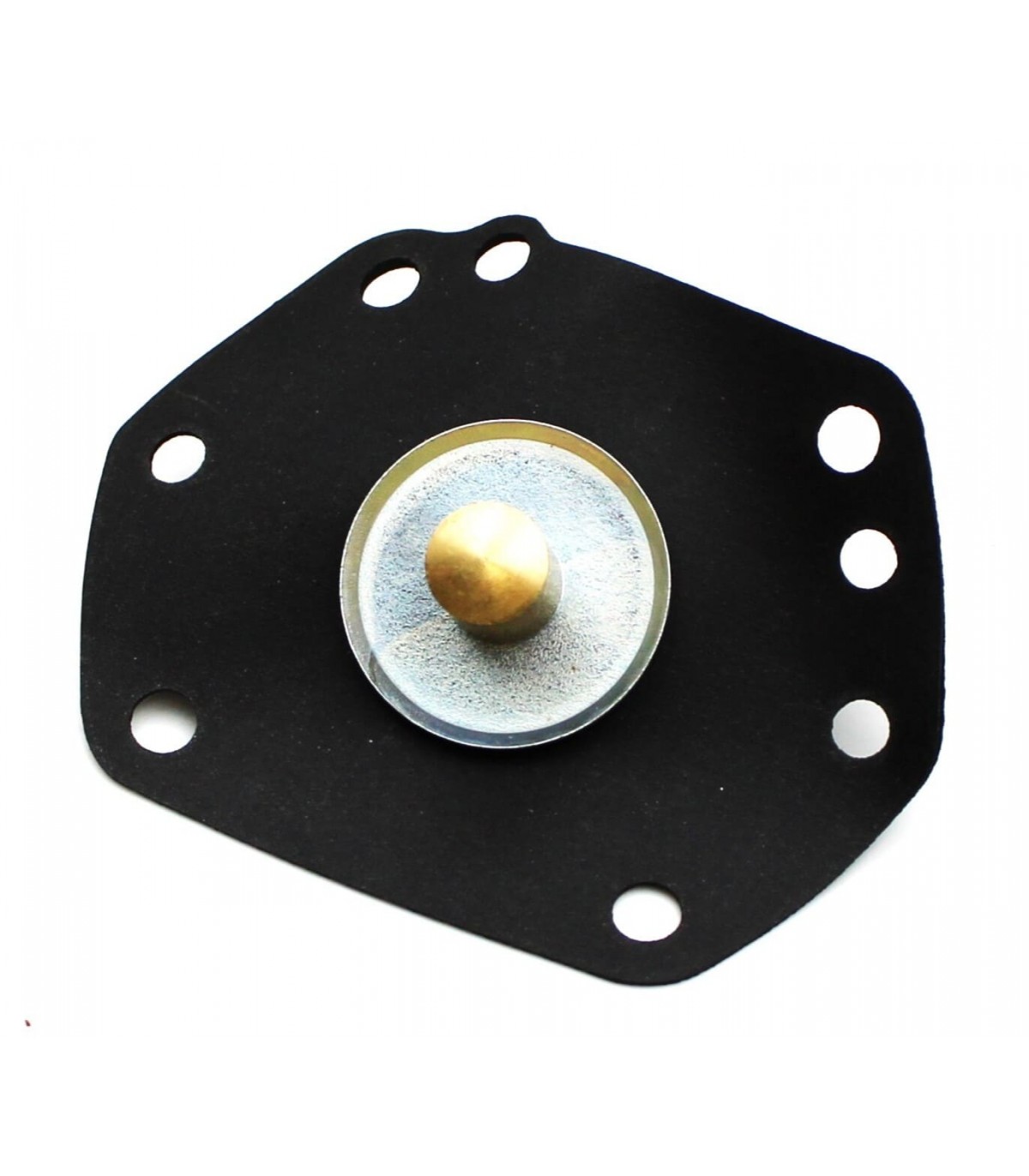

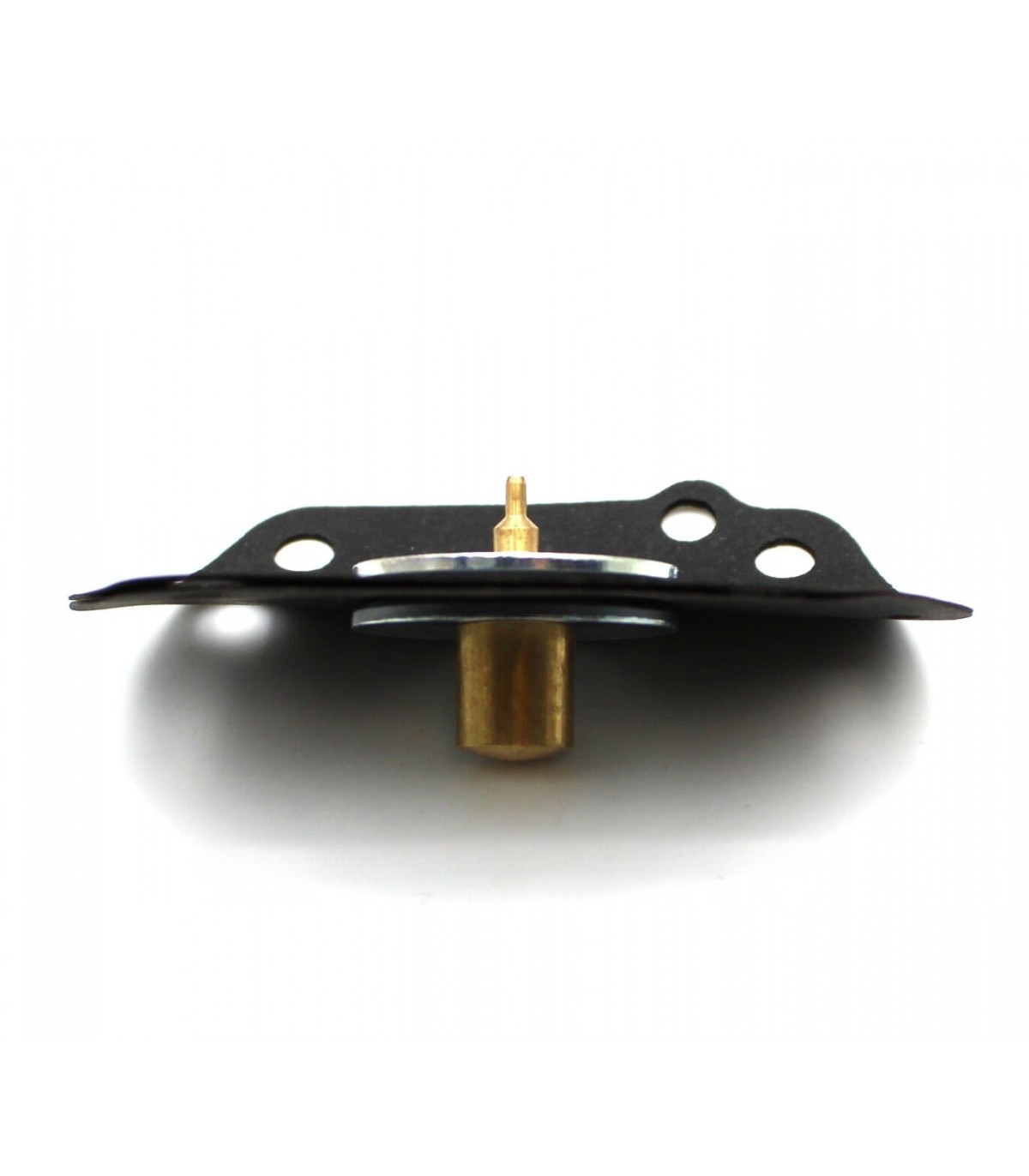

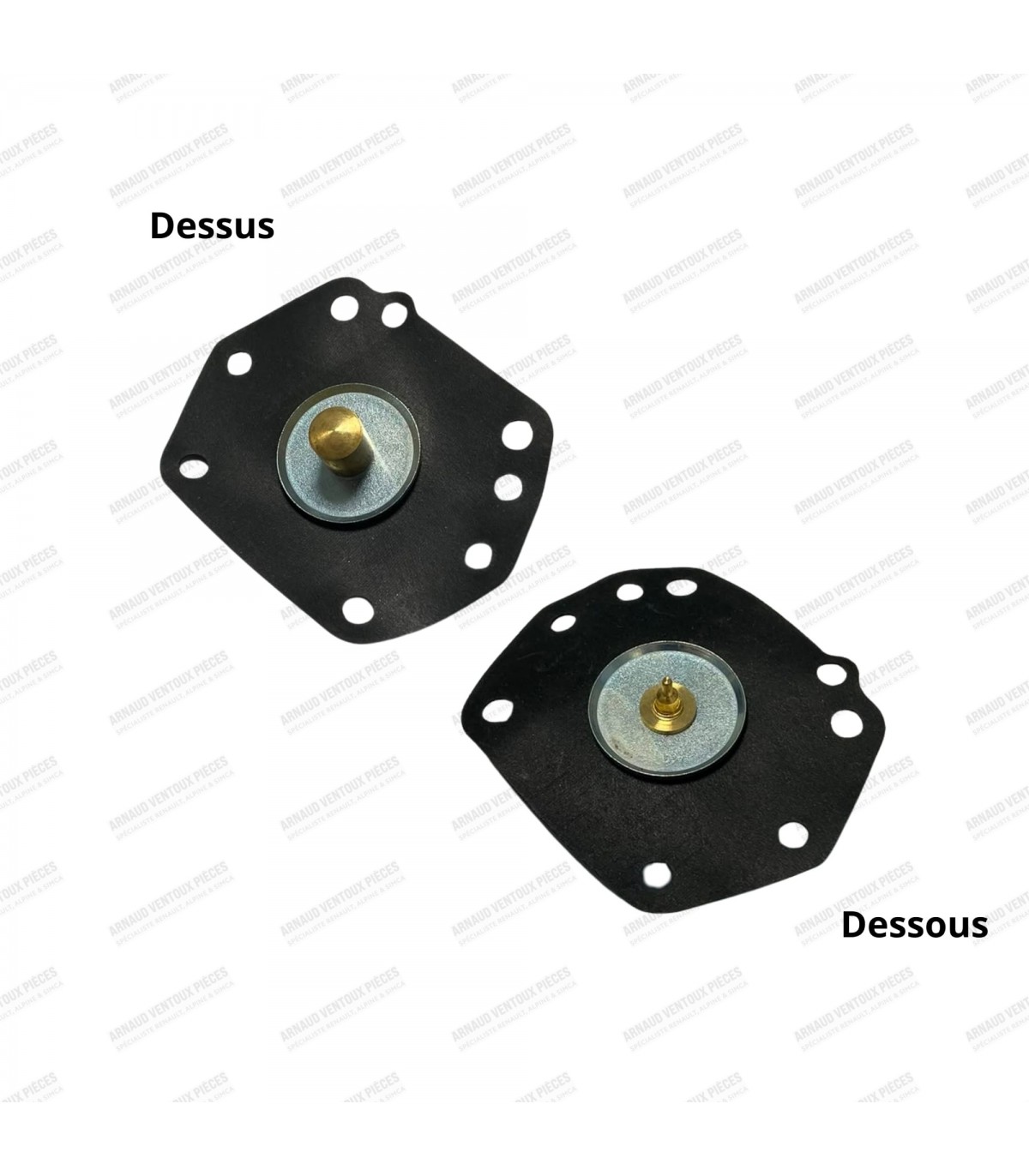

Accelerator pump diaphragm (Large model, 6 holes and pointed tip) - Solex 35 PHHE carburetor - R2 / 1200S / CG

• Cup diameter: Ø 22mm

Bearing Dimensions:

• Dimension: Stock dimension (Standard)
• Journal Diameter (A): Ø 51.97mm
• Housing Diameter (B): Ø 55.88mm
• Bearing Width (C): 18.68mm
• Bearing Width (C): 24.68mm
• Bearing Thickness (D): 1.92mm
• Smooth bearings with lugs and grease holes (x7) and grooves (x7)
• Bearing material:Bi-metal

• Center distance between flange and intake manifold (Side without stud): 32mm and 102mm
• Center distance between flange and carburetor (Side with stud): 92mm and 60mm
• Flange thickness: 17.5mm
• Pipes diameter: Ø 36.5mm
• Flanges supplied with paper gaskets (x4) and mounting studs (x8) (Carburetor side)

These rigid aluminum flanges replace the original flanges known as "soft" rubber that tears with wear.

• This kit is suitable for various Solex 35 PHH E-4 / 35 PHH E-6 / 35 PHH E-7 / 35 PHH E-7A models

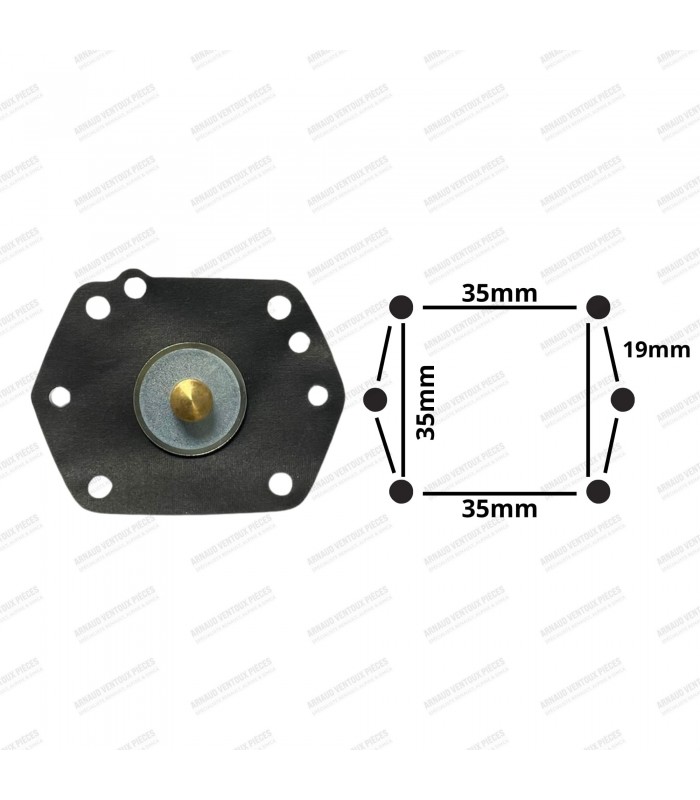

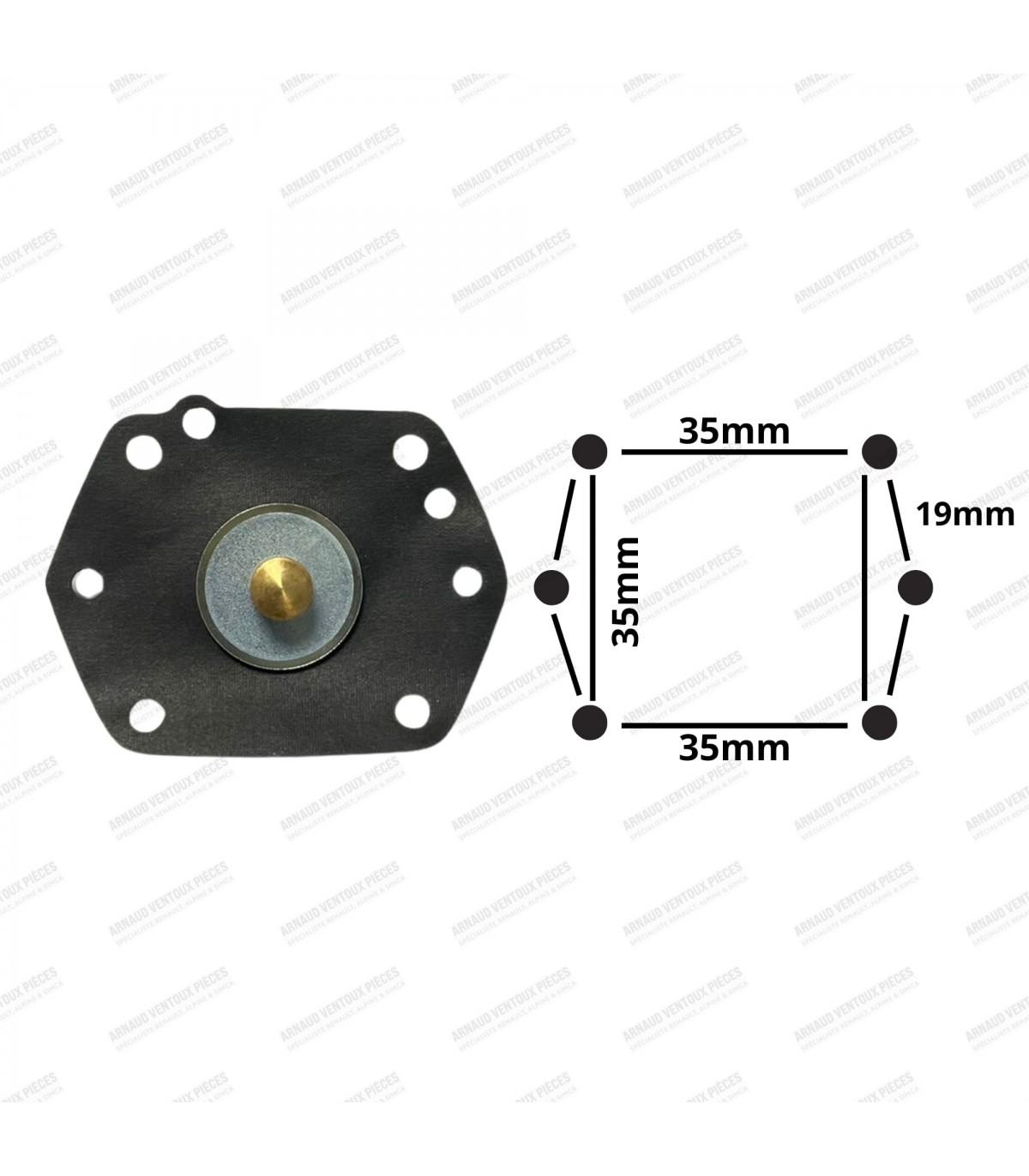

• The kit contains 2 small square diaphragms (4 holes) and 2 large accelerator pump diaphragms featuring 6 mounting holes, 2 locating holes, and a pointed tip
• Supplied with two 1.3 needle valves

TRW paste is used for the repair, assembly, and preservation of hydraulic brake components—such as brake calipers—that require special greases for reassembly.

Compatible with all brake fluids for the installation of seals and any components in contact with brake fluid, such as master cylinders and wheel cylinders.

• Tube size: 25g

Segment Characteristics:

• Segment Diameter:Ø 60mm
• Thickness of Upper Segments (Fire-resistant):1.5mm
• Thickness of Intermediate Segments (Waterproof):1.5mm
• Thickness of the lower segments (scraper): 3mm

It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120°.
