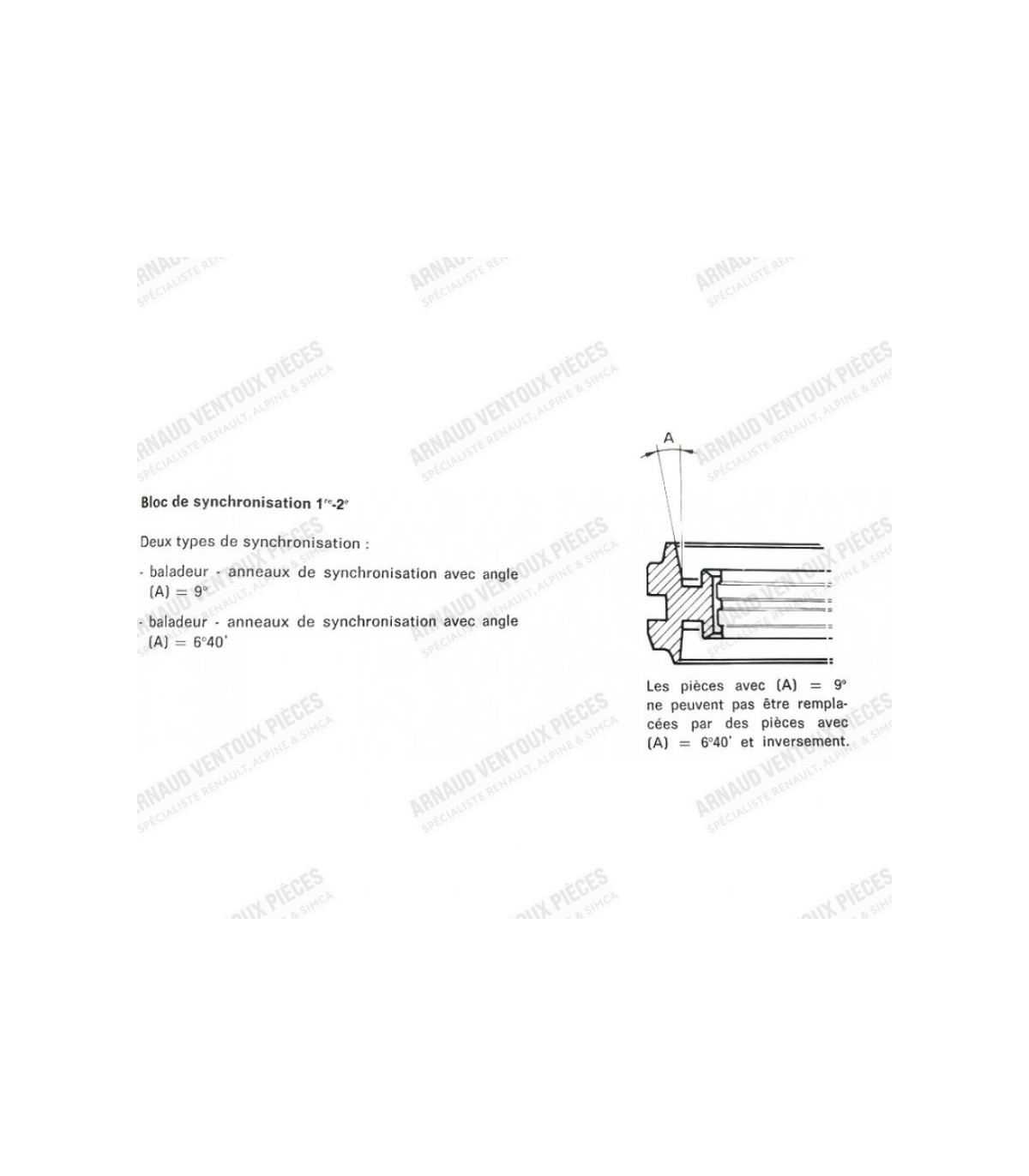

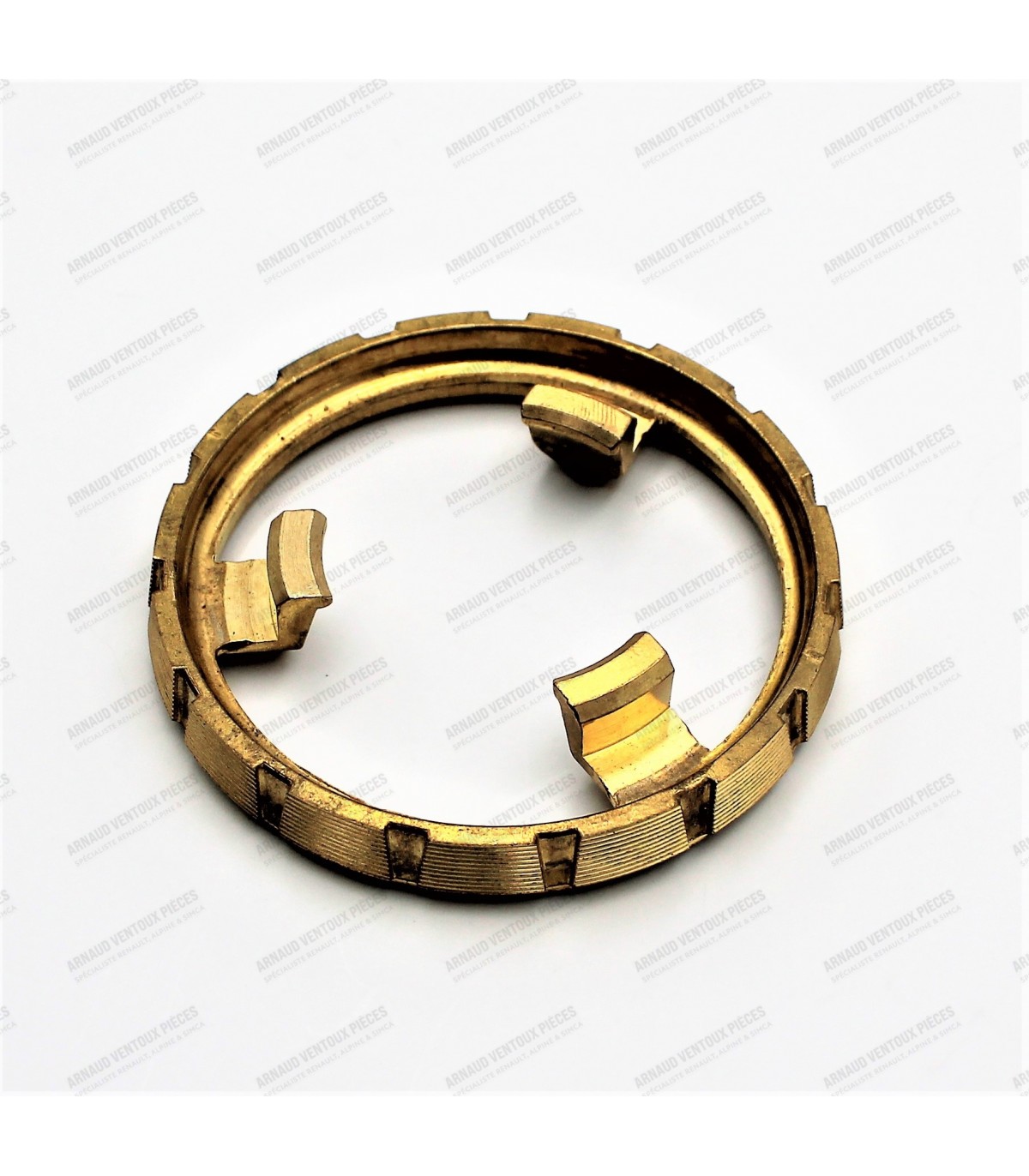

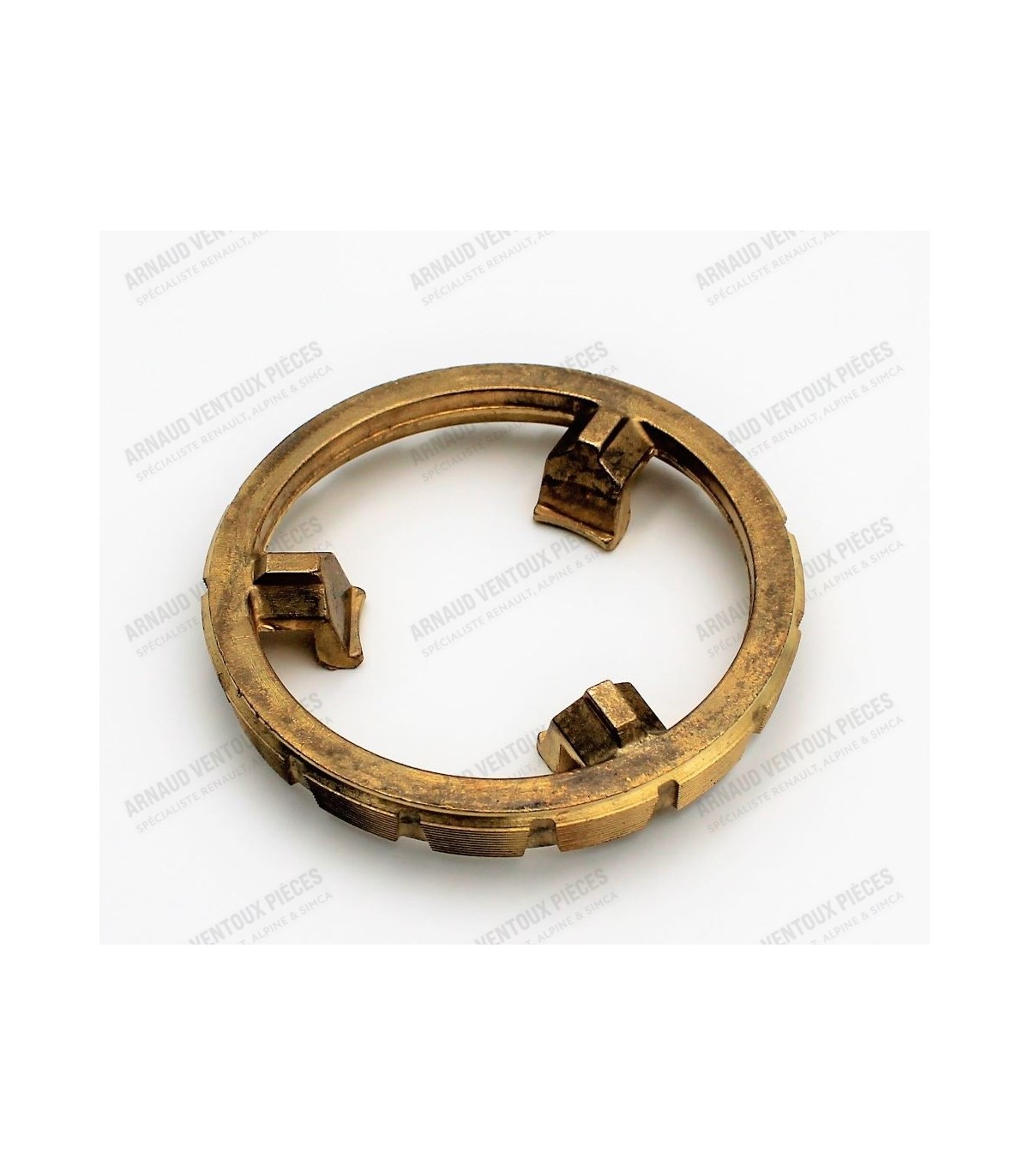

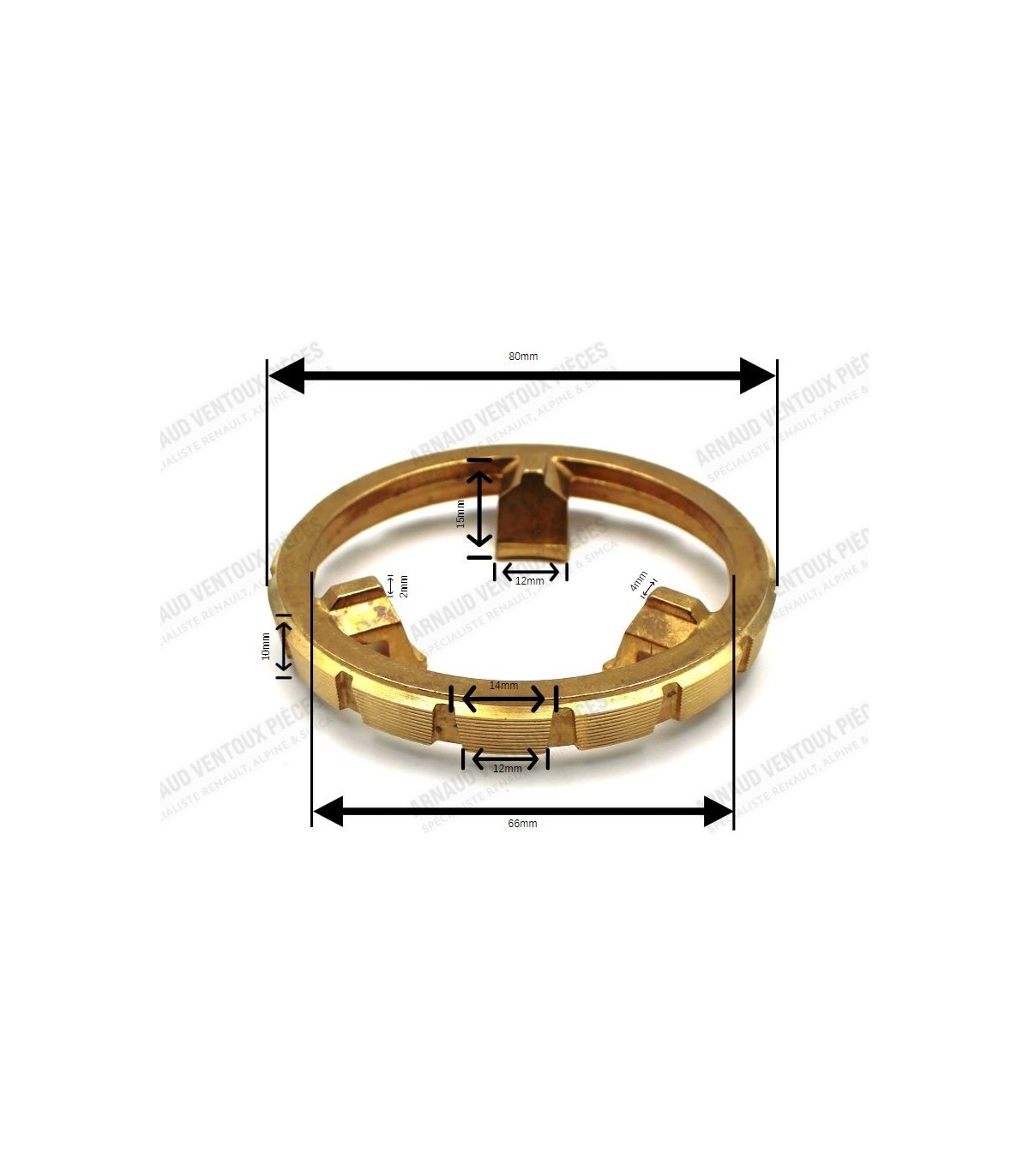

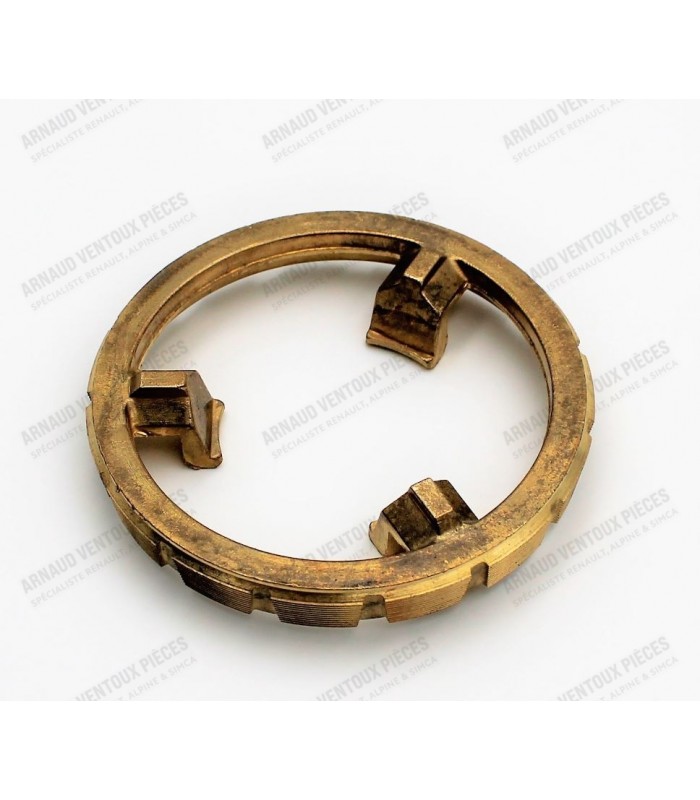

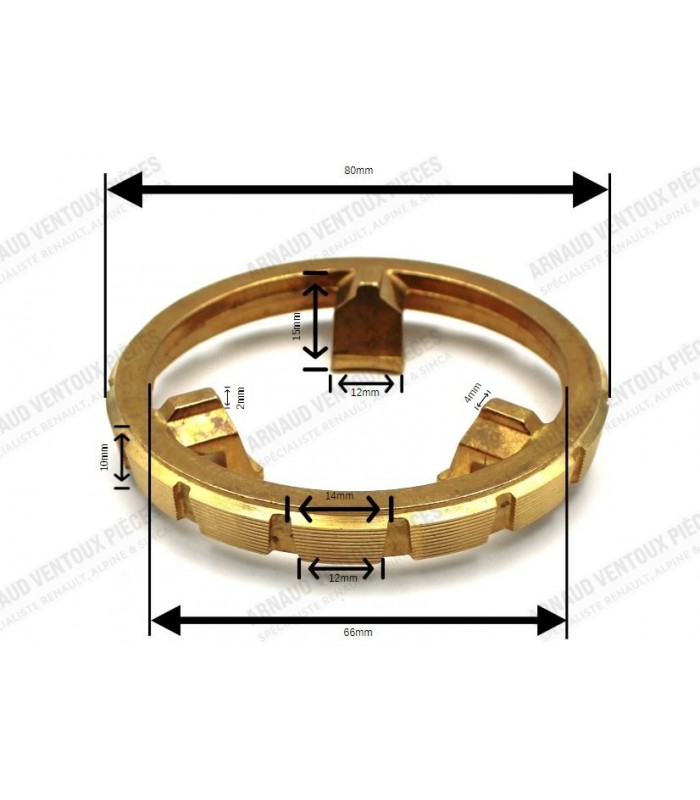

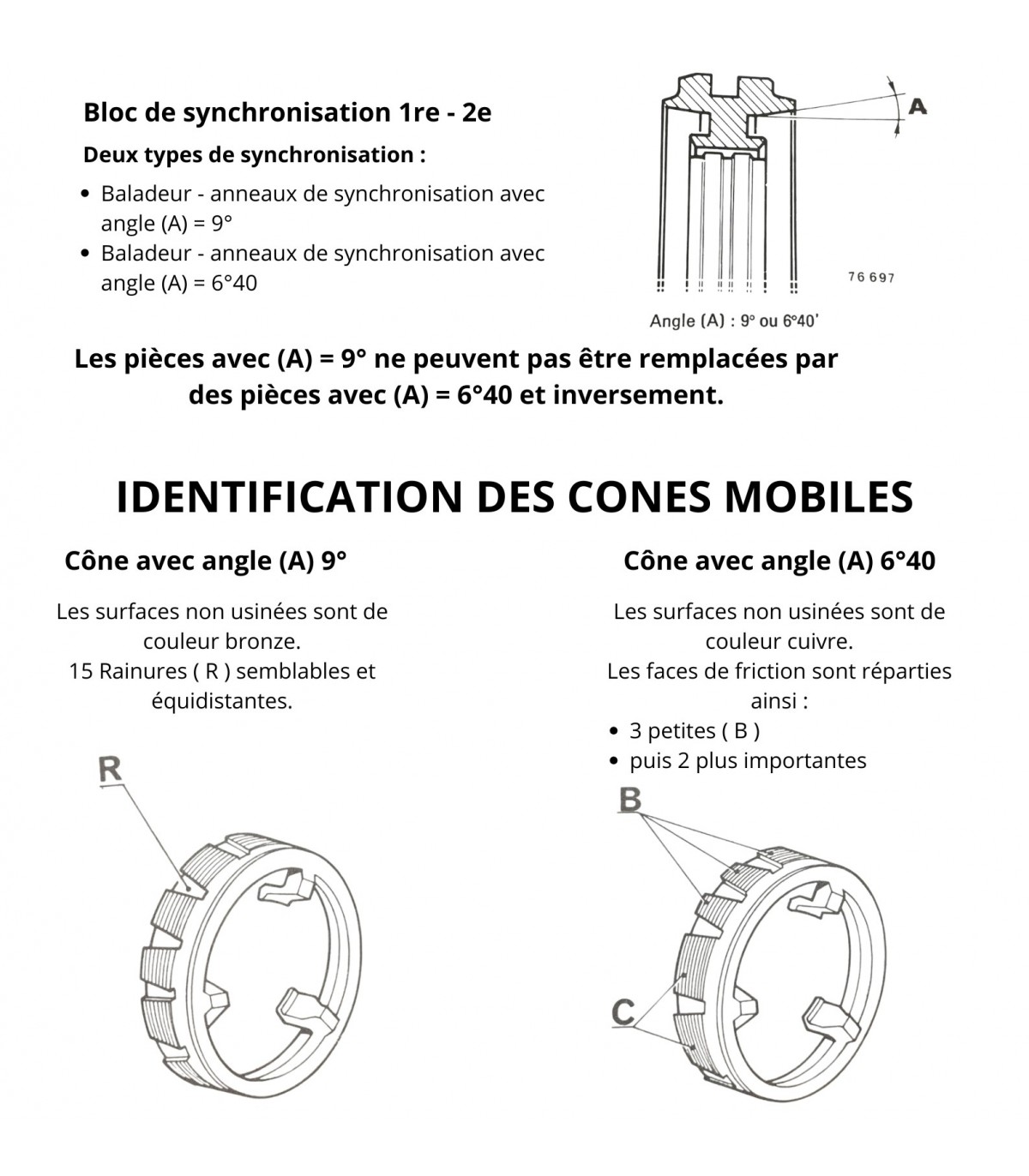

First gear synchro (9° outer cone) - Gearbox 330 / 336 / 352 / 353 / 364 / 365 - Ref 0428406100

• This kit contains an M9 adjustment screw nut and an M8 nut.
• Kit sold with a strong Ø 38mm square gasket and a weak Ø 38mm gasket.
• The supply of these two seals allows you to install the most suitable seal depending on the wear of the caliper grooves.
• To identify a caliper with a square or round seal, refer to the symbol indicated on the caliper casting.
• A square symbol indicates a square seal, while a circle symbol indicates a round seal.
• It is essential to replace the same type of seal (round or square) according to the symbol on the caliper.
• We recommend checking the symbol displayed on each caliper, as a vehicle may have Calipers of different origins, some of which may have square joints and others round joints.
• It is not recommended to mix calipers on the same set, as this can lead to the risk of skewing during braking.

• Inner diameter: Ø 9mm
• Thickness: 9mm

Bearing Dimensions:

• Dimension: Repair Dimension (+0.25)
• Crankpin Diameter (A): Ø 43.73mm
• Housing Diameter (B): Ø 47.62mm
• Bearing Width (C): 17.75mm
• Bearing Thickness (D): 1.92mm
• Smooth, lug-type bearings with no grease holes or grooves
• Bearing Material: Bimetal
