In stock

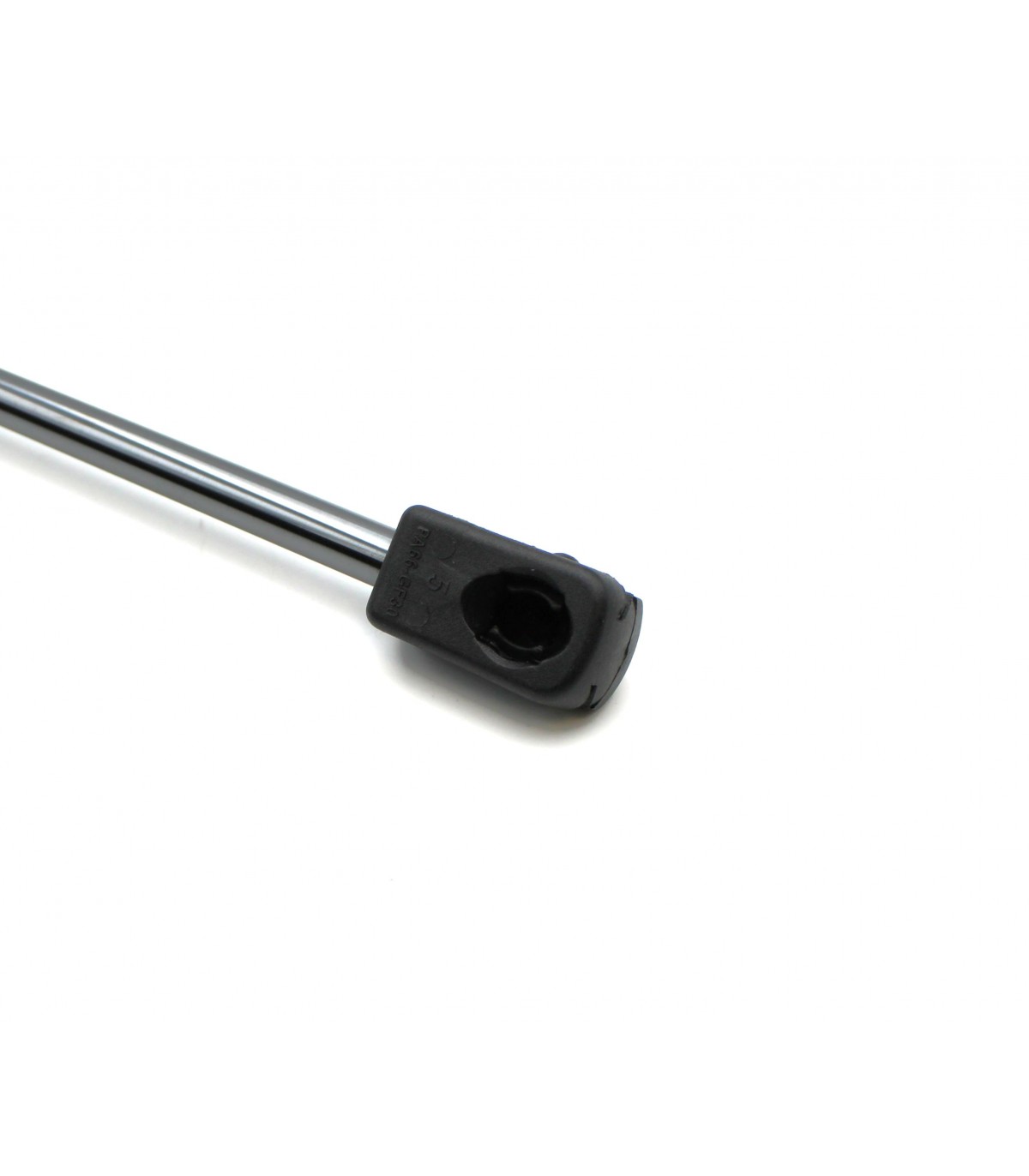

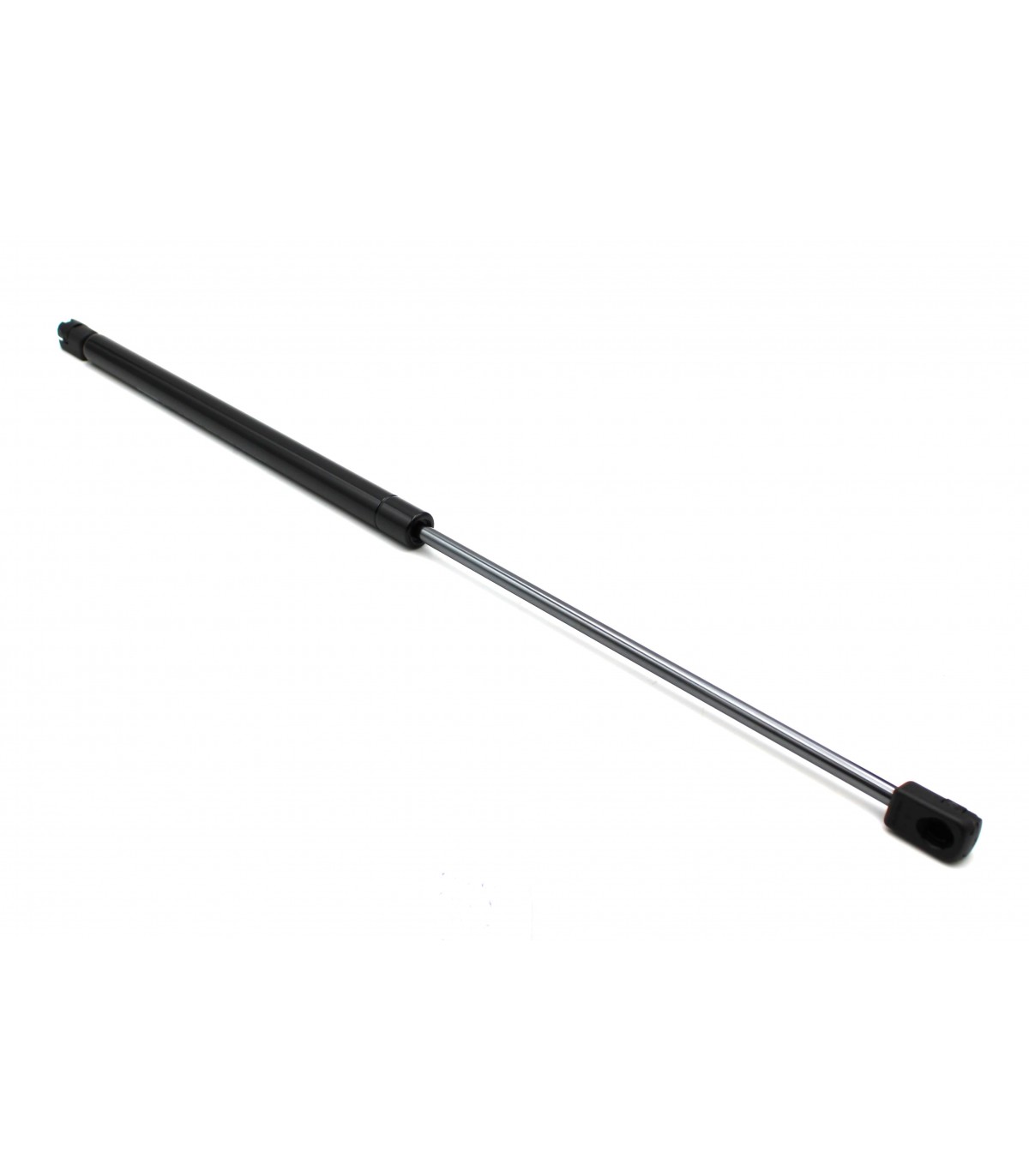

Tailgate or trunk strut (Mounting with a strut) - R5 Alpine / R5 Alpine Turbo / R5 Turbo
Reference:
5927
Lift Features:
- Double-acting gas lift
- Mounting center distance: 610mm
- Lift stroke: 250mm
- Ball joint mounting: Ø 8mm (x2)
- Cylinder force : 550N
- Not suitable for models with 2 cylinders
Suitable for:
- R5 Alpine (R1223)
- R5 Alpine Turbo (R122B): From the beginning of the series to no. 38156
- R5 Turbo 2 (8220): From no. 2001 to No. 3346
- OE Renault Ref: 6001010706 / 6001011831 / 7701349615
The struts must be mounted with the rod down, with the trunk or hood closed.
In most cases, it is not possible to compress the strut by hand due to its force.
€32.00
(tax incl.)
Order before 1pm and enjoy same day shipping !
You may also like
In stock
In stock
Customers who bought this product also bought:
 - R5 Alpine / R5 Alpine Turbo / R5 Turbo&media=https://www.arnaudventouxpieces.com/9793-large_default/verin-de-hayon-ou-de-coffre-montage-avec-un-verin-r5-alpine-r5-alpine-turbo-r5-turbo.jpg){kind=link}
Mounting hole spacing: 55mm
Suitable for the following vehicles:
- R4 / 4L
- RODEO
In stock
In stock
In stock
Brake Disc Specifications:
- Outer Diameter: Ø 228mm
- Inner Centering Diameter: Ø 83mm
- Mounting Hole Spacing: 49.5mm
- Mounting with 6 Bolts: M8x125
- Disc Offset: 28.5mm
- Brake Disc Thickness: 10mm (Solid Discs)
- Sold in pairs (2 discs)
Important Brake discs have a specific mounting direction that must be respected; They are not interchangeable.
Mounting direction of a solid, non-ventilated brake disc : Discs must be installed so that the edge of the grooves closest to the outer edge of the disc makes contact with the brake pad first.
For competition use only; do not use these discs on public roads.
Suitable for:
- R4 Saloon / Van F4 and F6 / Rodeo : Front disc
- R5 Alpine (1223): Disc front
- R5 Alpine Turbo (122B) / Alpine Coupe / GR2: Rear disc
- R12 / R15TL: Front disc
- R12G / R17G / R17TS: Rear disc
In stock
- R4 (Billancourt Engine): Alternator belt - Ref 0854249800
- R5 Alpine (1223) / R5 alpine Turbo (122B): Water pump belt
In stock
In stock
Filter Dimensions:
- Inner Diameter (D2): Ø 86mm
- Outer Diameter (D1): Ø 128mm
- Height (H1): 175mm
- Height (H2): 164mm
The dimensions given are for guidance only; slight variations of a few millimeters are possible depending on availability.
