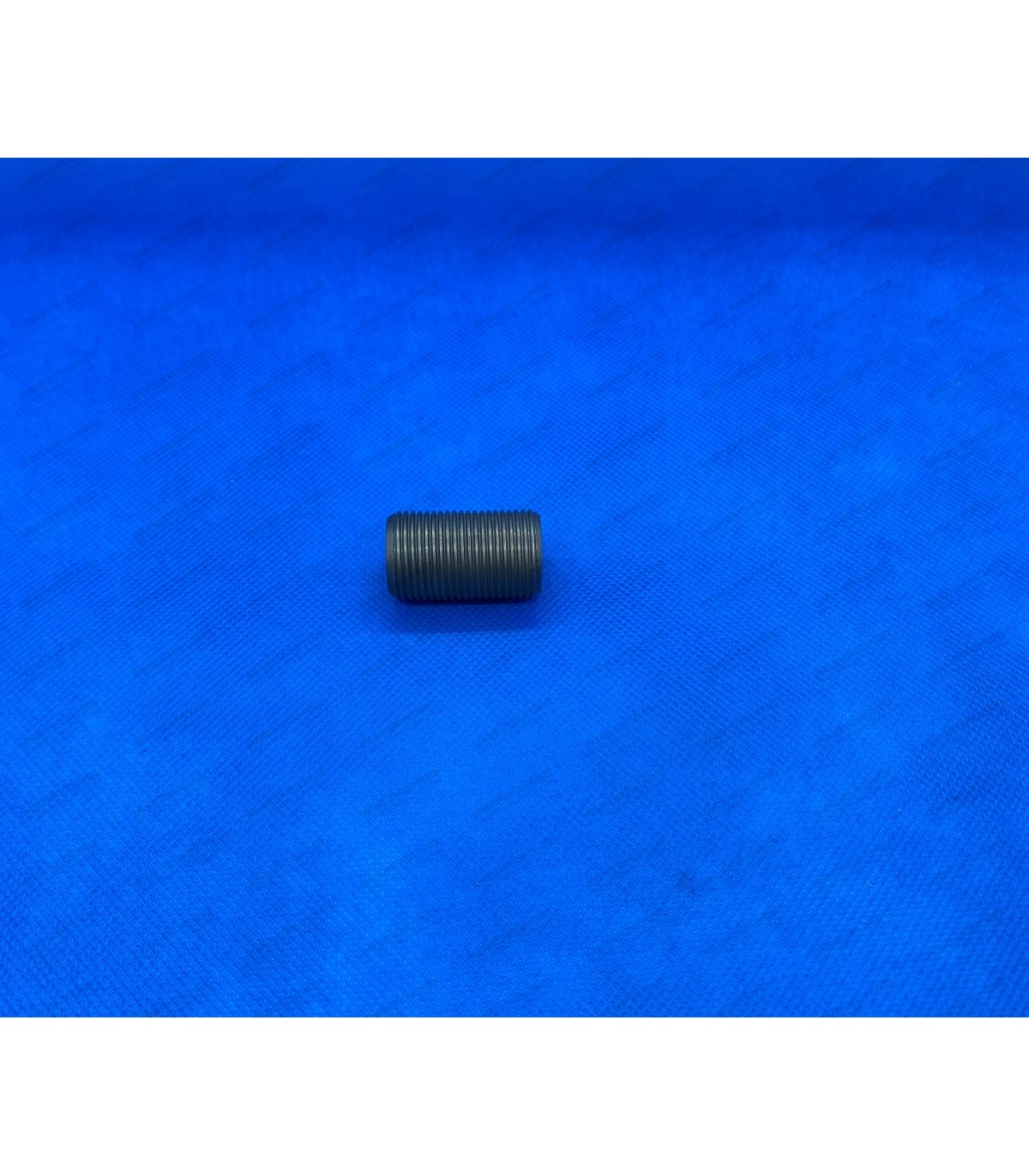

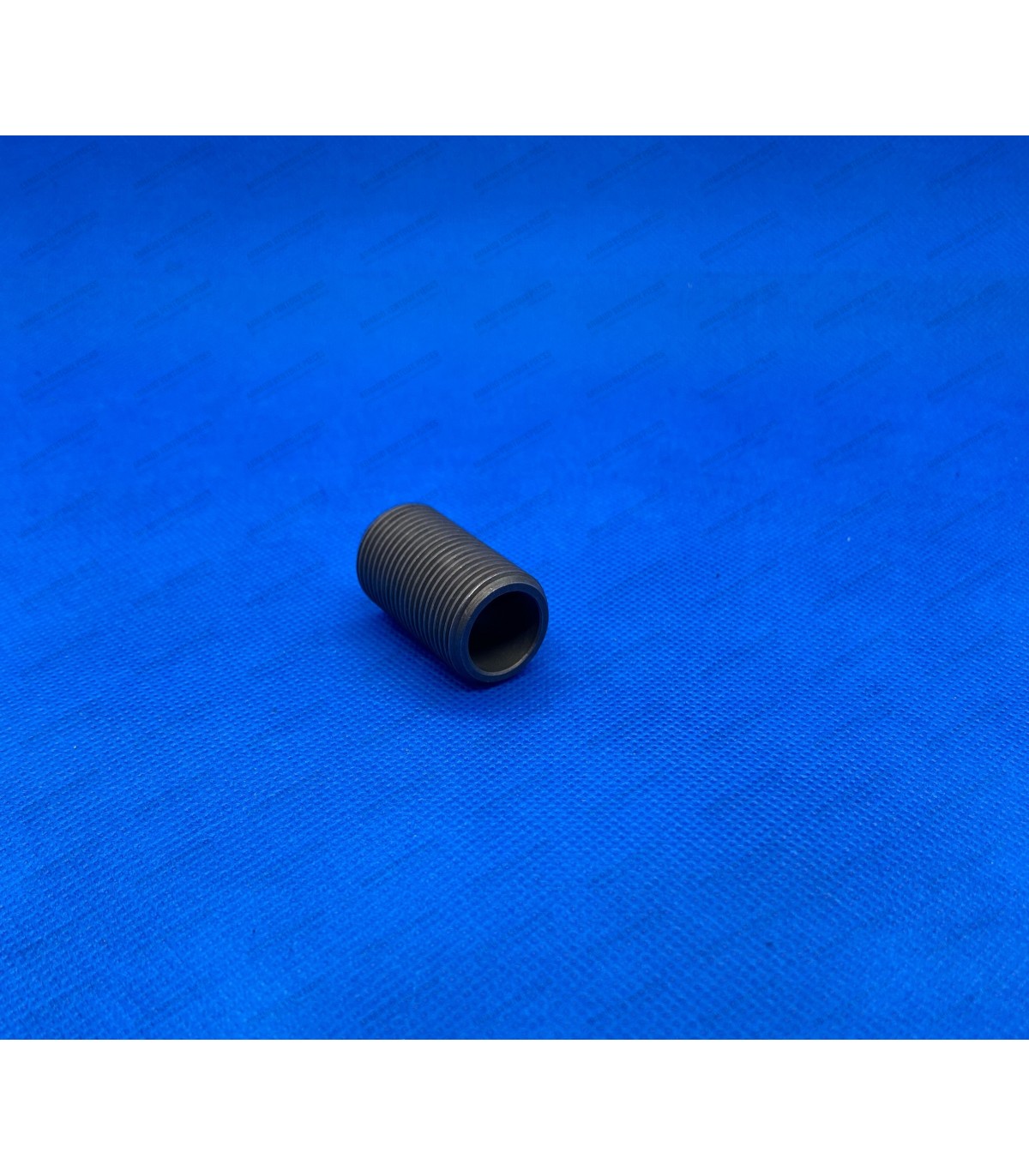

Oil filter threaded adapter - M20x1.50 - Ref. 7700718485 / 7700727684

Flexor Specifications:

• • Mounting hole spacing:4 x 50.50 mm
  • Mounting hole diameter: Ø 8.4 mm
  • Center hole diameter:Ø 10.50 mm
  • Flexor thickness: 11 mm
  • Material:Rubber flexor with metal reinforcement
  • Supplied with 4 x M8 x 20 mm screws and 4 x nylock nuts

For some assemblies with a center screw, replacing this screw with a socket head cap screw (SHCS) or modifying the flexor may be necessary.

Length: 60mm

Possibility of adaptation on other engines without oil filter

The entire kit is composed of 3/8"-24UNF and M10x100 fittings

This kit is composed of the following copper pipes:

- From the brake master cylinder to the Right Front Wheel

- From the brake master cylinder to the Left Front Wheel

- From the brake master cylinder to the rear distributor

- From the rear splitter to the right rear arm

- From the rear splitter to the rear left arm

-From the Right Rear arm to the Right Rear wheel

-From the Rear Left arm to the Rear Left wheel

Filter Dimensions:

• Inner Diameter (D2): Ø 86mm
• Outer Diameter (D1): Ø 128mm
• Height (H1): 175mm
• Height (H2): 164mm

The dimensions given are for guidance only; slight variations of a few millimeters are possible depending on availability.

• Rotules de suspension: Axe M10x125 - Cône Ø 11.50mm à Ø 13mm
• Entraxe de fixation sur le triangle : 42mm et 47.5mm

Réf OE Renault : 7701451904
