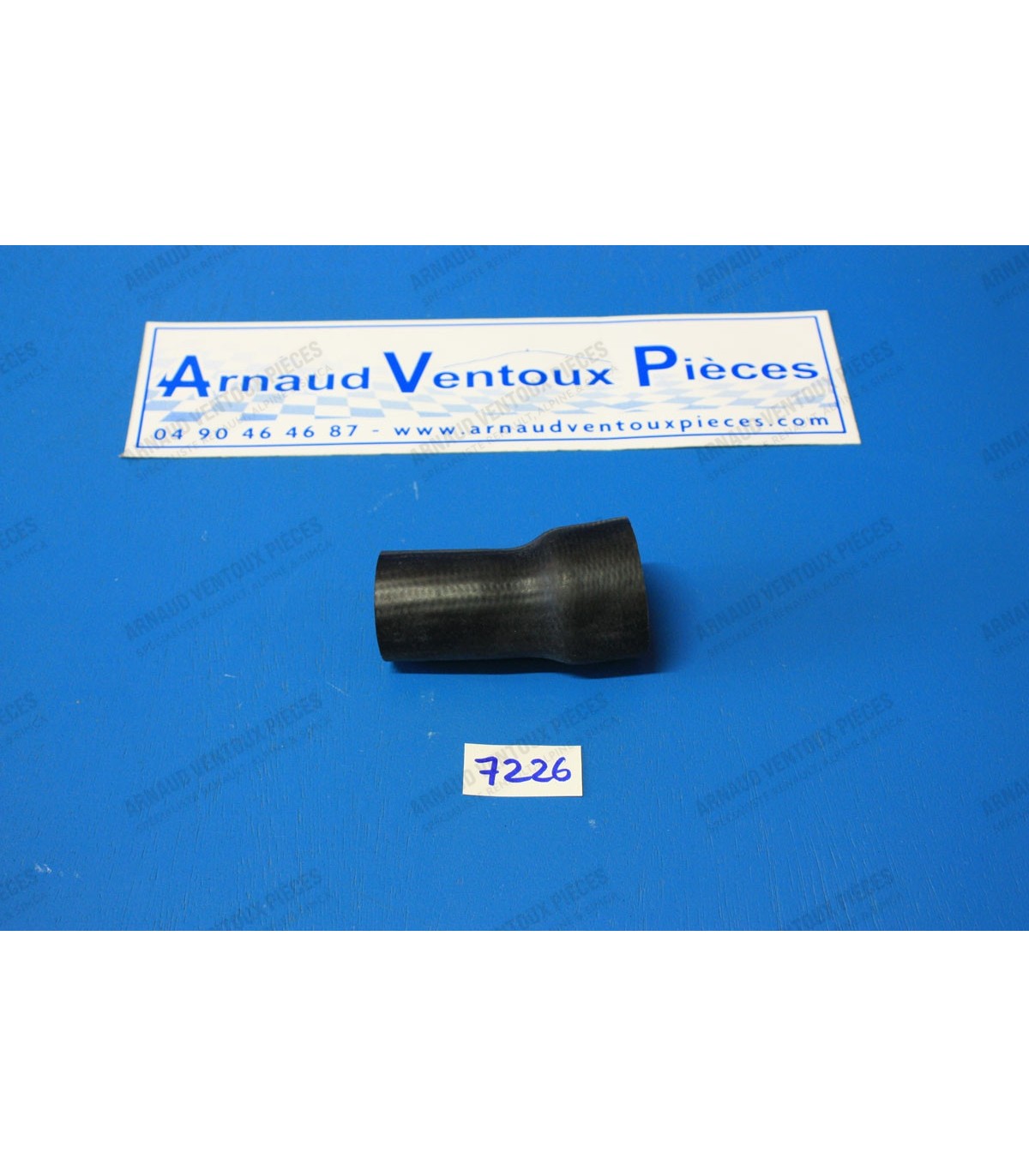

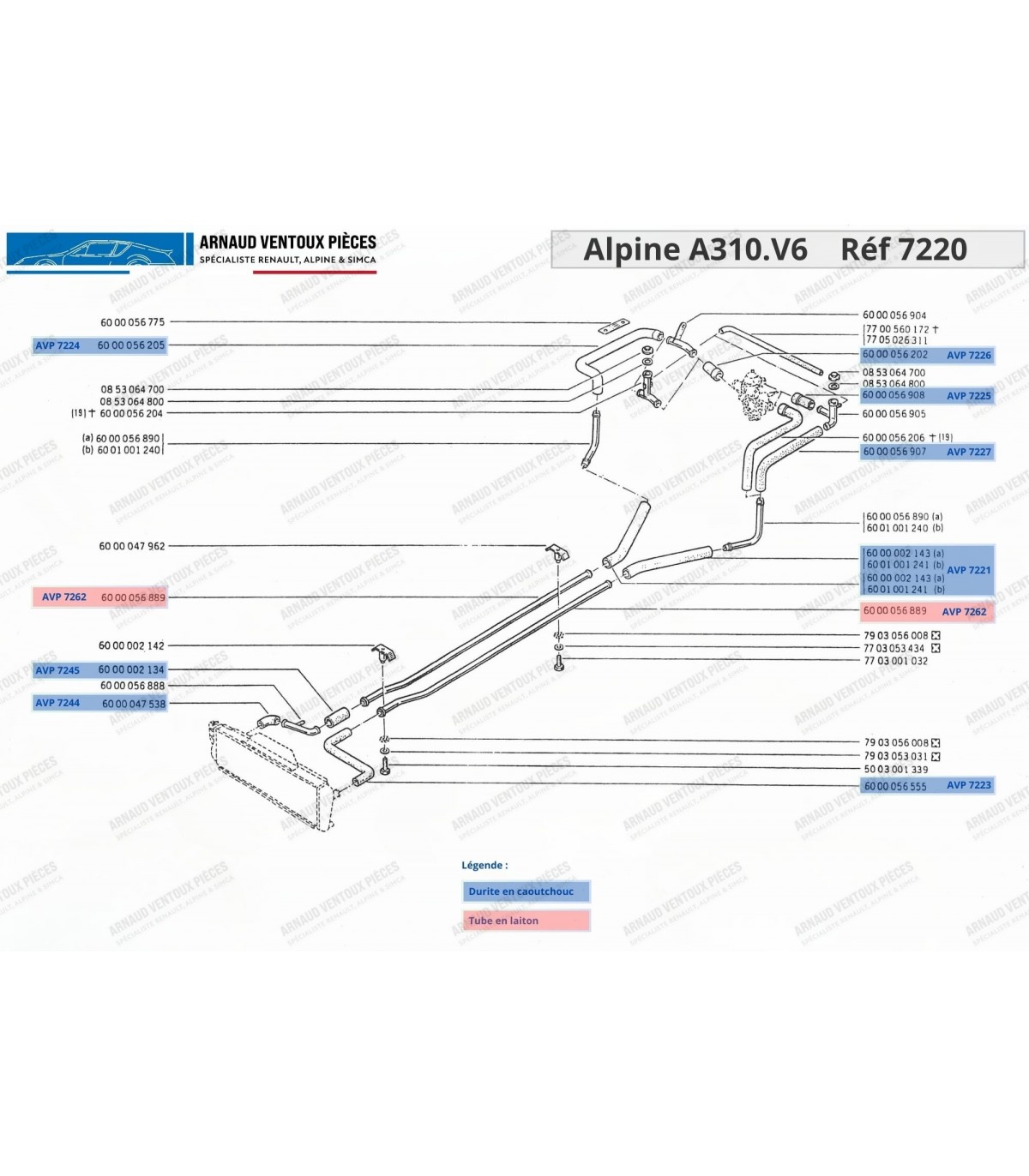

Cooling hose: Right inlet of the water pump - Ref 6000056202

The central unit is connected as follows:

• The 12V power supply (+ battery) wire on the "X" or "+" terminal
• The Switch or stalk control wire on the "L" or "Z" terminal
• The repeater indicator light wire (LED) on the "P" terminal

Fan trigger temperature 82°C

Fan stop temperature 72°C

• Suitable for Alpines A310 V6 with the 2664cm³ PRV engine (Type 112.730): From engine No. 42816 to end of series …

• This ignition harness consists of 6 spark plug wires and 1 coil wire.
• We would like to point out that our spark plug harnesses are made with 7mm diameter, black silicone wires with a standard copper core, which means they do not have interference protection.
• If the vehicle is equipped with sensitive electronic accessories, such as radios, tripmasters, monitors, or certain electronic ignition kits, some interference or disruption may be observed.

• Suitable for Alpine A310 V6 with 2664cm³ PRV engine (Type 112.730): From engine No. 42816 to end of series ...
