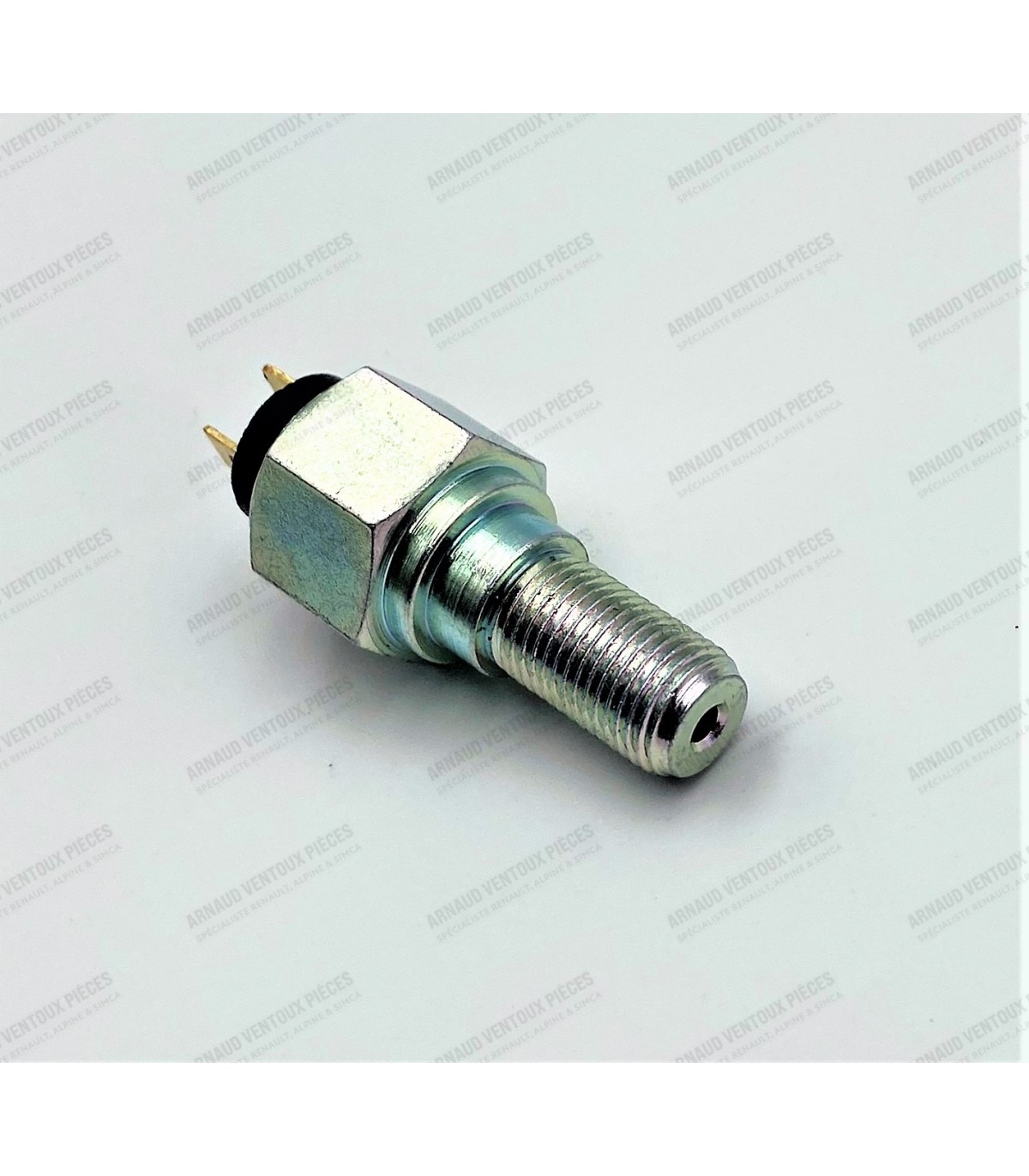

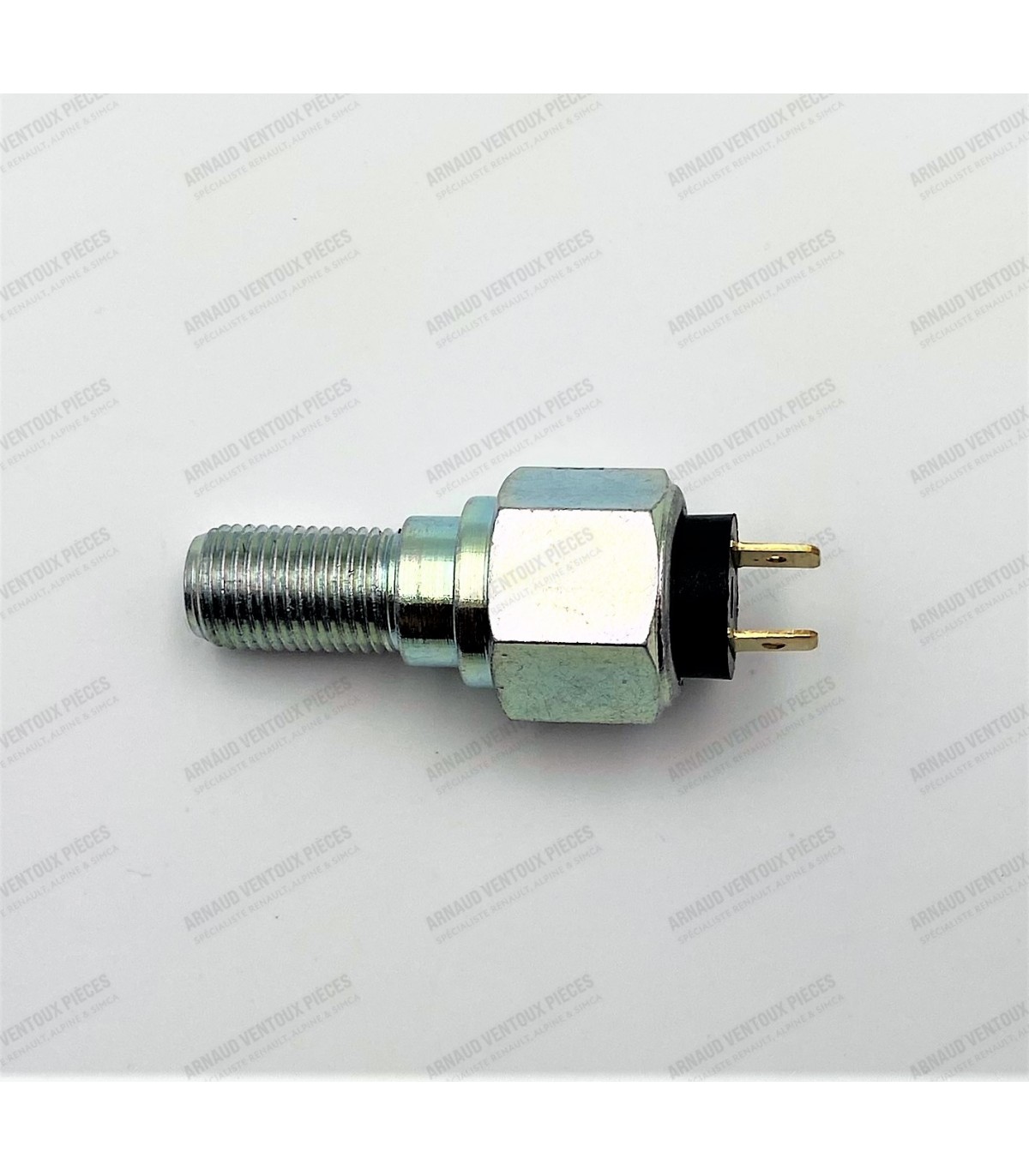

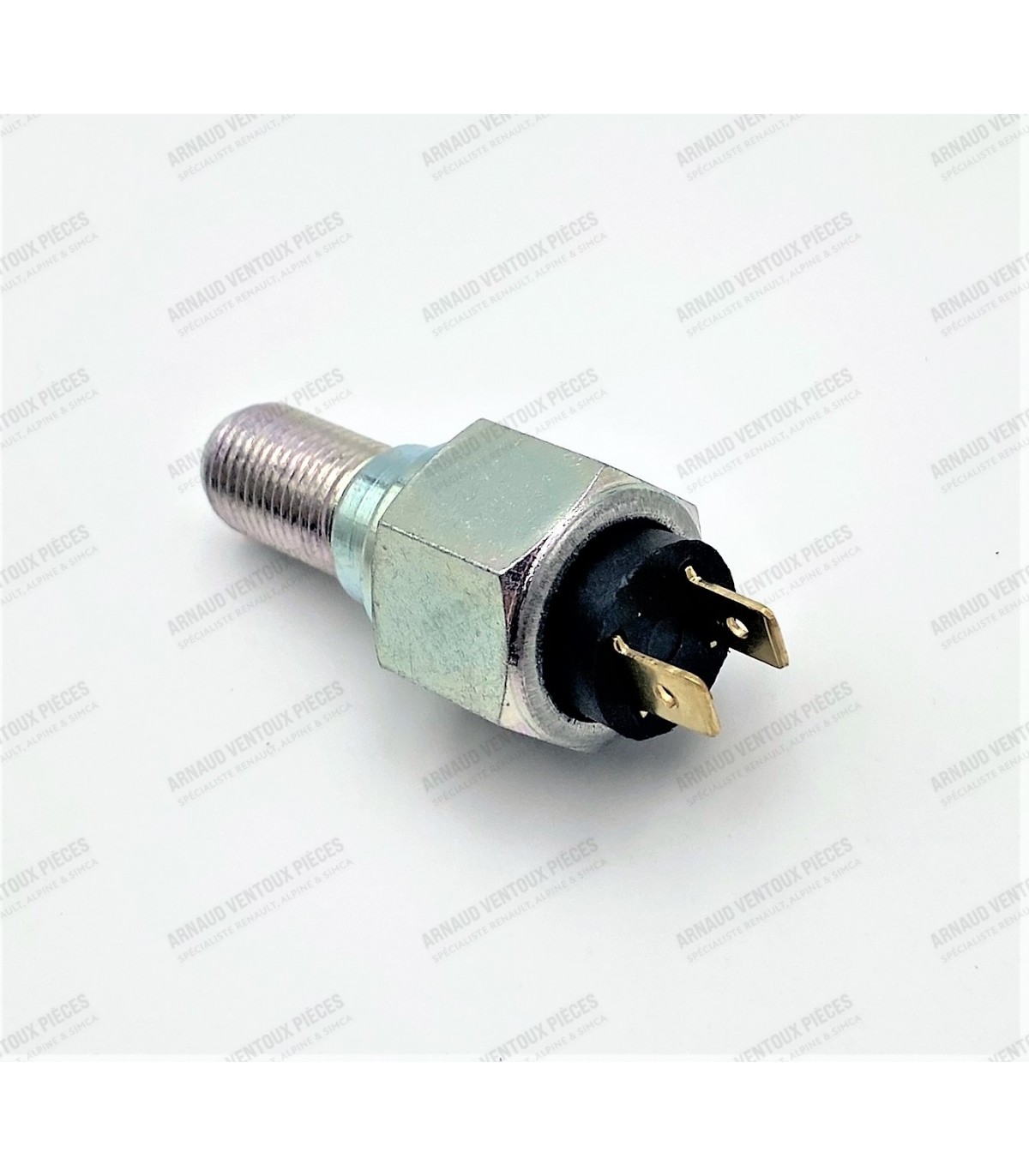

Stop switch - Ø 12.50 mm (Ø 1/2" - 20UNF)

Flexor Specifications:

• • Mounting hole spacing:4 x 50.50 mm
  • Mounting hole diameter: Ø 8.4 mm
  • Center hole diameter:Ø 10.50 mm
  • Flexor thickness: 11 mm
  • Material:Rubber flexor with metal reinforcement
  • Supplied with 4 x M8 x 20 mm screws and 4 x nylock nuts

For some assemblies with a center screw, replacing this screw with a socket head cap screw (SHCS) or modifying the flexor may be necessary.

• This headlight is designed to accept a European code type bulb with a round base (P45T)
• Outer diameter of the lens (overall): Ø 150mm
• Diameter of the lens inside the bezel: Ø 145mm
• Sold complete with chrome headlight dish, concave lens, and bulb holder
• Mounting: Right or Left
• Sold individually

Suitable for:

• Dauphine and Ondine
• R4: After 01/1971
• Estafette: Since September 1968
• R8: R1130 and R1132
• R10: Before 09/1967

Plug specifications:

• Outer diameter: Ø 77.50mm
• Mounting diameter: Ø 63mm
• Plug height: 9mm
• Material: Rubber
• Renault OE Ref.: 6051676 / 0605167600

Suitable for:

• Dauphine: Front luggage compartment floor or cabin floor plug
• Floride / Caravelle: Front luggage compartment floor or cabin floor plug
• R8 / R8G: Front luggage compartment floor or radiator panel plug
• R4 (all models): Engine bay inner wing plug

Brake Disc Specifications:

• Outer Diameter: Ø 260mm
• Inner Centering Diameter: Ø 60mm
• Mounting Hole Spacing: 71mm
• Disc Offset: 32mm
• Brake Disc Thickness: 8mm
