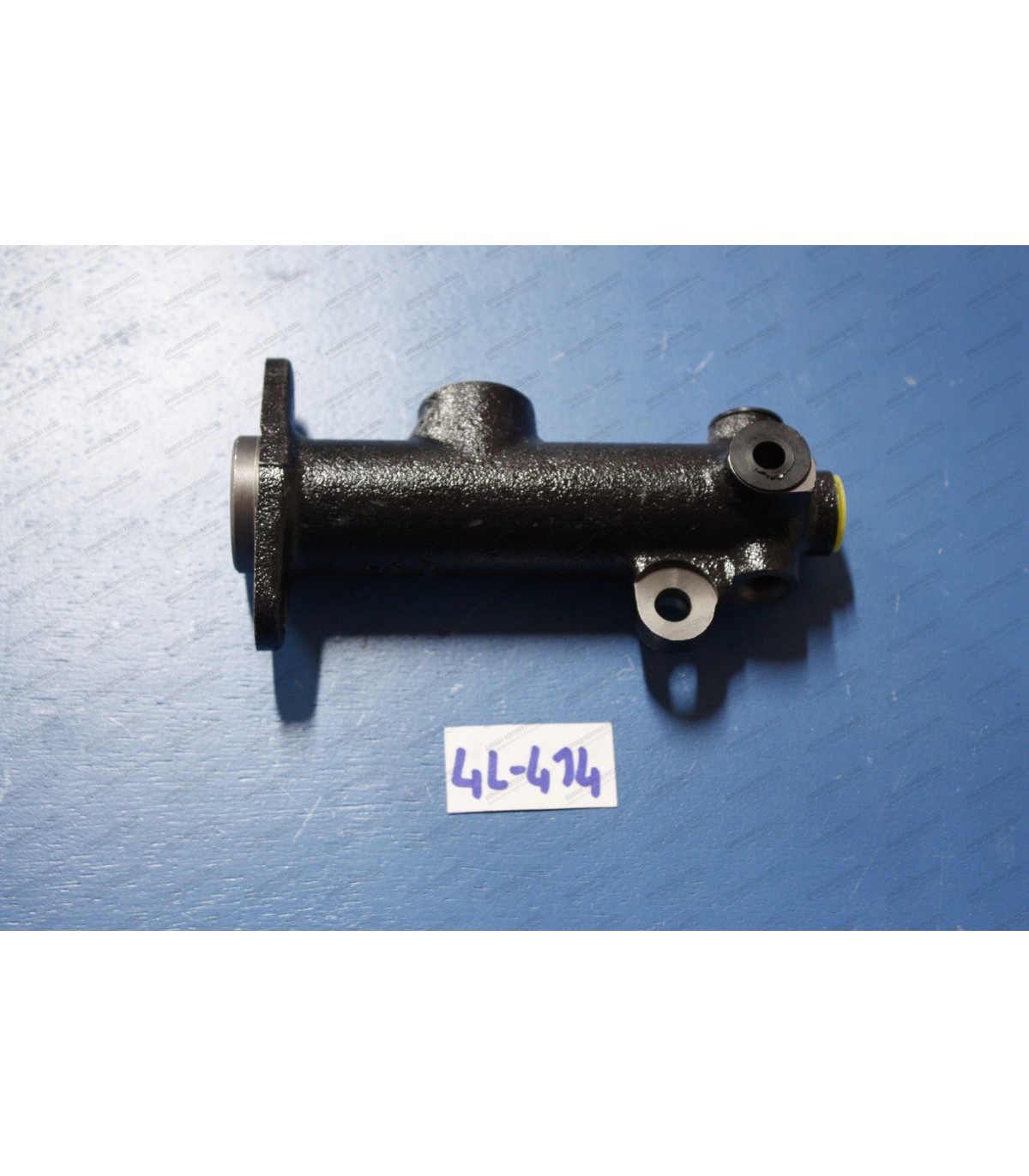

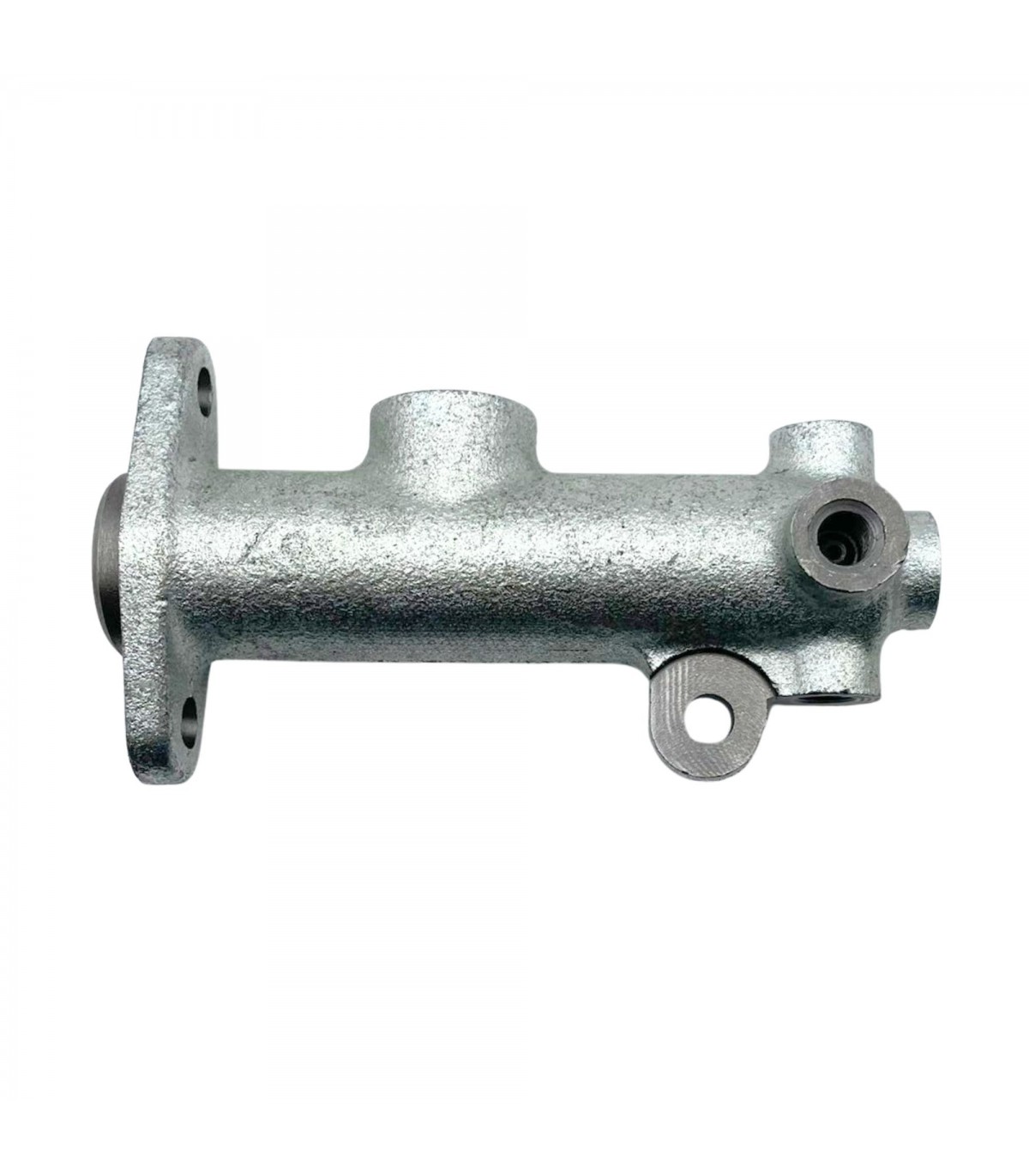

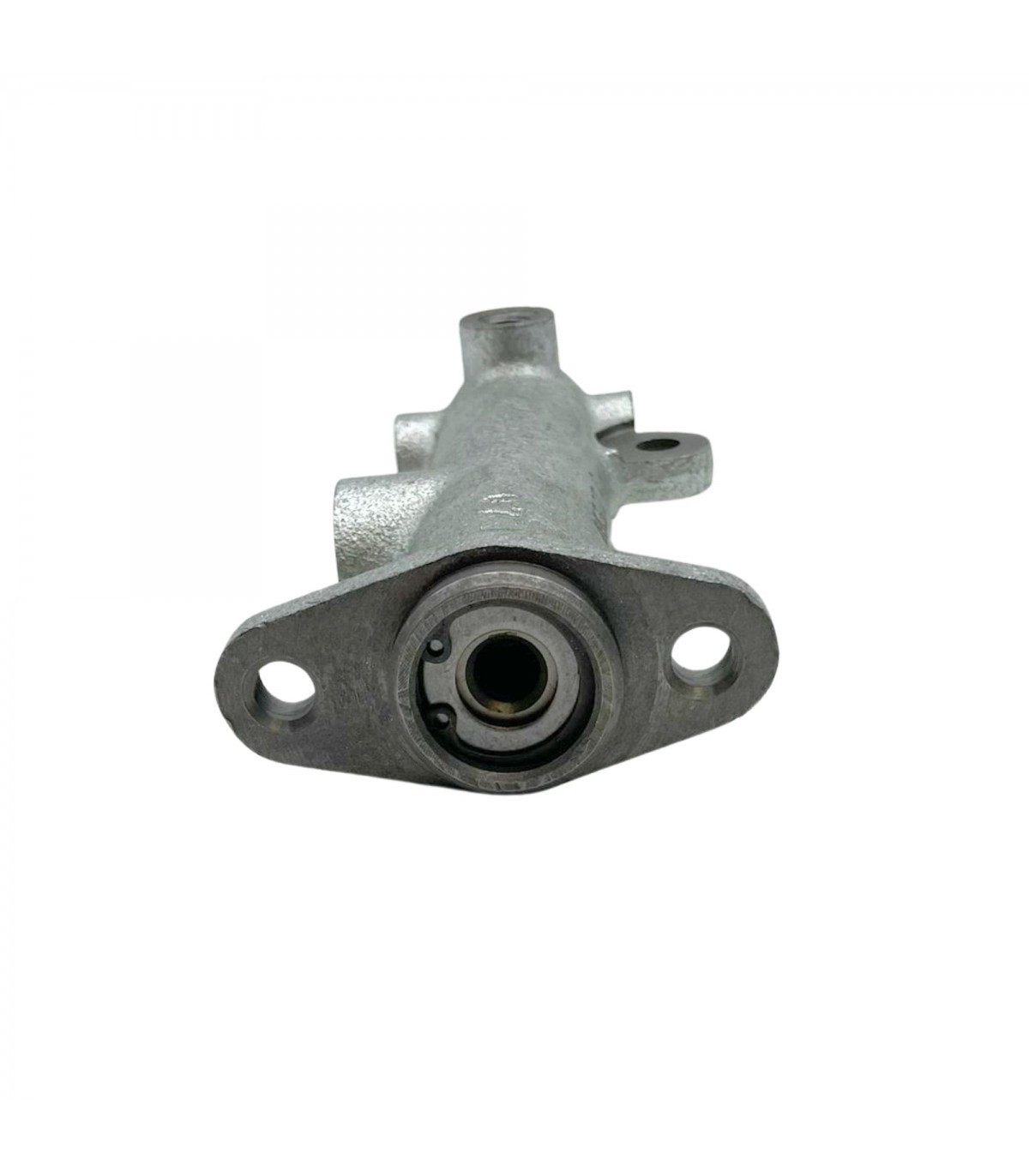

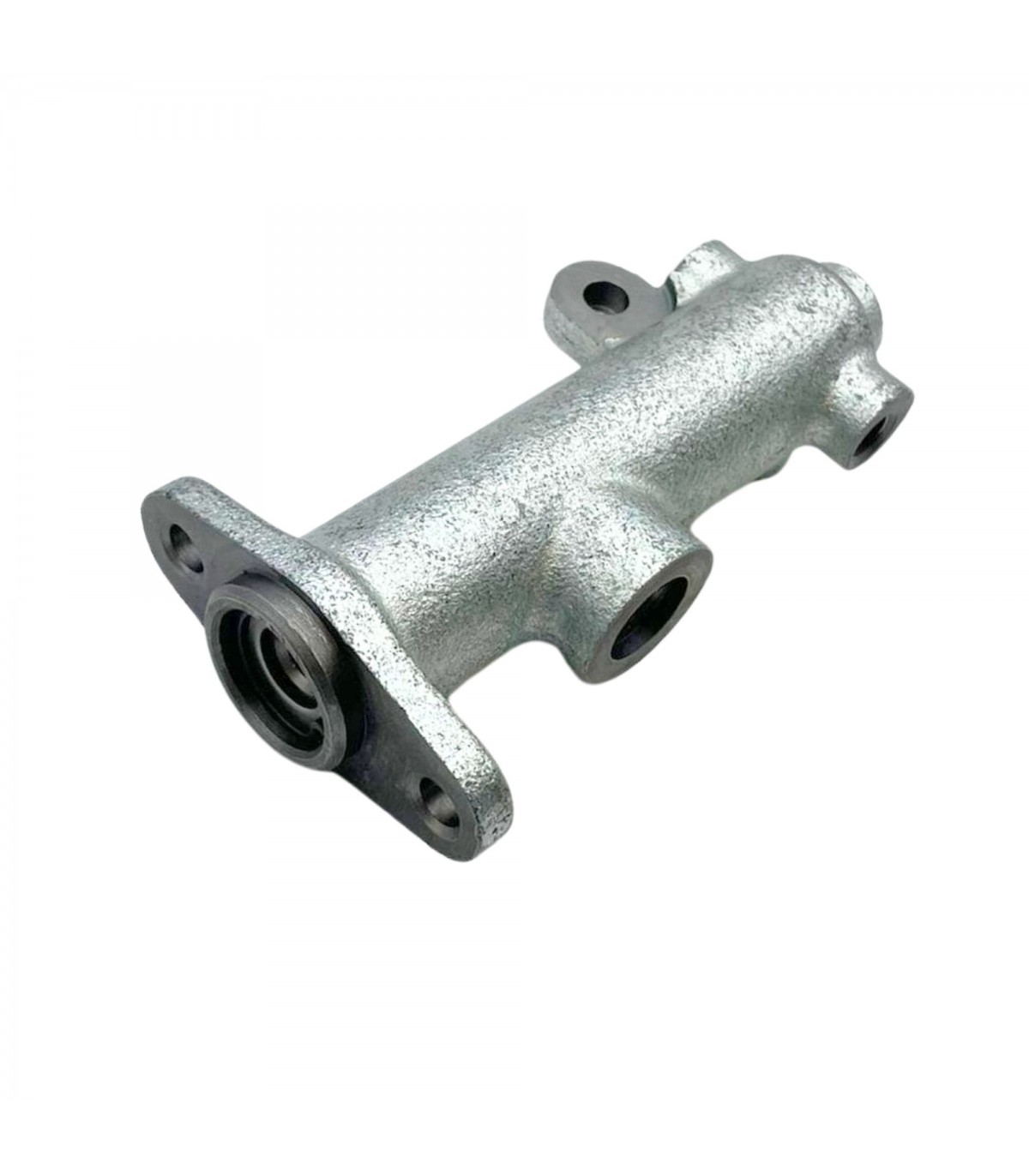

Single circuit master cylinder Ø 22mm (x4 outlets: x1 in Ø7/16" - 20UNF and x3 in Ø3/8" - 24UNF)

Wheel cylinder specifications:

• Inner diameter: Ø 23.8 mm
• Mounting screw diameter: M6 (2 holes)
• Mounting hole spacing: 25 mm
• Wheel cylinder body width (overall): 72 mm
• Hose connection diameter: Ø 3/8 - 24 UNF
• Hose connection positioned at an angle relative to the bleed screw
• Sold individually.

Flexor Specifications:

• • Mounting hole spacing:4 x 50.50 mm
  • Mounting hole diameter: Ø 8.4 mm
  • Center hole diameter:Ø 10.50 mm
  • Flexor thickness: 11 mm
  • Material:Rubber flexor with metal reinforcement
  • Supplied with 4 x M8 x 20 mm screws and 4 x nylock nuts

For some assemblies with a center screw, replacing this screw with a socket head cap screw (SHCS) or modifying the flexor may be necessary.

• Suitable for copper tube Ø 3.5x6.35mm

• Sold with its gasket
• 3-tube pump: 1 inlet / 1 outlet / 1 return

• Mounts after the secondary intermediate tube. See photo #2
• Renault OE Ref: 7701365698 / 7700668726 / 0821516300
• Inlet Tube Diameter: Ø 32mm (outer)
• Outlet Tube Diameter: Ø 32mm (outer)

Suitable for:

• R4 (782/845cc) from 09/1961 to 08/1983

• • Self-winding spring-loaded tensioner
  • Features a grease fitting to ensure lubrication and maintain tension on the chain guide.
  • Renault OE Ref: 084627500 / 7700578993 / 7700719076 / 7701349603

->We prioritize quality and reliability: tensioner conforms to original equipment quality.
