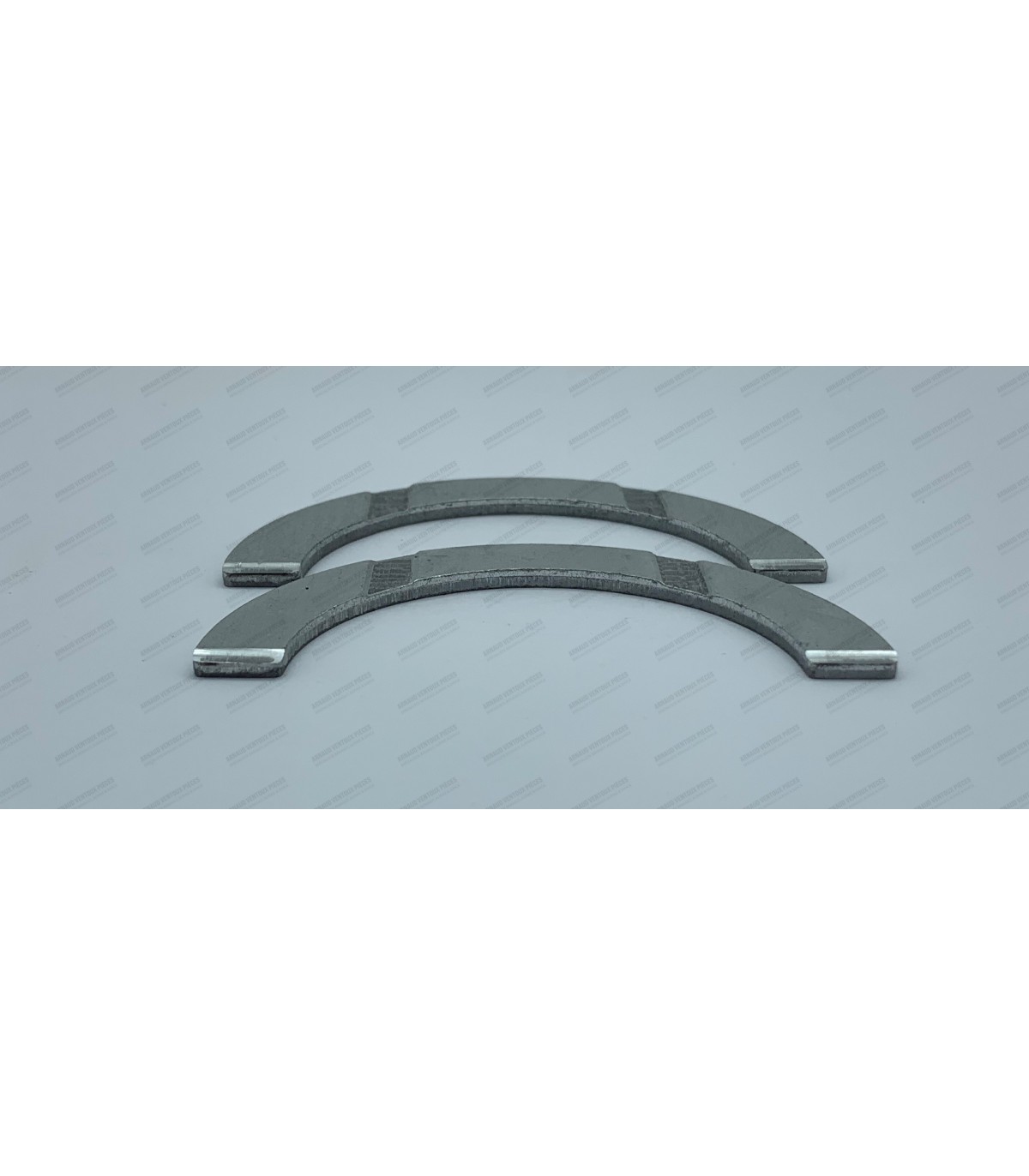

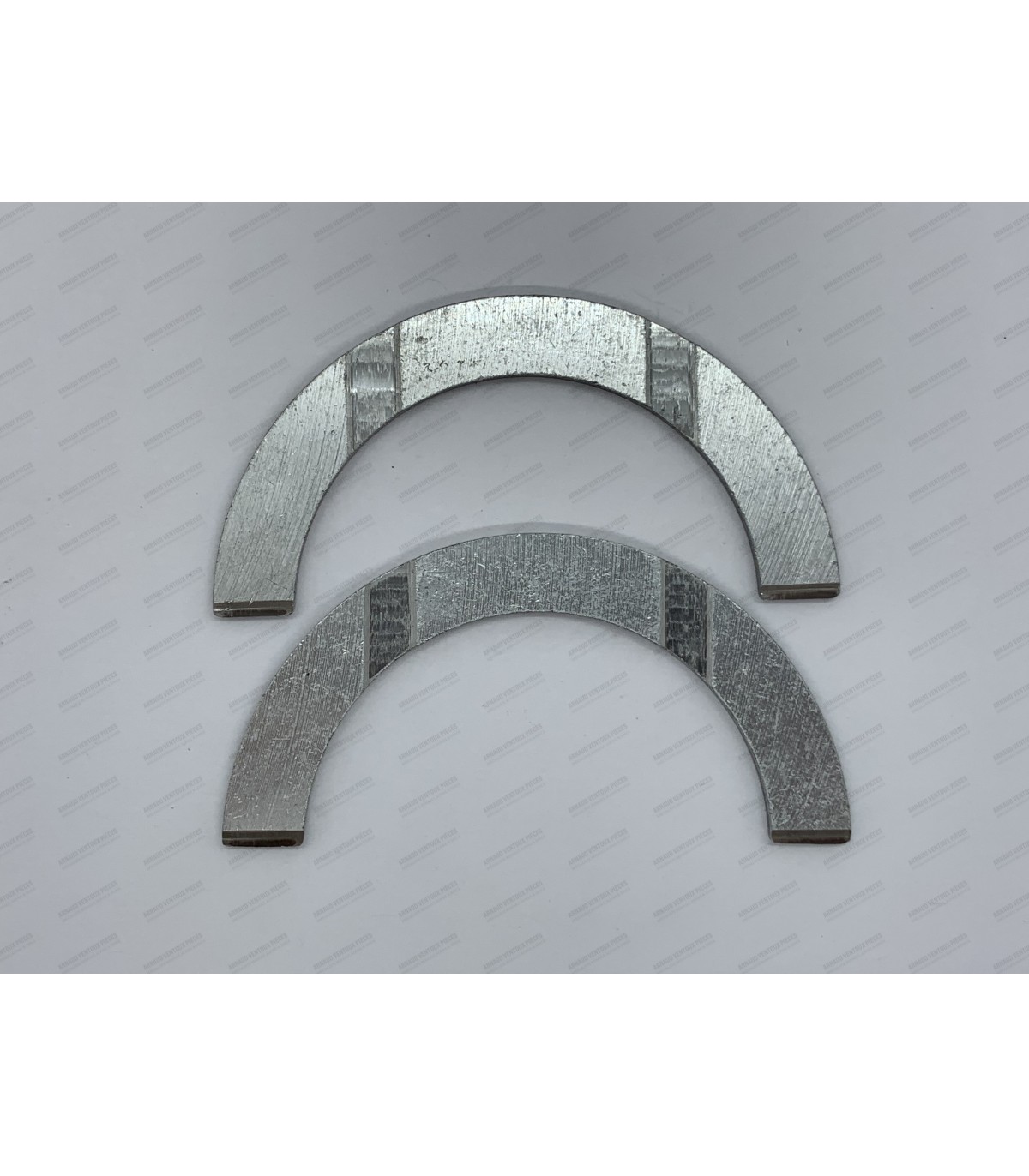

Set of side shims - STD thickness 2.36 mm (Original dimension)

Bearing Dimensions:

• Dimension: Repair Dimension (+0.50)
• Junnel Diameter (A): Ø 45.50mm
• Housing Diameter (B): Ø 49.89mm
• Bearing Width (C): 24.50mm (x4)
• Bearing Width (C): 19.50mm (x6)
• Bearing Thickness (D): 2.16mm
• Smooth bearings with lugs and holes Lubrication (x5) and grooves (x5)
• Bearing material: Bi-metal

Suitable for:

• R8 (All models) / Caravelle / Floride S
• A110 (All models) / Alpine GT4
• Matradjet

This adjustable steering kit replaces the original "Fork" type steering rods.

To install the adjustable rods, it is necessary to remove the silent block of the rack eye and replace the steering bellows with the specific bellows AVP4620 (Included in the kit).

• This kit contains an M9 adjustment screw nut and an M8 nut
• To identify a caliper with a square or round seal, refer to the symbol indicated on the caliper casting.
• A square symbol indicates a square seal, while a circle symbol indicates a round seal.
• It is essential to replace the same seal type (round or square) according to the symbol on the caliper.
• We recommend checking the symbol displayed on each caliper, as a vehicle may have calipers from different manufacturers, some with square seals and others with round seals. round.
• It is not recommended to mix calipers on the same set, as this can lead to the risk of calipers slipping when braking.

Assembly only with graphite stopper

Caractéristiques des segments :

• Diamètre des segments : Ø 73mm
• Épaisseur des segments supérieurs (Coupe-feu): 1.75mm
• Épaisseur des segments intermédiaires (Étanchéité): 2mm
• Épaisseur des segments inférieurs (Racleur): 4mm

Il est indispensable d'effectuer une vérification du jeu à la coupe de chaque segment avant leur mise en place sur les pistons, selon les valeurs données par le constructeur ou données dans la notice fournie.

Au montage, la coupe des segments doit être répartie de façon régulière sur le périmètre du piston à 120°.

• Kit to be used with a coil of primary resistance between 2.5 and 3.5 ohms
• Compatible with coils AVP4708 and AVP4715
• Compatible for Ducellier igniter with an inner body diameter of Ø 58.8mm
• Not suitable for an igniter with externally adjusted breakers (different plate fixing points)
• Supplied with 3 screws for fixing the plate
• Instructions included
