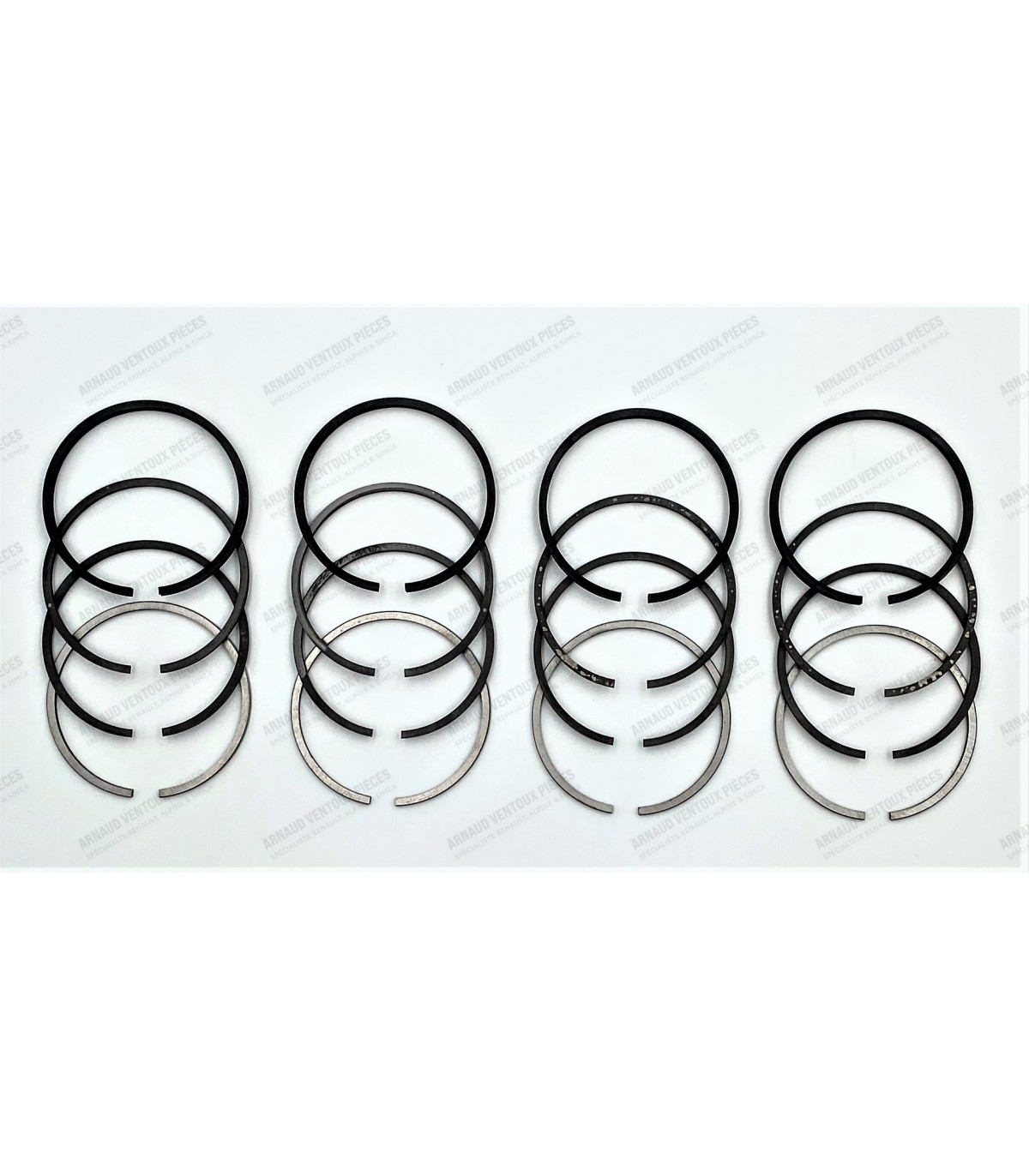

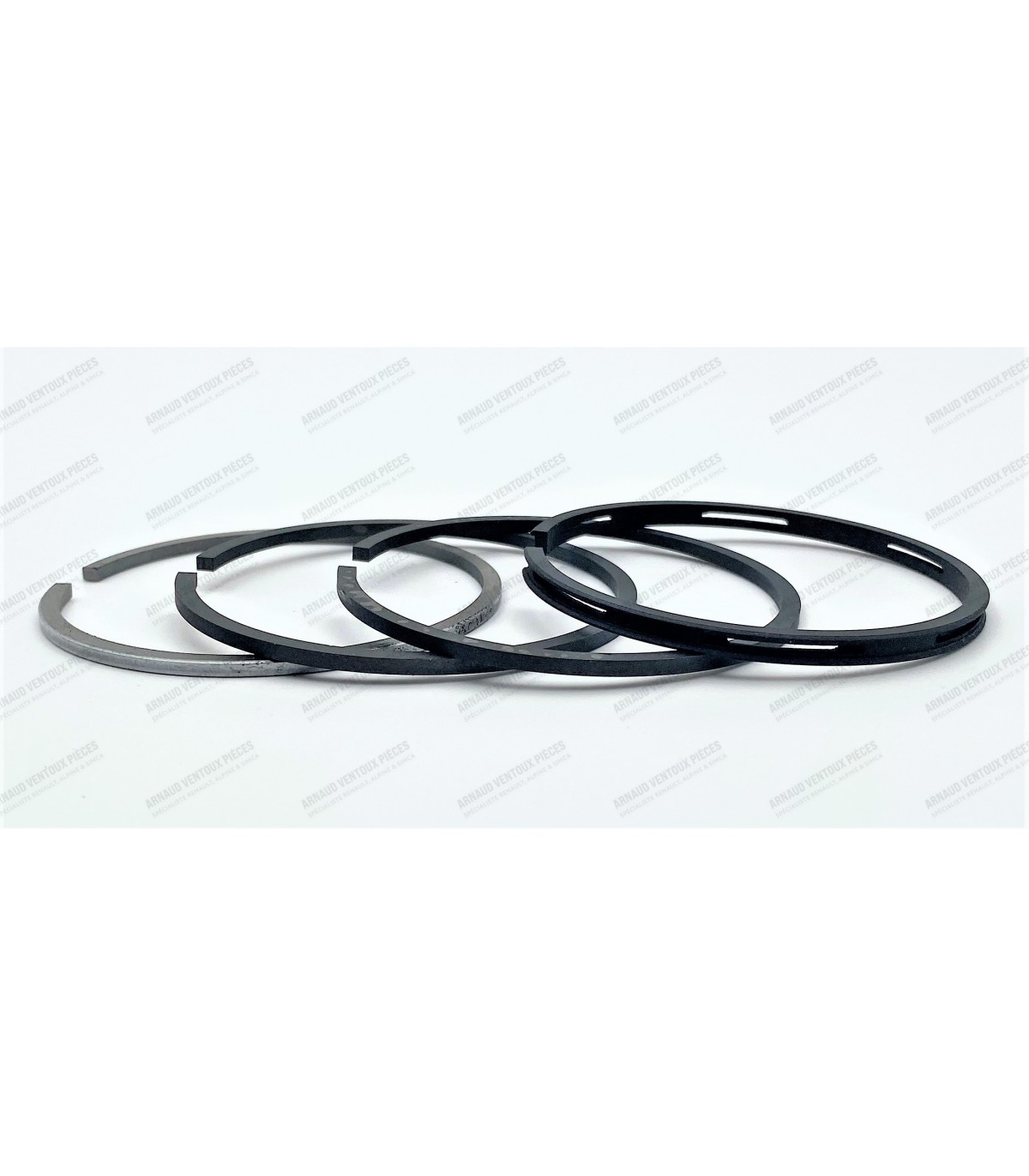

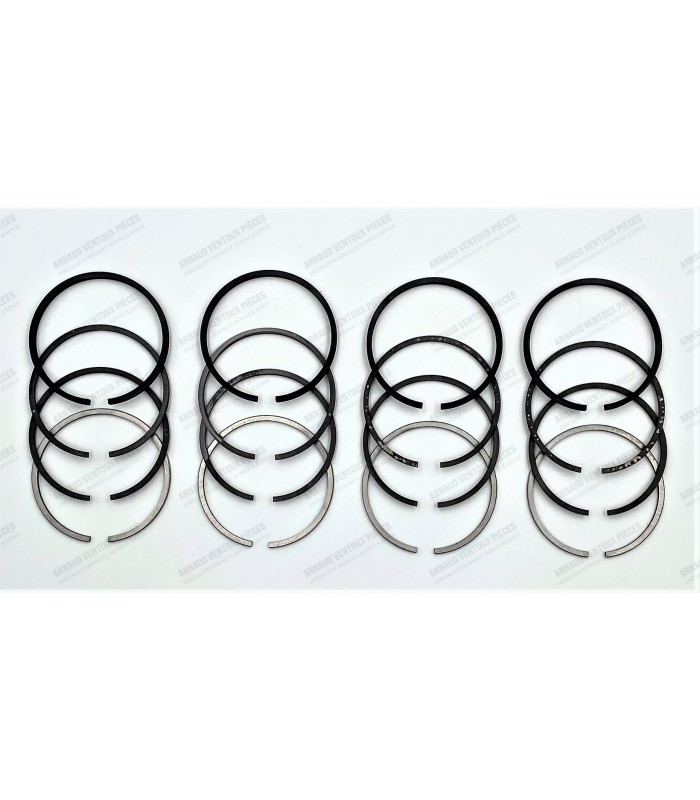

Set of 16 segments Ø58mm - 2Cx2x2x3.5R
Reference:
2003
Segment Characteristics:
-
- Segment Diameter:Ø 58mm
- Thickness of Upper Segments (Fire-resistant): 2mm
- Thickness of Intermediate Segments (1) (Waterproof): 2mm
- Thickness of intermediate rings2 (Sealing): 2mm
- Thickness of lower rings (Scraper): 3.5mm
It is essential to check the ring end gap of each ring before installing them on the pistons, according to the valuesgiven by the manufacturer or data in the supplied instructions.
During assembly, the piston ring gaps must be evenly distributed around the piston circumference at 120° intervals.
€96.00
(tax incl.)
Order before 1pm and enjoy same day shipping !
Customers who bought this product also bought:
In stock
In stock

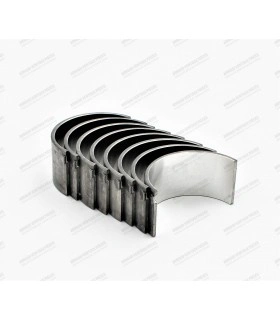

Bearing Dimensions:
- Dimension: Repair Dimension (+0.25)
- Junnel Diameter (A): Ø 39.75mm
- Housing Diameter (B): Ø 44.01mm
- Bearing Width (C): 27.13mm (x2)
- Bearing Width (C): 30.12mm (x2)
- Bearing Width (C): 32.87mm (x2)
- Bearing Thickness (D) : 2.11 mm
- Smooth, lug-type bearings with grease holes (x4) and grooves (x6)
- Bearing material: Bi-metal
In stock
Suitable for:
- Juvaquatre R2100 (4hp): Type 662-3 engine
- Dauphinois R2101 (5hp): Type 670-2 engine
In stock
