For the Alpine A108: Consult us before placing the order because several assemblies are possible
In stock

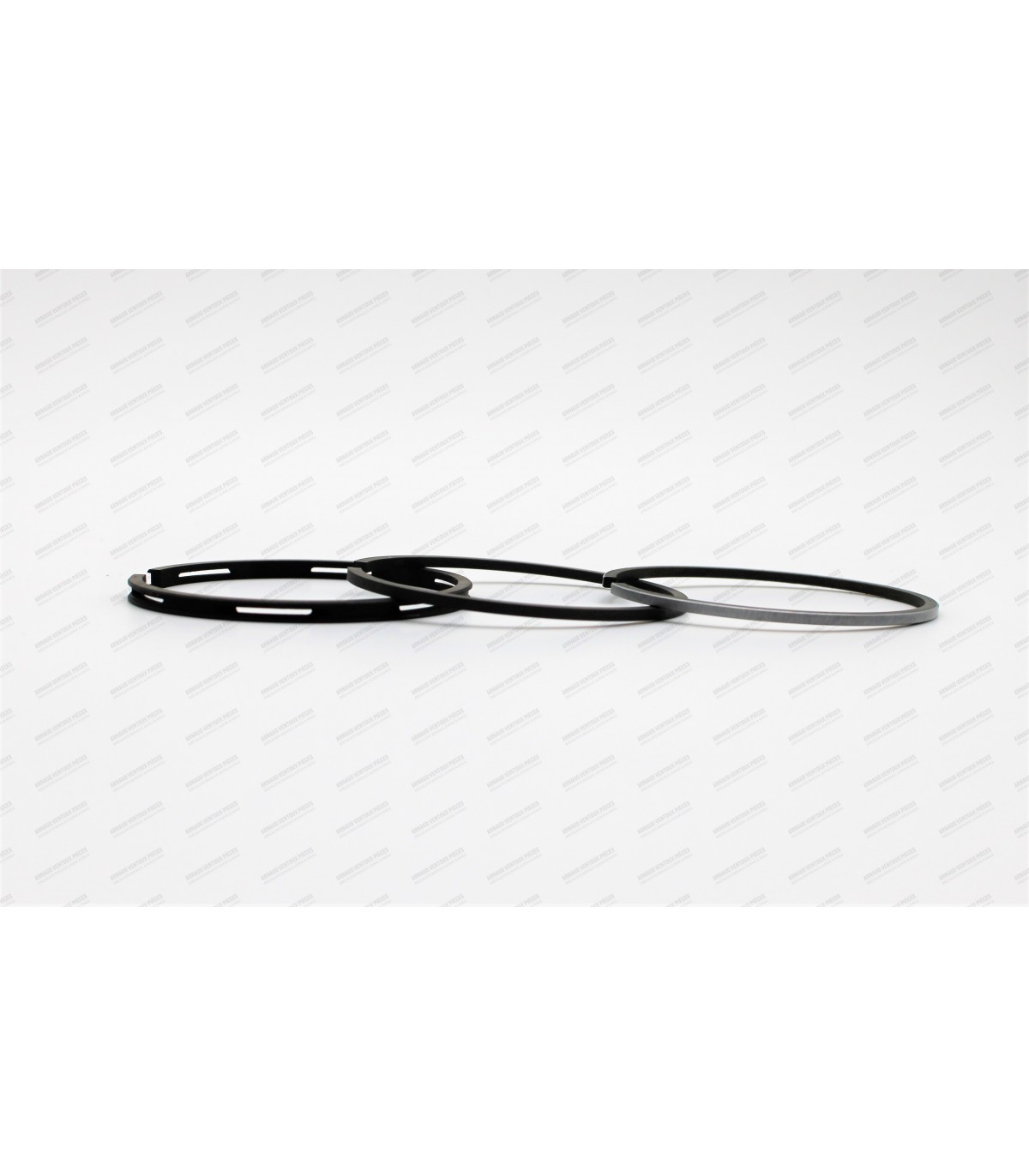

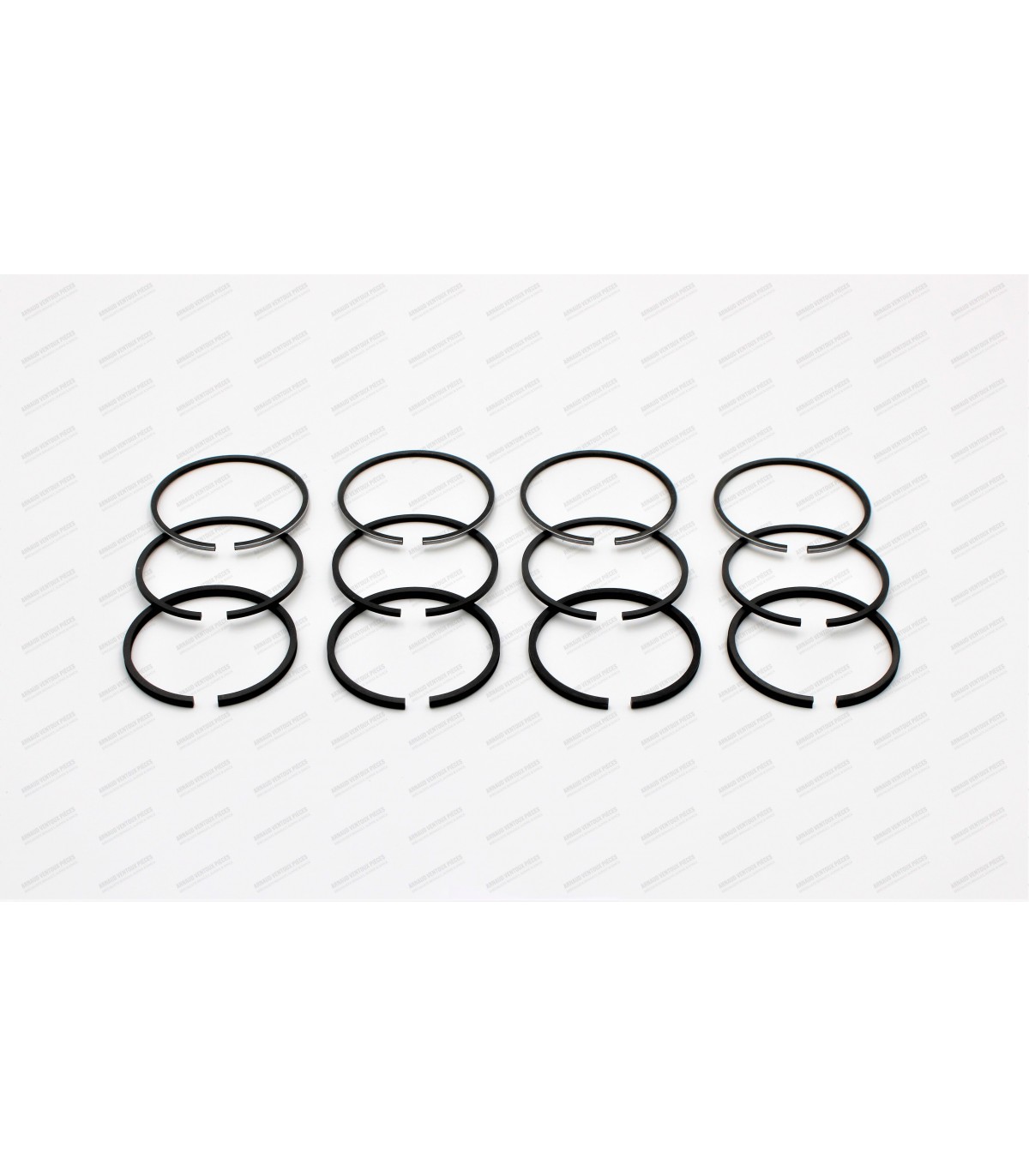

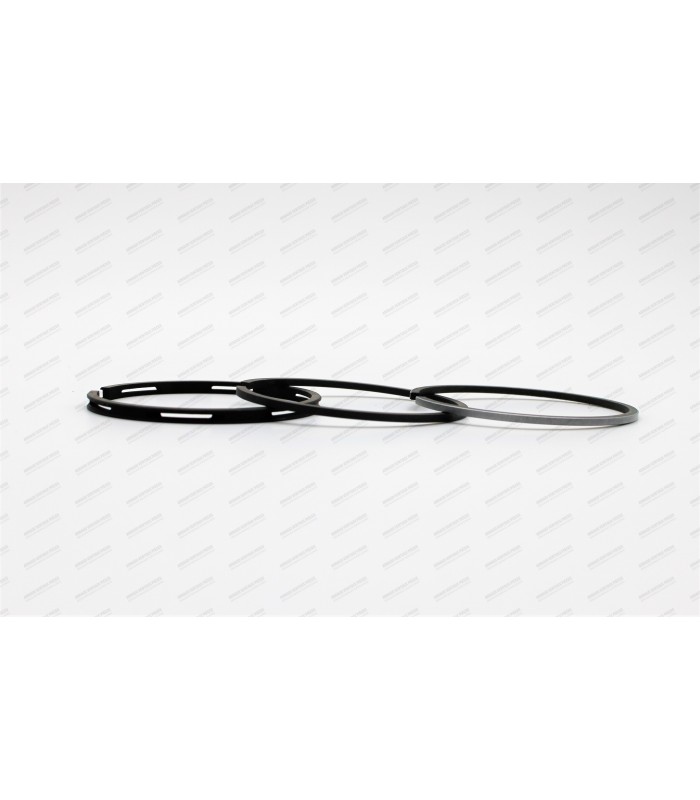

Set of 12 segments Ø58mm - Thickness 2Cx2x3.5mm
Reference:
2009
Segment Characteristics:
- Segment Diameter:Ø 58mm
- Thickness of Upper Segments (Fire-resistant): 2mm
- Thickness of Intermediate Segments (Waterproof): 2mm
- Lower piston ring thickness (scraper): 3.5mm
It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values given by the manufacturer or in the supplied instructions.
During installation, the ring end gap must be evenly distributed around the piston circumference at 120°.
€82.00
(tax incl.)
Order before 1pm and enjoy same day shipping !
Customers who bought this product also bought:
Installation orientation: The end with the two closest-spaced holes is installed on the inspection plate side (opposite the water pump).
Tube orientation: The holes must be aimed towards the valve seats at a 30° angle from the vertical.
- Tube outer diameter: Ø 14mm
- Tube length (overall): 325mm
- Material: Stainless steel
- Renault OE Ref.: 5522581 / 0555258100 / 0555465300
In stock
In stock
Specific Bearings (Timing Side): Bearings without grooves on the main bearing cap side
Suitable for Billancourt Type 839 and 800 engines (From July 1972)
Bearing Dimensions:
- Dimension: Original dimension (Standard)
- Journal Diameter (A): Ø 39.99mm
- Housing Diameter (B): Ø 44.01mm
- Bearing Width (C): 27.13mm (x2)
- Bearing width (C): 30.12mm (x2)
- Bearing width (C): 32.87mm (x2)
- Bearing thickness (D): 1.99mm
- Lug bearings with grease holes (x4) and grooves (x5)
- Bearing material: Bi-metal
Out of stock
Out of stock
In stock
In stock
Suitable for:
- Juvaquatre R2100 (4hp): Type 662-3 engine
- Dauphinois R2101 (5hp): Type 670-2 engine
In stock
