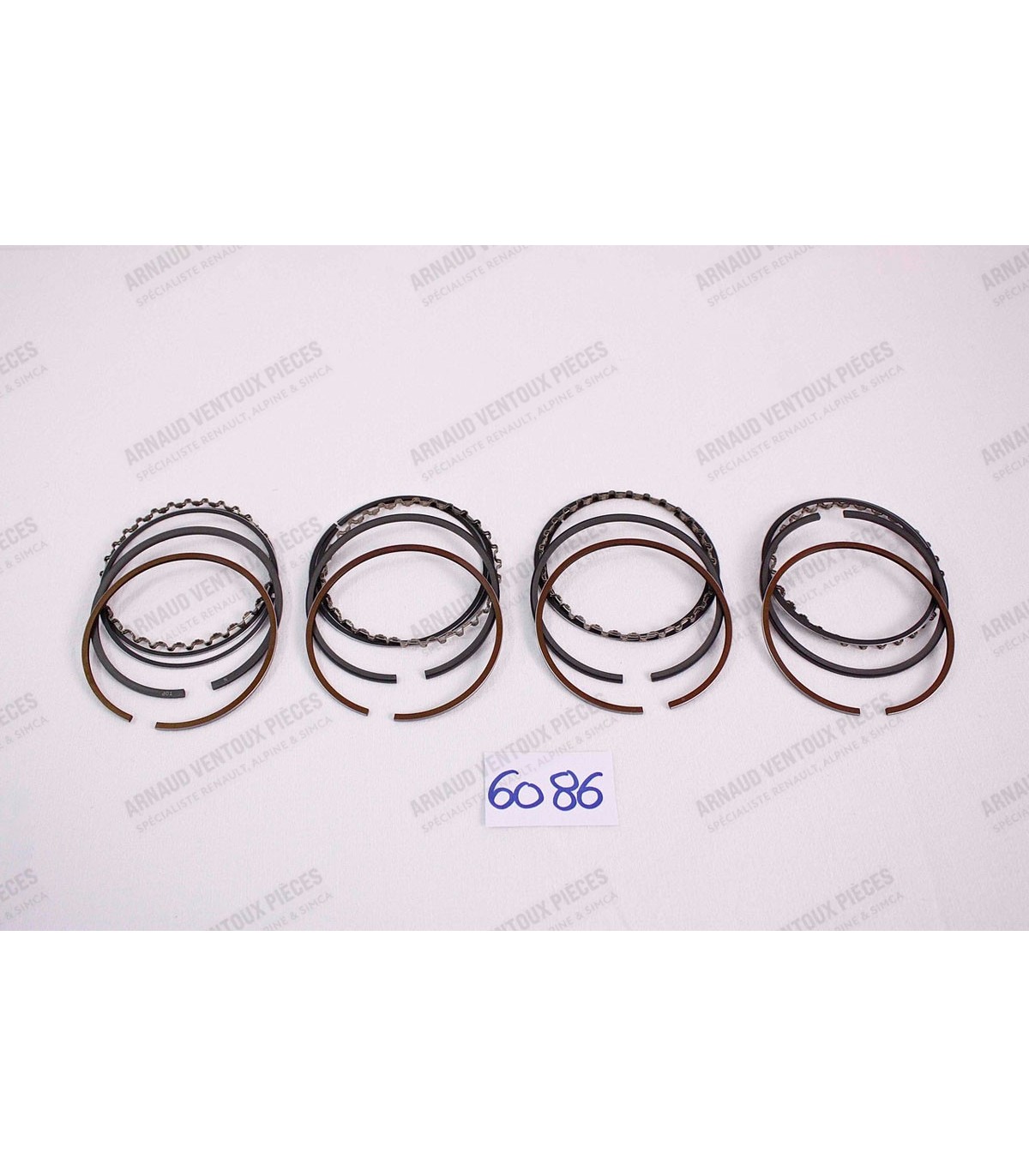

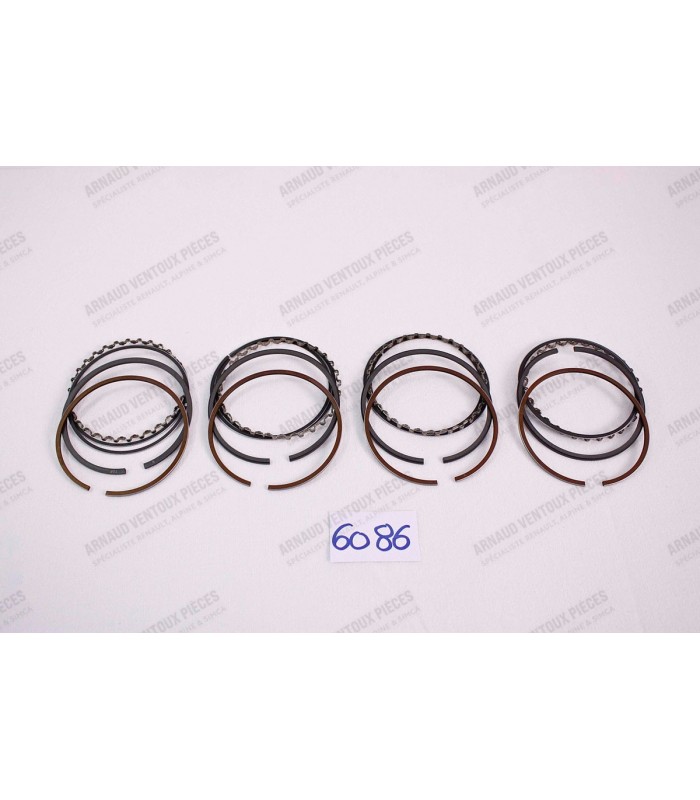

Set of 12 segments Ø 79mm - 1.75x2x4
Segment Characteristics:
-
- Segment Diameter:Ø 79mm
- Thickness of Upper Segments (Fire-resistant): 1.75mm
- Thickness of Intermediate Segments (Waterproof): 2mm
- Low ring thickness (Scraper): 4mm
It is essential to check the ring end gap of each ring before installing them on the pistons, according to the values given by the manufacturer or in the instructions provided.or the values given in the instruction manual.
During installation, the ring end gap must be evenly distributed around the piston circumference at 120°.
Bearing Dimensions:
- Dimension: Stock Dimension (Standard)
- Journal Diameter (A): Ø 54.80mm
- Housing Diameter (B): Ø 58.75mm
- Bearing Width (C): 20.50mm
- Bearing Thickness (D): 1.95mm
- Smooth, lug-type bearings with grease holes (x5) and grooves (x5)
- Bearing Material: Bi-metal
Cylinder head gasket specifications:
-
- Crimping diameter: Ø 59.7mm
- Cylinder head gasket thickness:1.40mm
Installation direction:
The marking "Top" or "Haut" on the cylinder head gasket must be facing the Cylinder head (upwards).
For gaskets that do not have "top" or "high" markings, but have a manufacturer's part number, orient this part number towards the cylinder head.
If there are no markings (TOP, HIGH, or manufacturer's part number), the gasket does not have a specific orientation.
However, it is still necessary to check the correct positioning of the water and oil passages to ensure proper installation.
Suitable for:
- R5 All models (1st Version)
- R12 / R15 / R16 / R17
- A110 V85 / A110.1600cm³ (SI / SX / SC)
- A310.4
- A310 V6 (Before 1981)
Gasket dimensions:
- Inner diameter: Ø 20mm
- Outer diameter: Ø 33mm
- Height (excluding lugs): 5mm
- Recessed diameter: Ø 26mm
- Push button diameter: Ø 19.5mm
