AVP recommends the reinforced gearbox side silentblocks Ref 4305, for reasons of reliability and ease of assembly.
In stock

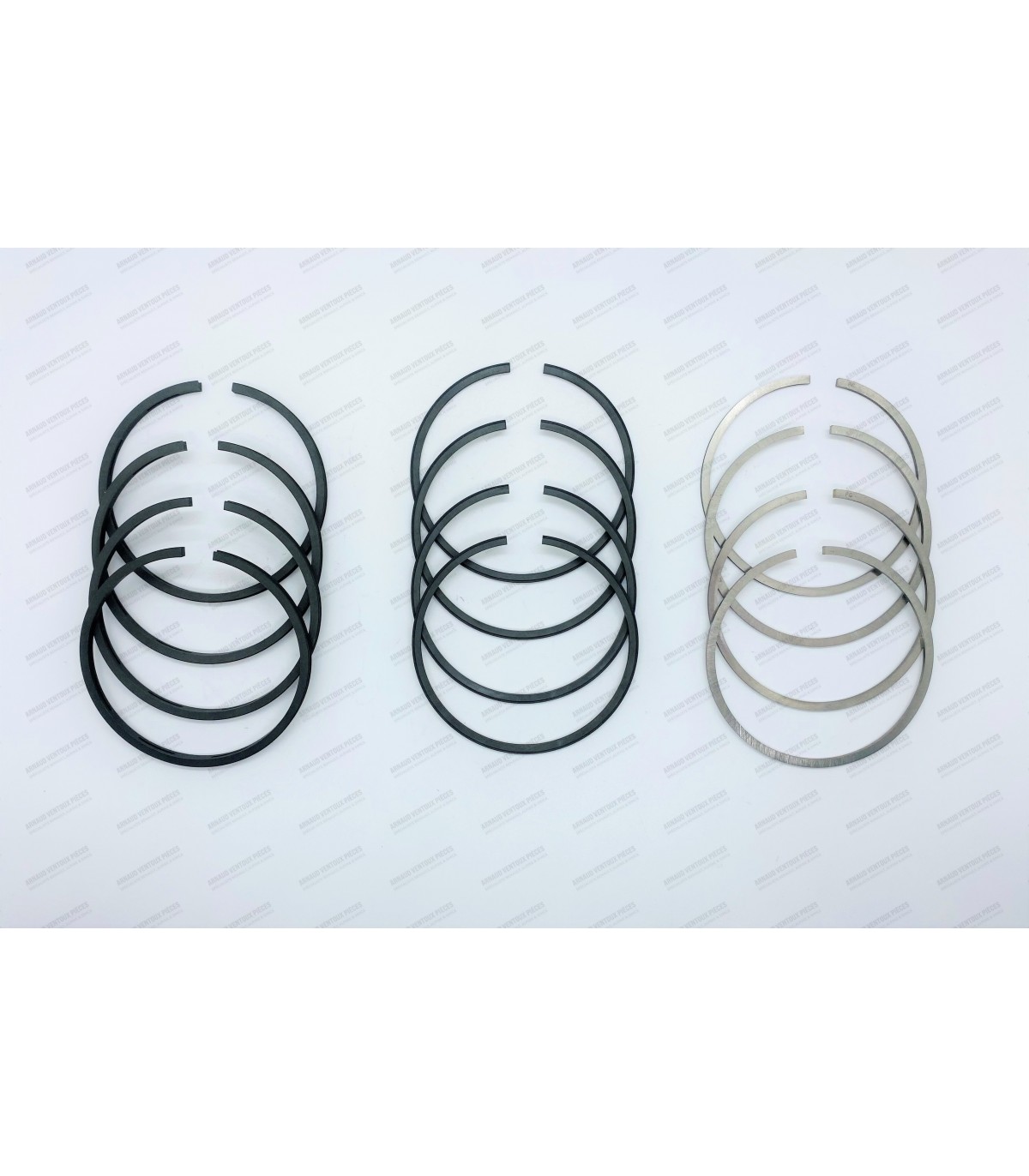

Segment clearance - Ø 74.5mm - Thickness 1.5x2x4mm
Reference:
4009
Segment Characteristics:
-
- Segment Diameter: Ø 74.50mm
- Thickness of Upper Segments (Fire-resistant): 1.50mm
- Thickness of Intermediate Segments (Waterproof): 2mm
- Low ring thickness (Scraper):4mm
It is essential to check the ring end gap of each ring before installing them on the pistons, according to the values given by the manufacturer or in the supplied instructions.or the values provided in the instruction manual.
During installation, the ring end gap must be evenly distributed around the piston circumference at 120°.
€99.00
(tax incl.)
