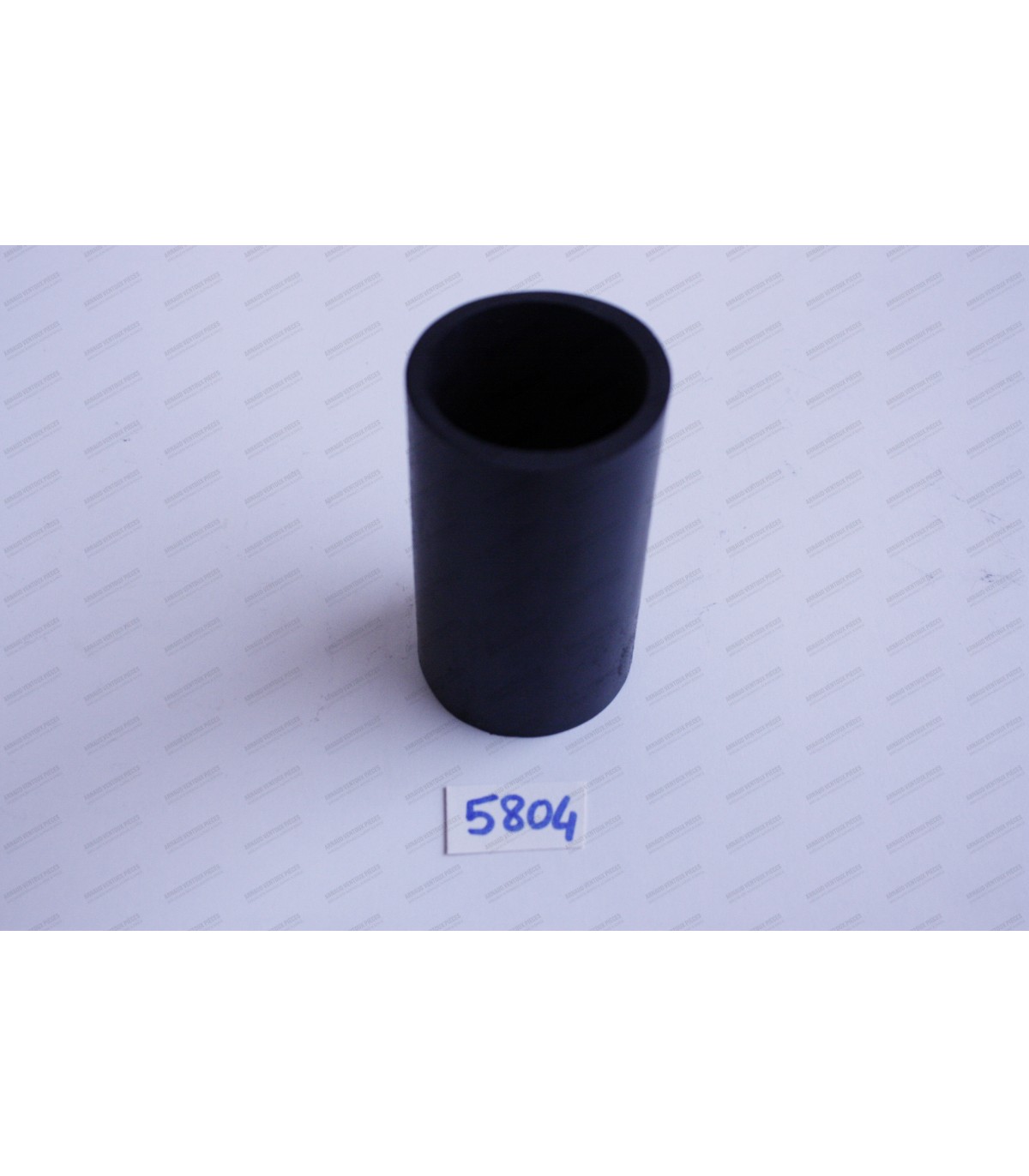

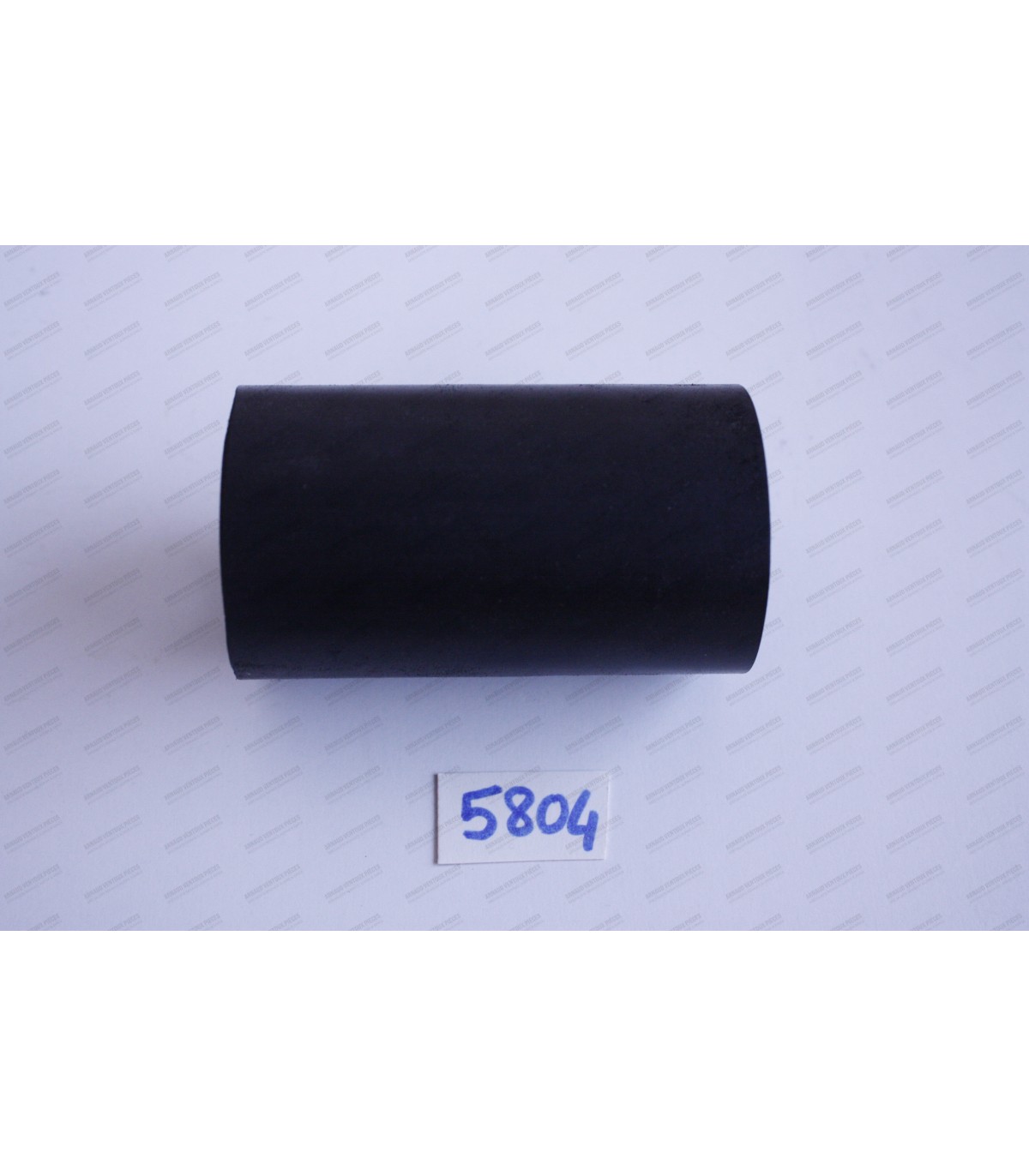

Rubber fuel filler neck R5 Alpine (1223) / R5 Alpine Turbo (122B)

4L: R1128 / R2370 / R2430 from 1976 to 1982

4L: R1128 / R112C / R 210B / R210B / R2370 / R 239B / S128 after 1983

R5

Suitable for valves with a groove in the upper position (type KK) and for stem diameter 8mm

• Intermediate plate seal: Gearbox 385 and NG5
• Gearbox nose seals: Gearbox 336
• Renault OE part number: 0428537100 / 7701493116

The sets are supplied with the following components:

• Liners (x4)
• Pistons (x4)
• Rings (x12)
• Panels (x4)

Dimensions of the different parts:

• • Liner bore diameter: Ø 76mm
  • Liner flange or top diameter (D): Ø 90.10mm
  • Liner base diameter (A): Ø 80.60mm
  • Overall height including skirts of cylinder liners (C):134mm
  • Height from top of cylinder liner to base gasket surface (E): 95mm
  • Shaft dimensions: Ø 20x62mm (Cirlip-free mounting)
  • Ring thickness:1.75mm / 2mm / 4mm (Fireproof/Sealing/Scraper)
  • Base gasket type: O-ring

Piston mounting direction: an arrow drawn perpendicular to the piston axis on top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).

It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120° intervals.

• Please note: This oil pump is not suitable as a replacement for an original oil pump in an original sheet metal oil pan for 1255cc and 1296cc engines.
• Height from the oil pump mating surface to the bottom of the strainer: 140mm
