- Dimensions: 60mmx190mm
- Round stem 40° inclination
- To be mounted with adhesive base reference 5924
In stock

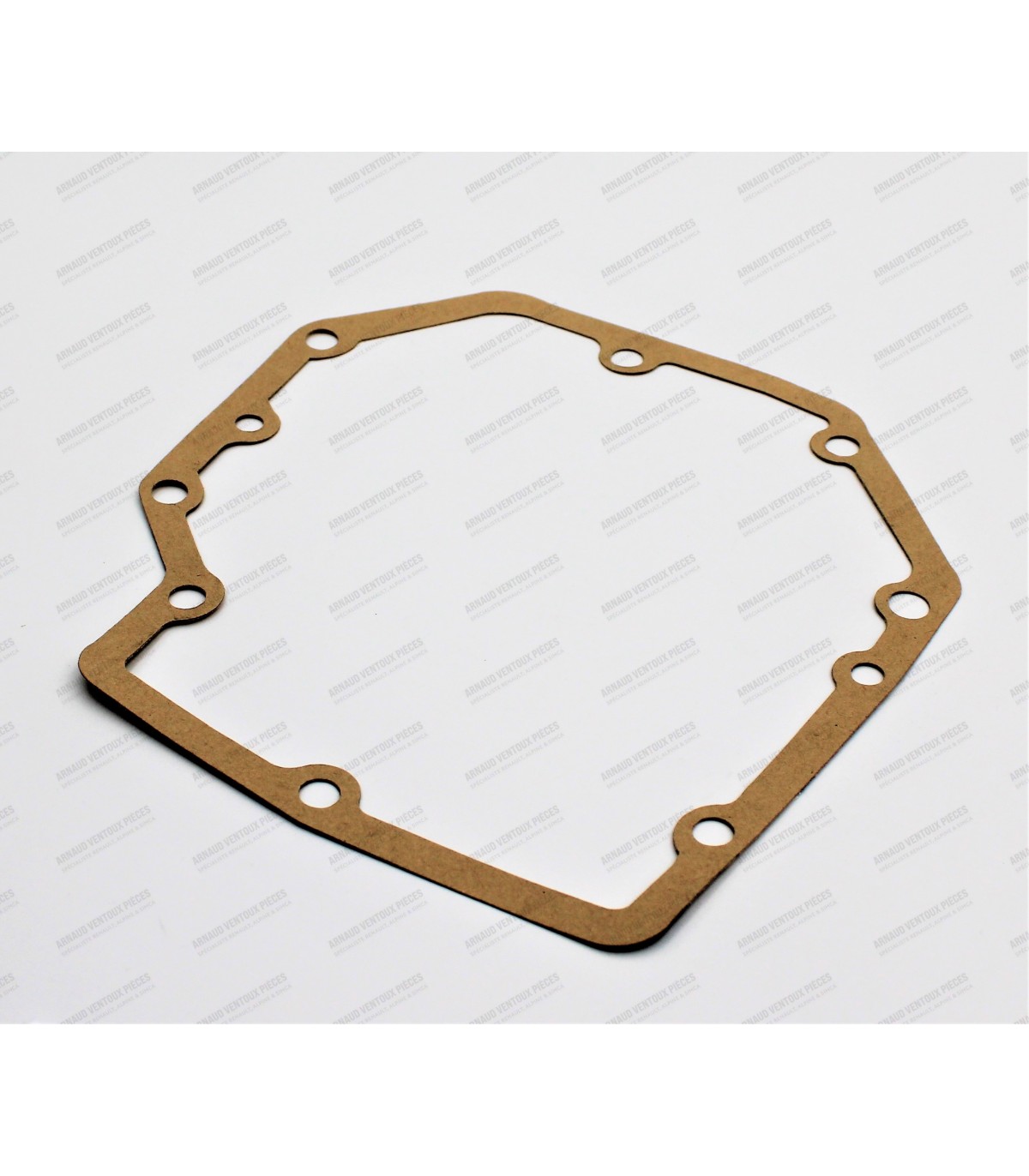

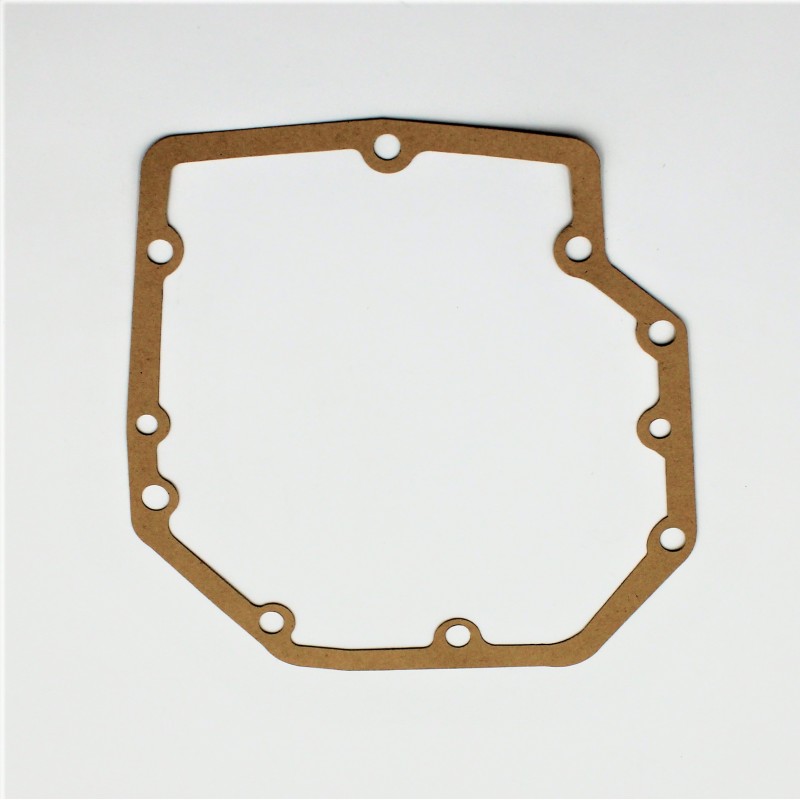

Intermediate plate paper gasket - Box 336 / 385 / NG5 - Ref 0428537100 / 7701493116
Reference:
5138
- Intermediate plate seal: Gearbox 385 and NG5
- Gearbox nose seals: Gearbox 336
- Renault OE part number: 0428537100 / 7701493116
€8.00
(tax incl.)
Order before 1pm and enjoy same day shipping !
Customers who bought this product also bought:
Suitable for:
- R5 Alpine Naturally Aspirated (1223) with modified camshaft and engine
- R5 Alpine Turbo (122B)
- R5 Turbo (8220)
These pushrods can be installed in a naturally aspirated engine (R5 Alpine), as the rocker arm screw adjustment compensates for the difference in pushrod length.
- EN-31 steel pushrod with 60HRC heat treatment
- Pushrod 0.5mm longer than stock to facilitate adjustment
- Sold individually
In stock
In stock
- Overall length: 283.5 cm
- Sheath length: 231 cm
- Cable length: 272.5 cm
Suitable for:
- Alpine A108 and GT4
- Dauphine
- Floride
Our cables are made in France and meet the assembly and quality standards of original equipment (OEM) cables from automotive manufacturers.
In stock
The sets are supplied with the following components:
- Liners (x4)
- Pistons (x4)
- Rings (x12)
- Panels (x4)
Dimensions of the different parts:
-
- Liner bore diameter: Ø 76mm
- Liner flange or top diameter (D): Ø 90.10mm
- Liner base diameter (A): Ø 80.60mm
- Overall height including skirts of cylinder liners (C):134mm
- Height from top of cylinder liner to base gasket surface (E): 95mm
- Shaft dimensions: Ø 20x62mm (Cirlip-free mounting)
- Ring thickness:1.75mm / 2mm / 4mm (Fireproof/Sealing/Scraper)
- Base gasket type: O-ring
Piston mounting direction: an arrow drawn perpendicular to the piston axis on top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).
It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values given by the manufacturer or in the supplied instructions.
During installation, the ring end gap must be evenly distributed around the piston circumference at 120° intervals.
In stock
- Heat treatment 60 HRC on 1mm depth
- Ref OE Renault : 7700618536 / 7700658371 / 6001002128
In stock
In stock
