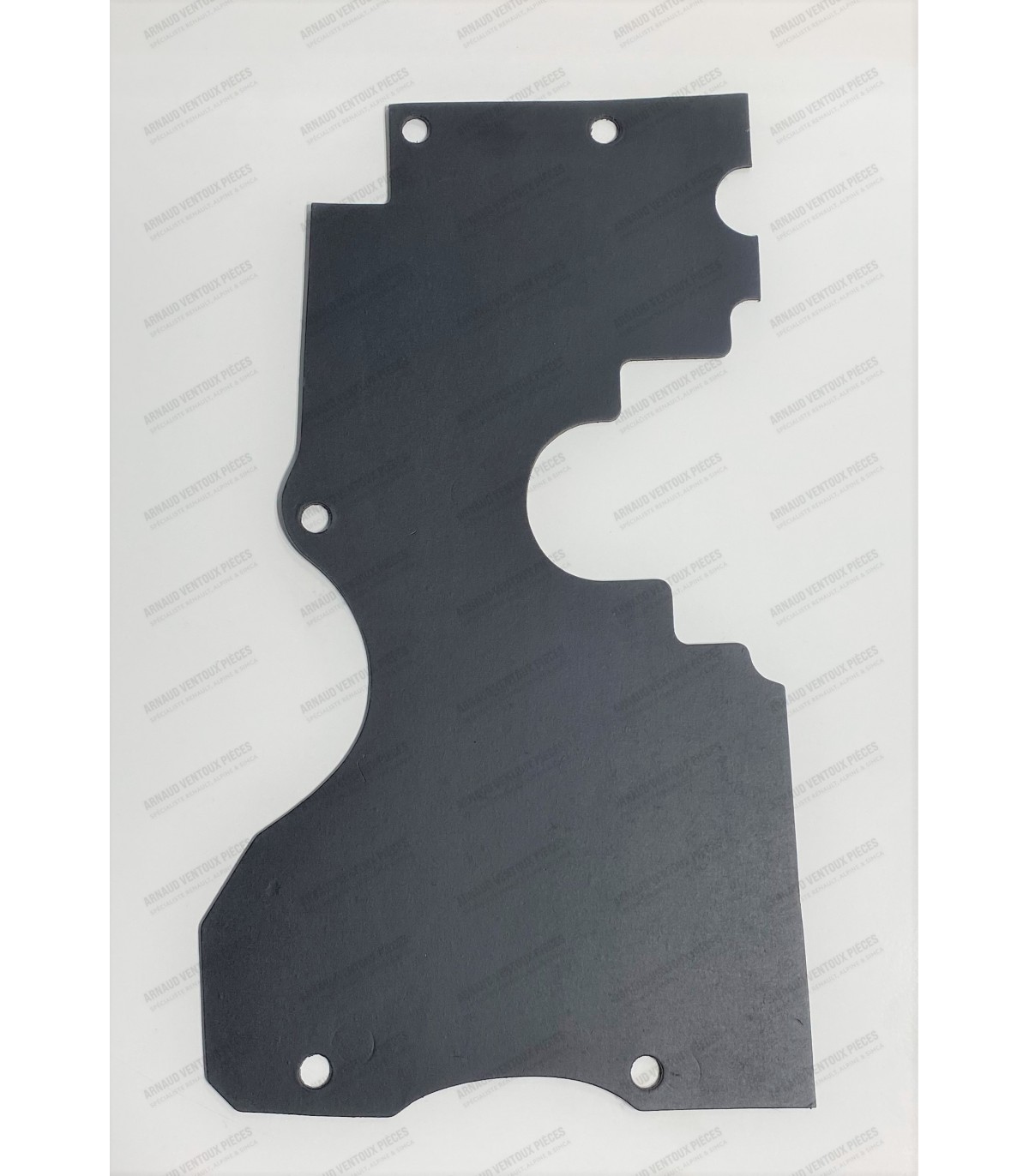

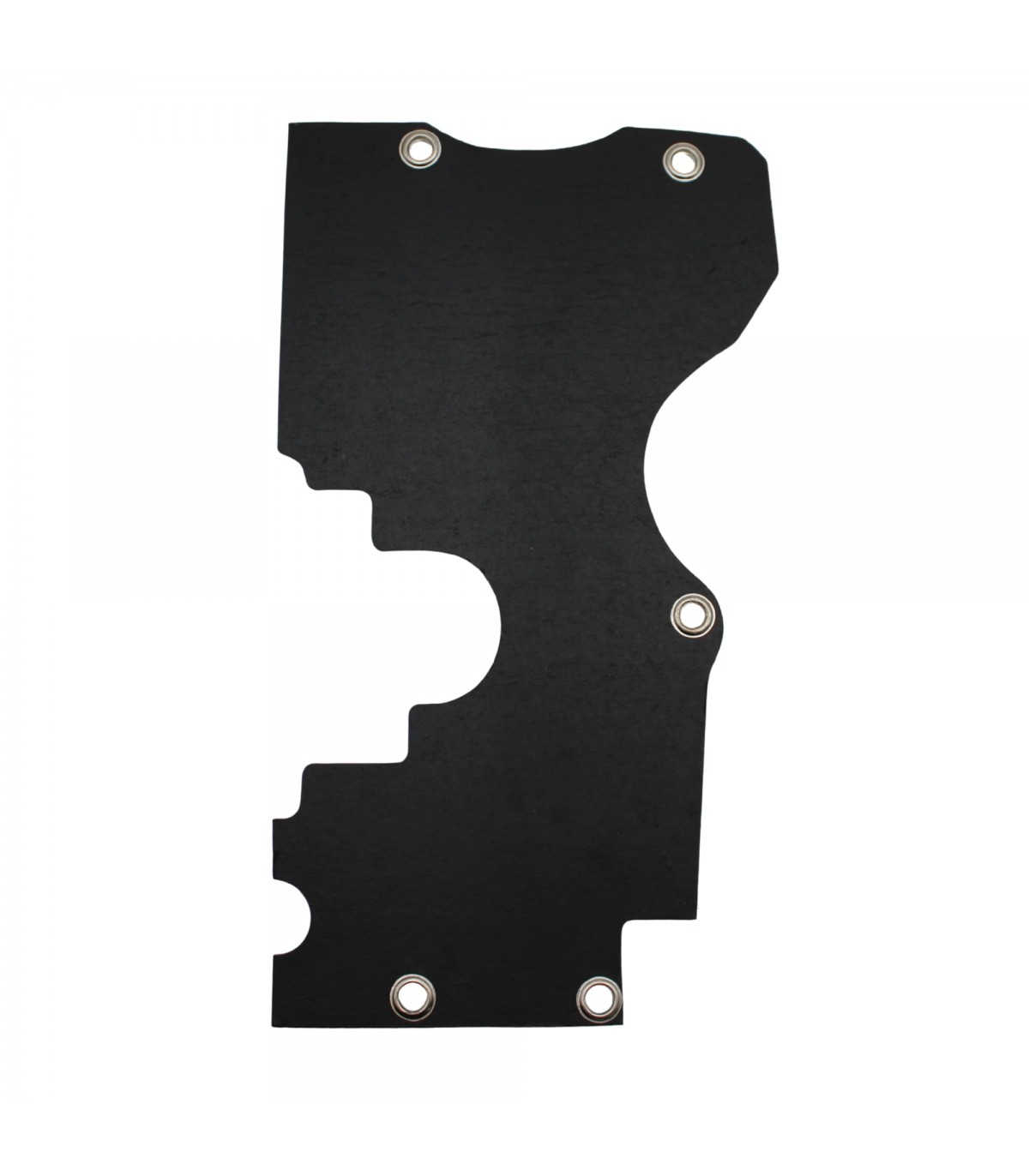

Right radiator box - 4CV - Ref 8212132 / 8213280

• The kit contains the following studs: M6x25 x3pcs (Ref 1016060256) + M6x30 x2pcs (Ref 1016060306) + M6x45 x1pcs (Ref 7059146)
• Only for water pumps with 7 mounting holes

Segment Characteristics:

• • Segment Diameter:Ø 55.8mm
  • Thickness of Upper Segments (Fire-resistant): 2mm
  • Thickness of Intermediate Segments 1 (Waterproof): 2mm
  • Thickness of intermediate rings2 (Sealing): 2mm
  • Thickness of lower rings (Scraper): 3.5mm

It is essential to check the ring end gap of each ring before installing them on the pistons, according to the valuesgiven by the manufacturer or data in the supplied instructions.

During assembly, the piston ring gaps must be evenly distributed around the piston circumference at 120° intervals.

Suitable for (Engine type 662 / 668 / 670 / 670-3):

• 4CV / Dauphine
• Estafette / Juvaquatre

Identical to Ducellier: 566 / 4054 / 4037

Replaces SEV Marchal distributor K4 A46, RB U4VA (SEV Junior)

Curve designed for unleaded fuel with octane SP95 / SP98

• Inlet tube : Ø 32mm

• Front stabilizer bar connecting rod silent block Ø 21mm
• Silent block of rods in rear spring (1st model)
• Rear oil shock absorber arm silent block (1st model) - Ref 8511922

• Sold individually
• Manufactured identically to the original

• Ball Ø 8mm / Stem M5
• Adjustment range between 65mm and 90mm
