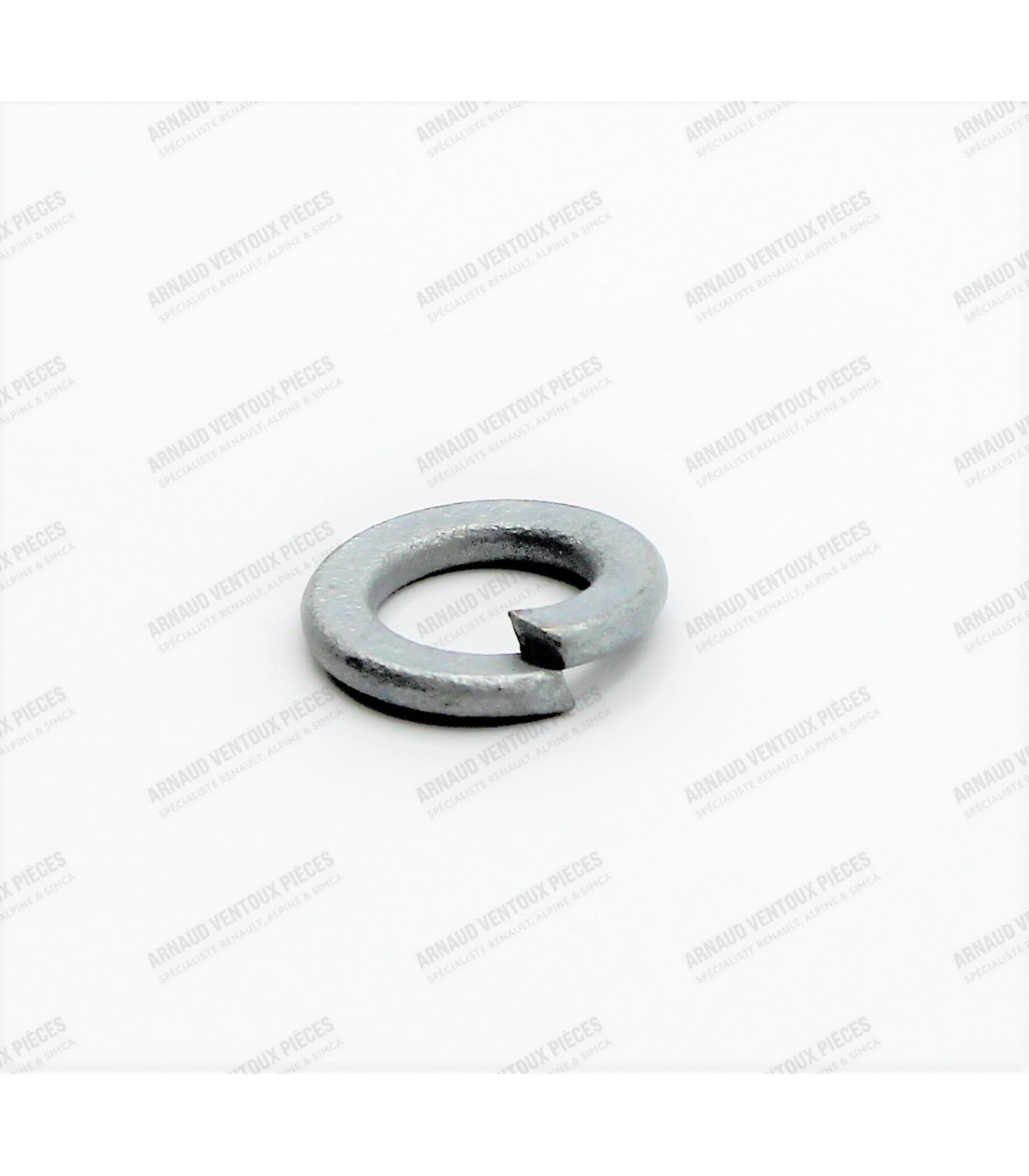

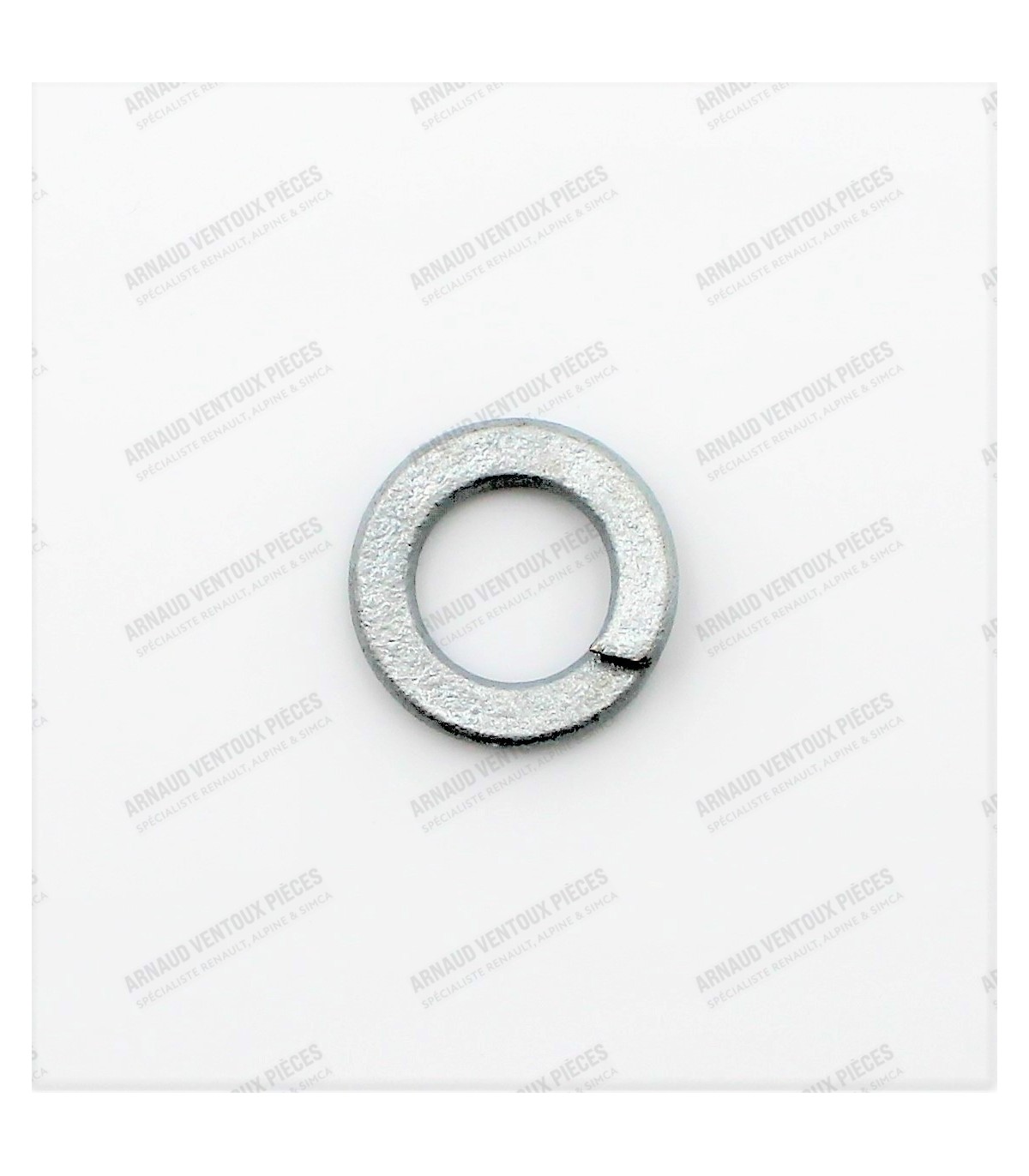

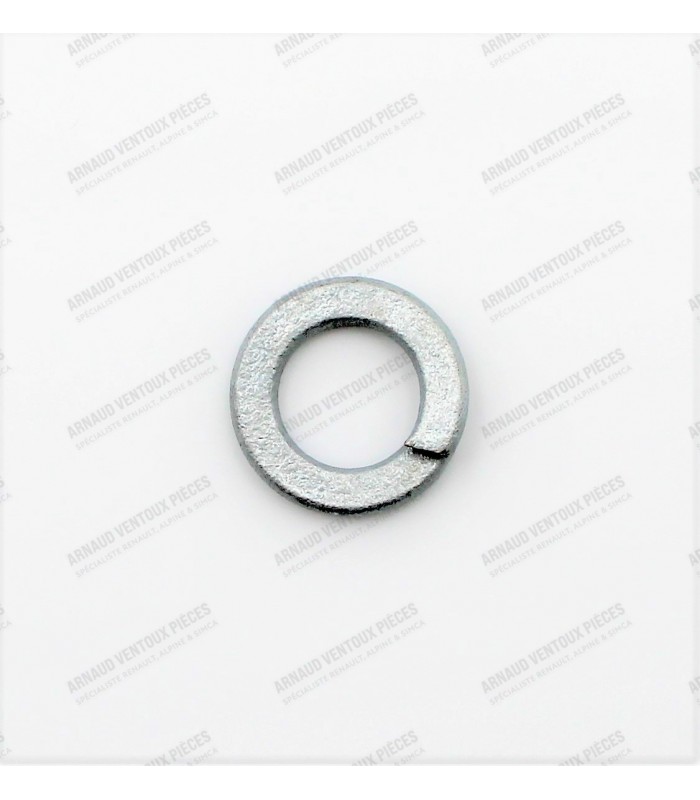

Rear trumpet stud grower washer and brake disc screw (Front or Rear) - M10

• Also suitable for the strip on the driver's and passenger's door panels.

Synchro Features:

• • Outer cone with angle (A):9°
  • All outer friction faces or sectors (x15) are identical and equidistant.
  • Synchro with a lug on the face opposite the main synchro lugs (See diagram)
  • Renault OE Ref: 0428406100

Suitable for the following gearboxes:

• • 330 Gearbox: 330-01 / ...
  • Gearbox 336: ...
  • Gearbox 352: 352-10 / 352-11 / 352-13 / ...
  • Gearbox 353: 353-03 / 353-13 / 353-33 / ...
  • Gearbox 364: 364-05 / 364-06 ...
  • Gearbox 365: 365-05 / ...
  • We recommend carefully disassembling and identifying the synchros (9° or 6°40 angle, friction sector, etc.) in each gearbox, as we have observed some mixtures.

    The gearbox numbers on the identification plate are not the most reliable way to identify the correct part.

• A M12x175 screw is required to secure the axle to the support.

Kit specifications (Tie rods / Ball joints and boots):

• Ball joint taper diameter (Steering knuckle side): Top of taper Ø 11mm / Bottom of taper Ø 12mm
• Ball joint taper stud thread diameter: M10 x 1.25 (right-hand thread)
• Ball joint stud thread diameter (into tie rod): M14 x 1.50 (right-hand thread)
• Tie rod thread diameter (into steering rack): M12 x 1.00 (right-hand thread)
• Minimum length of tie rod/ball joint assembly: 26 cm (measured from the contact point against the steering rack to the center of the ball joint stud on the steering knuckle side)
• Maximum adjustment of the tie rod/ball joint assembly: 29 cm (measured from the contact point against the steering rack to the center of the ball joint at the steering knuckle end)
• Includes: 2 steering rack boots, 2 steering ball joints (with nuts and locknuts), and 2 steering tie rods.

Suitable for:

• R8 (All models)
• Caravelle / Floride S
• A110 (All models) / Alpine GT4
• Matradjet

This adjustable steering kit replaces the original "fork-type" steering tie rods.

To install the adjustable tie rods, you must remove the steering rack eyelet bushing and replace the steering rack boots with the specific AVP4620 boots (included in the kit).
