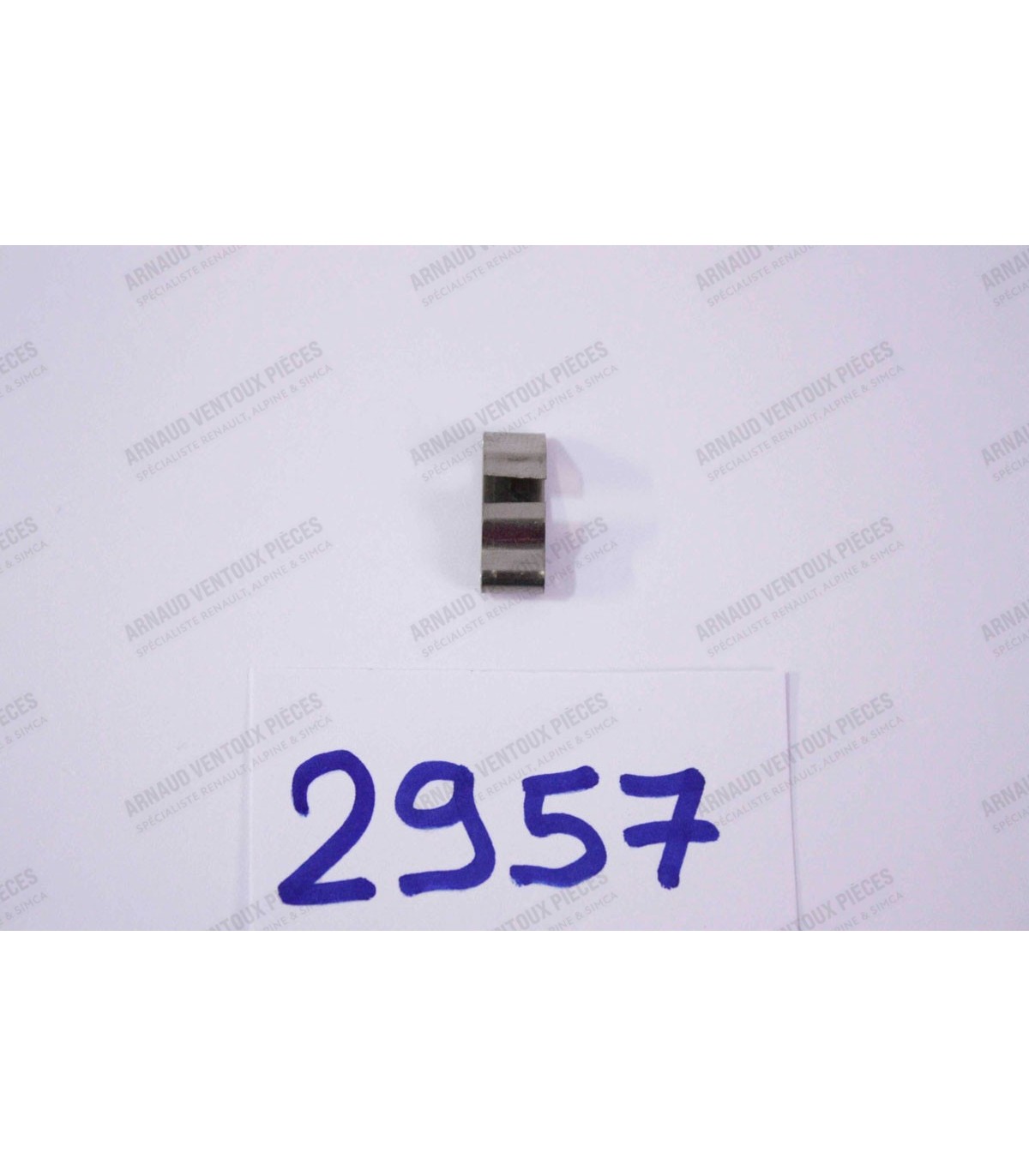

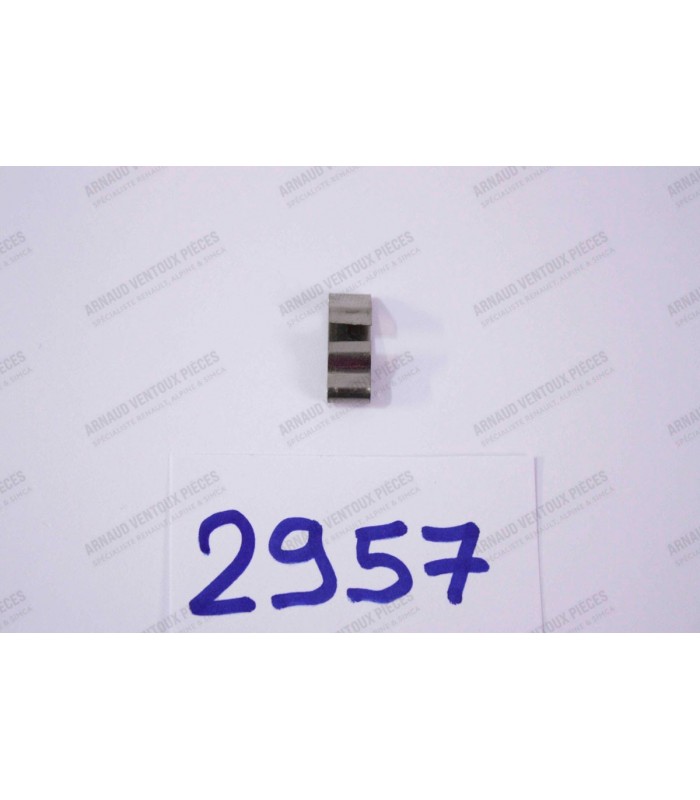

Clip for fender strips and rear skirt - Dauphine

Suitable for vehicles:

• 4CV / Juvaquatre: Type 662 Engine (From June 1956)
• Dauphine / Dauphinoise / Estafette / Floride A106 / A108: Type 670 Engine
• R4: Billancourt Type 800-02/05 Engine (From 1962)

Bearing dimensions:

• Dimension: Repair dimension (+0.25)
• Crankpin diameter (A): Ø 37.75mm
• Housing Diameter (B): Ø 41.14mm
• Bearing Width (C): 21.18mm
• Bearing Thickness (D): 1.69mm
• Smooth, lug-type bearings with no grease holes or grooves
• Bearing Material: Bimetal

Flexor Specifications:

• • Mounting hole spacing:4 x 50.50 mm
  • Mounting hole diameter: Ø 8.4 mm
  • Center hole diameter:Ø 10.50 mm
  • Flexor thickness: 11 mm
  • Material:Rubber flexor with metal reinforcement
  • Supplied with 4 x M8 x 20 mm screws and 4 x nylock nuts

For some assemblies with a center screw, replacing this screw with a socket head cap screw (SHCS) or modifying the flexor may be necessary.
