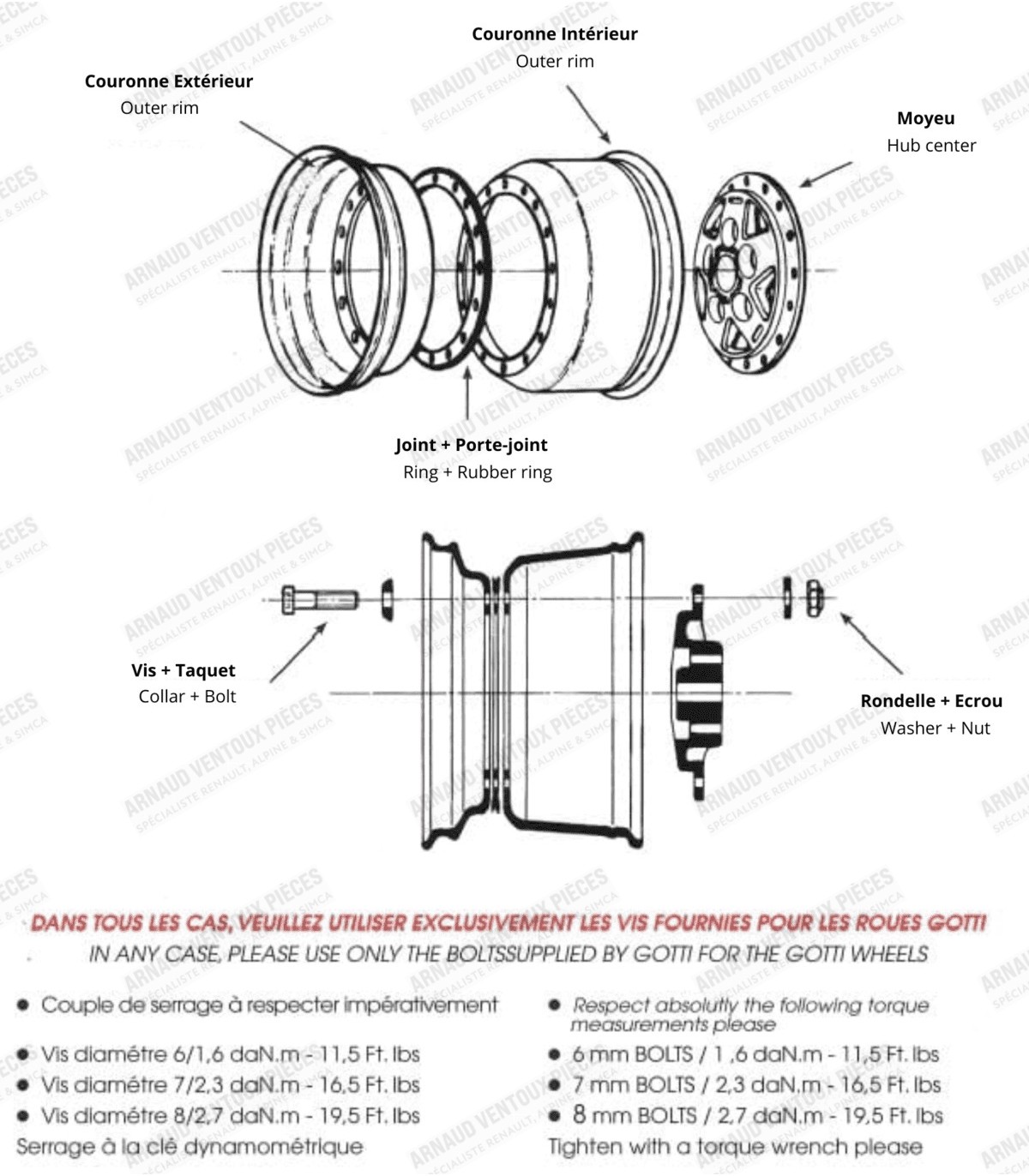

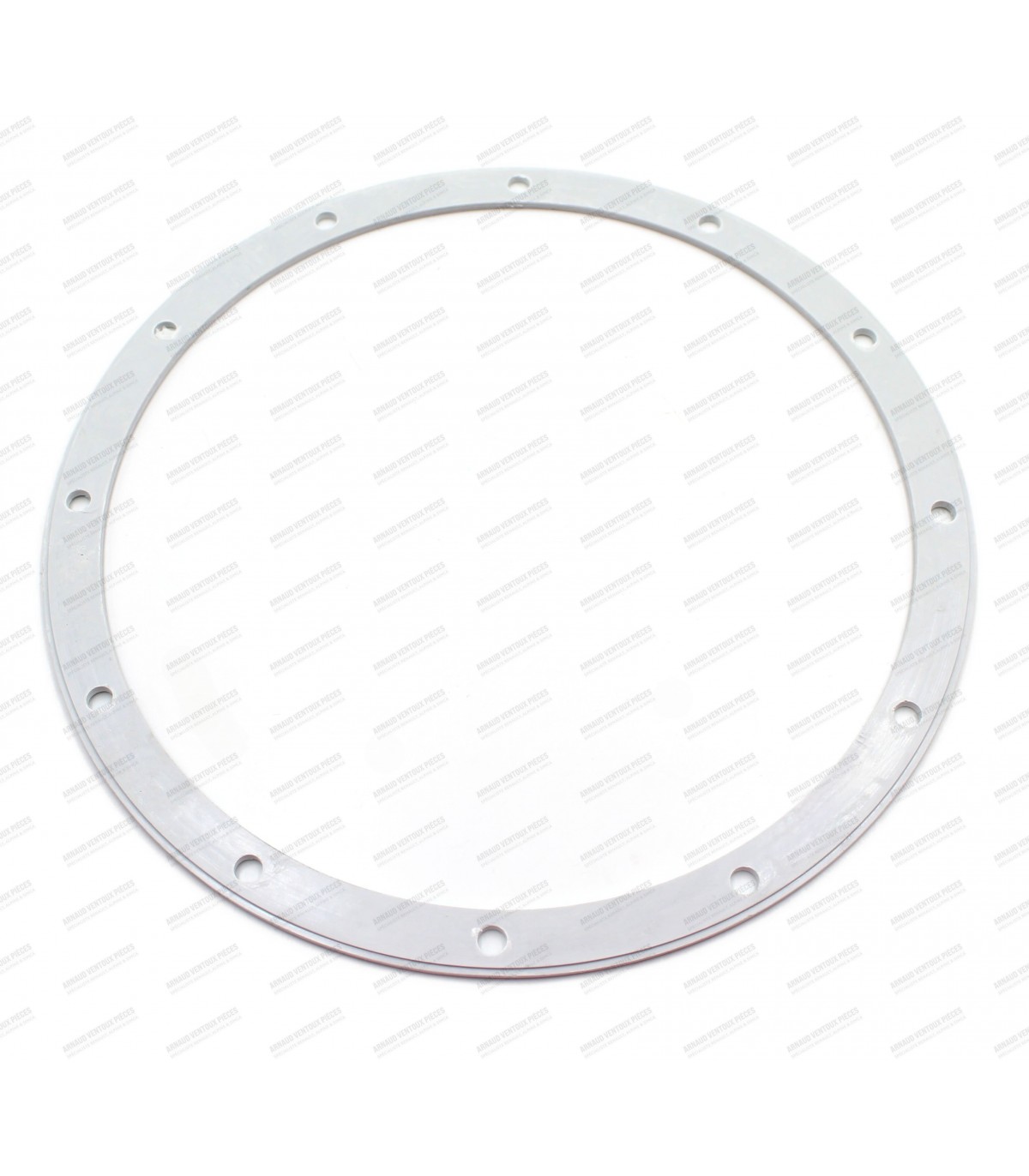

Fiber seal holder for GOTTI 13" rim

• Suitable for all 13-inch 3-piece modular rims (Except the GOTTI No. 7 rim)
• Must be used with the G004 fiber seal carrier
• Sold individually

Suitable for GOTTI rims with 6mm diameter mounting holes.

Kit includes:

• 35mm screws x12
• Aluminum cleats x12
• Washers under nuts x12
• Nuts x12

Note: Not suitable for GOTTI No. 7 rims

• Suitable for GOTTI rims with bolts measuring 35mm under the head and 6mm in diameter.
• Specific treatment and hardness
• Tightening: 16 Nm

• Suitable for GOTTI rims with Ø 6mm bolts (except GOTTI rim No. 7)
• Zinc-plated steel washer to be positioned on the nut side

• Suitable for GOTTI rims with 6mm diameter bolts
• Cleat to be positioned on the screw head side

• Suitable for GOTTI rims with 6mm diameter bolts
• Self-locking nut in reinforced steel
