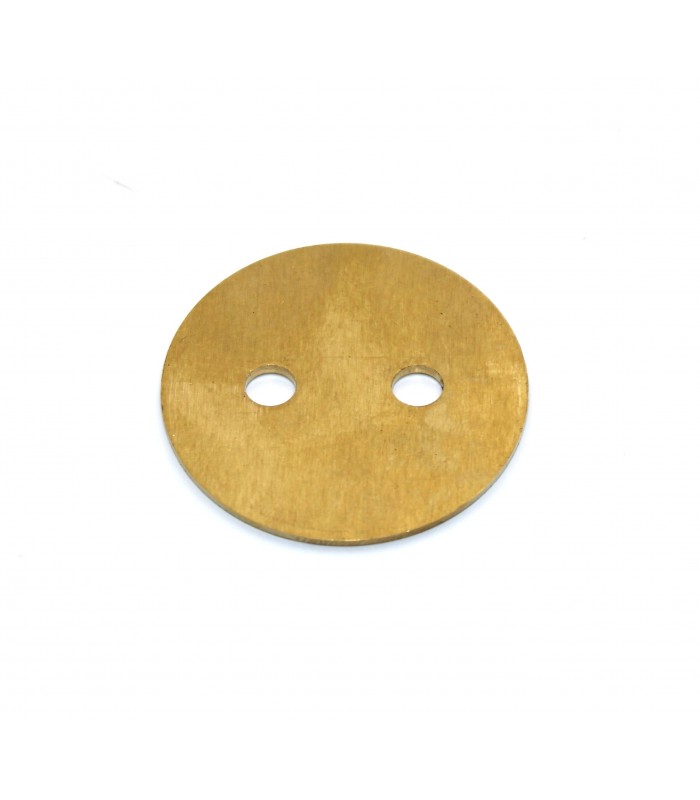

Butterfly / Throttle valve Ø 40mm - Angle 79°30' - WEBER DCOE 40 carburetor

• Suitable for older generation WEBER 45DCOE carburetors (the bearing surfaces differ from the shafts of modern versions)
• Caution: The throttle plates or flaps must be mounted using flat-head screws. (AVP48052)
• The mounting hole for the accelerator pump control must be drilled by the user, depending on the type of pump control.
• Overall shaft length: 180mm
• Thread diameter at the shaft ends: M7

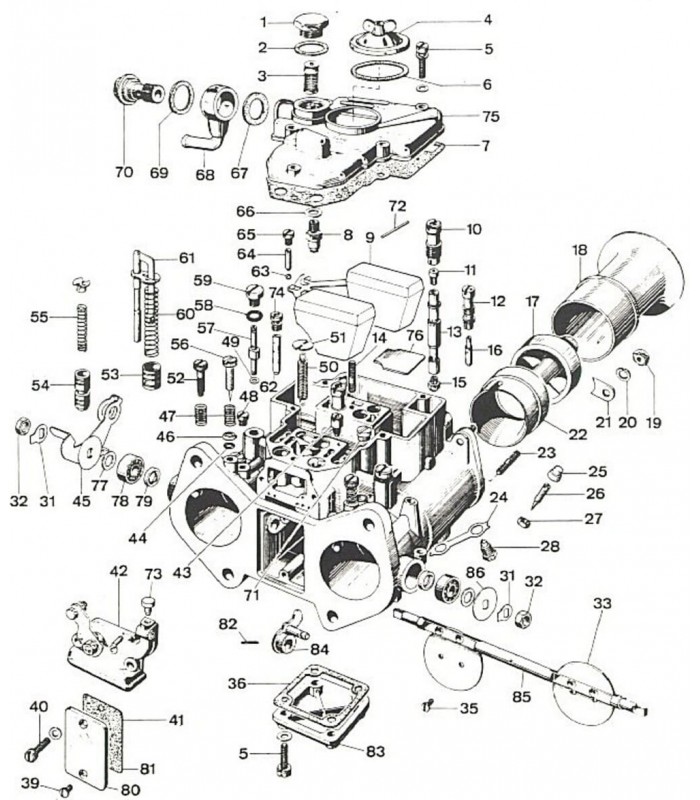

• Part number 85 on the exploded view

• • Flat head screw (Non-conical/non-countersunk screw)
  • Sold individually (4 screws required per carburetor)
  • Part number 85 on the exploded view

See below for compatibility with other WEBER carburetors
