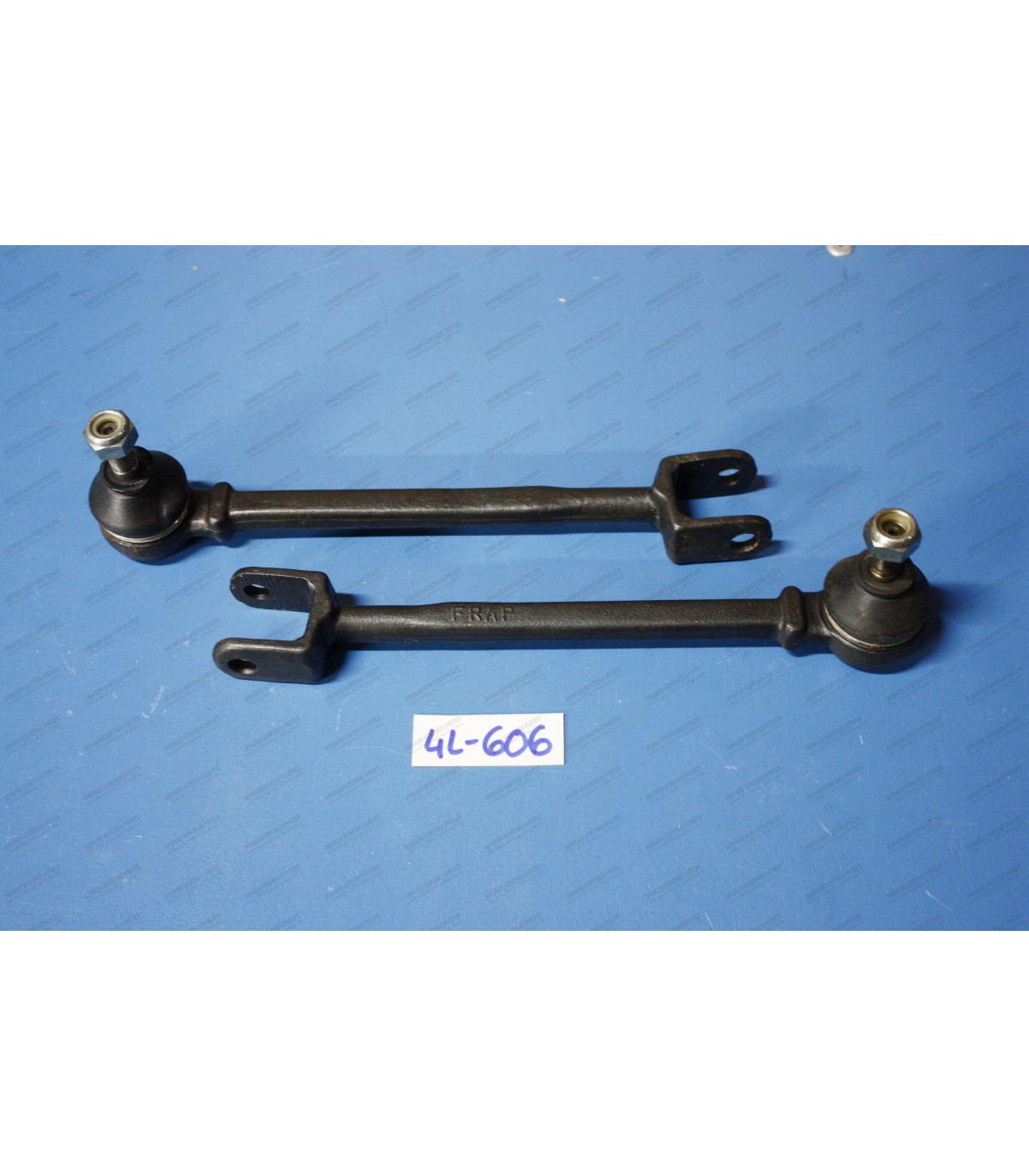

Pair of Right and Left Steering Rods - R4 (2nd Model - From 1965 to 1968)

• Complete wishbone with ball joint and silentbloc (x2)
• Wishbone equipped with suspension ball joints (AVP 5309): M10x125 axle - Cone Ø 11.50mm to Ø 13mm
• Suitable for R4 / 4L: From 1969 to end of series

Suitable for vehicles:

• 4CV / Juvaquatre: Type 662 Engine (From June 1956)
• Dauphine / Dauphinoise / Estafette / Floride A106 / A108: Type 670 Engine
• R4: Billancourt Type 800-02/05 Engine (From 1962)

Bearing Dimensions:

• Dimensions: Original (Standard) Dimensions
• Crankpin Diameter (A): Ø 38.00mm
• Housing Diameter (B): Ø 41.14mm
• Bearing Width (C): 21.18mm
• Bearing Thickness (D): 1.57mm
• Smooth, lug-type bearings with no grease holes or grooves
• Bearing Material: Bimetal

• Complete wishbone with ball joint and silentbloc (x2)
• Wishbone equipped with suspension ball joints (AVP 5309): M10x125 axle - Cone Ø 11.50mm to Ø 13mm
• Suitable for R4 / 4L: From 1969 to end of series

Segment Characteristics:

• • Segment Diameter:Ø 55.8mm
  • Thickness of Upper Segments (Fire-resistant): 2mm
  • Thickness of Intermediate Segments 1 (Waterproof): 2mm
  • Thickness of intermediate rings2 (Sealing): 2mm
  • Thickness of lower rings (Scraper): 3.5mm

It is essential to check the ring end gap of each ring before installing them on the pistons, according to the valuesgiven by the manufacturer or data in the supplied instructions.

During assembly, the piston ring gaps must be evenly distributed around the piston circumference at 120° intervals.
