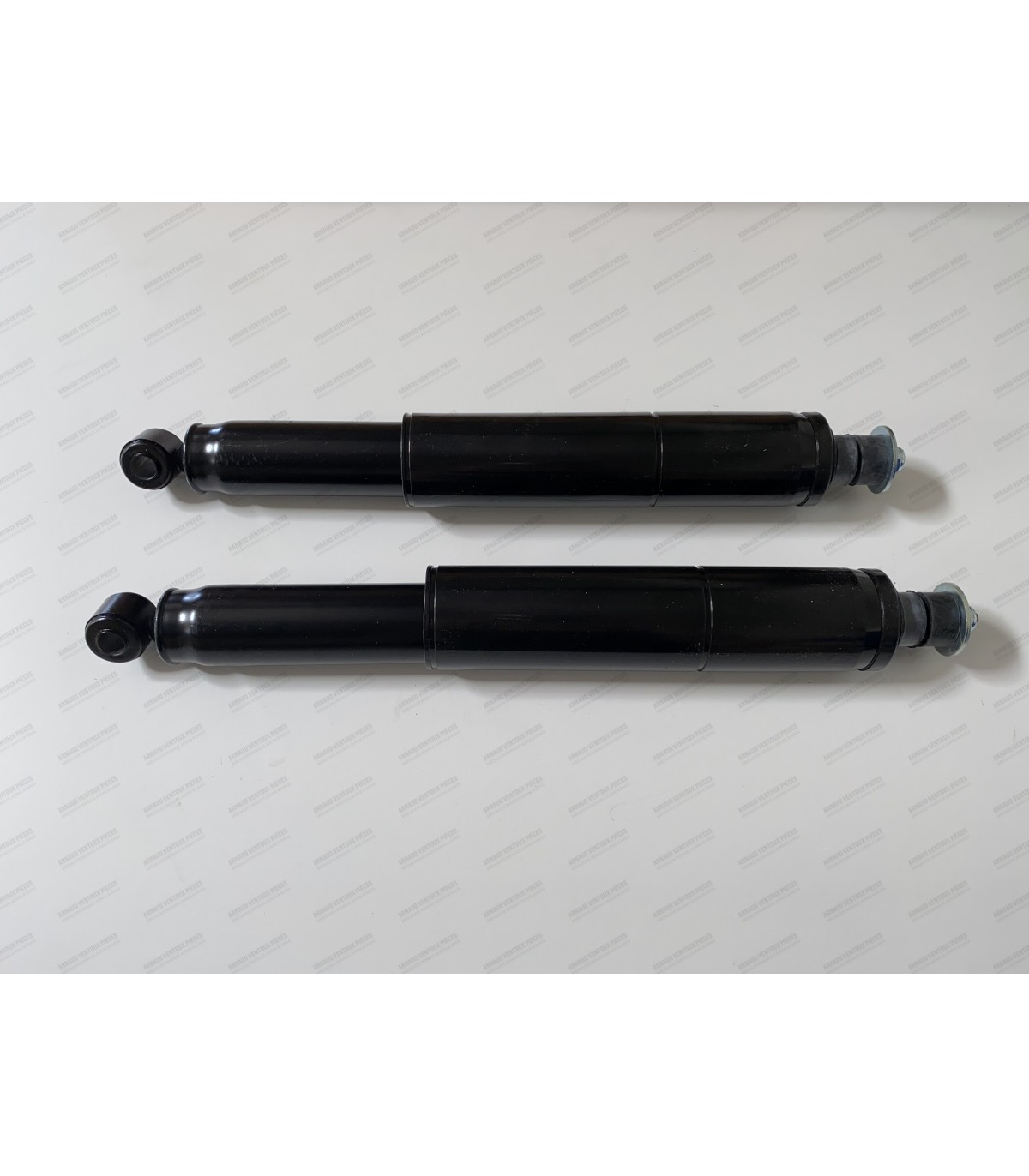

Pair of rear "Standard" oil shock absorbers - R5 alpine / Alpine Turbo

Suitable for:

• R5 Alpine (R1223)
• R5 Alpine Turbo (R122B)

Silentbloc Dimensions:

• Inner Diameter (D1): Ø 35.6mm
• Outer Diameter (D2): Ø 61.9mm
• Height (H1): 50mm
• Silentbloc Rubber Hardness: 60 Shore

Suitable for:

• R8 : Rear Big Brake Installation
• R5 Alpine Turbo (122B) : Rear Brake
• R12G / R17G : Rear Brake
• R18 / R21 / R25 / R30 : Rear Brake
• A110 : Rear Big Brake Installation
• A310.4 : Rear Brake
• A310 V6 (Pre-1980) : Rear Brake

Brake pads with a retaining stop (B in the diagram) must be installed with this stop facing forward (in the direction of wheel rotation)

Flexor Specifications:

• • Mounting hole spacing:4 x 50.50 mm
  • Mounting hole diameter: Ø 8.4 mm
  • Center hole diameter:Ø 10.50 mm
  • Flexor thickness: 11 mm
  • Material:Rubber flexor with metal reinforcement
  • Supplied with 4 x M8 x 20 mm screws and 4 x nylock nuts

For some assemblies with a center screw, replacing this screw with a socket head cap screw (SHCS) or modifying the flexor may be necessary.

Suitable for the following vehicles:

• SUPER 5 / R9 / R11 / R18 / R19 / R21 / R25: Front Brakes
• Clio 1.8L 16V / Clio Williams: Front Brakes
• Alpine GTA (V6 GT and V6 Turbo): Front Brakes

Pad dimensions:

• Width: 100mm
• Height: 65mm
• Thickness: 18mm
• Suitable for calipers with the following mounting type: TRW / Lucas / Girling.

Height 49mm (Extraflat)

Each kit is composed of all the color codes

• Gaitor to be mounted on the steering rack equipped with original steering rods ("fork" rod)
