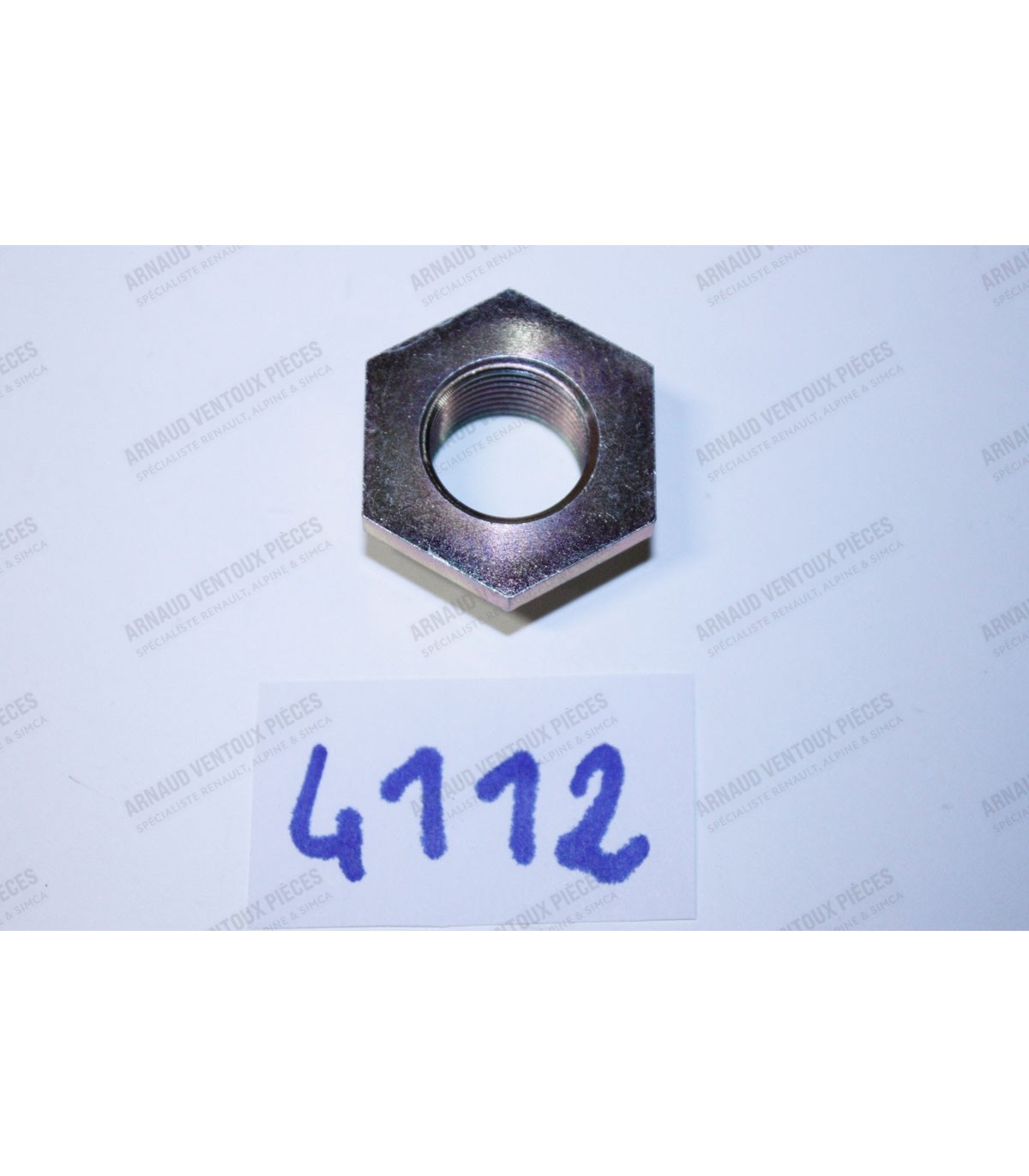

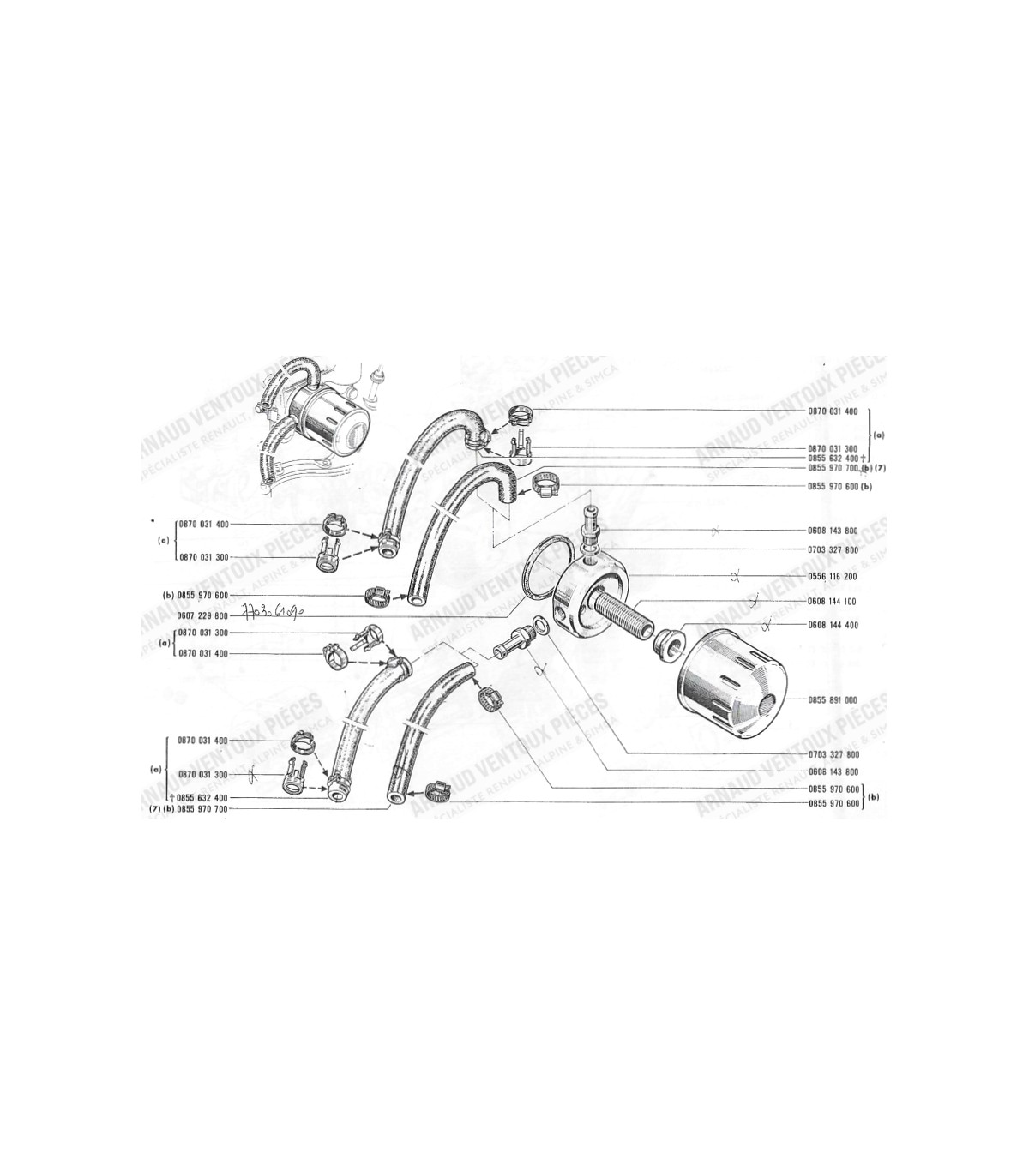

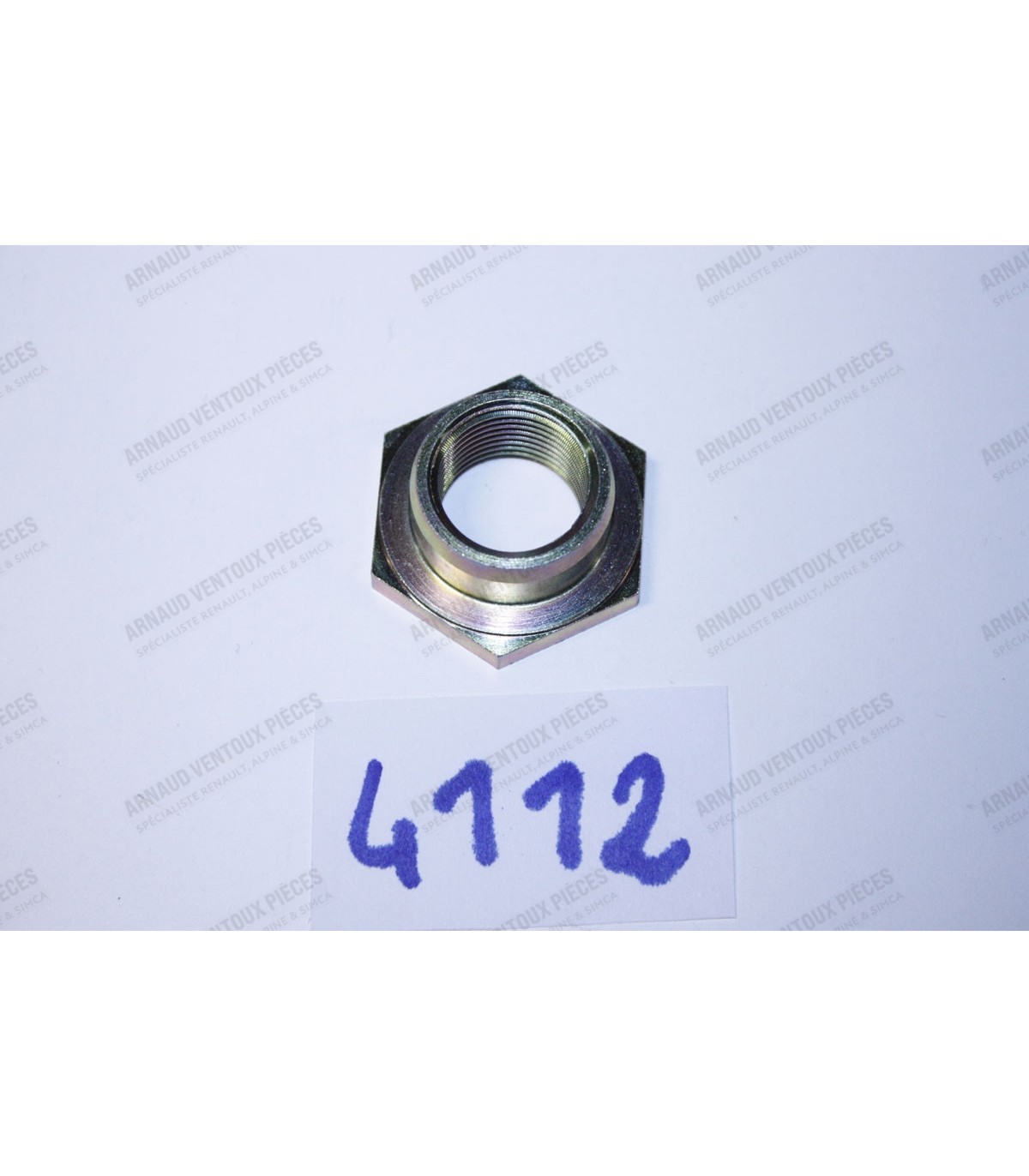

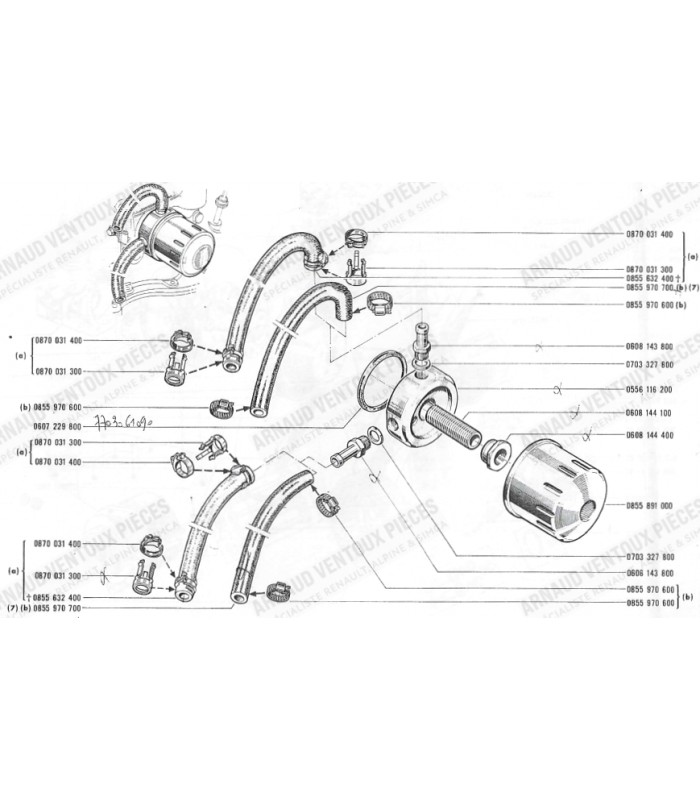

Oil filter sleeve nut (Ø 3/4" - 16UNF) -ref 0608144400

Suitable for vehicles:

• R8 and R8G: Rear Tank
• R10: Rear Tank
• Floride S and Caravelle Coupe only (R1131): Rear Tank (Capacity 31L)
• A110: Front Tank in Manolene (Plastic)

Fuel gauge equipped with a flat terminal.

• Renault OE Ref: 8552444 / 0855244400

• Renault OE Ref: 7703001160 / 0607156600 / 0607156700

The sets are supplied with the following components:

• Cylinder Heads (x4)
• Domed Pistons (x4)
• Rings (x12)
• Pin (x4)
• Circle Clips (x8)

Dimensions of the various parts:

• • Cylinder Head Bore Diameter: Ø 77.8mm
  • Cylinder Head Flange or Top Diameter (D): Ø 96mm
  • Cylinder Head Base Diameter (A): Ø 82.50mm
  • Overall height including skirts of cylinder liners (C): 143.5mm
  • Height from top of cylinder liner to base seal area (E): 92.50mm
  • Panel dimensions: Ø 21x66.5mm (Cirlip-free mounting)
  • Ring thickness: 1.75mm / 2mm / 4mm (Fireproof/Sealing/Scraper)
  • Base seal type: Paper gasket

Piston mounting direction : an arrow drawn perpendicular to the axis of the piston appears on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).

It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120° intervals.

For Weber 32 DIR: 62/9700 - 58T/8500 - 89/100

Assembly only with graphite stopper

• Pressure: 0 - 6 bar
• Release pressure: 0.60 bar
• Thread: M14x150
• To be mounted with ref AVP5091 for R5 Alpine engine (R1223)
