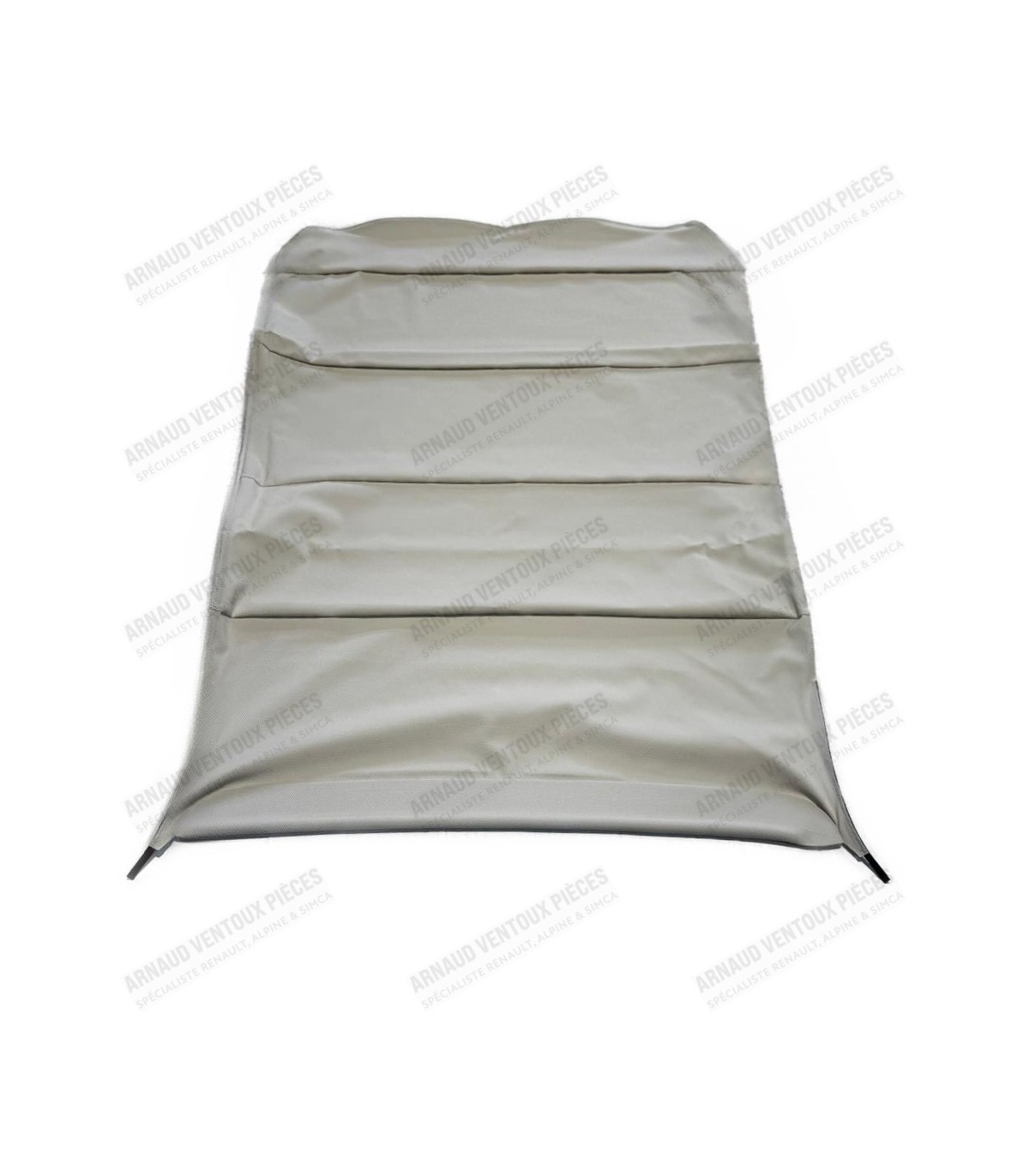

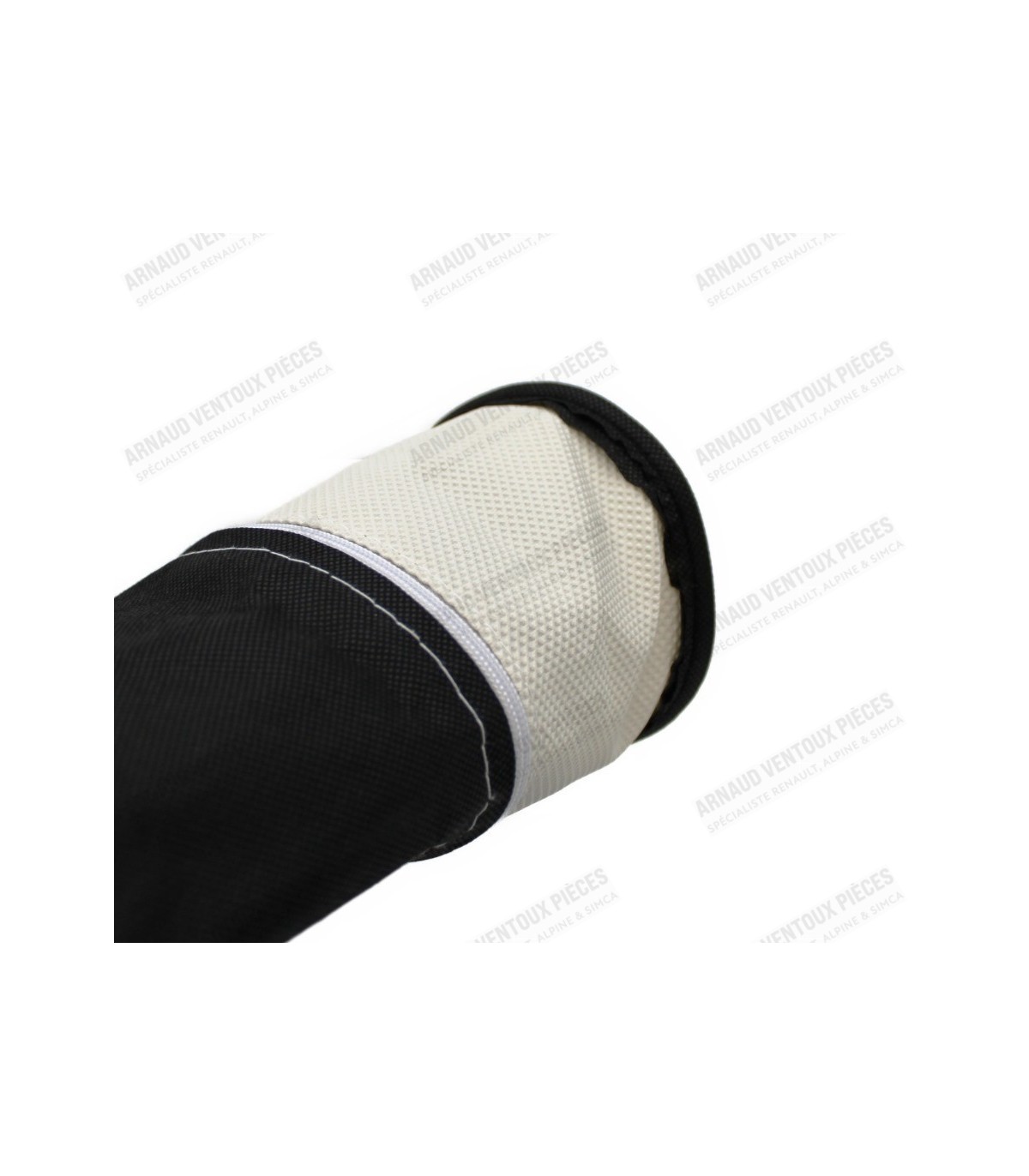

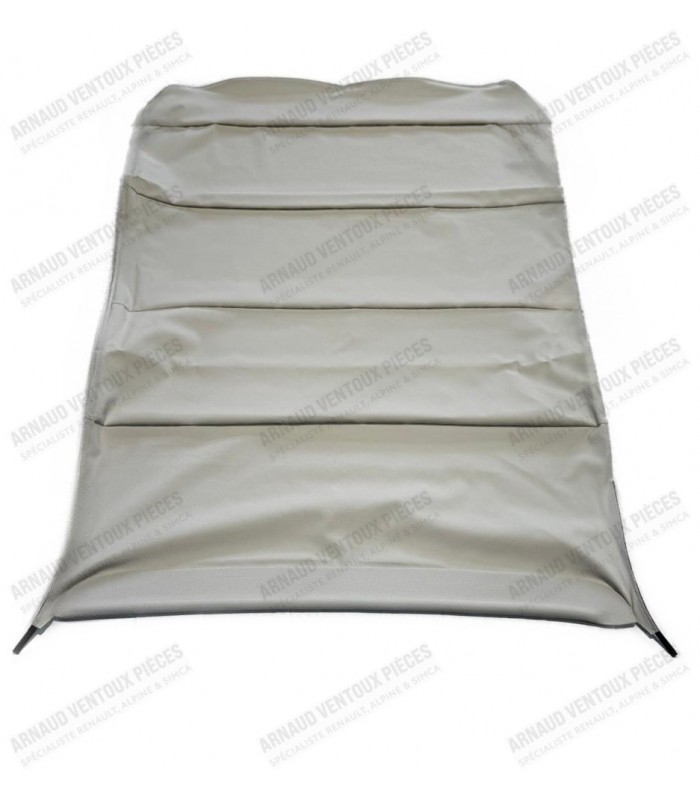

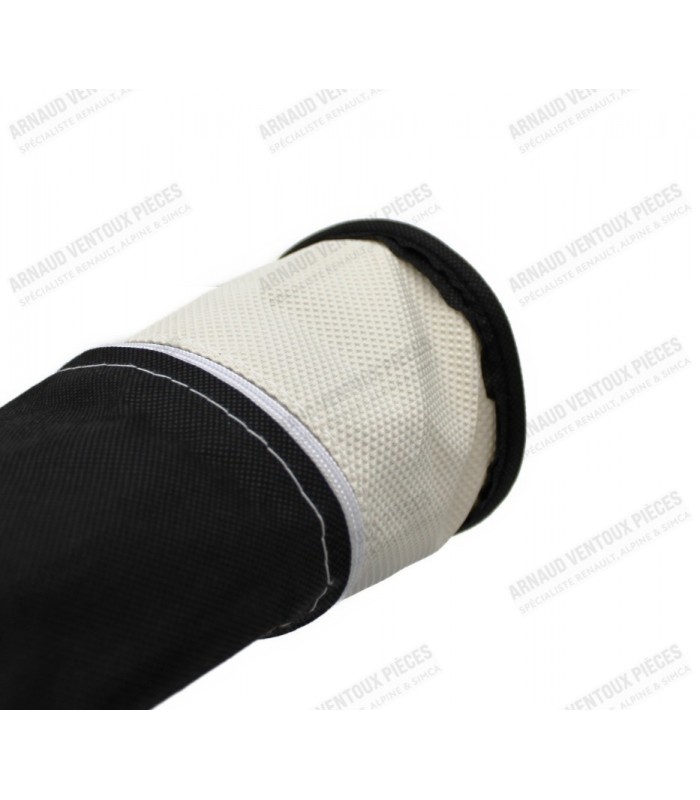

Off-white fabric headlining (Diamond tip finish) - R4L

• Special Premium Quality graphite for clutch release bearings
• Important: The release bearing clamping screw must be placed on the side opposite the fork
• It is possible to keep the release bearing and replace only the graphite ring if worn.
• Depending on the diameter of the return spring, it may be necessary to re-drill the release bearing mounting.
• It is recommended to soak the release bearing in warm engine oil and then wipe it dry before installation to avoid squeaking noises

• Seal length: 260 cm

Suitable for:

R4 (R1120) from start to No. 954000

R4 (R1123) from start to No. 627131

R4 (R2106) from start to #24876

Segment Characteristics:

• • Segment Diameter: Ø 54.50 mm
  • Thickness of Upper Segments (Fire-resistant): 2 mm
  • Thickness of Intermediate Segments (Waterproof):2mm
  • Low ring thickness (Scraper): 3.5mm

It is essential to check the ring end gap of each ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.or the values ​​provided in the instruction manual.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120°.
