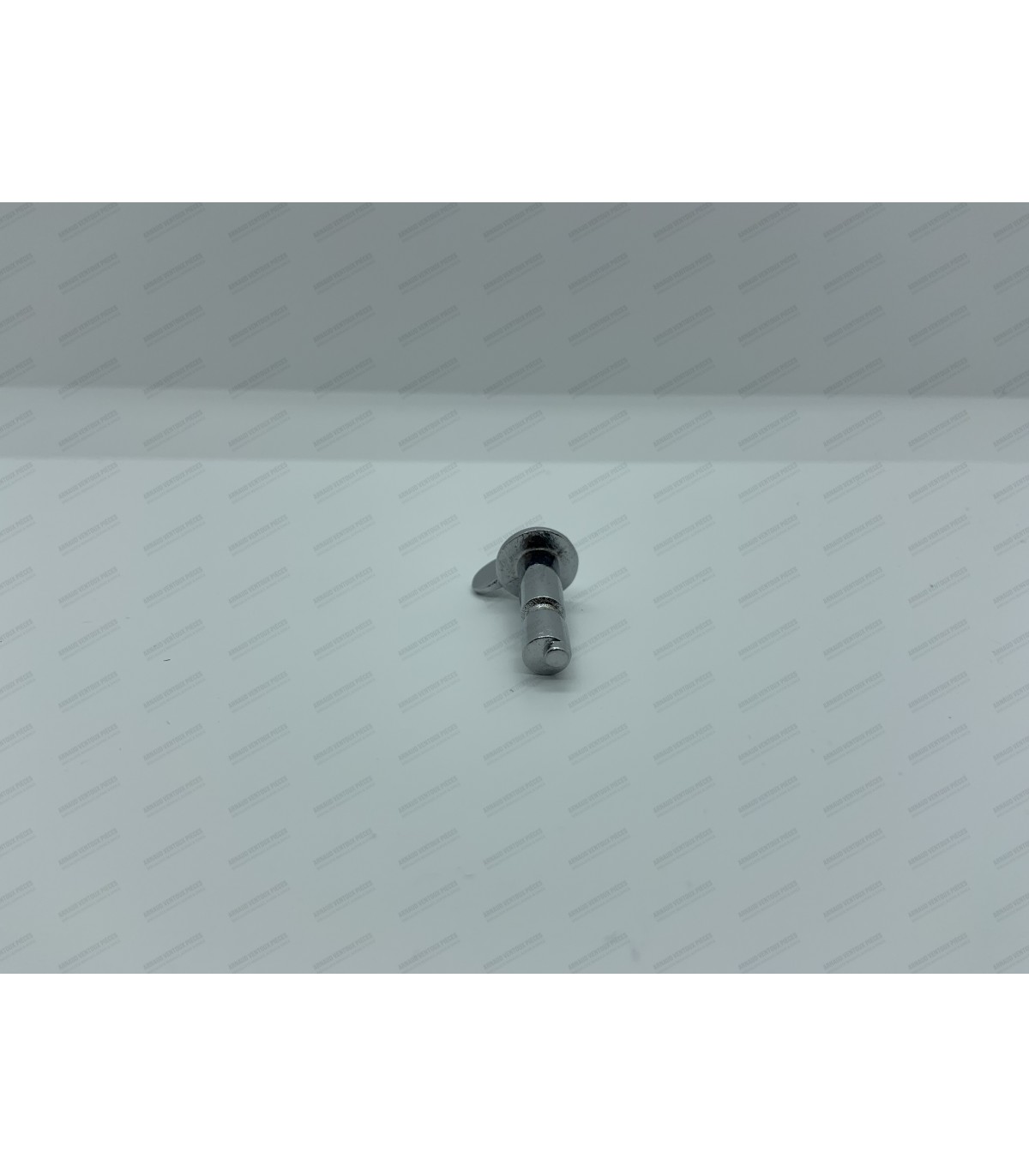

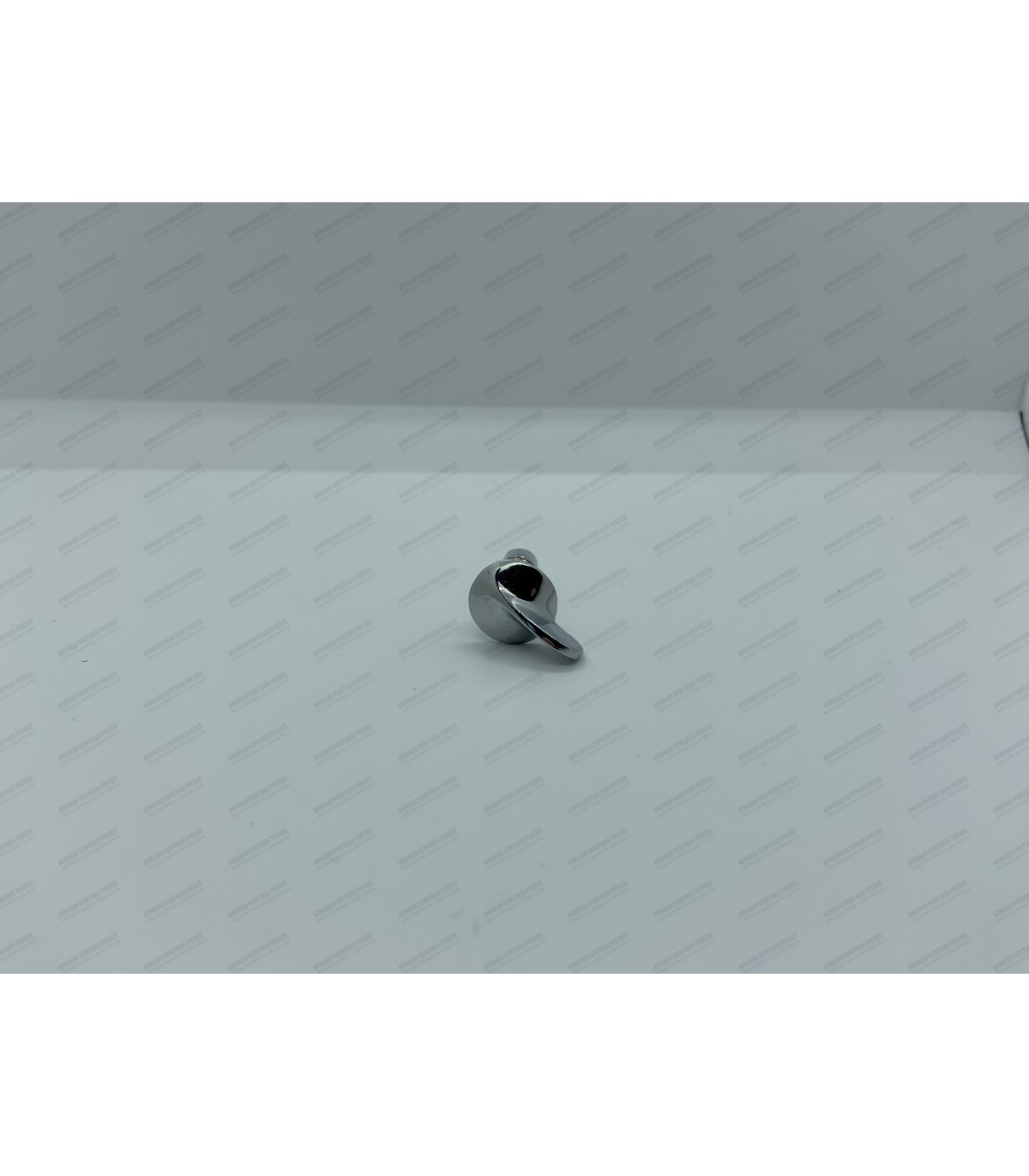

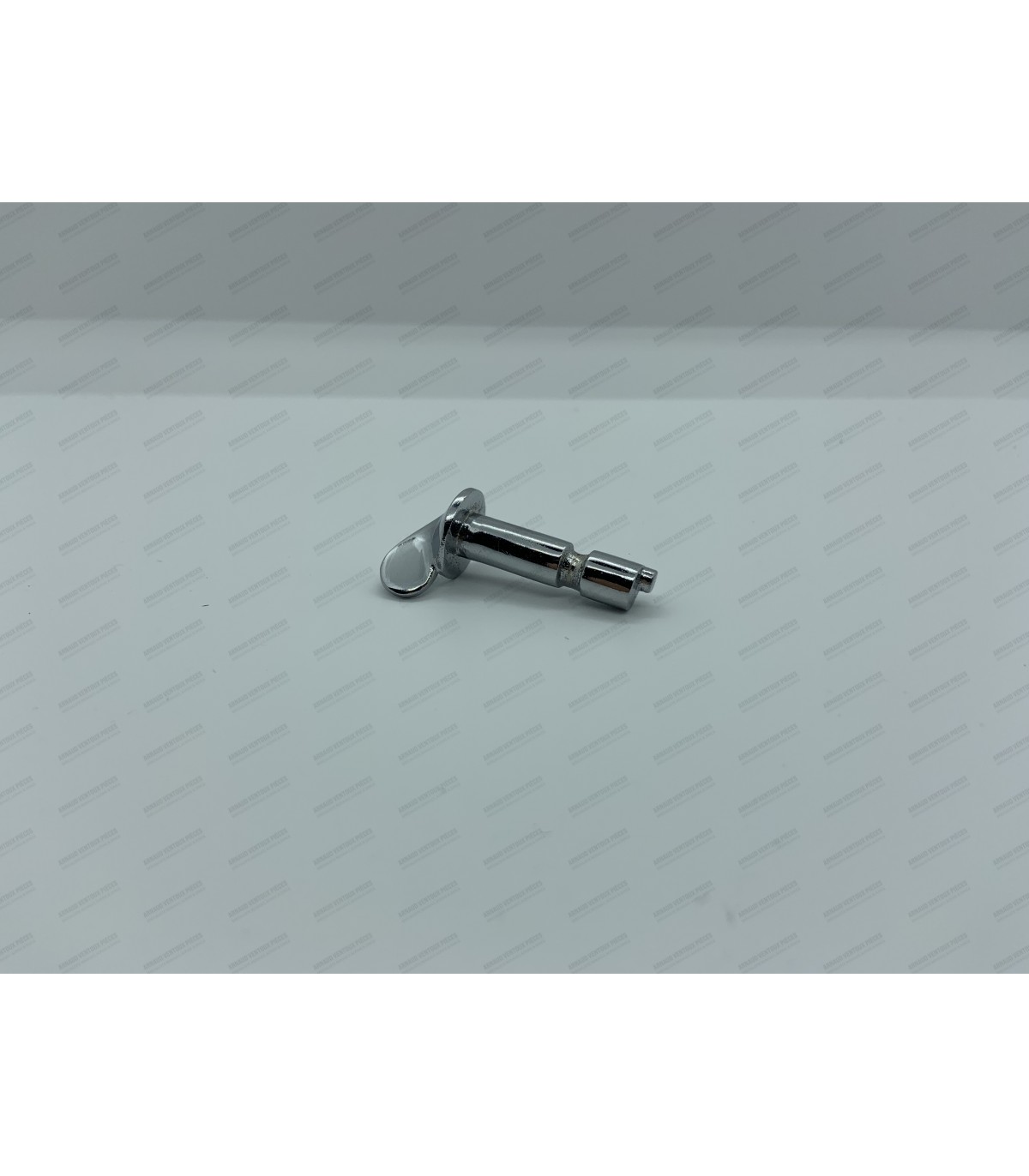

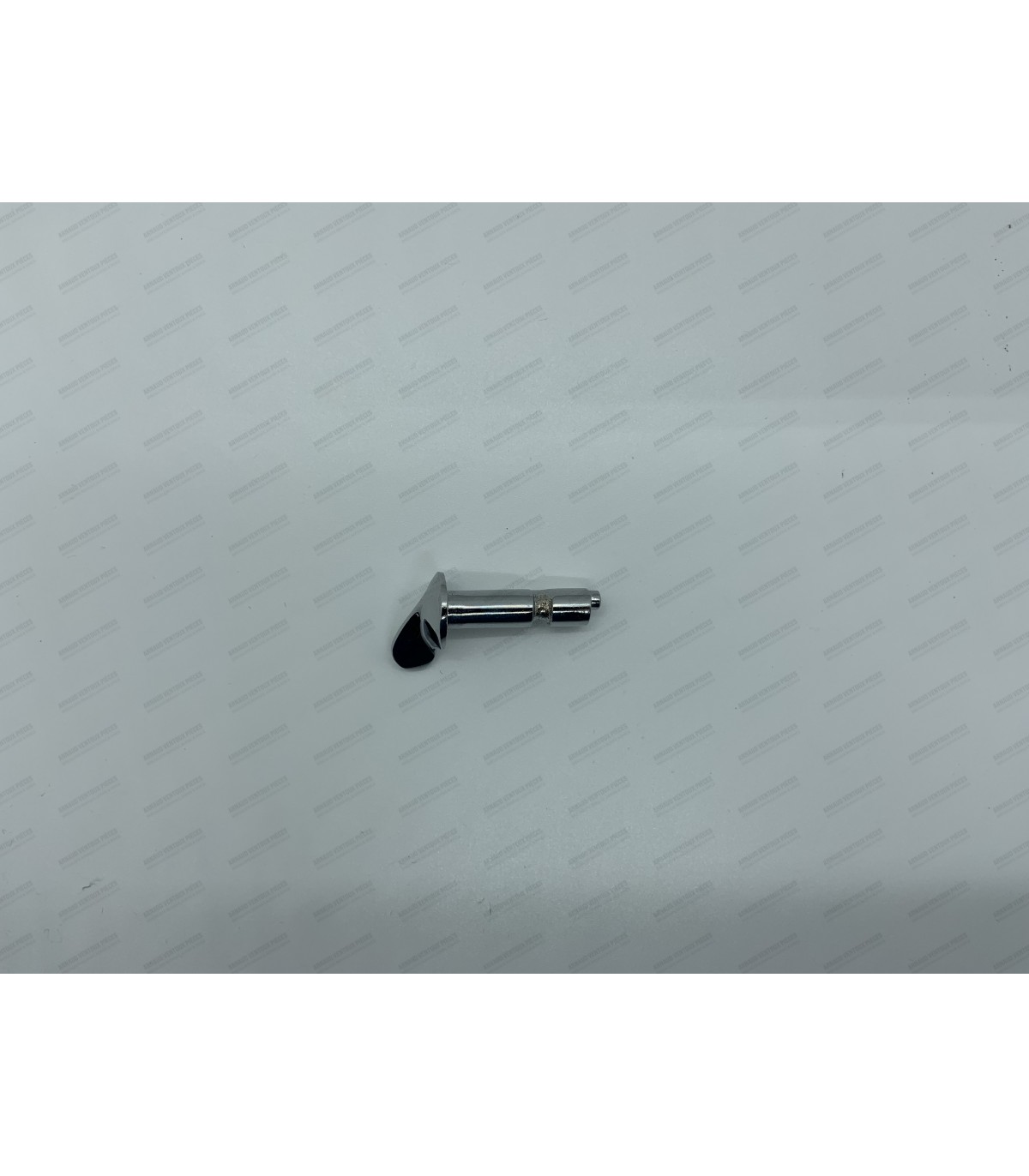

Aluminum latch for door locking - 4CV

• Front stabilizer bar connecting rod silent block Ø 21mm
• Silent block of rods in rear spring (1st model)
• Rear oil shock absorber arm silent block (1st model) - Ref 8511922

• For mounting a belt width: 13mm
• Groove for a 5mm key

A steel collar is installed on the oil seal surface for improved sealing and reduced pulley wear.

• Brake master cylinder: 4CV (2nd Model) / Dauphine / Floride / Alpine A108
• Clutch transmitter: Matra Djet

• Culot 2 studs / 3 offset lugs
• Dimensions: 60x40mm
• Due to the multitude of bulb types used, please check compatibility with your vehicle

• The sets are supplied with the following components:

  • Liners (x4)
  • Pistons (x4)
  • Rings (x12)
  • Pin (x4)
  • Circle clips (x8)

  Dimensions of the different parts:

  • • Liner bore diameter: Ø 58mm
    • Liner flange or top diameter (D): Ø 73mm
    • Liner base diameter (A): Ø 62.50mm
    • Overall height including skirts of cylinder liners (C): 126mm
    • Height from top of cylinder liner to base seal area (E): 112.80mm
    • Panel dimensions: Ø 14x50mm (Cirlip-free mounting)
    • Ring thickness: 1.75mm / 2mm / 3.5mm (Fireproof/Sealing/Scraper)
    • Base seal type: Copper seal

  Piston mounting direction: an arrow drawn perpendicular to the axis of the piston appears on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).

It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120°.
