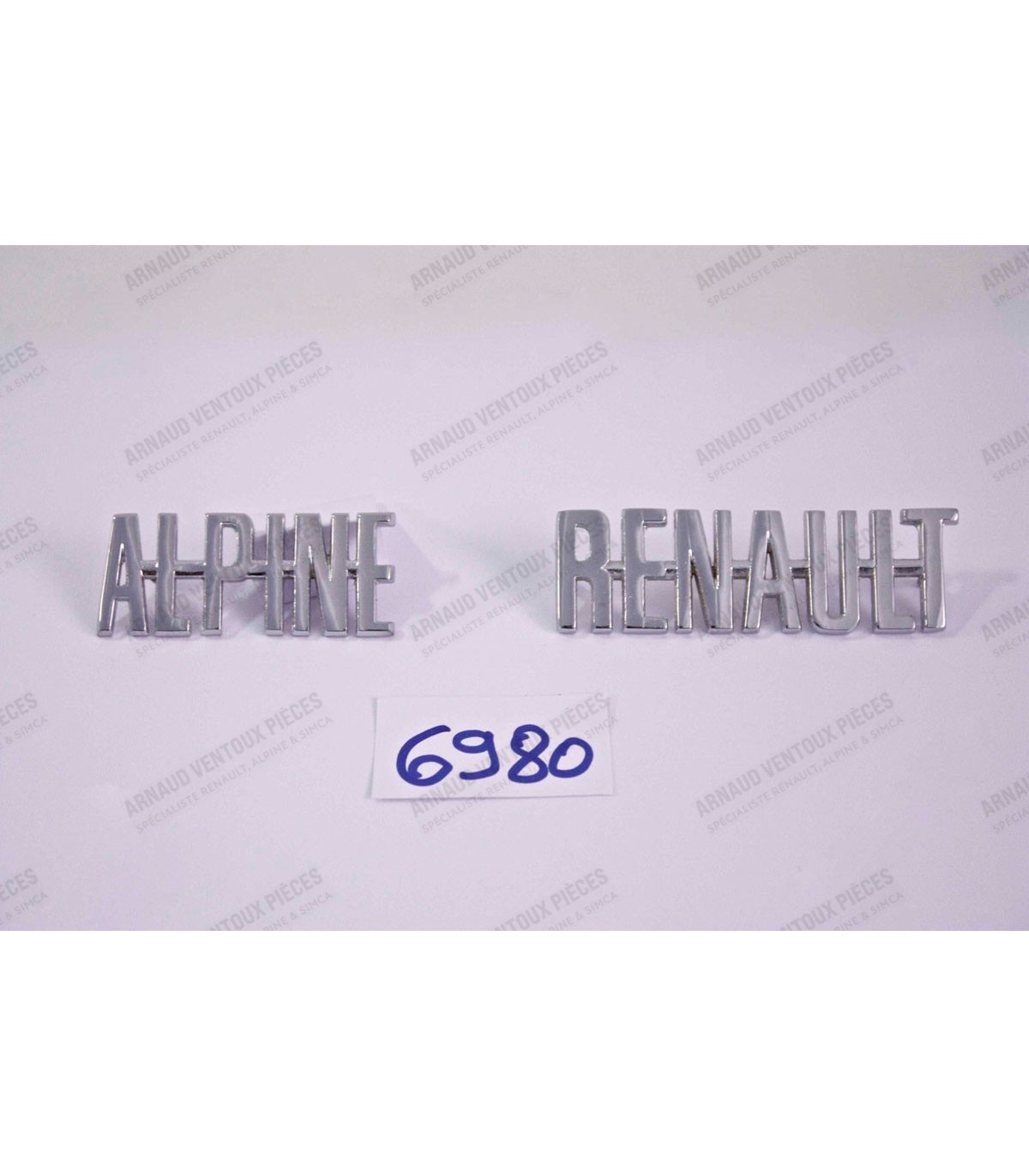

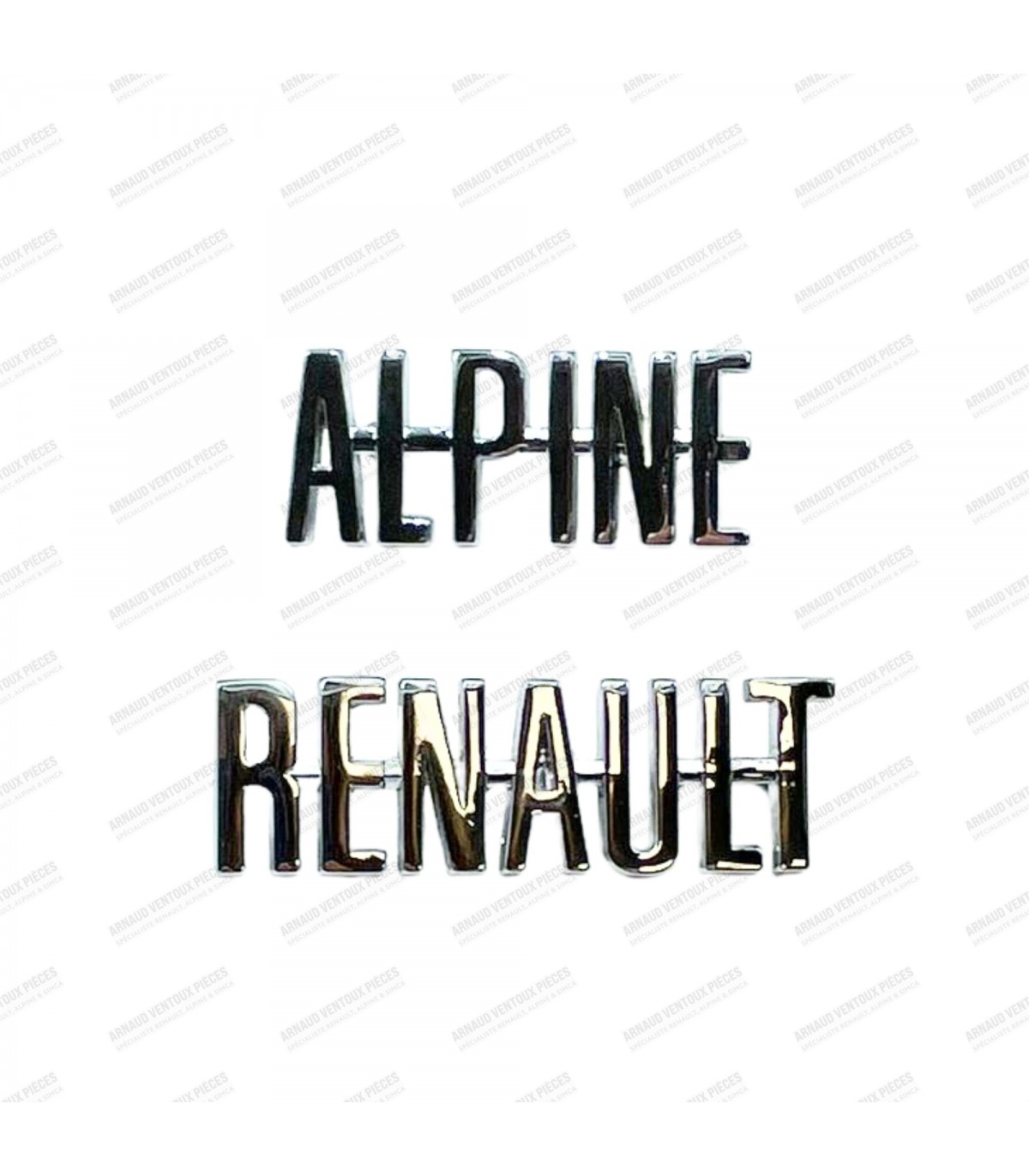

Letters attached "Alpine Renault" in metal of rear bonnet

• The fork is suitable for "original ball thrust bearing" type mounting or for conversion with a guided thrust bearing.
• Mounting instructions provided.

• Air intake trumpet/trumpet filters for WEBER 40DCOE carburetor
• Mesh filters made of two layers of stainless steel mesh, with an intermediate filter layer ensuring optimal engine protection
• Easily washable and removable
• Suitable for trumpets with an outer flange diameter between Ø 55mm and 60mm
• Filter inner diameter : Ø 52mm
• Filter outer diameter: Ø 74mm
• The filter length when installed on a 55mm trumpet is 70mm (overall)
• Can be mounted on all the cones in the AVP catalog

Suitable for:

• R5 All models (1st Version)
• R12 / R15 / R16 / R17
• A110 V85 / A110.1600cm³ (SI / SX / SC)
• A310.4
• A310 V6 (Before 1981)

Gasket dimensions:

• Inner diameter: Ø 20mm
• Outer diameter: Ø 33mm
• Height (excluding lugs): 5mm
• Recessed diameter: Ø 26mm
• Push button diameter: Ø 19.5mm

Suitable for:

• Box 289 / 314: 2nd / 3rd
• Box 316 / 318: 3rd / 4th
• Box 325: 2nd / 3rd

• Suitable for Cornet/Air intake trumpet of the Weber DCOE 40 carburetor,
• Fixing by screw necklace on rubber flange for perfect sealing,
• Possible assembly on all AVP cornets for DCOE40,
• Overall length: 115mm,
• Diameter: 80mm,
• Attention with total length, recommended assembly with the Cornet Ref 48091 for A100 1300/1400cm3 (R5 Alpine) due to congestion,
• Registered lubrication with Ref C072,
• Sold in pairs
