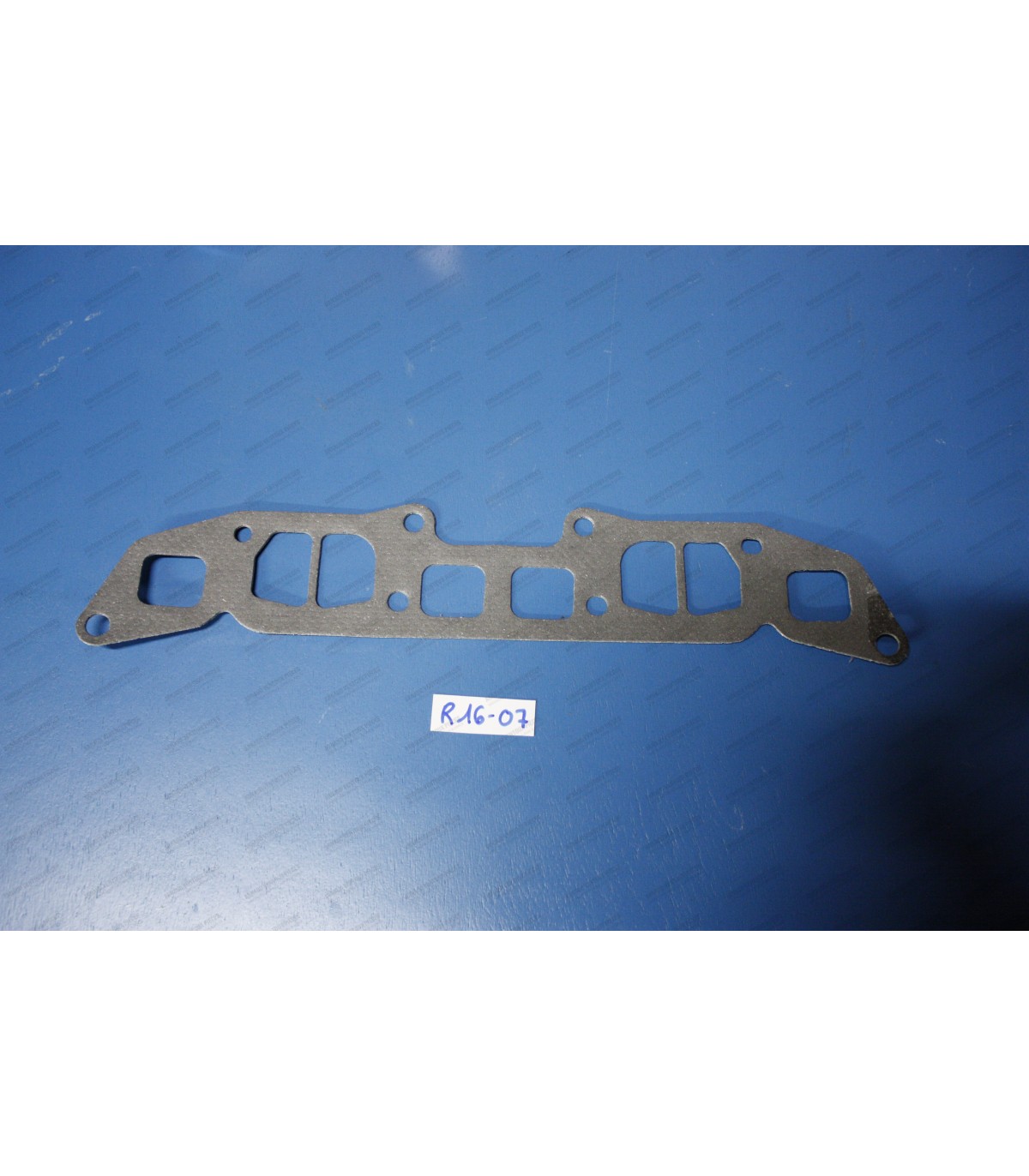

Intake / exhaust manifold gasket R16 L / TL 1st type

• Distance between two pulley mounting screws: 30mm
• Pulley is secured using 3 M7 screws (not supplied)
• The heater outlets can be plugged using two 16mm diameter rubber plugs and one 10mm diameter plug
• Water pump sold with water pump gasket, plate gasket, bleed plate, and bleed screw

Suitable for:

• Simca 1000 (All models) / R1 / 1200S
• R15 (TS) / R16 (Types L / TL / TS / TX) / R17 TL / TS) : 1600cm³ engine

Cylinder head gasket specifications:

• • Crimping diameter: Ø 59.7mm
  • Cylinder head gasket thickness:1.40mm

Installation direction:

The marking "Top" or "Haut" on the cylinder head gasket must be facing the Cylinder head (upwards).

For gaskets that do not have "top" or "high" markings, but have a manufacturer's part number, orient this part number towards the cylinder head.

If there are no markings (TOP, HIGH, or manufacturer's part number), the gasket does not have a specific orientation.

However, it is still necessary to check the correct positioning of the water and oil passages to ensure proper installation.

• Intake pipe : Ø 29mm
• Exhaust pipe : Ø 25mm
• Fixing : holes aligned

Bearing Dimensions:

• Dimension: Original (Standard) Dimension
• Crankpin Diameter (A): Ø 43.98mm
• Housing Diameter (B): Ø 47.62mm
• Bearing Width (C): 17.75mm
• Bearing Thickness (D): 1.80mm
• Smooth, lug-type bearings with no grease holes or grooves
• Bearing Material: Bimetal
