Hex cross key (Size 17,19, 22mm & 13/16")

• Center distance between flange and intake manifold (Side without stud): 32mm and 102mm
• Center distance between flange and carburetor (Side with stud): 92mm and 60mm
• Flange thickness: 17.5mm
• Pipes diameter: Ø 36.5mm
• Flanges supplied with paper gaskets (x4) and mounting studs (x8) (Carburetor side)

These rigid aluminum flanges replace the original flanges known as "soft" rubber that tears with wear.

Carburetor needle 1.5

• Length: 31.5cm
• Female/Female Connection: Ø 3/8"-24UNF

Suitable for:

• Simca 1000 / 1000Rallye / Rallye 1: Rear drum brake (ARD)
• Simca R2 / R3 / 1200S / CG (B1200 / C1300): Rear disc brake (Intermediate ARD)

• Simca OE Ref: 29932M
• Renault OE Ref: 8548620 / 0854862000 / 8548078 / 0854807800

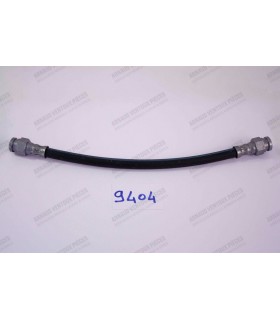

• Length: 28cm
• Female to Female Connection: Ø 3/8"-24UNF

Suitable for:

• Simca R2 / R3 / CG (C1300)
• R16: Rear Drum Brake

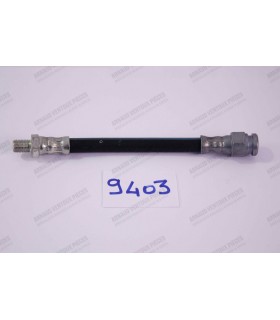

• Length: 32.5cm
• Male / Female Connection: Ø 3/8"-24UNF

Suitable for:

• Simca 1000 / 1000Rallye / Rallye 1: Rear drum brake (ARG)
• Simca R2 / R3 / 1200S / CG (B1200 / C1300): Rear disc brake (Intermediate ARG)
• R12G: Central rear hose
