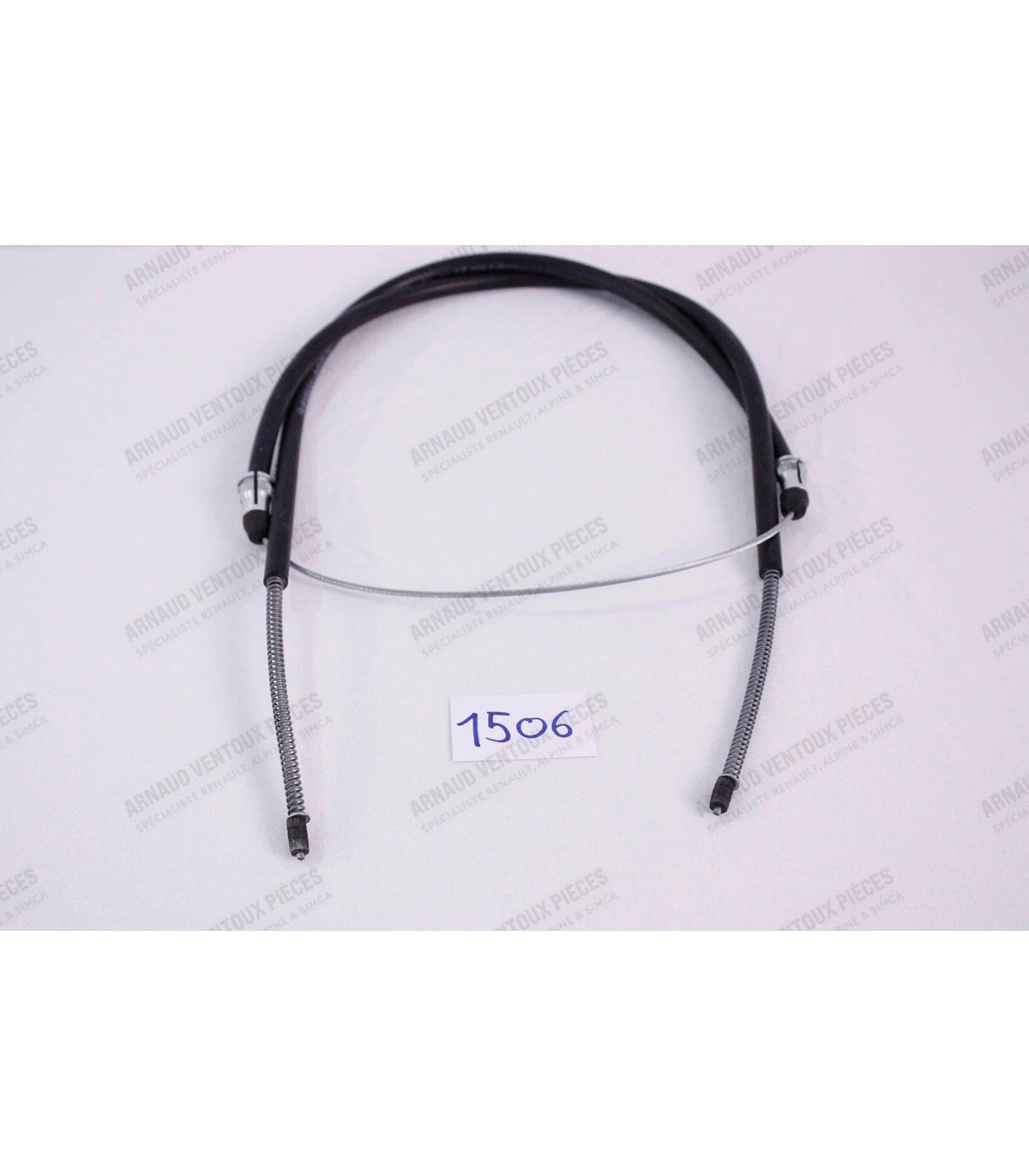

Handbrake cable - 4CV 2nd model / Alpine A106
Reference:
1506
-

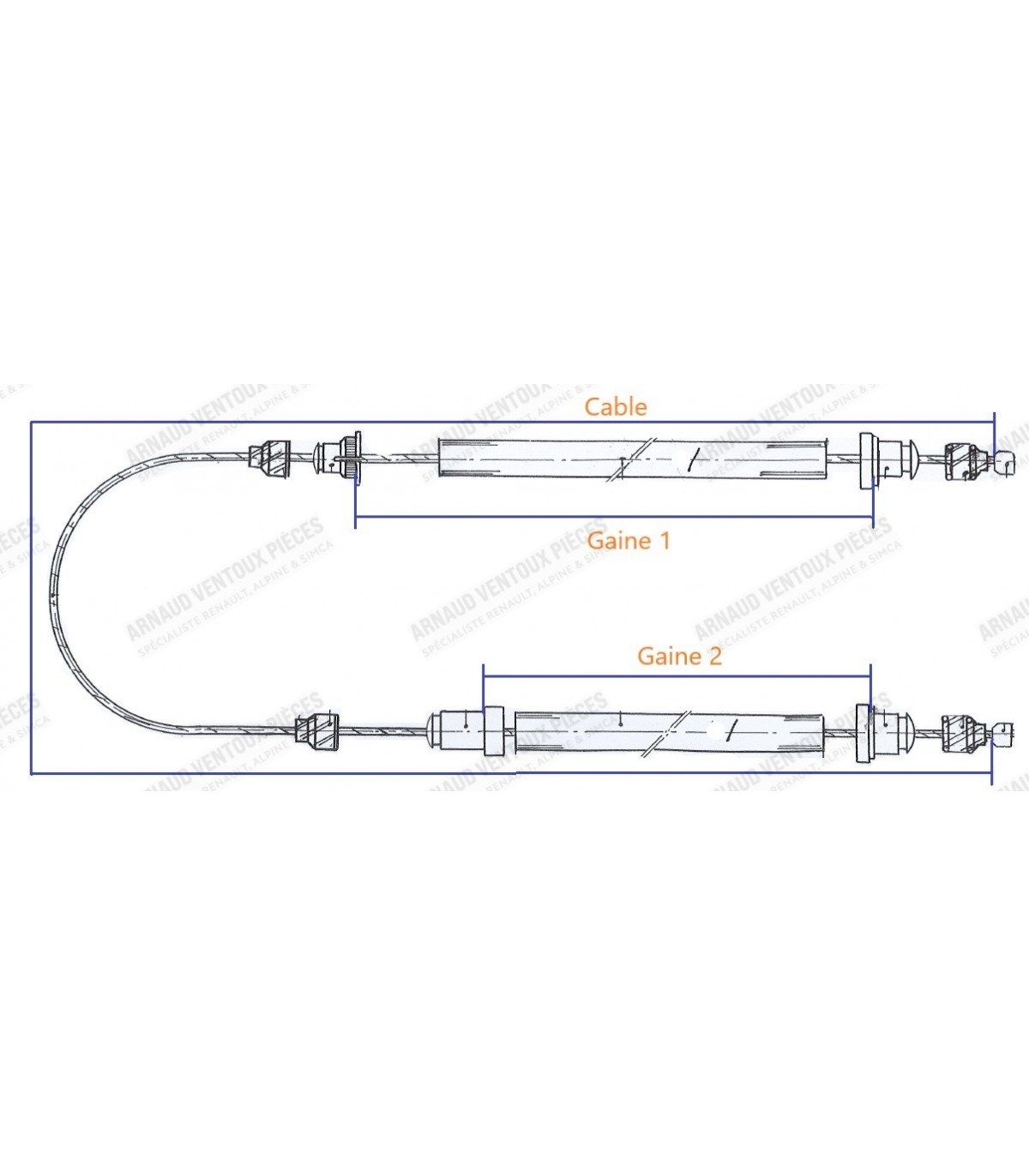

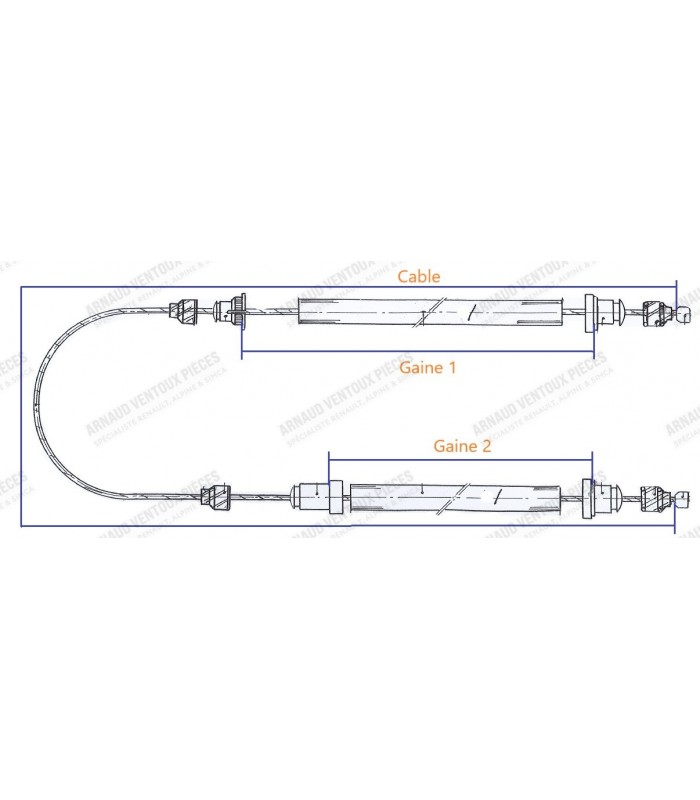

- Overall length:150 cm
- Sheath length: 48 cm x 2
- Cable length: 147 cm
Our cables are made in France and meet the assembly and quality standards of original equipment (OEM) cables from automotive manufacturers.
€27.50
Order before 1pm and enjoy same day shipping !
Customers who bought this product also bought:
Mounts with the stop switch reference 4423
In stock
Length taken from the axis of the fixing eye to the end of the rod: min adjustment 77mm / max 87mm
In stock
This brake limiter replaces the original non-adjustable rear brake proportioning valve.
The limiter is not load-dependent (it does not vary according to the vehicle's load).
Its adjustment is manual, using the calibration screw. Adjustment can be made either statically, using brake pressure gauges and referring to the manufacturer's data, or dynamically (see description below).
Limiter specifications:
- Inlet thread (x1): 3/8-24UNF (Male cone)
- Outlet thread (x2): 3/8-24UNF (Male Taper)
- Mounting Screw Hole Diameter: Ø 8.5mm
- Limiter Adjustment Range: 5 turns
- Limiter delivered unadjusted (screw loosened): Rear brake pressure limited to maximum
In stock
- Brake master cylinder: 4CV (2nd Model) / Dauphine / Floride / Alpine A108
- Clutch transmitter: Matra Djet
In stock
