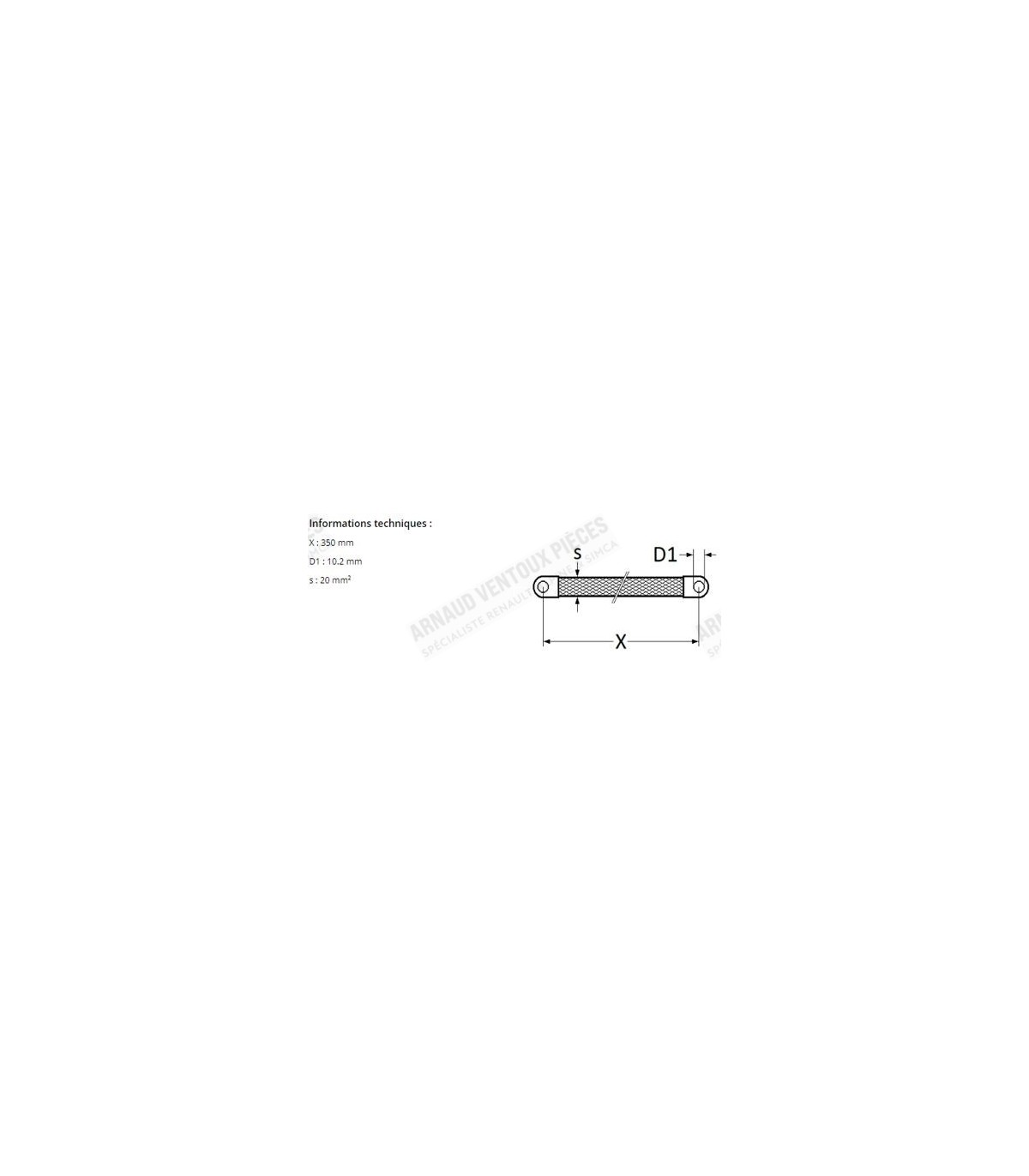

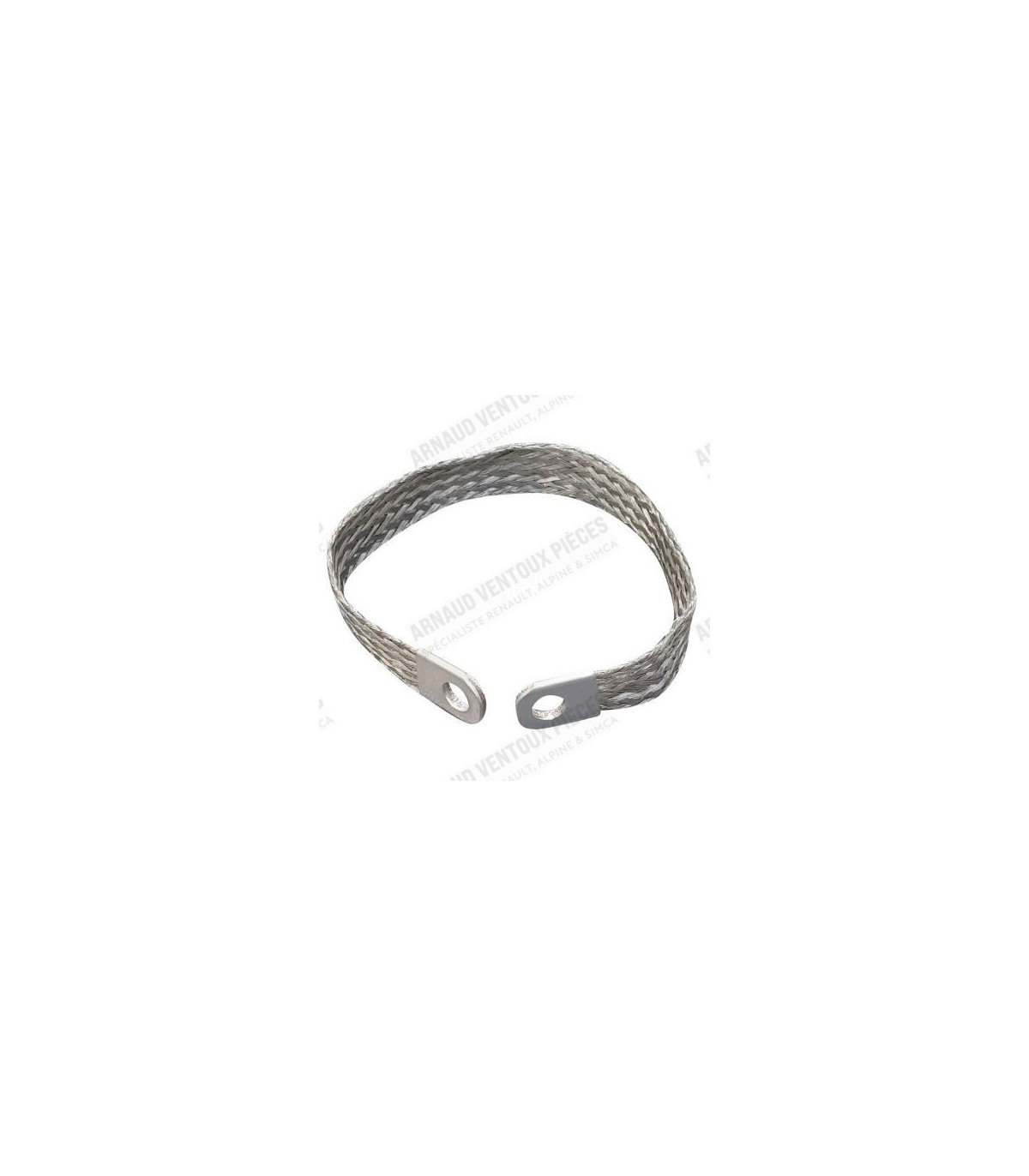

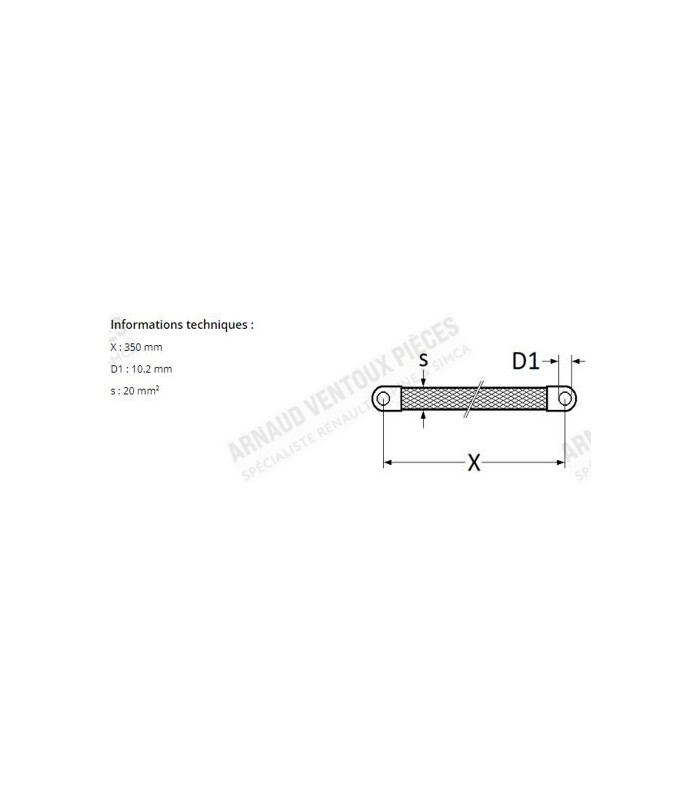

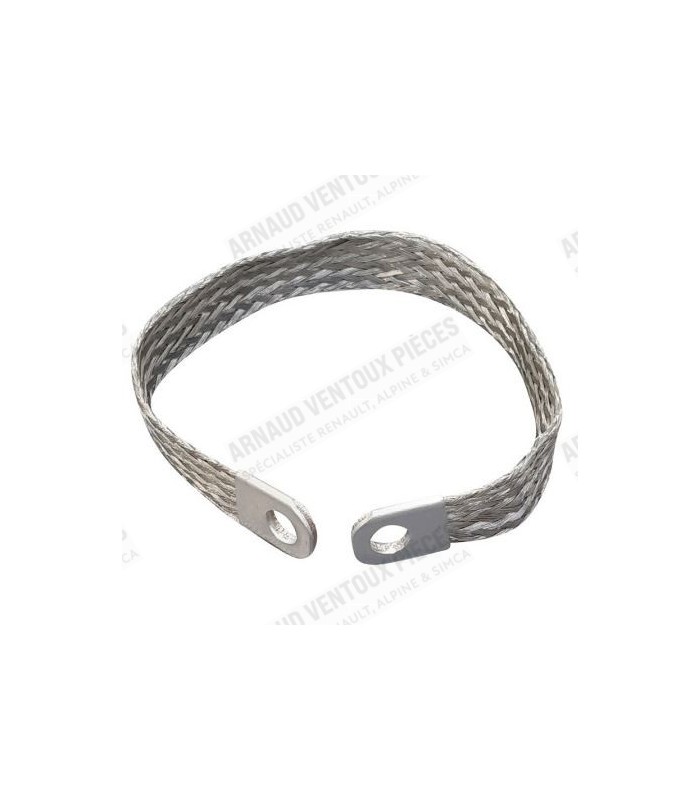

Copper ground braid Lg: 350mm

Sold with two keys

Suitable for vehicles with 1397cc engines (Type 847.20, C1J, C2J, C3J):

• • R5 TS / TX / GTL / Automatic / USA
  • R11 L / TL / TLE
  • R18 TL / GTL
  • Fuego / Express

Kits are supplied with the following:

• • Cylinder Cylinders (x4)
  • Pistons (x4)
  • Ring Rings (x12)
  • Crankshafts (x4)

Dimensions of the different parts:

• Bore diameter of the cylinder liners: Ø 76mm
• Flange or top diameter of the cylinder liners (D): Ø 90.10mm
• Base diameter of the cylinder liners (A): Ø 80.60mm
• Overall height of the cylinder liners (C), including skirts: 134mm
• Height from the top of the cylinder liner to the base gasket area (E): 95mm
• Dimensions of the shafts: Ø 20 x 63.50 mm (Cirlip-free mounting)
• Segment thickness: 1.75 mm / 2 mm / 4 mm (Fireproof/Sealing/Scraper)
• Base gasket type: O-ring

Piston mounting direction: an arrow drawn perpendicular to the piston axis is shown on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).

It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120° intervals.

• Kit to be used with a coil of primary resistance between 2.5 and 3.5 ohms
• Compatible with coils AVP4708 and AVP4715
• Compatible for Ducellier igniter with an internal body diameter of Ø 58.8mm
• Not suitable for an igniter with externally adjusted breakers (different plate fixing points)
• 12V electronic ignition kit, with magnetic trigger which allows the elimination of the breakers and the capacitor
• Notice included
• Supplied with 3 screws for fixing the plate
• Instructions included

Premium windshield washer nozzle, featuring dual jets

• Nozzle inlet diameter: Ø 4.5mm
• Material: Rubber body and stainless steel cap
• Sold individually

This kit is composed of:

AVP 5223 Ø 12 to 20mm x4

AVP 5215 Ø 16 to 27mm x8

• Glass jar Ø 67mm
• Filter element: Replaceable paper cartridge
• One Inlet: dual size 6 and 8mm
• One Outlet: dual size 6 and 8mm
• Regulating pressure: Regulating range from 0 to 0.6 bar
• Compatible with SP95 / SP98 / E85
• Pressure adjustment via the top screw which acts directly on the diaphragm
• Connection on the filter body for a fuel pressure gauge (1/8″ NPT connection)

The use of a fuel pressure gauge is Intended solely for pressure regulation and not for permanent installation.
