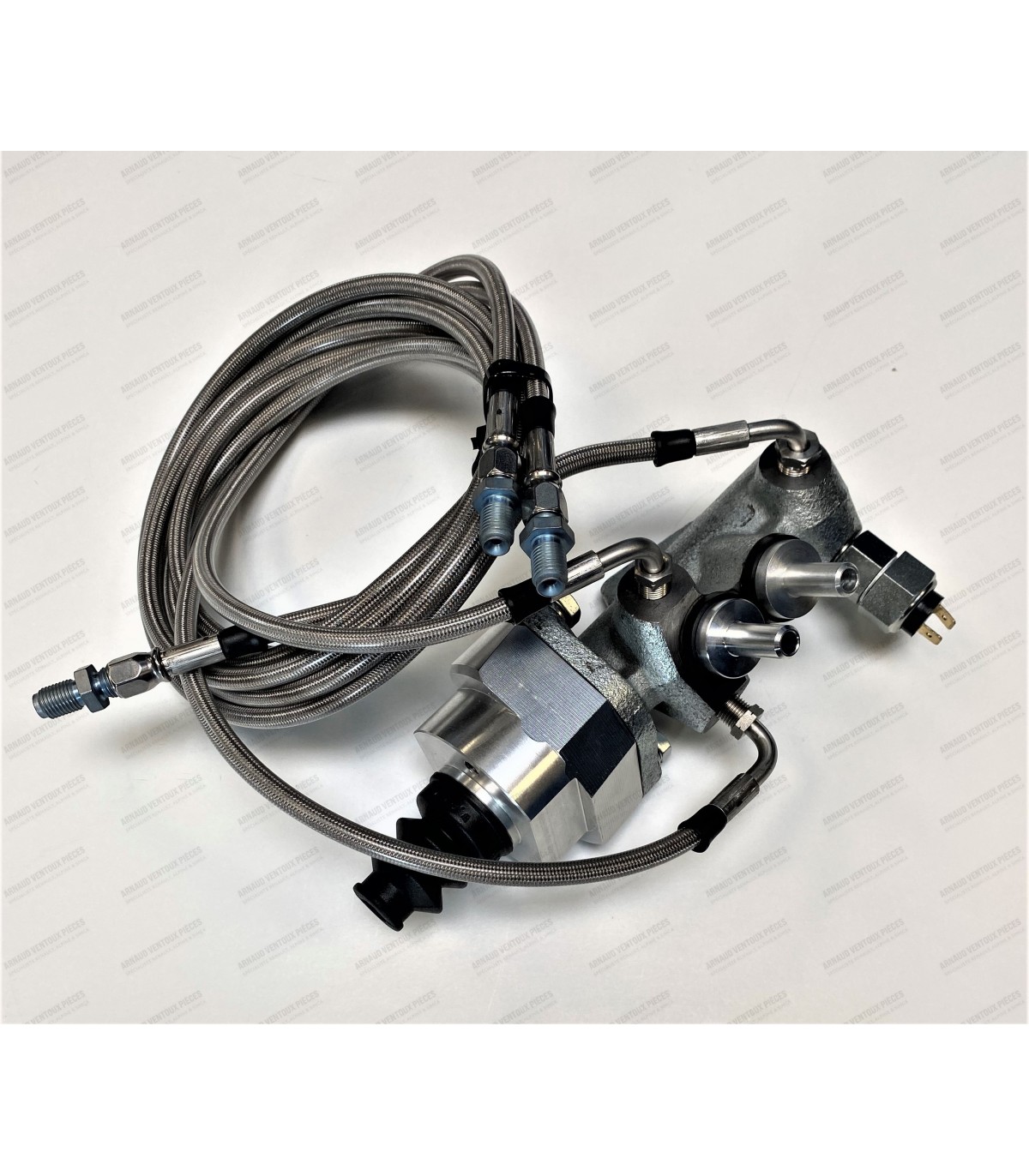

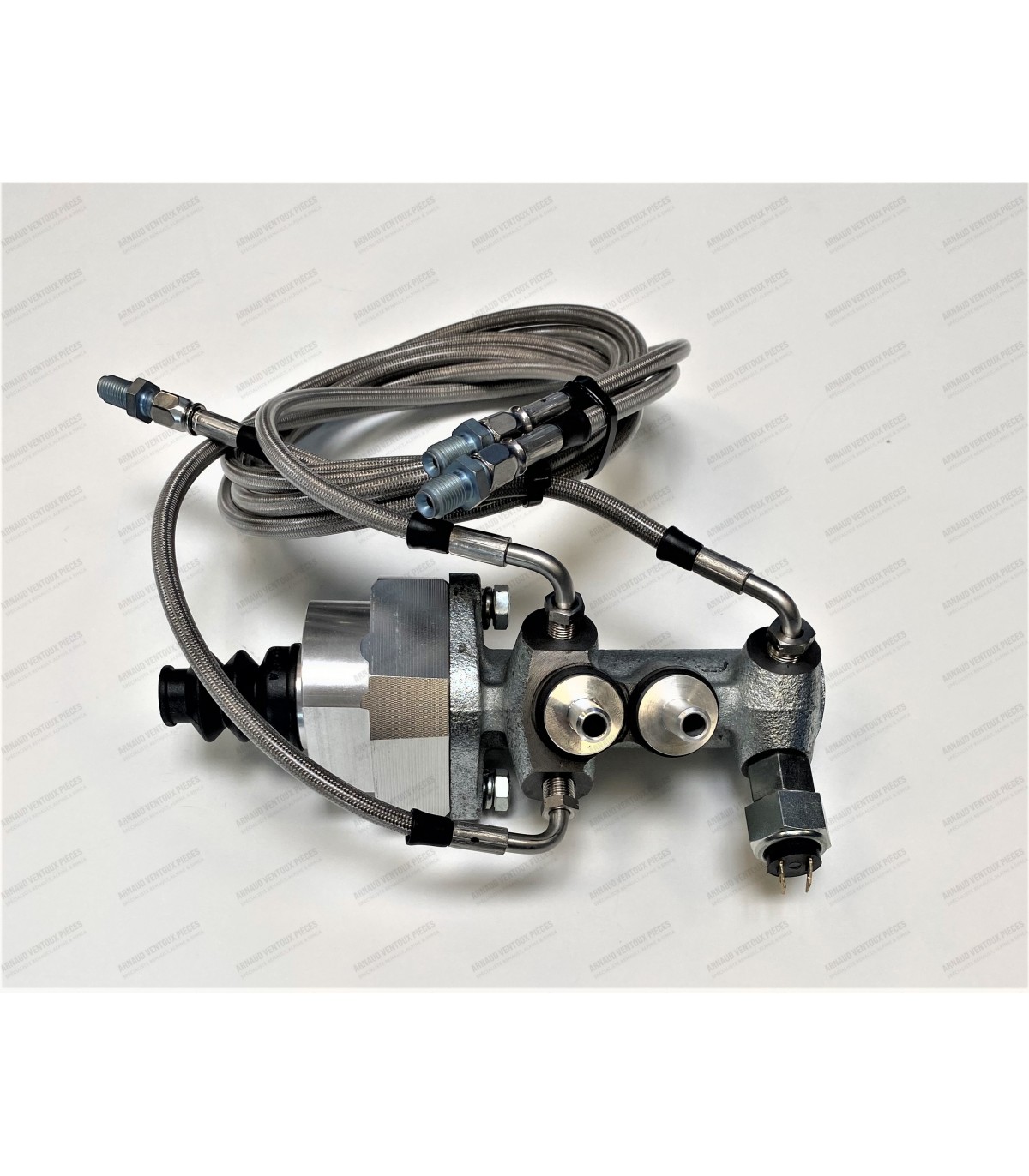

Dual circuit master cylinder with adaptation wedge and 3 hoses - Renault Kangoo type

Suitable for:

• 4CV: Drum brake (From 06/1953 until the end of production)
• Alpine A106: Drum brake
• Dauphine (All models): Disc brake
• Caravelle / Floride: Disc brake
• R10 / R8 (All models): Disc brake
• R12G and R17 Gordini: Disc brake
• Alpine A110 and GT4: Disc brake

Suitable for:

• • R8 / A110: Front Big Brakes
  • R5 Alpine Atmo (1223) and Alpine Turbo (122B): Front Brakes
  • A310.4: Front Brakes
  • A310 V6 (Pre-1980): Front Brakes
  • R12 (All models): Front Brakes
  • R15 / R16 / R17 (All models): Front Brakes

Brake pads with a retaining stop (B in the diagram) must be fitted with this stop facing forward (in the direction of wheel rotation).

For competition use only. Do not use these brake pads on the track. public.

• Shim sold individually, 2 shims required to equip a front axle.
• In addition to the aluminum shim for attaching the front caliper, a caliper yoke is required (not available in the AVP catalog)
• WARNING: This assembly is specific. We remind you that some brake caliper yokes may not be compatible with the so-called "Big Brake" assembly.

Dimension of the axis of the upper fixing bolt at the support of the 1st washer.

• End cap for stop switch Ø12.5mm
