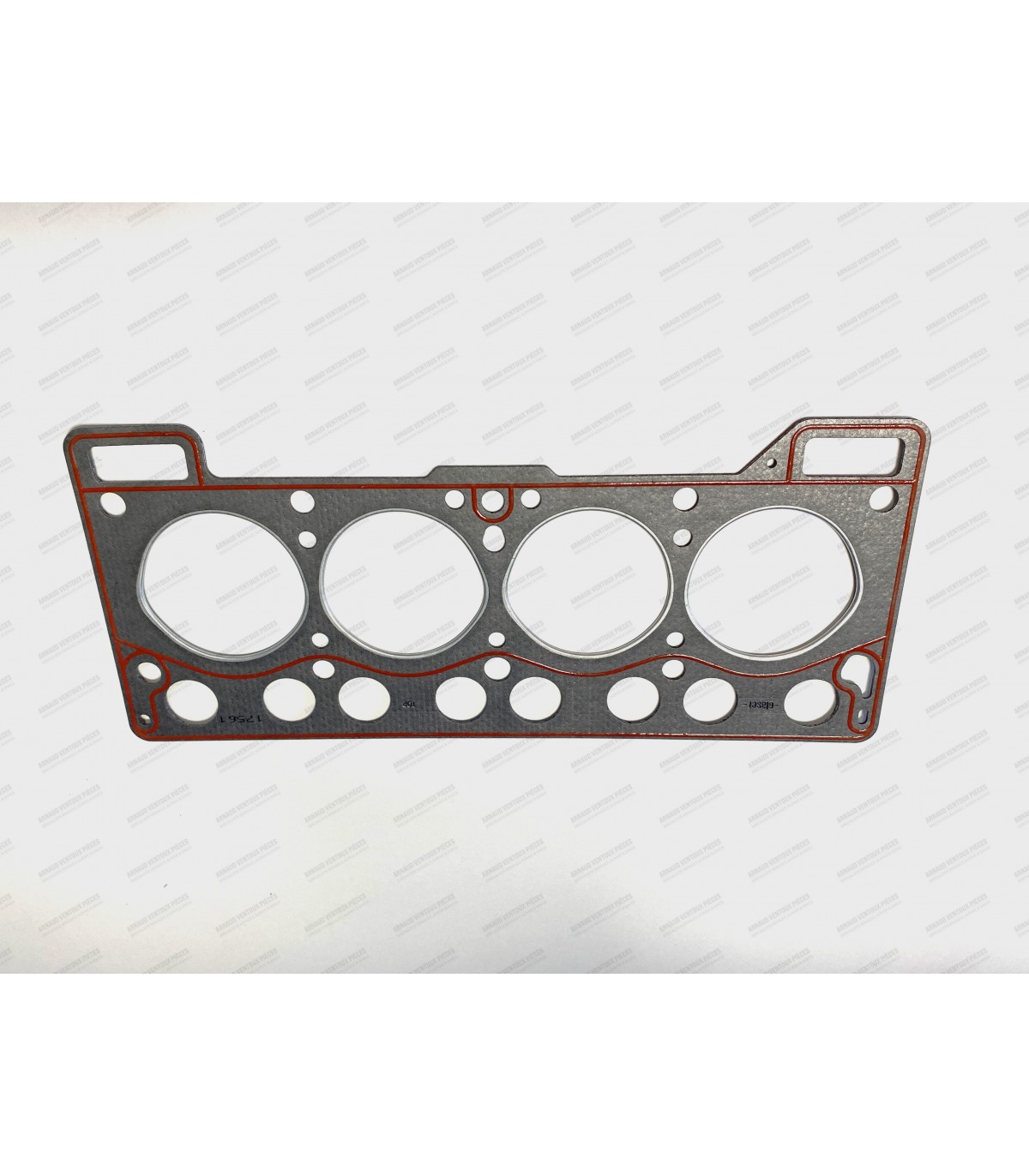

Cylinder head gasket "oblong" holes Ø 72.3mm (Engine Type 688 / 689 / C1C-.. / C1E-..)

The position of the groove for securing the half-moon valve keepers must be checked.

• • Valve angle : 45°
  • Keying type (half-moon): MK (x2 round groove)
  • Renault / Alpine OE part number: 7701458690

Suitable for:

• • • R4: 852cc and 1108cc engines (Cléon engine)
    • Rodeo
    • R5 (GTL / GTS / TL): 1108cc engine
    • Estafette:

1289cc engine (Type 810)

• • R12 (L / TL / TS) and R15 (TL and GTL): 1289cc engine (Type 810)
  • Super 5: C1E and C1C engines
  • Clio 1: C1G and C3G engines
  • Twingo: C3G engine

Length: 60mm

Possibility of adaptation on other engines without oil filter

Plug specifications:

• Outer diameter: Ø 77.50mm
• Mounting diameter: Ø 63mm
• Plug height: 9mm
• Material: Rubber
• Renault OE Ref.: 6051676 / 0605167600

Suitable for:

• Dauphine: Front luggage compartment floor or cabin floor plug
• Floride / Caravelle: Front luggage compartment floor or cabin floor plug
• R8 / R8G: Front luggage compartment floor or radiator panel plug
• R4 (all models): Engine bay inner wing plug

Pulley Specifications:

• Pulley mounting diameter: Ø 35mm
• Pulley outer diameter: Ø 130mm
• Builts a 10mm wide belt
• Keyway width: 5mm
• Pulley fixing bolt offset: 28mm
• Belt offset: 20mm
• Ref. OE Renault: 0824397802 / 8243978

A steel washer is fitted to the oil seal surface for improved sealing and reduced pulley wear.

Inlet and outlet Ø 6-8mm

• This ignition harness consists of4 spark plug wires and1 coil wire.
• We would like to point out that our spark plug wires are made with 7 mm diameter silicone wires, black in color, with a standard copper core (wire material), which means they do not have interference protection.
• If the vehicle is equipped with sensitive electronic accessories, such as a radio, tripmaster, monitor, or certain kits electronic ignition, interference or disruption may occur.

• Sold with water pump gasket
• Distance between two pulley mounting bolts (Center-to-center):50mm
• Pulley mounting using x4 M8 bolts (Not supplied)

The high-flow water pump increases performance Cooling without any modifications. It installs without any modifications, directly in place of the original Renault or Alpine pump.

Suitable for:

• R8 and R8G
• Caravelle and Floride S
• Alpine GT4
• A110 (1300cc engine)
• Matra Djet (1300cc engine)
