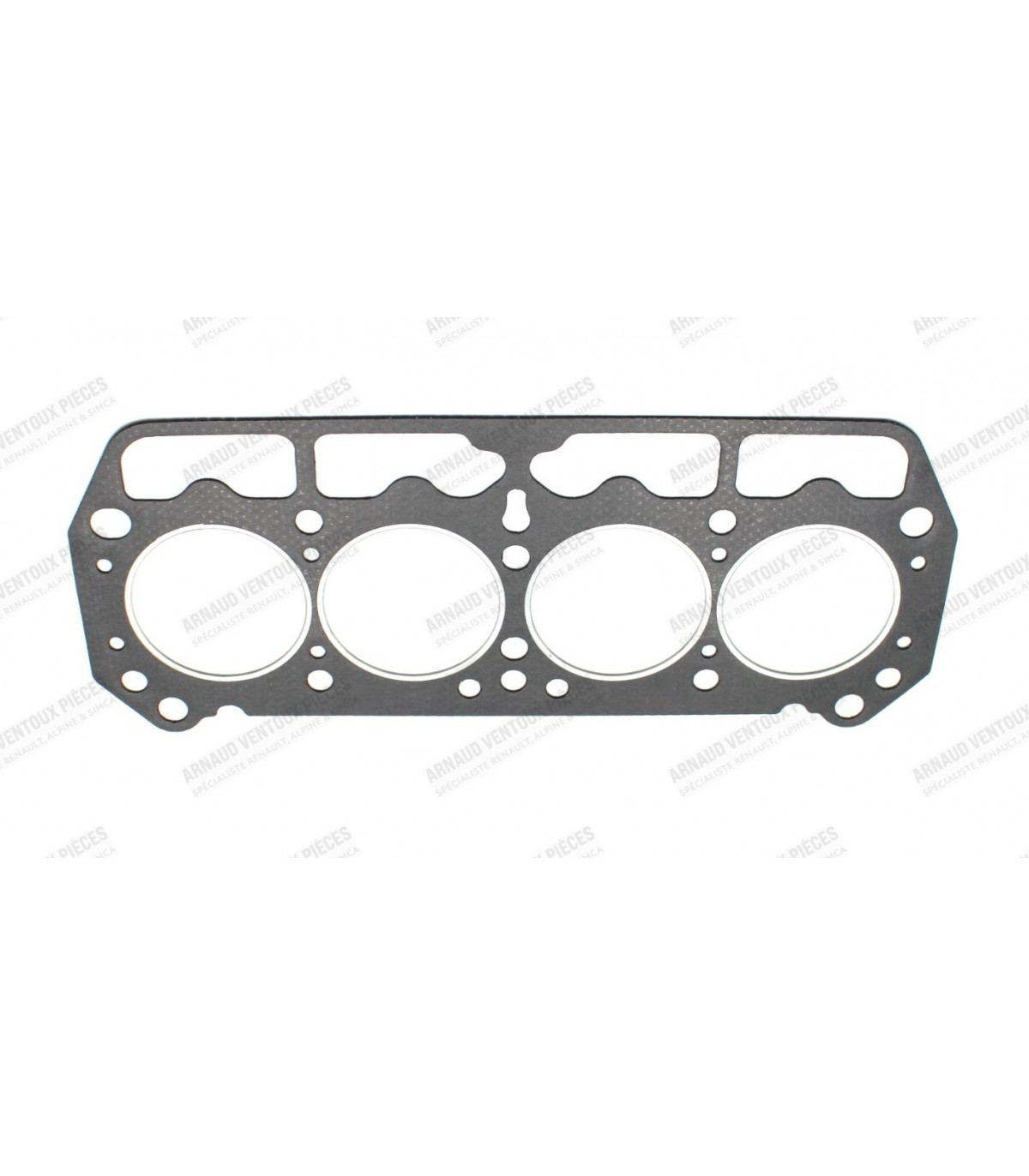

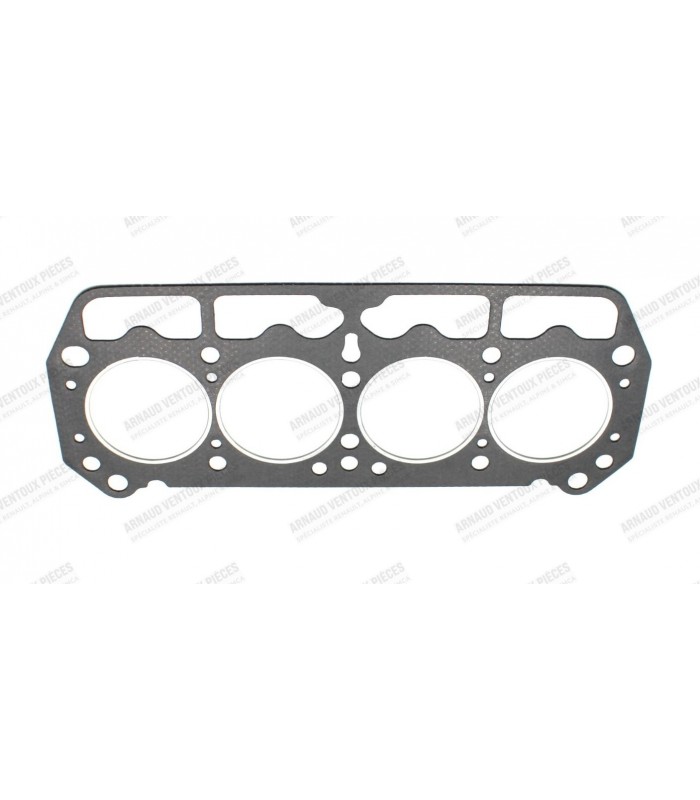

Cylinder head gasket Ø 76.7mm (Standard dimension 1.35mm) - Simca 1100 / 1100 GLS / 1200S / 1000 Rallye

The kit consists of the following pipes:

• Right front underbody pipe (with tappings for heating circuit): Lower radiator hose / central underbody connector - Part number 42569E
• Left front underbody pipe: Upper radiator hose / central underbody connector - Part number 42584A
• Right rear underbody pipe: Central underbody connector / hose to water pump - Part number 30238A
• Left rear underbody pipe: Central underbody connector / Hose to water pipe on cylinder head - Part number 30230E

This kit of 4 pipes is compatible for installation on a Simca Rallye 2 and a Simca 1200S, provided that the long fixing bracket of the right rear tube is replaced by a short "Type Rallye 3" bracket on the tank ventilation plate (see photo 2).

• Thickness: 1.80mm (repair side)

Drilling for fixing: x3 holes Ø 8.5mm

Fixing holes offset by 4.5mm for modification of the camber (0° instead of 1°30) and widening the front track (1275mm)

Bearing Dimensions:

• Dimension: Original (Standard) Dimension
• Crankpin Diameter (A): Ø 40.96mm
• Housing Diameter (B): Ø 44.00mm
• Bearing Width (C): 19.24mm
• Bearing Thickness (D): 1.51mm
• Smooth, lug-type bearings with no grease holes or grooves
• Bearing Material :Bi-metal
