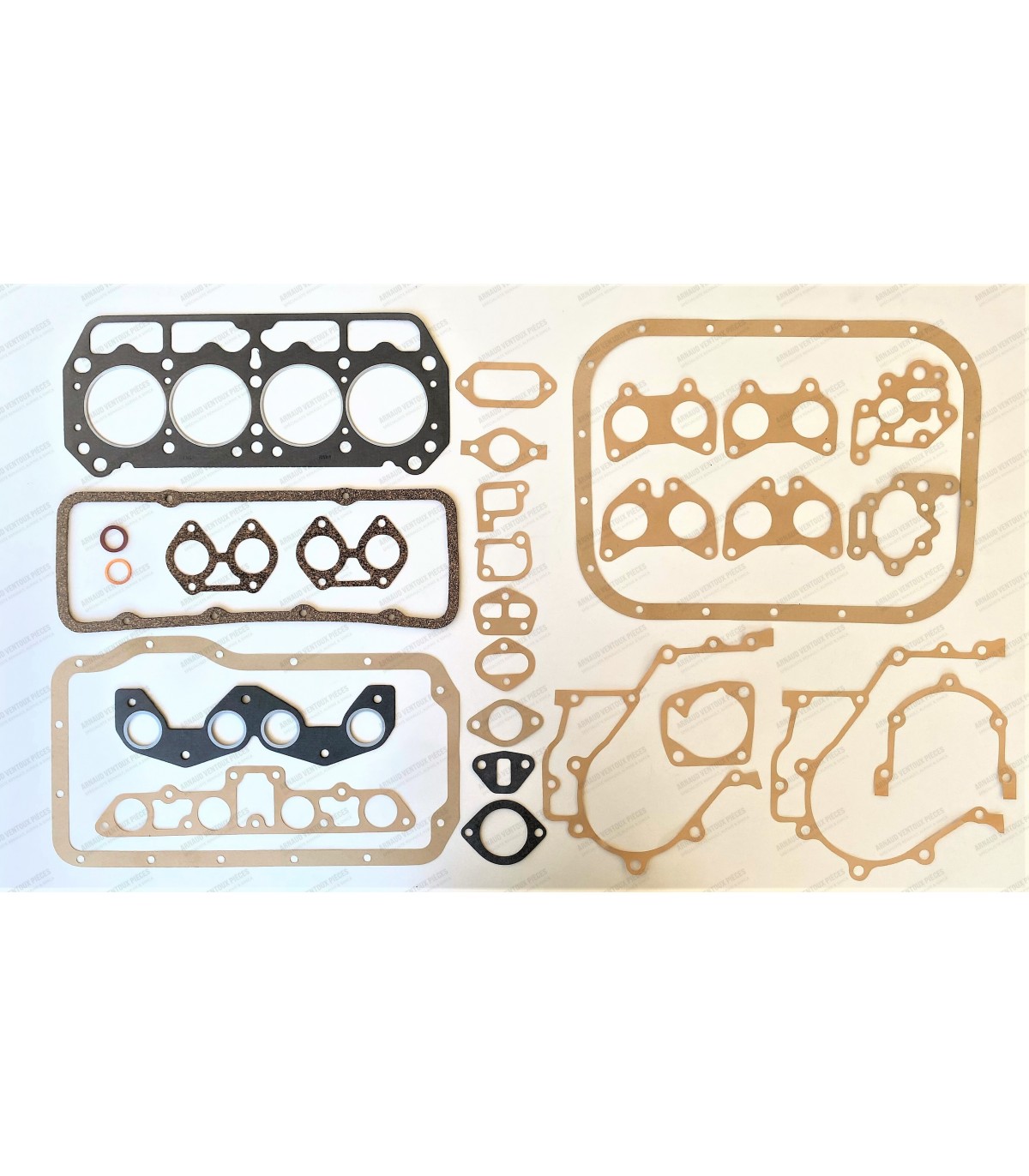

Complete engine gasket set (cylinder head gasket Ø76.7mm standard thickness) - 1200S

Segment Characteristics:

• • Segment Diameter:Ø 74mm
  • Thickness of Upper Segments (Fire-resistant): 1.75mm
  • Thickness of Intermediate Segments (Waterproof): 2mm
  • Low ring thickness (Scraper): 4mm

It is essential to check the ring end gap of each ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the instructions provided.or the values ​​given in the instruction manual.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120°.

Bearing Dimensions:

• Dimension: Original (Standard) Dimension
• Crankpin Diameter (A): Ø 40.96mm
• Housing Diameter (B): Ø 44.00mm
• Bearing Width (C): 19.24mm
• Bearing Thickness (D): 1.51mm
• Smooth, lug-type bearings with no grease holes or grooves
• Bearing Material :Bi-metal
