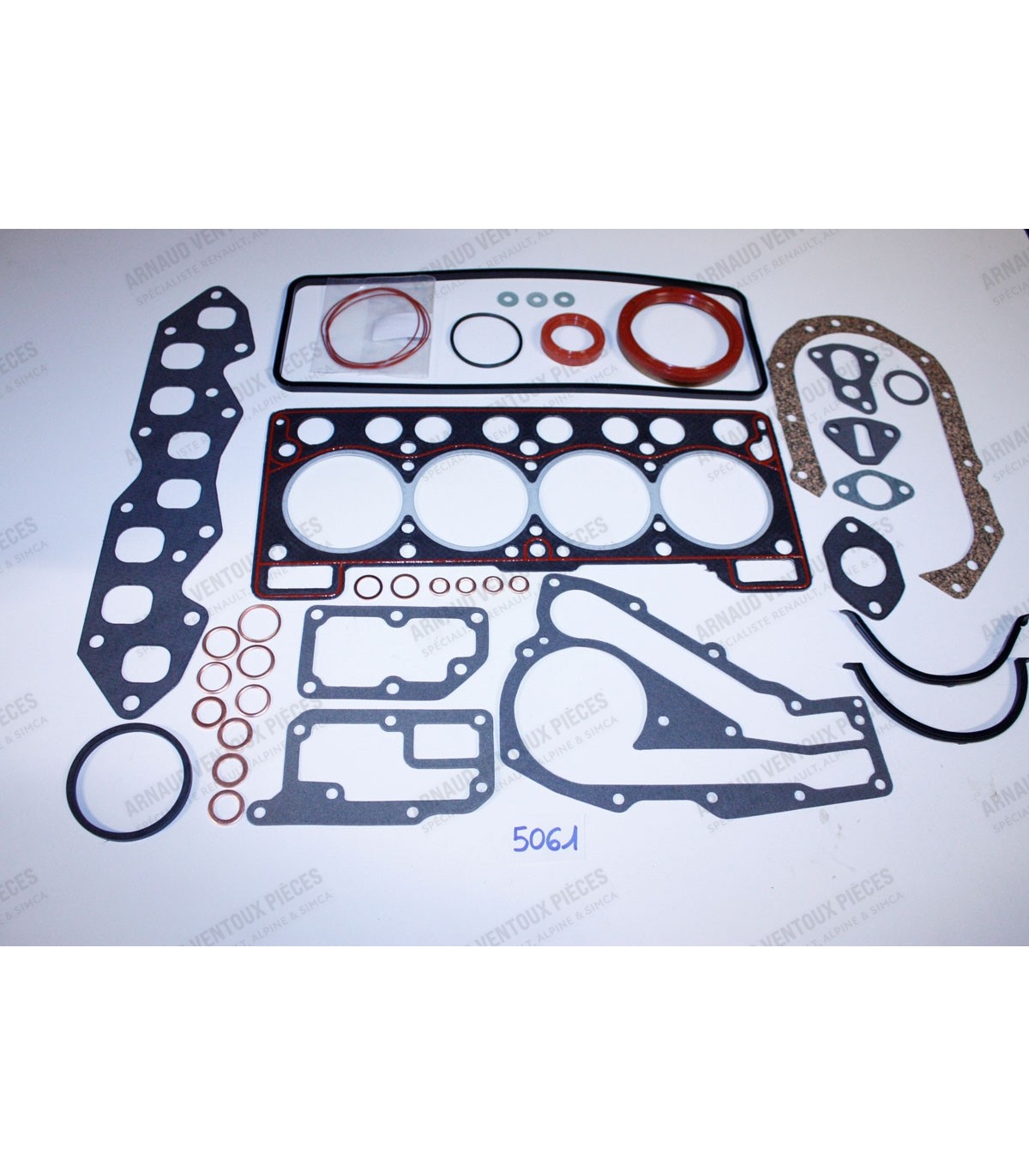

Complete gasket set - Super 5 GT Turbo

• Kit suitable for: Super 5 GT Turbo (Phase 1 and Phase 2)
• Kit supplied with 2 front hoses and 2 rear hoses

Segment Characteristics:

• Segment Diameter:Ø 76mm
• Thickness of Upper Segments (Fire-resistant): 1.75mm
• Thickness of Intermediate Segments  (Waterproof): 2mm
• Low ring thickness (Scraper): 4mm

It is essential to check the ring end gap of each ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.or the values ​​provided in the instruction manual.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120°.

Suitable for:

• Super 5 (All models): Driver's or passenger's front wiper
• R20 / R30: Driver's or passenger's front and rear wiper
• R21: Rear wiper
• Clio Williams (Up to 02/1994): Driver's or passenger's front wiper

Bearing Dimensions:

• Dimension: Original (Standard) Dimension
• Crankpin Diameter (A): Ø 43.98mm
• Housing Diameter (B): Ø 47.62mm
• Bearing Width (C): 17.75mm
• Bearing Thickness (D): 1.80mm
• Smooth, lug-type bearings with no grease holes or grooves
• Bearing Material: Bimetal

Filter Dimensions:

• Inner Diameter (D2): Ø 85mm
• Outer Diameter (D1): Ø 126mm
• Height (H1): 239mm
• Height (H2): 234mm

The dimensions given are for guidance only; slight variations of a few millimeters are possible depending on availability.
