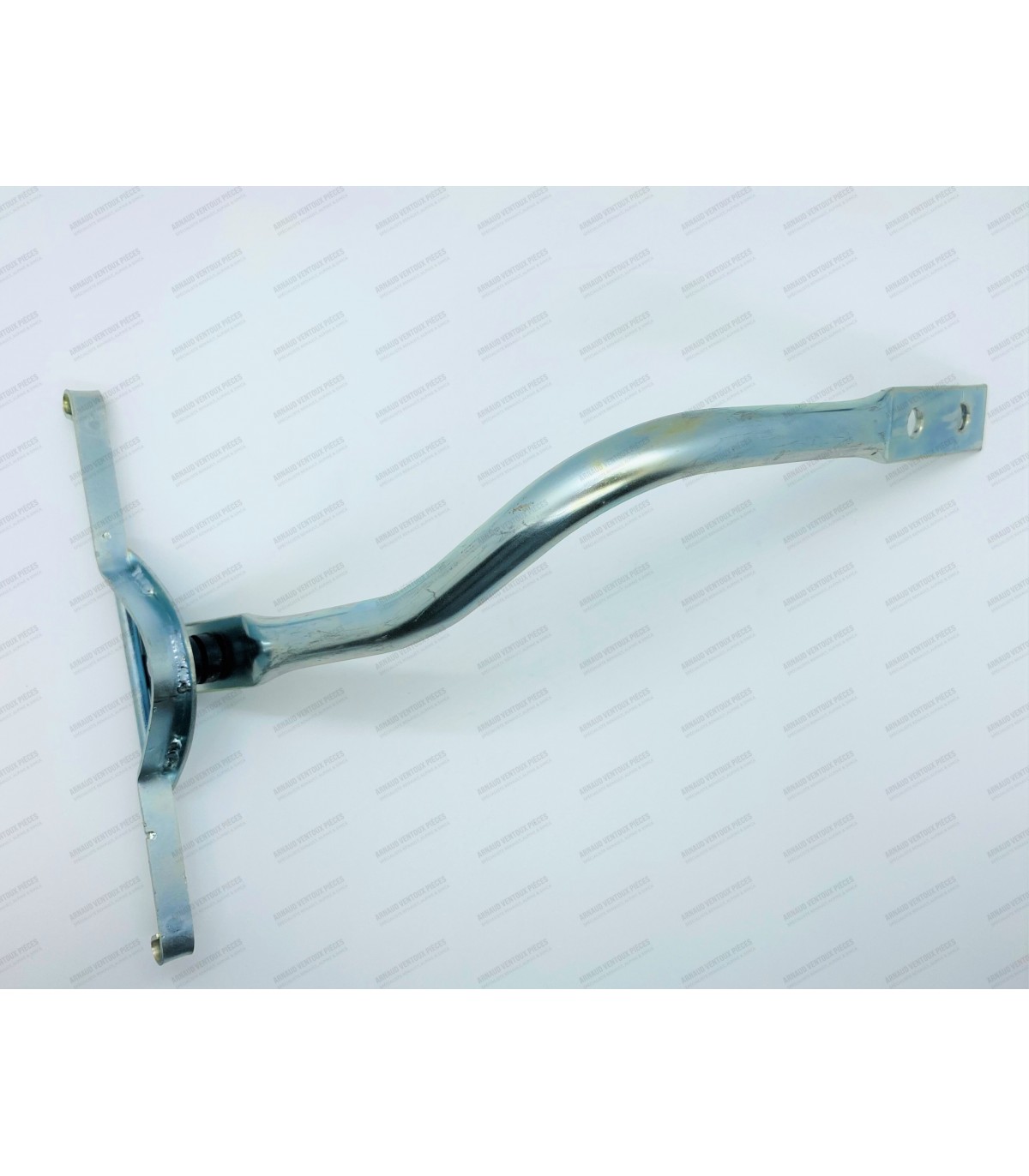

Carburetor reinforcement support for 45DCOE - 1600cc

• Air intake trumpet/trumpet filters for WEBER 45DCOE carburetor
• Mesh filters made of two layers of stainless steel mesh, with an intermediate filter layer ensuring optimal engine protection
• Easily washable and removable
• Suitable for trumpets with an outer flange diameter between Ø 60mm and 70mm
• Filter inner diameter: Ø 58mm
• Filter outer diameter: Ø 80mm
• The filter length when installed on a 63mm trumpet is 82mm (overall)
• Can be mounted on the entire assembly cones from the AVP catalog

• Inlet / outlet connection: BSP 1/2" x14 (x2)
• Threaded sleeve: male Ø3/4" - 16UNF and female Ø3/4" - 16UNF

Please note, the oil filter plate does not correspond to the original hoses and fittings. Provide for the replacement of these fittings and hoses.

Suitable for (Engine Type: 688 / 689 / 810):

• R4 / R6 / R8
• Caravelle - Matra jet
• R12.TL - R12.TS - R15.TL
• A110.V85 (810) - A110.GT4

For Ducellier reference: 4045 - 4069 - 4074 - 4075 - 4077 - 4118 - 4119 - 4125 - 4143 - 4144 - 4146 - 4150 - 4158 - 4167 - 4168 - 4223 - 4224 - 4225 - 4341 - 4375 - 4387 - 4388 - 4462

Curve designed for unleaded fuel octane SP95 / SP98

• Useful length (L on photo diagram number 3): 19.5mm
• Sold with the pin
• OE Renault / Alpine Ref: 0705322000

Dimensions of the cups:

• Inner Diameter:Ø 30.10mm
• Outer Diameter:Ø 42mm
• Height:4.7mm

• Réf OE lpine / Renault : 0608269300 / 6000002175 / 7700501028
