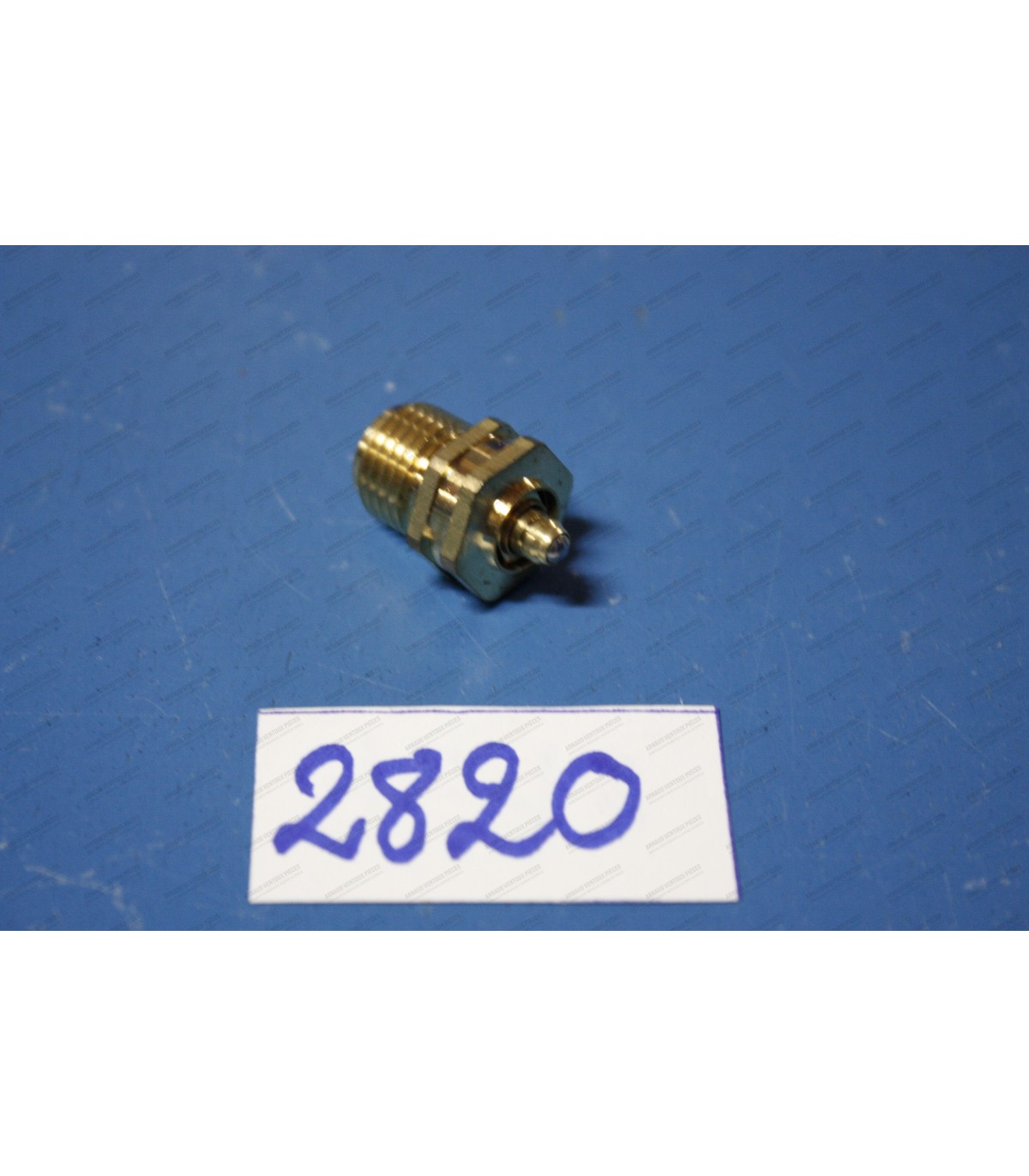

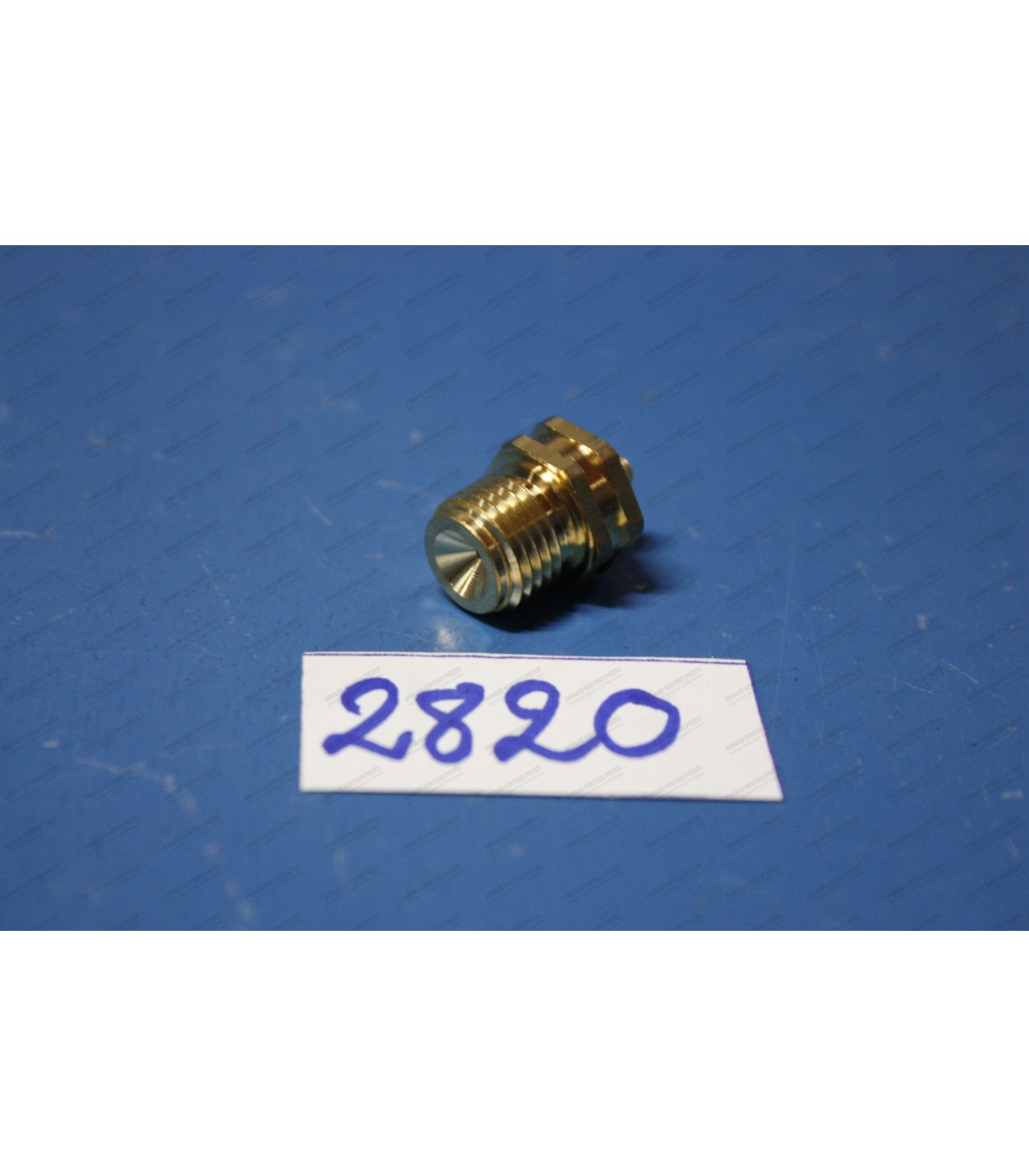

Carburetor needle valve - Solex 1.70

Thickness 0.5mm

Suitable for:

• R8 (All models) / Caravelle / Floride S: Left and Right Side Boot
• A110 (All models) / Alpine GT4: Left and Right Side Boot
• A310.4: Left and Right Side Boot
• A310 V6: Left Side Boot
• Matradjet: Left and Right Side Boot

Cap Dimensions:

• Inner Diameter: Ø 40mm
• Outer Diameter: Ø 42mm
• Height: 26.5mm

Also suitable for some R16 (R1150) models with rear drum brakes.

The kits are supplied with the following components:

• Cylinder Heads (x4)
• Domed Pistons (x4)
• Rings (x12)
• Pin (x4)
• Circle Clips (x8)

Dimensions of the various parts:

• • Cylinder Head Bore Diameter: Ø 75.7mm
  • Cylinder Head Flange or Top Diameter (D): Ø 89.75mm
  • Cylinder Head Base Diameter (A): Ø 80mm
  • Overall height including skirts of cylinder liners (C): 128mm
  • Height from top of cylinder liner to base seal area (E): 94.80mm
  • Shaft dimensions: Ø 20x63.5mm (Cirlip-free mounting)
  • Ring thickness: 1.75mm / 2mm / 4mm (Fireproof/Sealing/Scraper)
  • Base seal type: Paper gasket

Piston mounting direction: (arrow) drawn perpendicular to the axis of the piston, figure on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).

It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120° intervals.

This deflector is suitable for all wiper arms with flat arms 5 or 6mm wide and 2.5mm thick (before 1970)

• This accessory allows for better support of the blades on the windshield while driving, and provides a beautiful exterior finish.
• Simply attaches by clipping onto the arm
• Sold individually

Deflector dimensions:

• Length: 11mm
• Width: 25mm (Small side) and 40mm (Large side) side)
