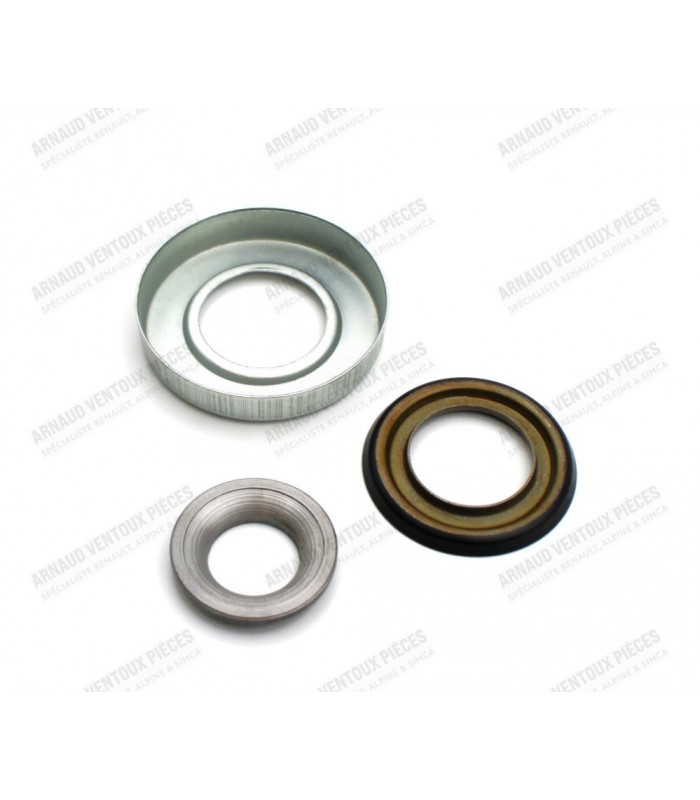

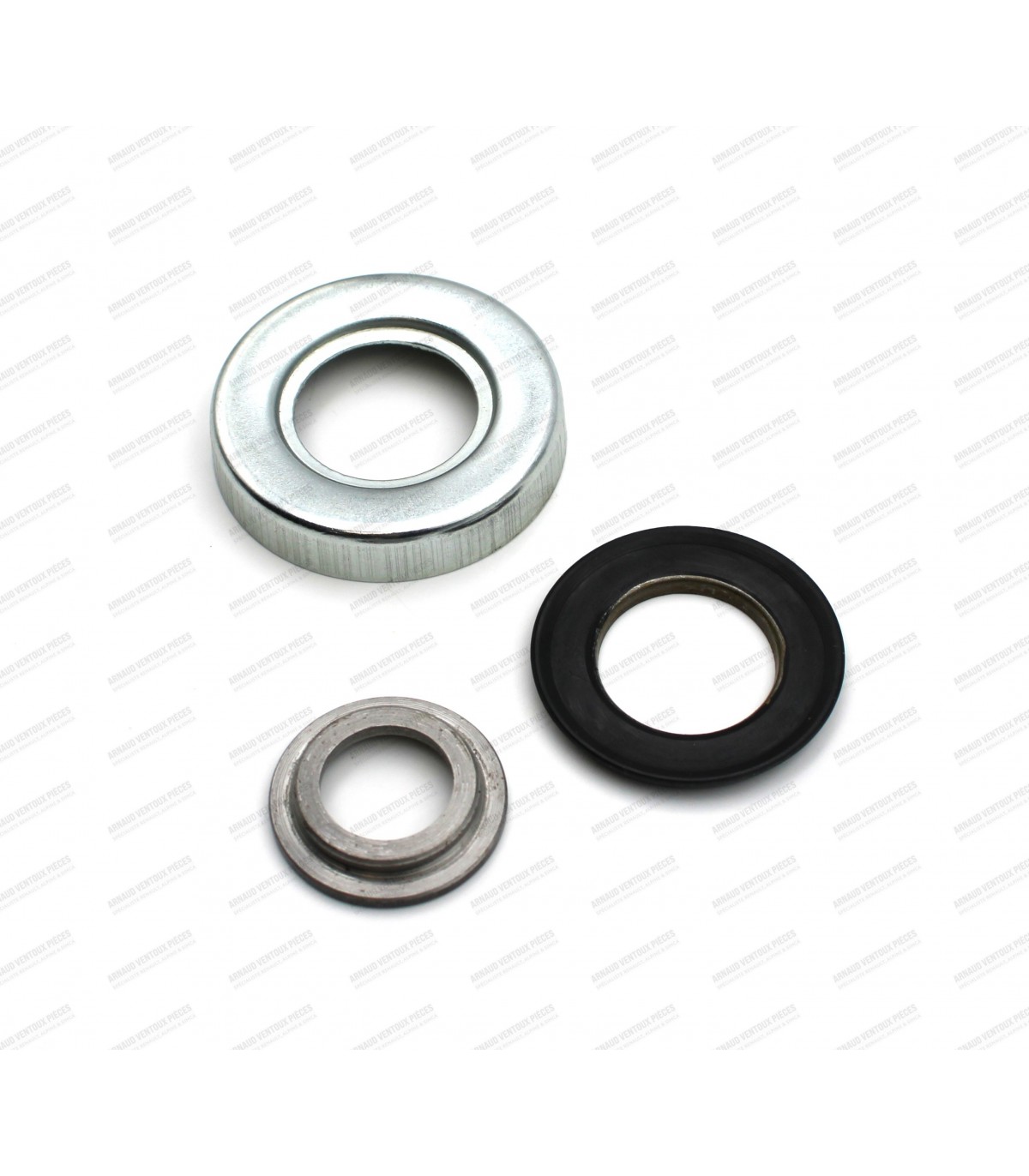

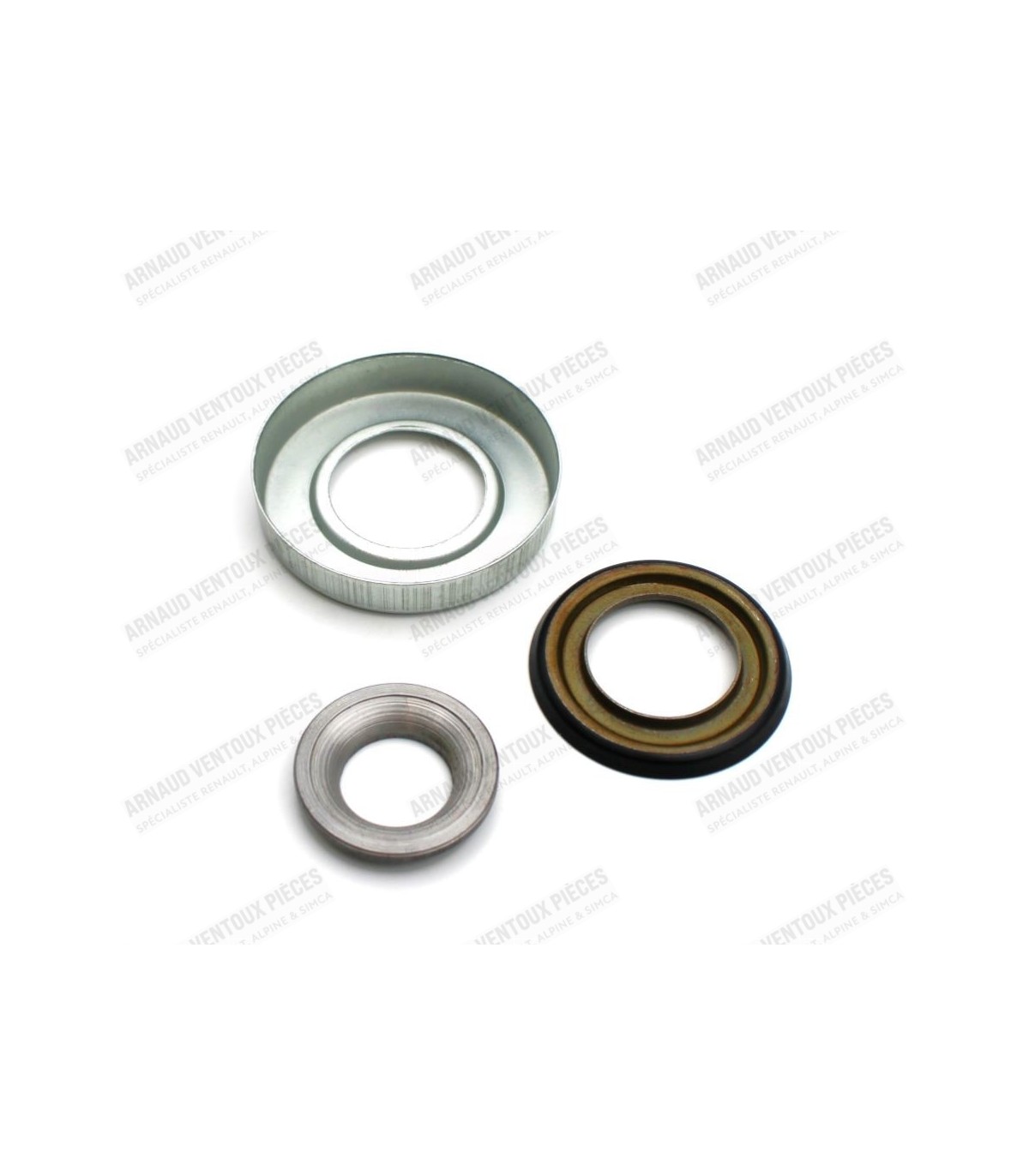

Bearing support washer kit with ring and seal for spindle Ø 20mm

• Special Premium Quality graphite for clutch release bearings
• Important: The release bearing clamping screw must be placed on the side opposite the fork
• It is possible to keep the release bearing and replace only the graphite ring if worn.
• Depending on the diameter of the return spring, it may be necessary to re-drill the release bearing mounting.
• It is recommended to soak the release bearing in warm engine oil and then wipe it dry before installation to avoid squeaking noises

Cap Dimensions:

• Inner Diameter: Ø 40mm
• Outer Diameter: Ø 42mm
• Height: 26.5mm

Also suitable for some R16 (R1150) models with rear drum brakes.

4CV: Drum brake (From 06/1953 until end of series)

Alpine A106: Drum brake

Dauphine (All models): Disc brake

Caravelle / Florida: Disc brake

R10 / R8 (All models): Disc brake

Alpine A110 and GT4: Disc brake

Matradjet: Disc brake

This kit contains x4 hoses Ø 3/8"-24UNF - Length of hoses 32cm and 26cm
