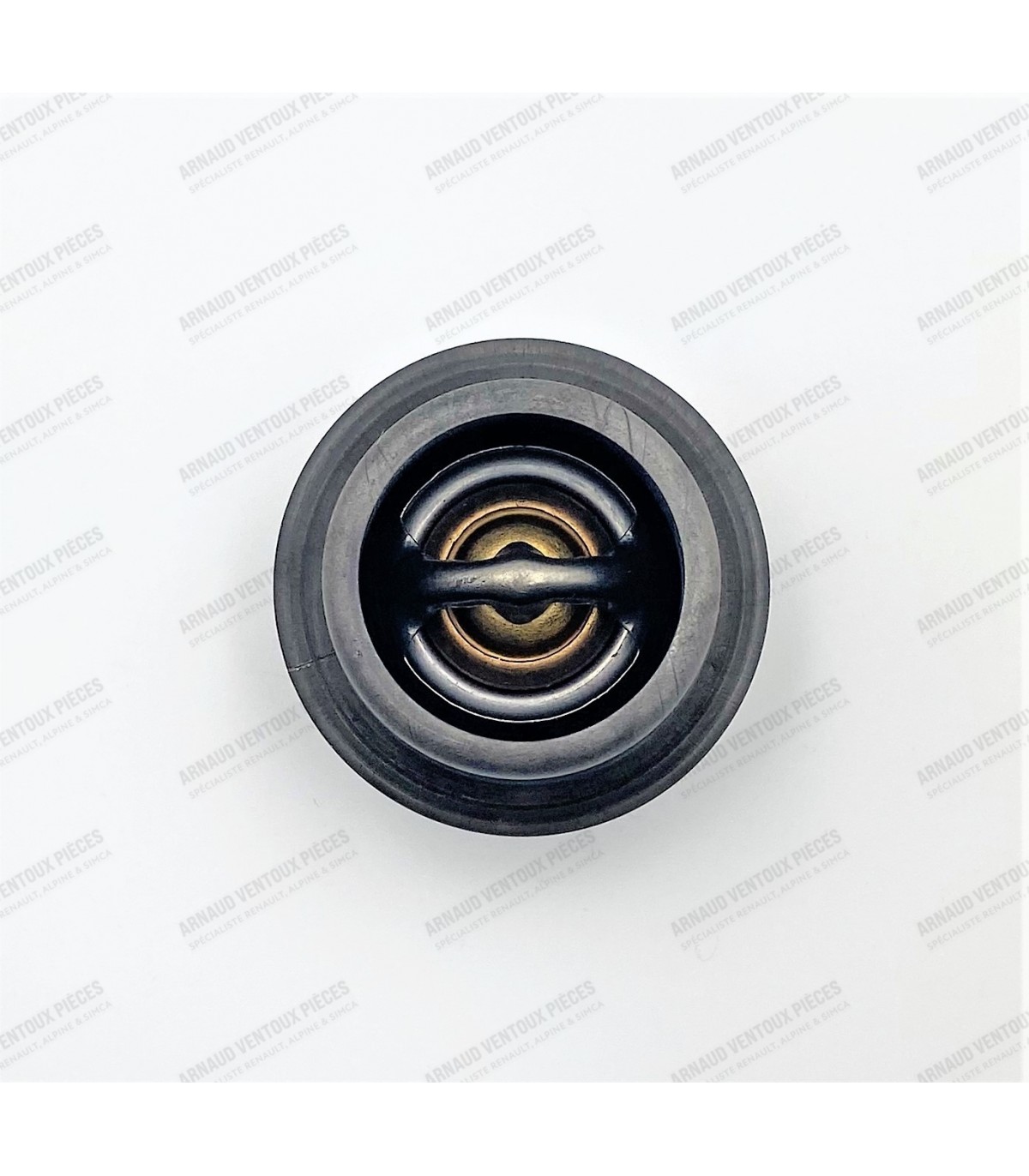

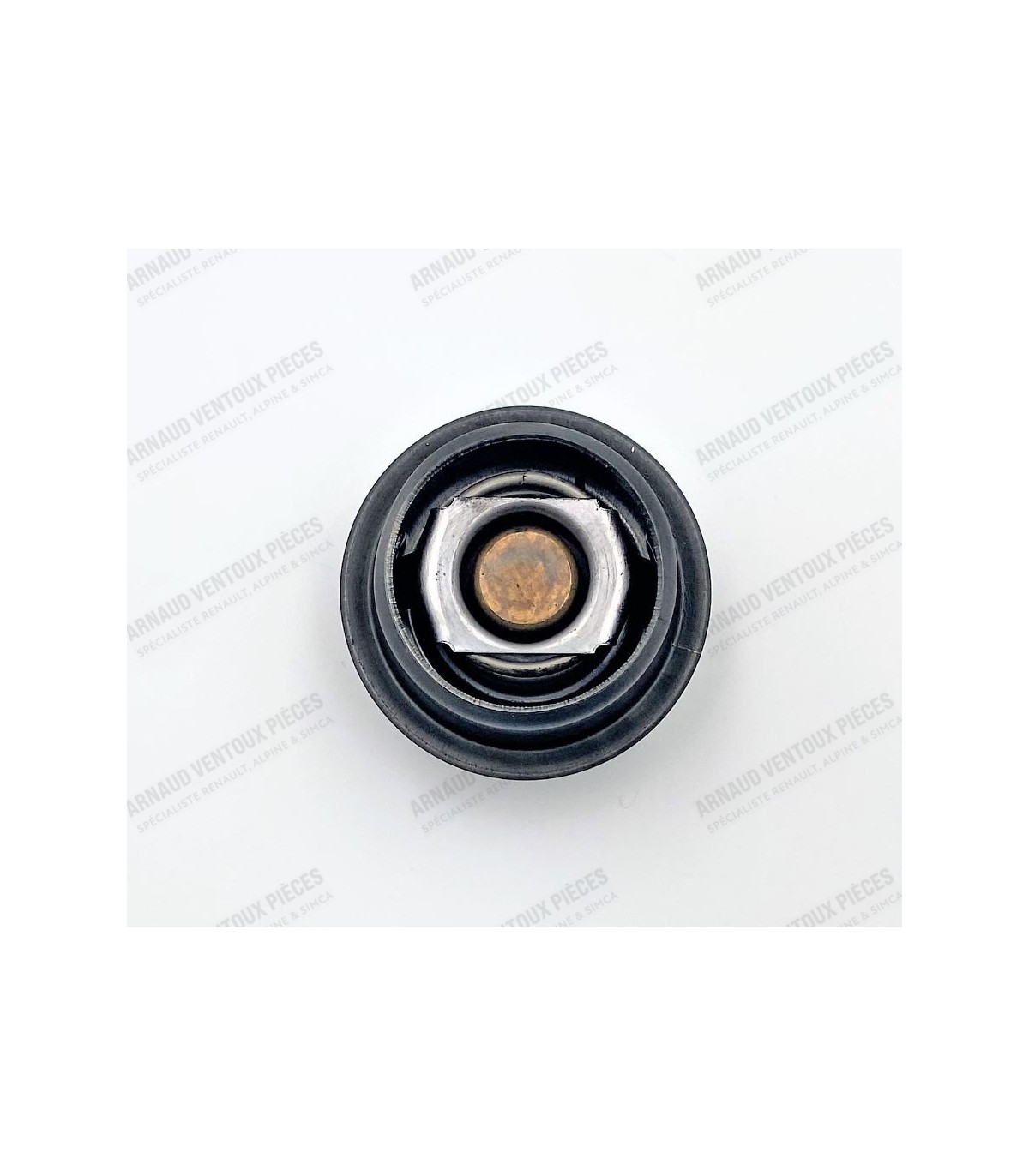

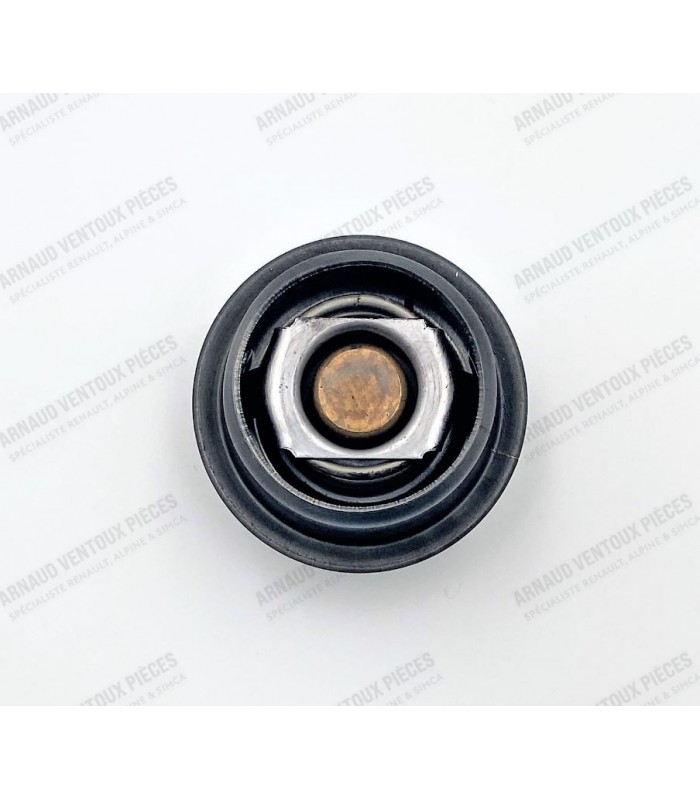

Thermostat - Opening temperature 82°C

• This kit contains an M9 adjustment screw nut and an M8 nut.
• To identify a caliper with a square or round seal, refer to the symbol indicated on the caliper casting.
• The "square" symbol indicates the presence of a square seal, while the circle symbol indicates the presence of a round seal.
• It is essential to replace the same type of seal (round or square) according to the symbol on the caliper.
• We recommend that you Check the symbol displayed on each caliper, as a vehicle may have calipers of different origins, some with square joints and others with round joints.
• It is not recommended to mix calipers on the same assembly, as this can lead to the risk of skewing during braking.

Segment Characteristics:

• • Segment Diameter:Ø 58mm
  • Thickness of Upper Segments (Fire-resistant): 2mm
  • Thickness of Intermediate Segments (1) (Waterproof): 2mm
  • Thickness of intermediate rings2 (Sealing): 2mm
  • Thickness of lower rings (Scraper): 3.5mm

It is essential to check the ring end gap of each ring before installing them on the pistons, according to the valuesgiven by the manufacturer or data in the supplied instructions.

During assembly, the piston ring gaps must be evenly distributed around the piston circumference at 120° intervals.

• Female connector: Ø 3/8"-24UNF (Ø 9.52mm) x3

Suitable for:

• Juvaquatre R2100 (4hp): Type 662-3 engine
• Dauphinois R2101 (5hp): Type 670-2 engine

This kit contains the following references:

• 6000000112 + 6000000113 + 6000000115 + 6000000116 + 6000000117 + 6000000118 + 6000000119 + 6000000120

Suitable for gearboxes:

• Gearbox 314 / 318 / 325 / 328
• Gearbox 330 / 334 / 354
• Gearbox HA0-119 / HA0164 / HA0-166
• Renault OE Ref: 6068078 / 0606807800
