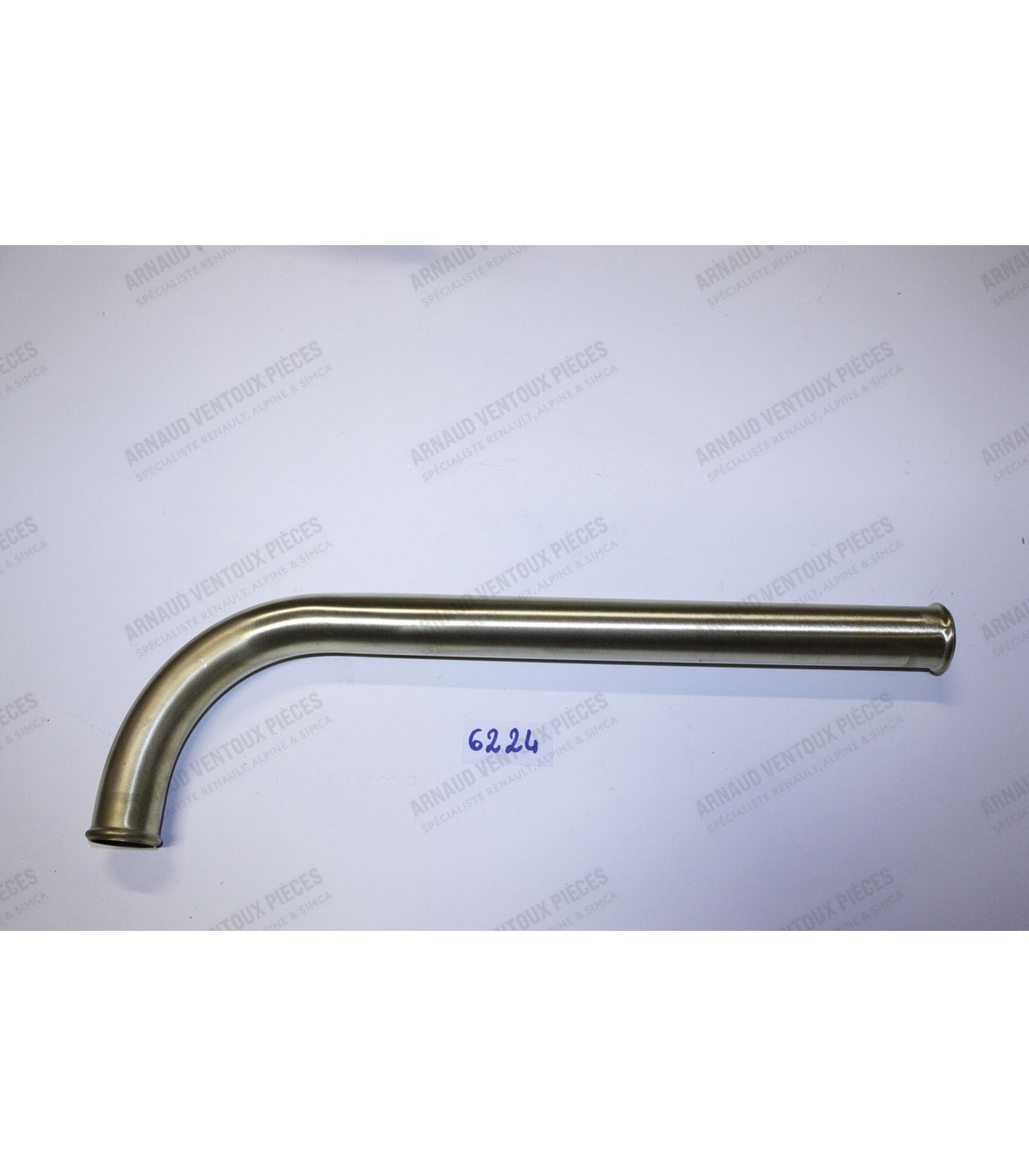

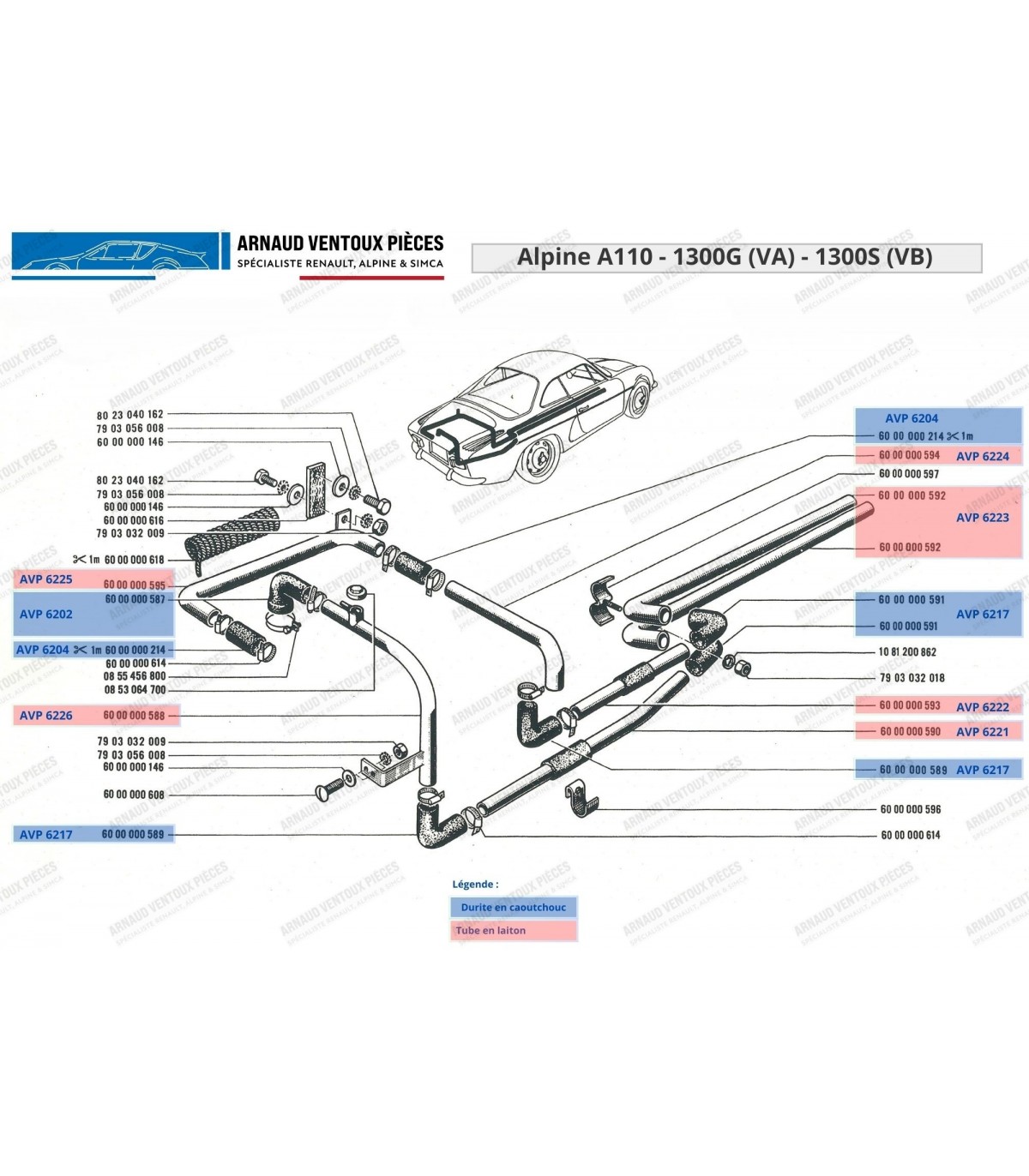

1300cc: Brass pipe bent at 90° - Øext 35mm - ref 6000000594

• 11-tooth pinion
• Tooth height: 11mm
• Overall pinion height: 64mm

• Glass jar Ø 67mm
• Filter element: Replaceable paper cartridge
• One Inlet: dual size 6 and 8mm
• One Outlet: dual size 6 and 8mm
• Regulating pressure: Regulating range from 0 to 0.6 bar
• Compatible with SP95 / SP98 / E85
• Pressure adjustment via the top screw which acts directly on the diaphragm
• Connection on the filter body for a fuel pressure gauge (1/8″ NPT connection)

The use of a fuel pressure gauge is Intended solely for pressure regulation and not for permanent installation.

• OE Renault Ref: 7703090187 / 0857568100 / 7703090277

For piston kit liner Ø 76mm (AVP5001 and AVP5050)

This brake limiter replaces the original non-adjustable rear brake proportioning valve.

The limiter is not load-dependent (it does not vary according to the vehicle's load).

Its adjustment is manual, using the calibration screw. Adjustment can be made either statically, using brake pressure gauges and referring to the manufacturer's data, or dynamically (see description below).

Limiter specifications:

• Inlet thread (x1): 3/8-24UNF (Male cone)
• Outlet thread (x2): 3/8-24UNF (Male Taper)
• Mounting Screw Hole Diameter: Ø 8.5mm
• Limiter Adjustment Range: 5 turns
• Limiter delivered unadjusted (screw loosened): Rear brake pressure limited to maximum
