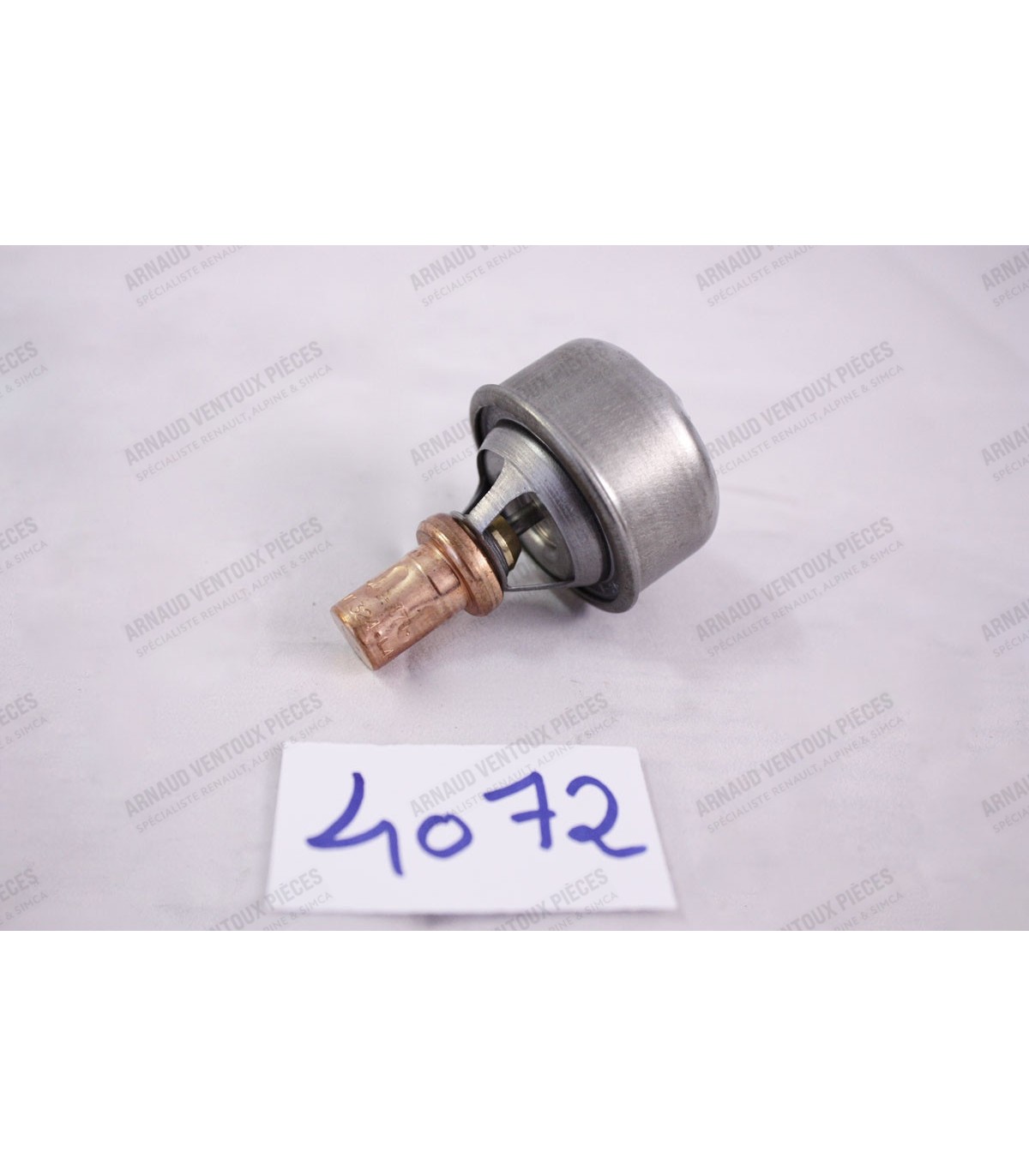

Thermostat - Opening temperature 86°C

To turn on a temperature warning light

Trigger temperature 97°C

Pulley specifications:

• Suitable for a 10mm wide belt
• Pulley outer diameter: Ø 140mm
• Crankshaft bore diameter: Ø 24mm
• Keyway width and length: Width 5mm / Length: 34mm
• Oil seal contact surface diameter: Ø 35mm
• Oil seal contact surface length: 20mm
• Central hub offset: 36mm
• Belt offset: from the center of the belt to the end of the pulley inside the timing cover: 32mm
• Renault OE Ref.: 7700507524 / 7700650823

Suitable for:

• R12G: 1565cc Engine (Type 821-10 / 821-20)
• R15 TS and R17 TL: 1565cc Engine (Type 807-10 and 807-11)
• R16 L: 1470cc Engine (Type 697-01 / 697-02)
• R16 TS: 1565cc Engine (Type 807-03 / 807-04 / 807-05 / 807-06)
• R16 TL: Engine 1565cm³(Type 821-01 / 821-02 / 821-03 / 821-04)
• Alpine A110 1600S: 1596cm³ engine (Type 807G)
• Alpine A110 SC / SI: 1605cm³ engine (Type 844)
• Alpine A310: 1605cm³ engine
