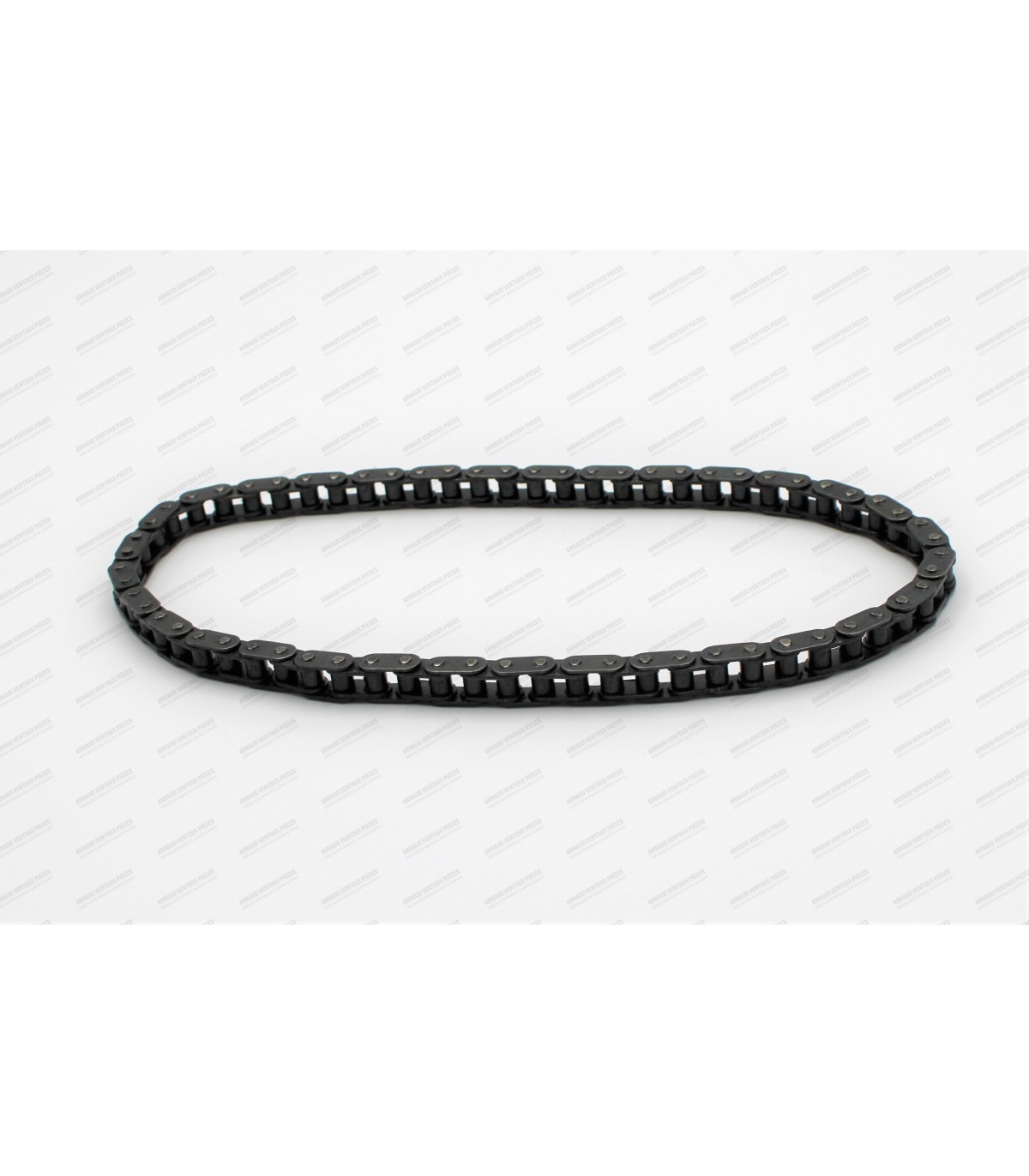

Single timing chain 64 links (Premium quality) - Billancourt engine 747cm³ / 782cm³ / 845cm³ - Ref 7701349643

• OE Renault Ref: 7700611453 / 7701348715

Segment Characteristics:

• • Segment Diameter: Ø 54.50 mm
  • Thickness of Upper Segments (Fire-resistant): 2 mm
  • Thickness of Intermediate Segments (Waterproof):2mm
  • Low ring thickness (Scraper): 3.5mm

It is essential to check the ring end gap of each ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.or the values ​​provided in the instruction manual.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120°.

Bearing Dimensions:

• Dimension: Repair Dimension (+0.50)
• Junnel Diameter (A): Ø 39.50mm
• Housing Diameter (B): Ø 44.01mm
• Bearing Width (C): 27.13mm (x2)
• Bearing Width (C): 30.12mm (x2)
• Bearing Width (C): 32.87mm (x2)
• Bearing Thickness (D) : 2.24mm
• Smooth, lug-type bearings with grease holes (x4) and grooves (x6)
• Bearing material: Bi-metal

• Mounting center distance: 44.5mm
• Thickness: 5mm

• Specific Bearing (Timing Side): Grooveless bearing on the main bearing cap side
• Suitable for Billancourt Type 839 and 800 engines (From July 1972)

Bearing Dimensions:

• Dimension: Repair Dimension (+0.25)
• Journal Diameter (A): Ø 39.75mm
• Housing Diameter (B): Ø 44.01mm
• Bearing Width (C): 27.13mm (x2)
• Bearing Width (C): 30.12mm (x2)
• Bearing Width (C): 32.87mm (x2)
• Bearing Thickness (D): 2.11mm
• Lug bearings with grease holes (x4) and grooves (x5)
• Bearing Material: Bi-metal
