- Fixed with two threaded studs with M5 nuts
- Fixing center distance: 90mm
- Overall length: 120mm
In stock

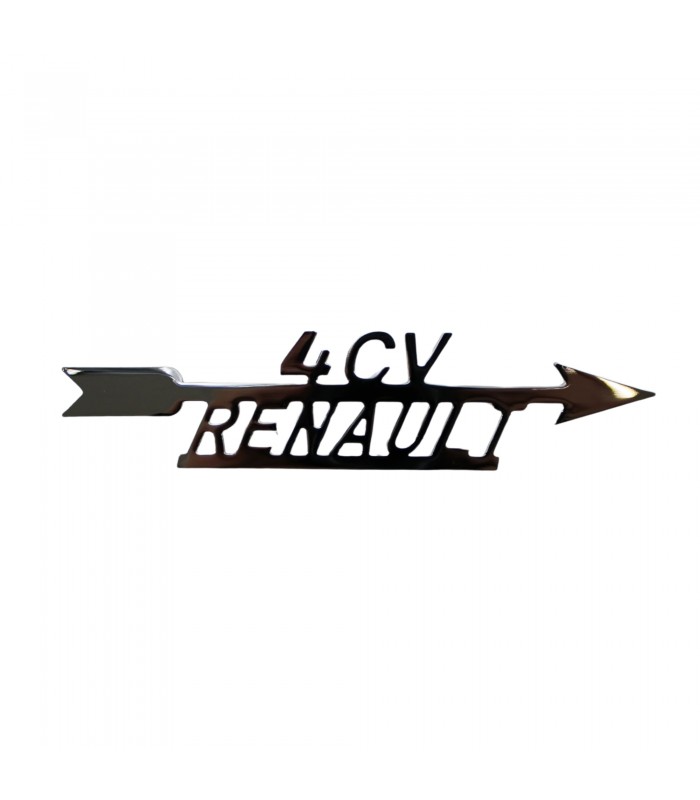

"4CV Renault" logo with arrow to the right - Front or rear hood (chrome steel)
Reference:
19001

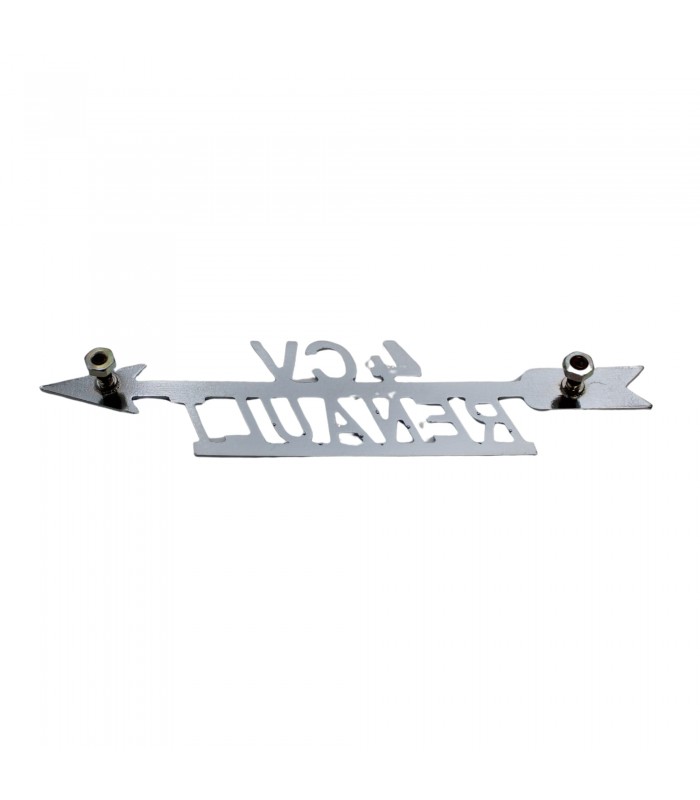

- Fixed with two threaded studs with M5 nuts
- Fixing center distance: 90mm
- Overall length: 120mm
€26.00
(tax incl.)
Order before 1pm and enjoy same day shipping !
You may also like
Monogram mounting centers:
- Between the letters R and T: 145mm
- Between the letters R and A: 62mm
- Between the letters A and T: 51mm
In stock
Customers who bought this product also bought:
In stock
In stock
In stock
![](http://pinterest.com/pin/create/button/?url=https%3A%2F%2Fwww.arnaudventouxpieces.com%2Fen%2Fsigle-4cv-renault-avec-fleche-a-droite-capot-avant-ou-arriere-acier-chrome-4295.html&description="4CV Renault" logo with arrow to the right - Front or rear hood (chrome steel)&media=https://www.arnaudventouxpieces.com/10714-large_default/sigle-4cv-renault-avec-fleche-a-droite-capot-avant-ou-arriere-acier-chrome.jpg){kind=link}
- Headlight Bulb
- 3-pin base / European code
- Dimensions: 40X82mm
- Part Number: 0854153900 / 7701348006
Due to the wide variety of bulb types used, please check compatibility with your vehicle.
In stock
The sets are supplied with the following components:
- Liners (x4)
- Pistons (x4)
- Rings (x12)
- Pin (x4)
- Circle clips (x8)
Dimensions of the various parts:
-
- Liner bore diameter: Ø 54.5mm
- Liner flange or top diameter (D): Ø 72.77mm
- Liner base diameter (A): Ø 62.50mm
- Overall height including skirts of the sleeves (C): 122mm
- Height from the top of the sleeve to the base gasket area (E): 111.25mm
- Shaft dimensions: Ø 14x46mm (Cirlip-free mounting)
- Segment thickness: 2mm / 2mm / 3mm (Fireproof/Sealing/Scraper)
- Base gasket type: Copper gasket
Caution:The sleeves and Modern pistons are equipped with a shorter skirt. Installing modern cylinder liners and pistons to replace the original kits requires no modifications.
A shorter skirt promotes better lubrication and allows for an increased crankshaft stroke to prevent the skirt from contacting the connecting rod.
Piston installation direction: An arrow drawn perpendicular to the piston axis is marked on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram). It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values given by the manufacturer or in the supplied instructions. During installation, the ring end gap must be evenly distributed around the piston circumference at 120° intervals.
In stock
- The hose outlet is oblique: Ø 3/8" - 24UNF(Ø 9.52mm)
Suitable for:
- 4CV: Front Left Brake (From early 1956 to late 1956)
- Dauphine / Floride : Front Right Brake
- R8 (Drum Brake): Rear Right Brake
In stock
