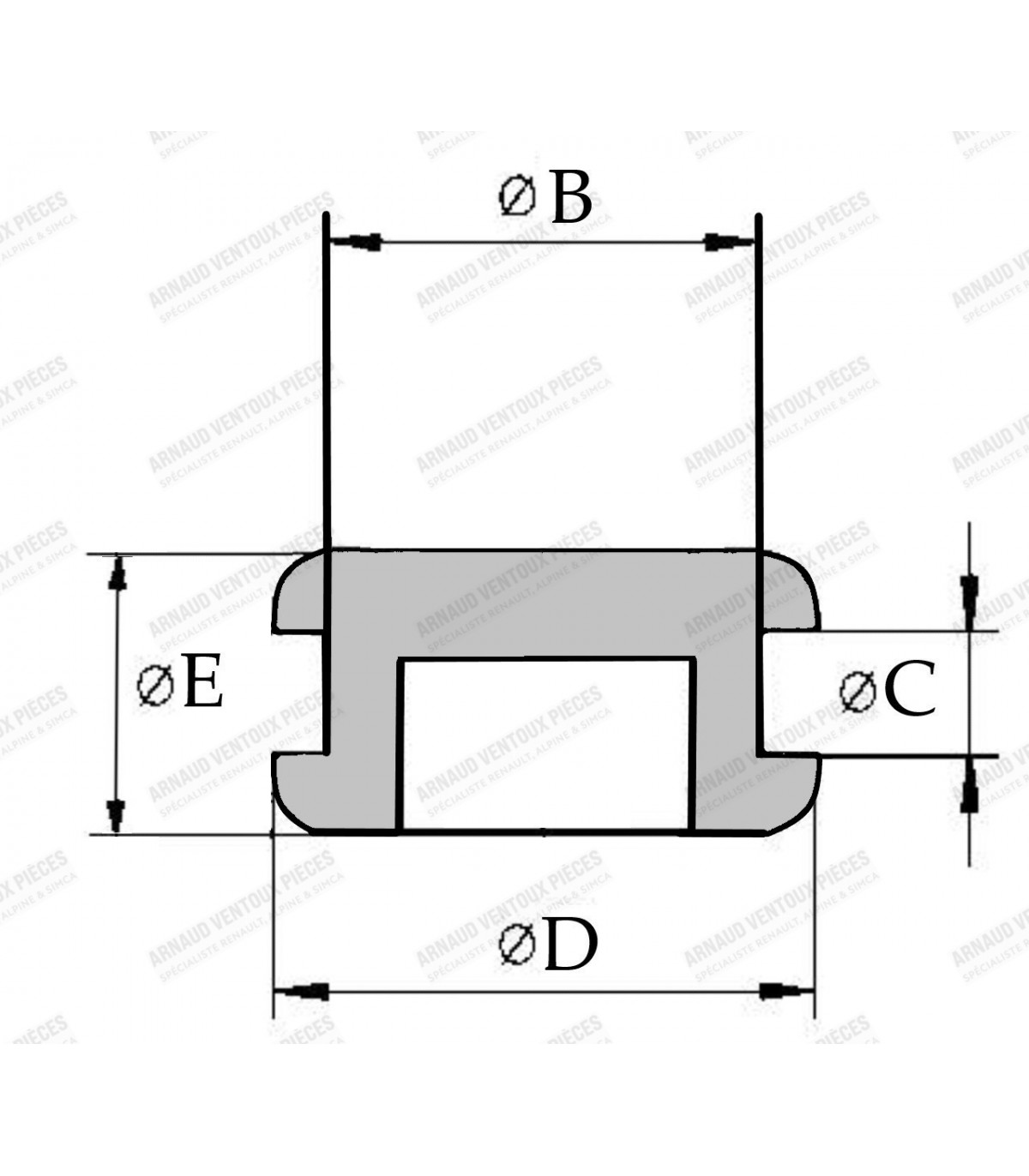

Shutter - B 17 x C 1 x D 25 x E 9

• For mounting a temperature probe M22x150

Flexor Specifications:

• • Mounting hole spacing:4 x 50.50 mm
  • Mounting hole diameter: Ø 8.4 mm
  • Center hole diameter:Ø 10.50 mm
  • Flexor thickness: 11 mm
  • Material:Rubber flexor with metal reinforcement
  • Supplied with 4 x M8 x 20 mm screws and 4 x nylock nuts

For some assemblies with a center screw, replacing this screw with a socket head cap screw (SHCS) or modifying the flexor may be necessary.

Ref Renault: 7903053215 / 6000002007

Ref Simca: 23168Z

• Clevis Gap: 6mm
• Throat Length: 24mm

• Reinforced version of the original master cylinder bracket

R8 and R16: Insert in the rear longitudinal members for fixing the rear bumper supports
