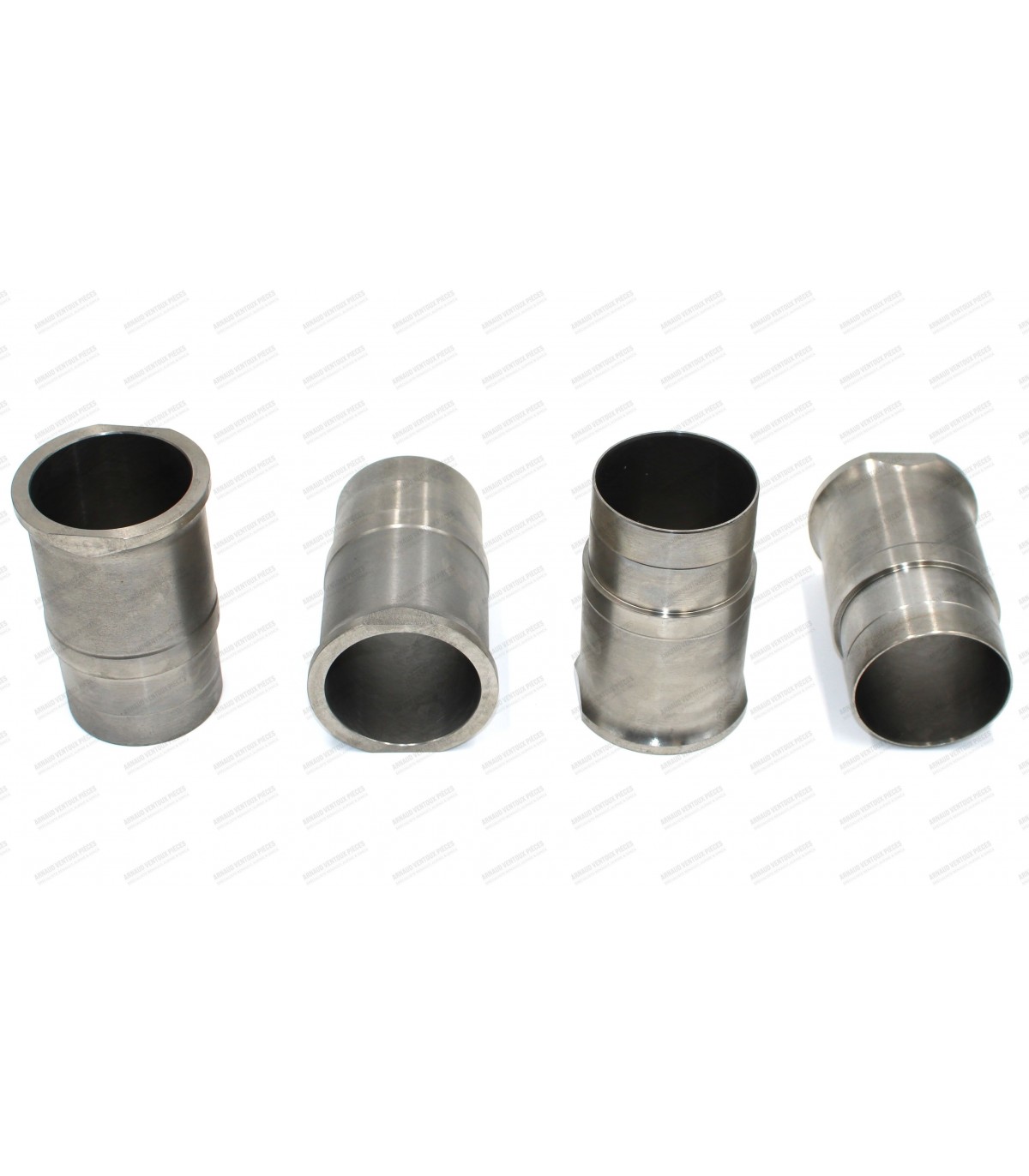

Set of 4 bare liners in "GL Cast Iron" (Standard) - Ø 77.8mm (1596cm³ Engine)
Reference:
6091
Sheets (x4)

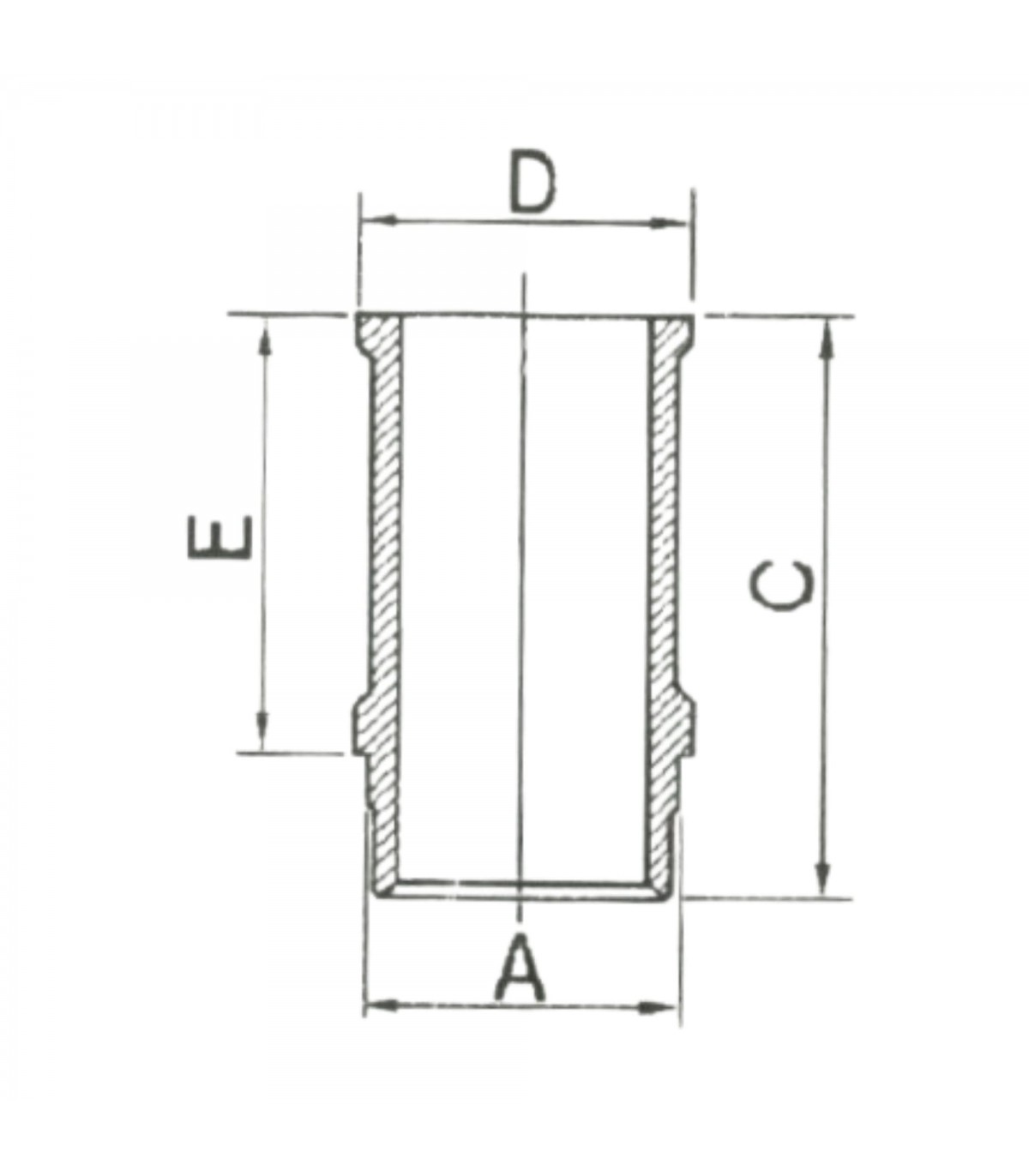

Sheet Dimensions:
-
- Sheet Bore Diameter: Ø 77.8mm
- Sheet Flange or Top Diameter (D): Ø 96mm
- Sheet Base Diameter (A): Ø 82.50mm
- Sheet Height (including skirts, overall) (C): 143.50mm
- Sheet Height to Base Seals (E): 92.50mm
- Base gasket type: Paper gasket
€250.00
(tax incl.)
Order before 1pm and enjoy same day shipping !
