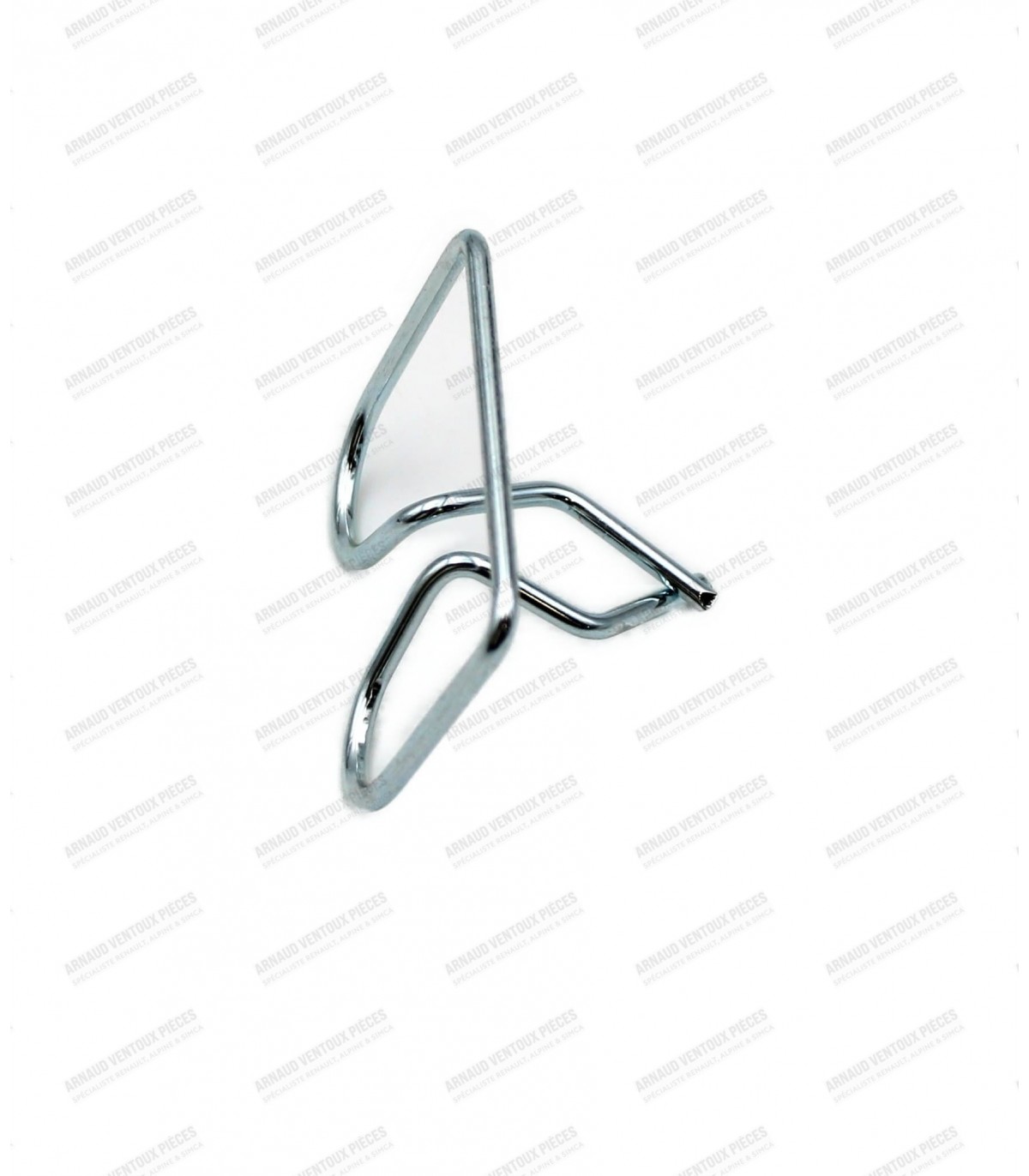

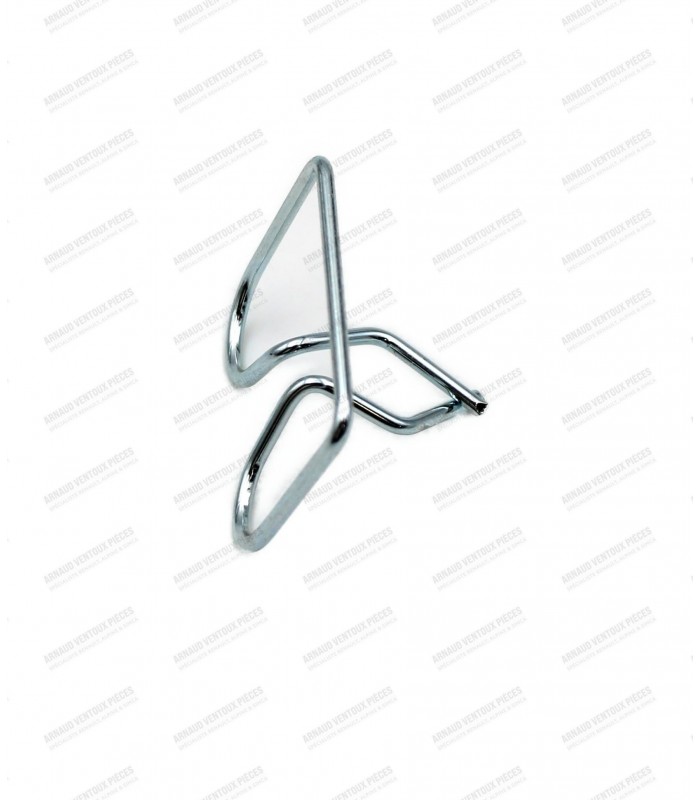

Rocker panel clip - R4 / 4L - Ref 0854657600
- Sold individually
- Width: 28mm
- Length: 39mm
- Height: 25mm
Suitable for:
R4 (R1120) from start to No. 954000
R4 (R1123) from start to No. 627131
R4 (R2106) from start to #24876
Kit specifications (Tie rods / Ball joints and boots):
- Ball joint taper diameter (Steering knuckle side): Top of taper Ø 11mm / Bottom of taper Ø 12mm
- Ball joint taper stud thread diameter: M10 x 1.25 (right-hand thread)
- Ball joint stud thread diameter (into tie rod): M14 x 1.50 (right-hand thread)
- Tie rod thread diameter (into steering rack): M12 x 1.00 (right-hand thread)
- Minimum length of tie rod/ball joint assembly: 26 cm (measured from the contact point against the steering rack to the center of the ball joint stud on the steering knuckle side)
- Maximum adjustment of the tie rod/ball joint assembly: 29 cm (measured from the contact point against the steering rack to the center of the ball joint at the steering knuckle end)
- Includes: 2 steering rack boots, 2 steering ball joints (with nuts and locknuts), and 2 steering tie rods.
Suitable for:
- R8 (All models)
- Caravelle / Floride S
- A110 (All models) / Alpine GT4
- Matradjet
This adjustable steering kit replaces the original "fork-type" steering tie rods.
To install the adjustable tie rods, you must remove the steering rack eyelet bushing and replace the steering rack boots with the specific AVP4620 boots (included in the kit).
Segment Characteristics:
-
- Segment Diameter: Ø 54.50 mm
- Thickness of Upper Segments (Fire-resistant): 2 mm
- Thickness of Intermediate Segments (Waterproof):2mm
- Low ring thickness (Scraper): 3.5mm
It is essential to check the ring end gap of each ring before installing them on the pistons, according to the values given by the manufacturer or in the supplied instructions.or the values provided in the instruction manual.
During installation, the ring end gap must be evenly distributed around the piston circumference at 120°.
