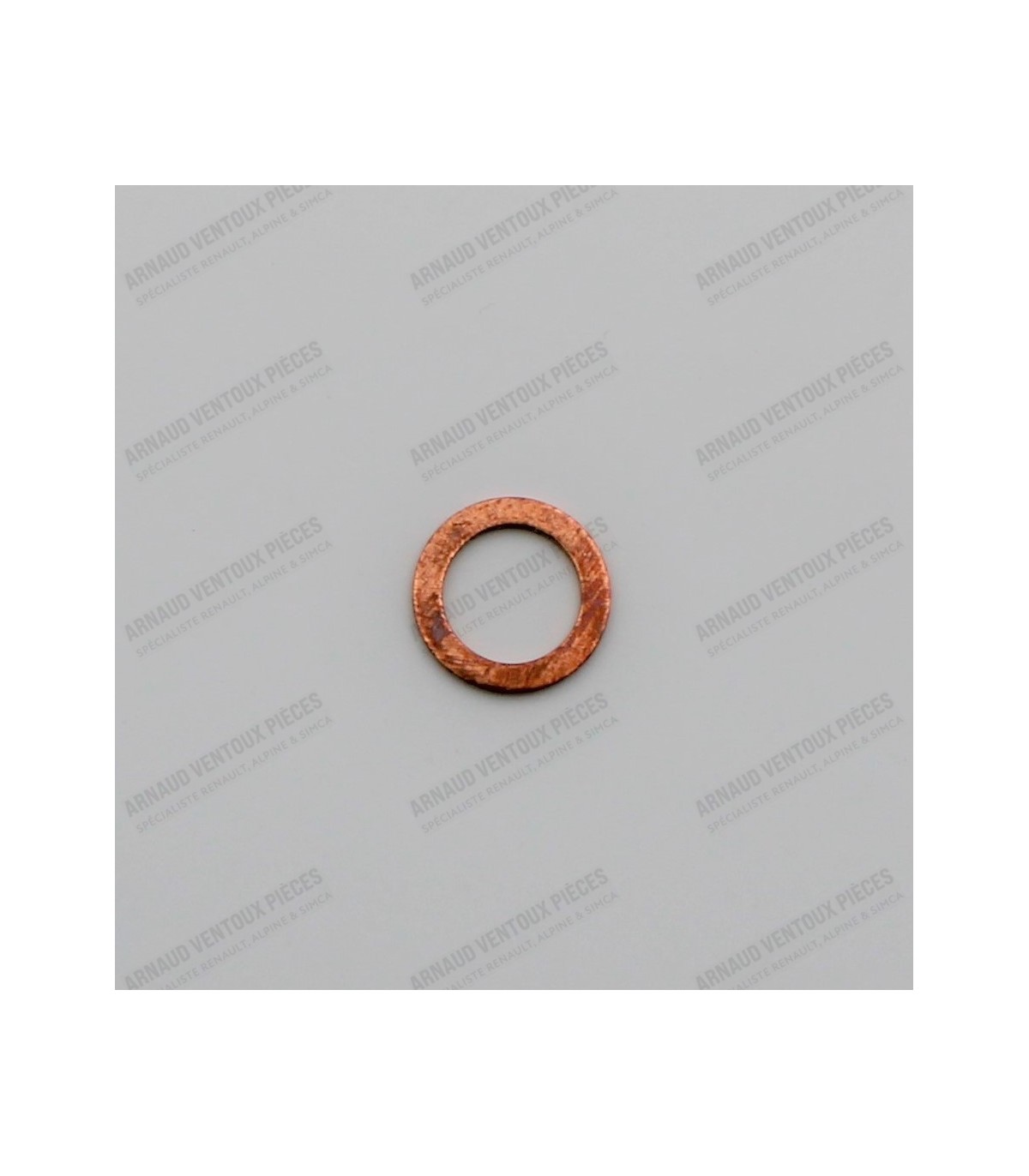

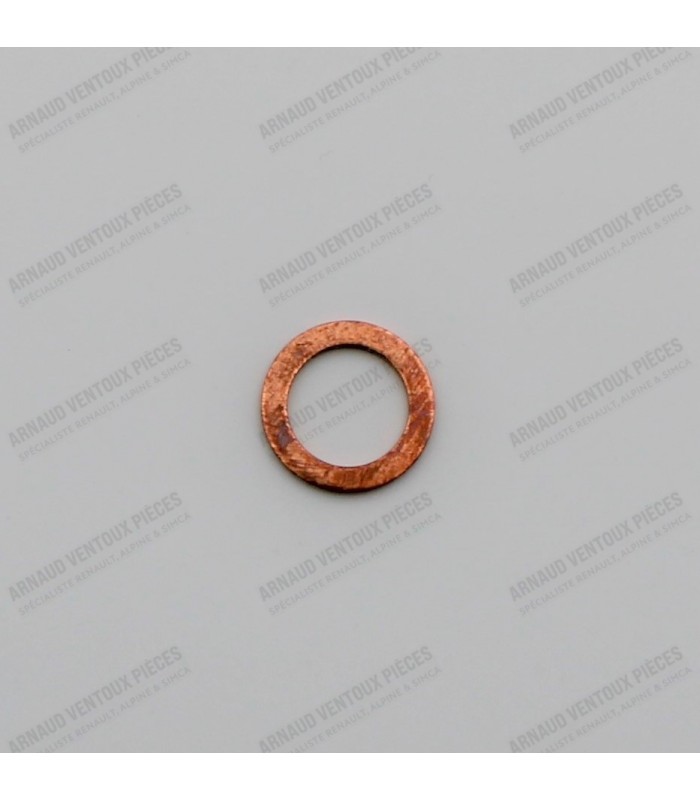

Rocker arm shaft screw copper washer - Ref 7033142

Mounts with the stop switch reference 4423

Suitable for engines:

• Engine Type 662: 4CV / Juvaquatre / A106
• Engine Ventoux Type 670-1 / 670-04: Dauphine (Except R1093 / R1094 and Gordini R1095) / Estafette / Floride (R1092) / A108

Valve sold individually

Neoprene-type contact adhesive in spray form, extra-strong. It adheres to many materials such as leather, fabrics, plastic, woodwork, etc. Allows simple, rapid, precise, and durable bonding of materials. Applies as a transparent film.

Packaged in an aerosol can with a multidirectional nozzle, it allows for fine, medium, and wide sprays, making it possible to spray all surfaces.

Application:

• Glue from a distance of 20-25 cm on previously degreased surfaces.
• Wait approximately 2 minutes before bringing the two surfaces into contact.
• Press the parts briefly and firmly after joining.

Technical specifications:

• Brand: Restom
• Model: NéoSpray Glue
• Capacity: 400ml
• Coverage: approximately 5 m²
• Resists up to 80°C continuously and 100°C peaks

Shipping possible only in mainland France

Sheets (x4)

Sheet Dimensions:

• Sheet Bore Diameter: Ø 59.95mm
• Sheet Flange or Top Diameter (D): Ø 72.75mm
• Sheet Base Diameter (A): Ø 62.40mm
• Sheet Height (including skirts, overall) (C): 121mm
• Sheet Height to Base Seals (E): 112mm
• Base gasket type: Copper gasket

Suitable for vehicles:

• 4CV / Juvaquatre: Type 662 Engine (From June 1956)
• Dauphine / Dauphinoise / Estafette / Floride A106 / A108: Type 670 Engine
• R4: Billancourt Type 800-02/05 Engine (From 1962)

Bearing Dimensions:

• Dimension: Repair Dimension (+0.50)
• Crankpin Diameter (A): Ø 37.50mm
• Housing Diameter (B): Ø 41.14mm
• Bearing Width (C): 21.18mm
• Bearing Thickness (D): 1.82mm
• Smooth, lug-type bearings with no grease holes or grooves
• Bearing Material: Bimetal
